ISUZU GIGA 10 Wheelers 32 CBM Dry Bulk Tank Truck

BRIEF

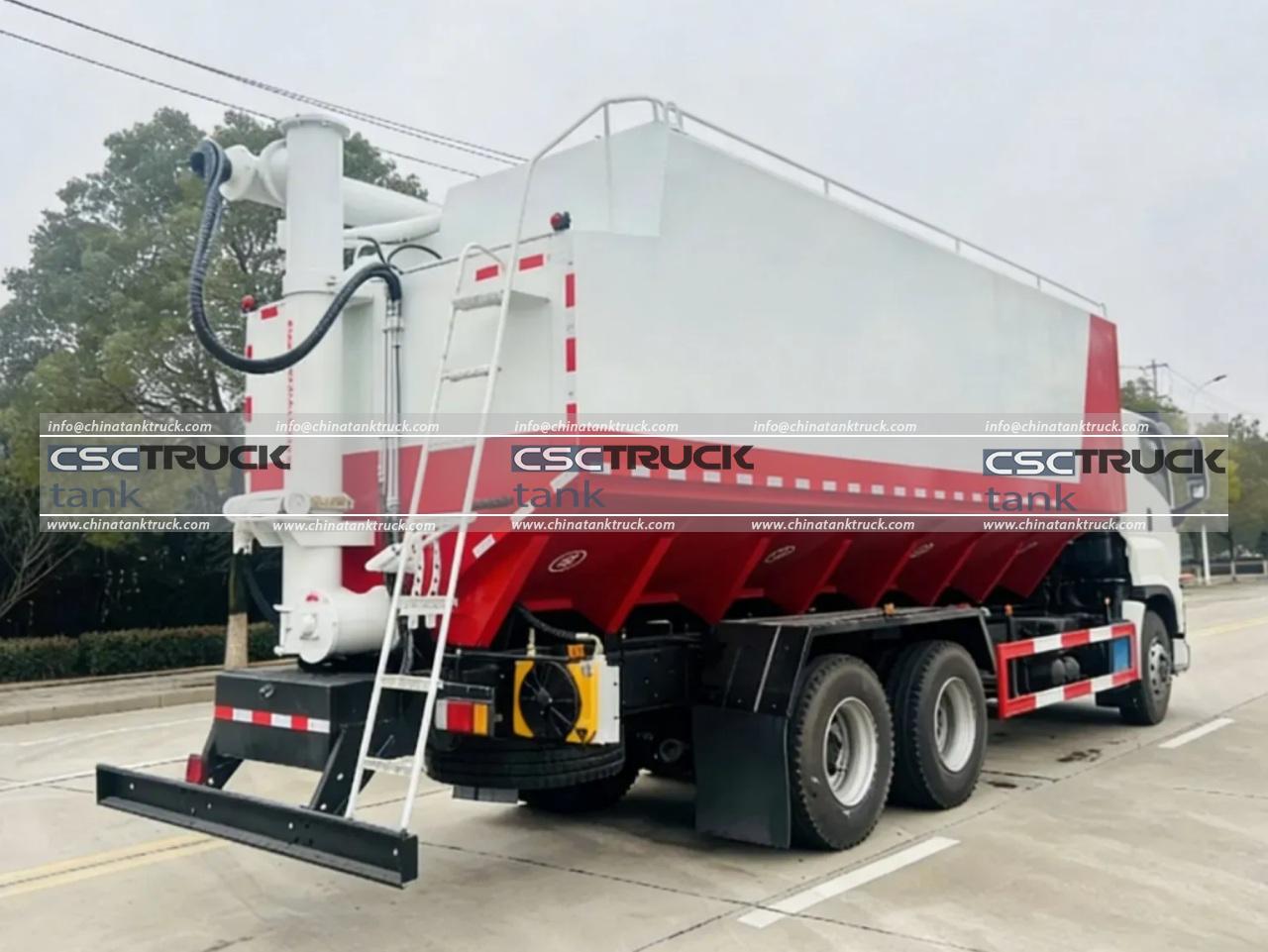

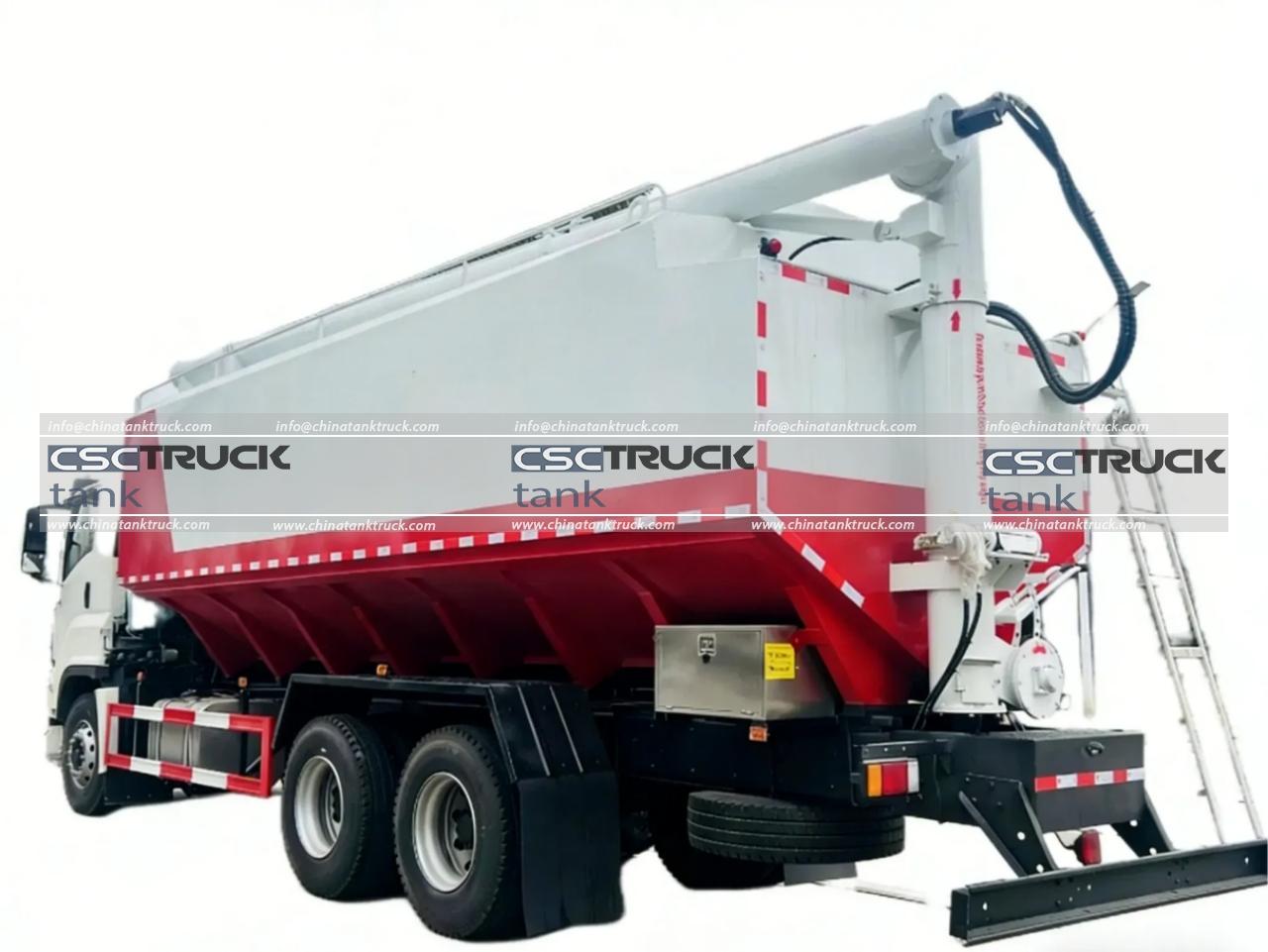

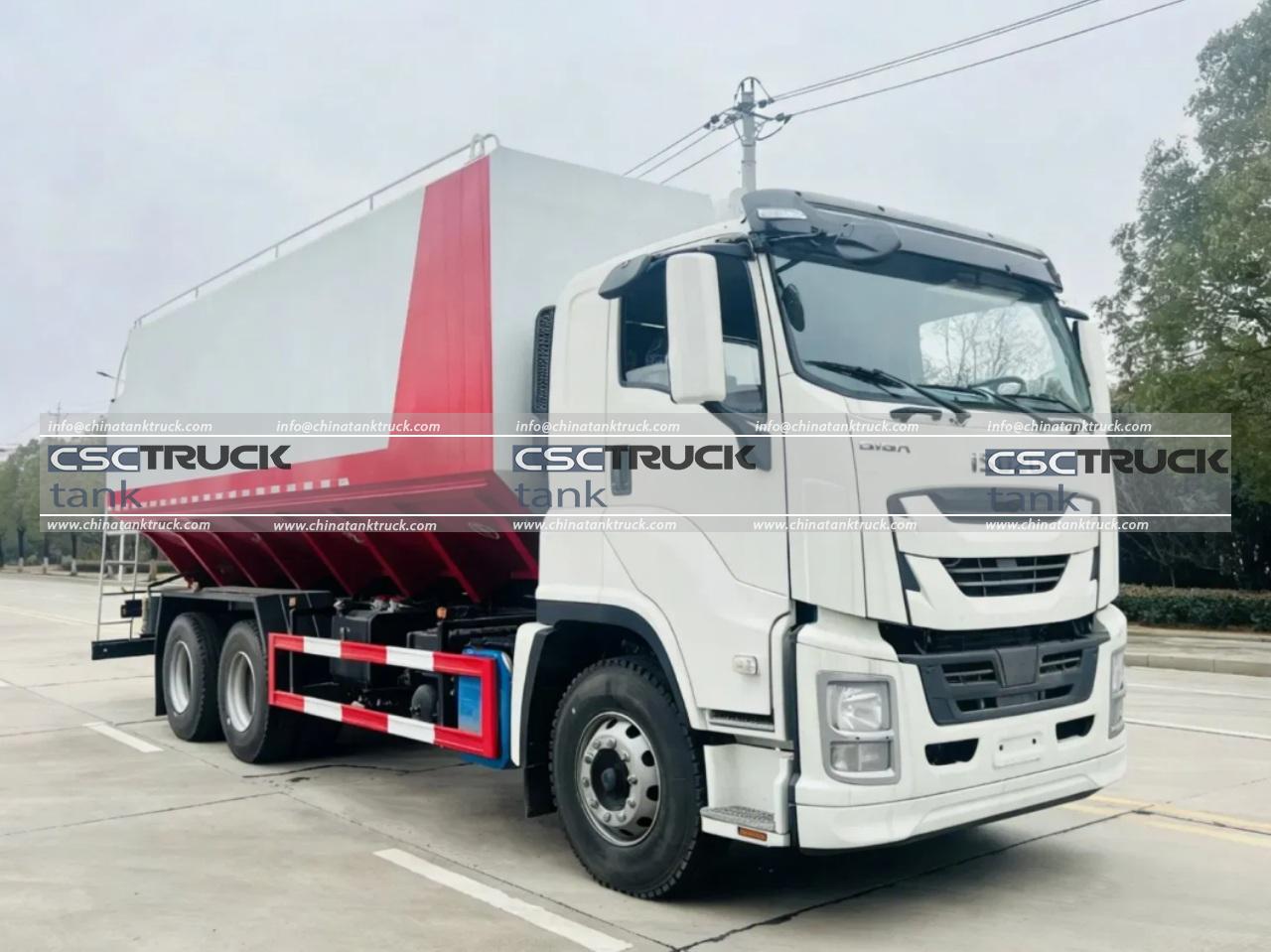

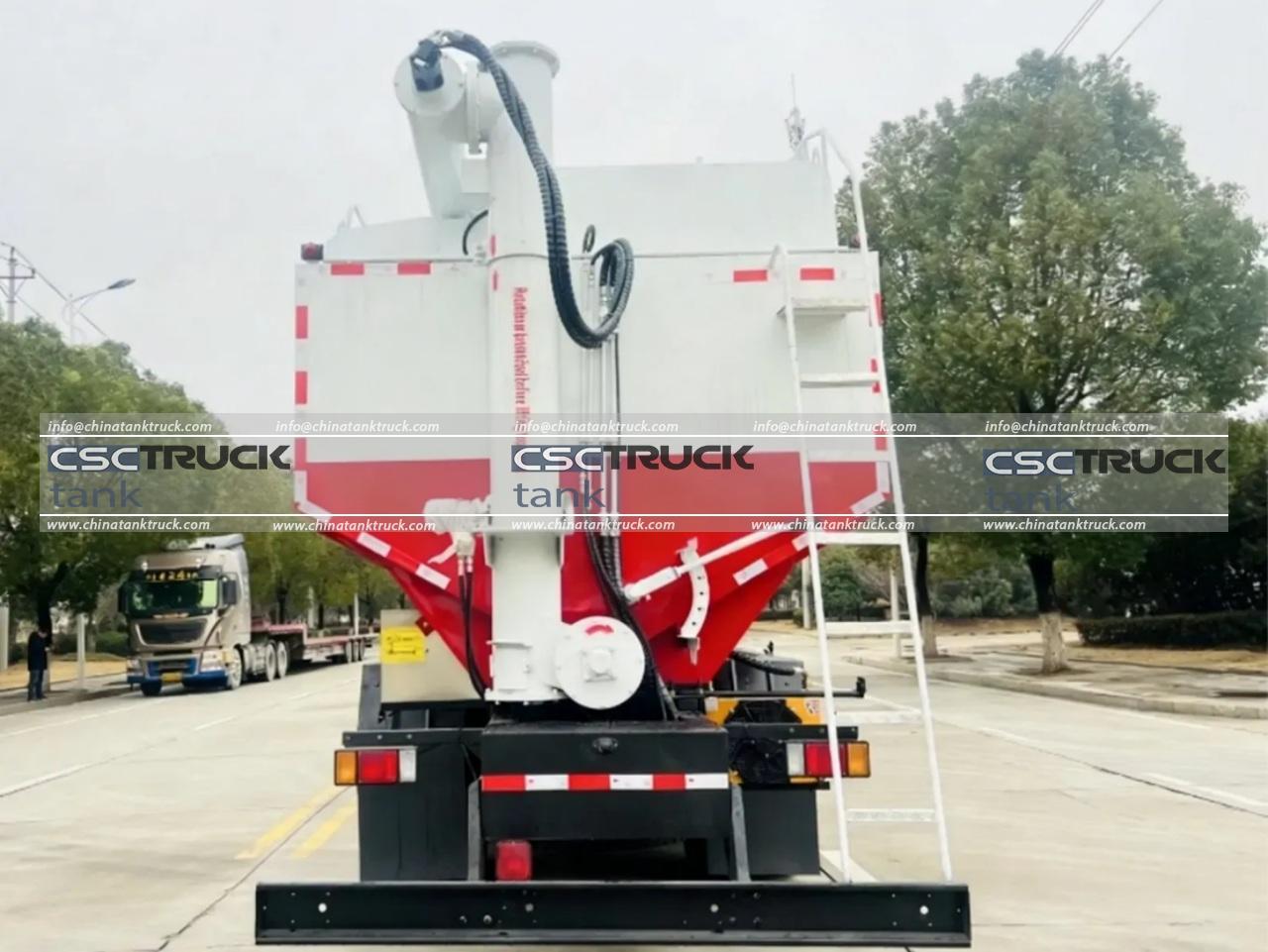

The ISUZU GIGA 10 Wheelers 32 CBM dry bulk tank truck produced by CSCTRUCK China Tank Truck is a heavy-duty bulk powder transport vehicle engineered for efficient delivery of dry materials such as cement, lime powder, fly ash, grain powder, and other pneumatic bulk commodities. Designed for industrial logistics and construction material transportation, this truck combines strong payload capacity, reliable performance, and practical unloading technology to meet demanding operational needs. With a 32 cubic meter tank volume, it offers ample carrying capacity for medium to large-scale transport tasks while maintaining dependable road performance.

Built on the robust ISUZU GIGA 10 Wheelers chassis platform, the truck measures 9,000 x 2,450 x 3,800 mm, providing a balanced structure for stability and maneuverability. Its 4,350 + 1,300 mm wheelbase enhances load distribution and driving comfort, while the 25,000 kg gross vehicle weight ensures substantial carrying capability. With a 15,000 kg curb weight, the chassis is optimized for durability and payload efficiency.

Power comes from the dependable ChaoChai CY4BK151 turbo-diesel engine. This 4-cylinder, 4-stroke, water-cooled direct injection engine delivers 155 kW minimum output, supported by a 6,700 ml displacement. Available in EURO 3 to EURO 5 emission standards, the vehicle can be configured for different export markets and regulatory requirements. A manual transmission with 5 forward gears and 1 reverse gear ensures straightforward operation and dependable torque delivery.

The tank body is constructed from 4 mm high-quality titanium steel plate, offering strength, corrosion resistance, and long service life. Internally, the tank is divided into 3 separate compartments, allowing transport of different dry materials simultaneously. The discharge system supports a maximum horizontal distance of 6.1 meters and vertical distance of 8 meters, making unloading convenient at silos and storage points. With an average discharge rate of 400–500 kg/min, productivity remains high. The discharge arm rotates ±180 degrees with a 60-degree elevation angle, while electric screw unloading comes standard and hydraulic screw unloading is available as an option.

FEATURES

1. High-Capacity 32 CBM Tank Body
   The ISUZU GIGA 10 Wheelers dry bulk tank truck features a spacious 32 cubic meter tank, making it ideal for transporting large volumes of cement, fly ash, lime powder, grain powder, and other dry bulk materials efficiently.
2. Durable ISUZU GIGA Heavy-Duty Chassis
   Built on the reliable ISUZU GIGA 10 Wheelers platform, the truck offers strong load-bearing capability, excellent road stability, and dependable performance for industrial and construction logistics operations.
3. Efficient Turbo-Diesel Engine Performance
   Powered by the ChaoChai CY4BK151 turbo-diesel engine, this truck delivers a minimum of 155 kW output with 6,700 ml displacement, ensuring powerful performance, fuel efficiency, and consistent operation under demanding transport conditions.
4. Advanced Pneumatic Unloading System
   The truck is equipped with a practical unloading system capable of 400–500 kg/min discharge speed, with a rotating discharge arm of ±180 degrees and 60-degree lifting angle for flexible and fast unloading at silos or storage facilities.
5. Multi-Compartment Tank Design
   Its tank body is internally divided into 3 separate compartments, allowing operators to transport different powdered materials simultaneously, improving logistics efficiency and reducing delivery costs.
