BRIEF

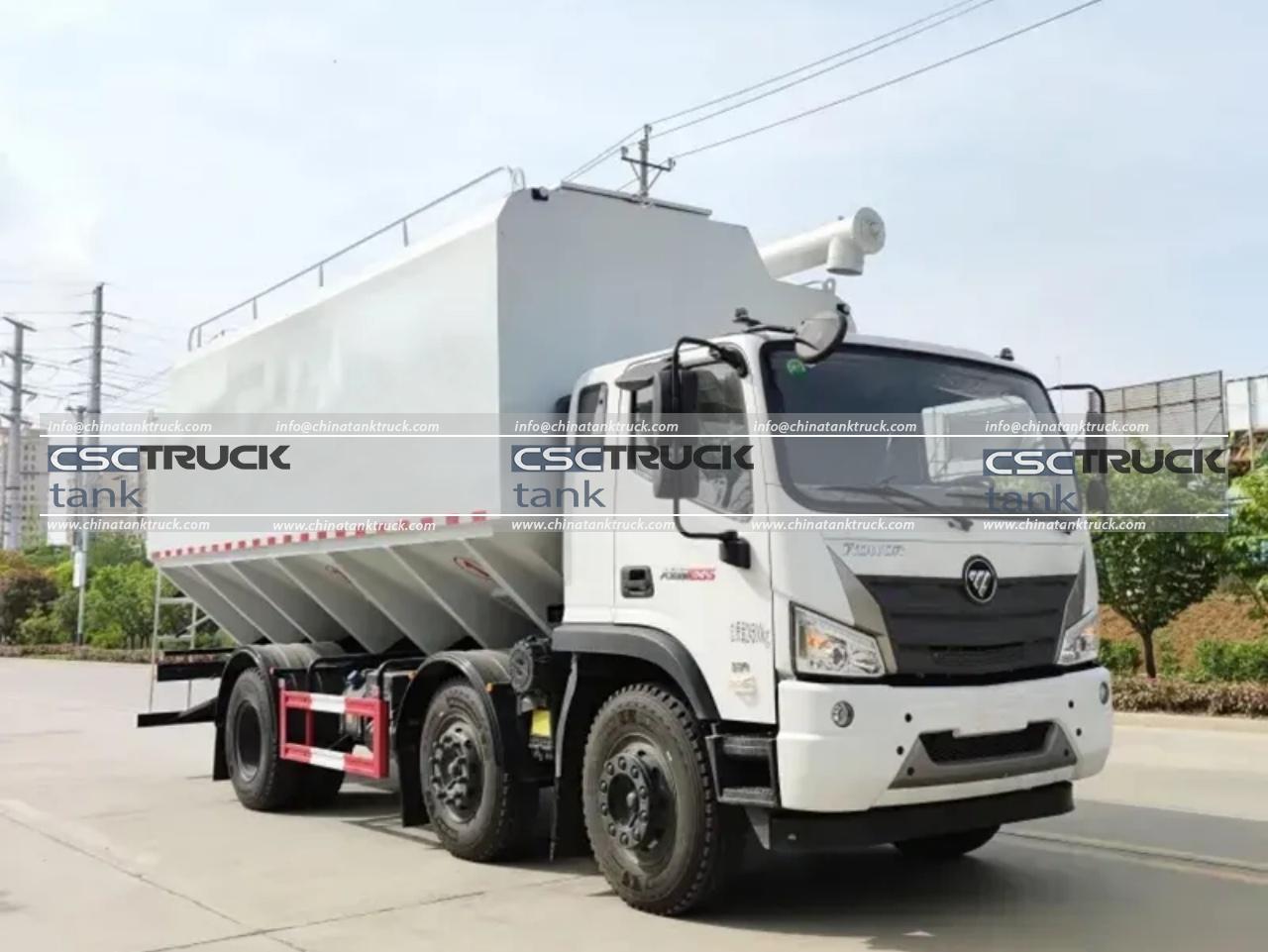

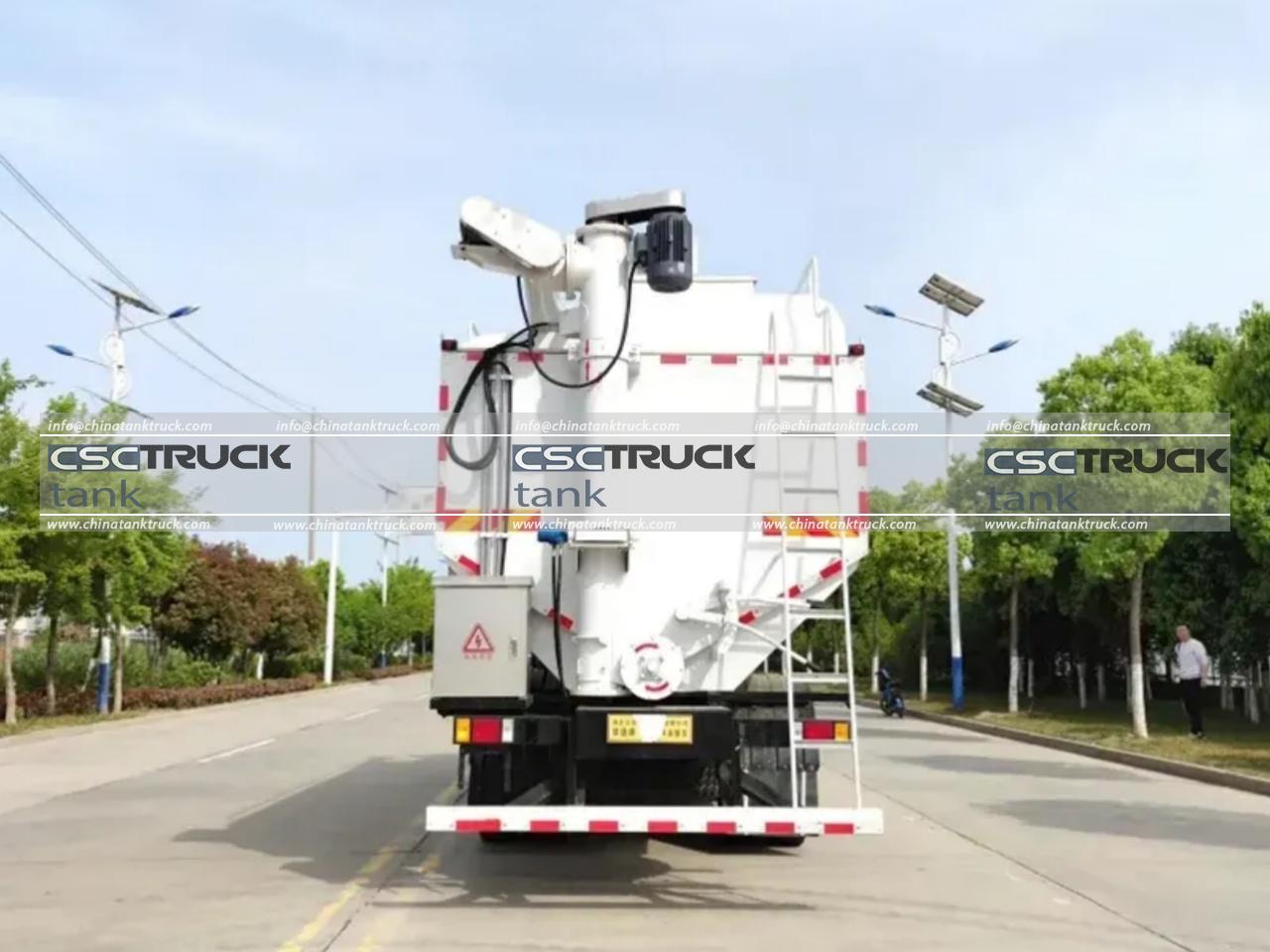

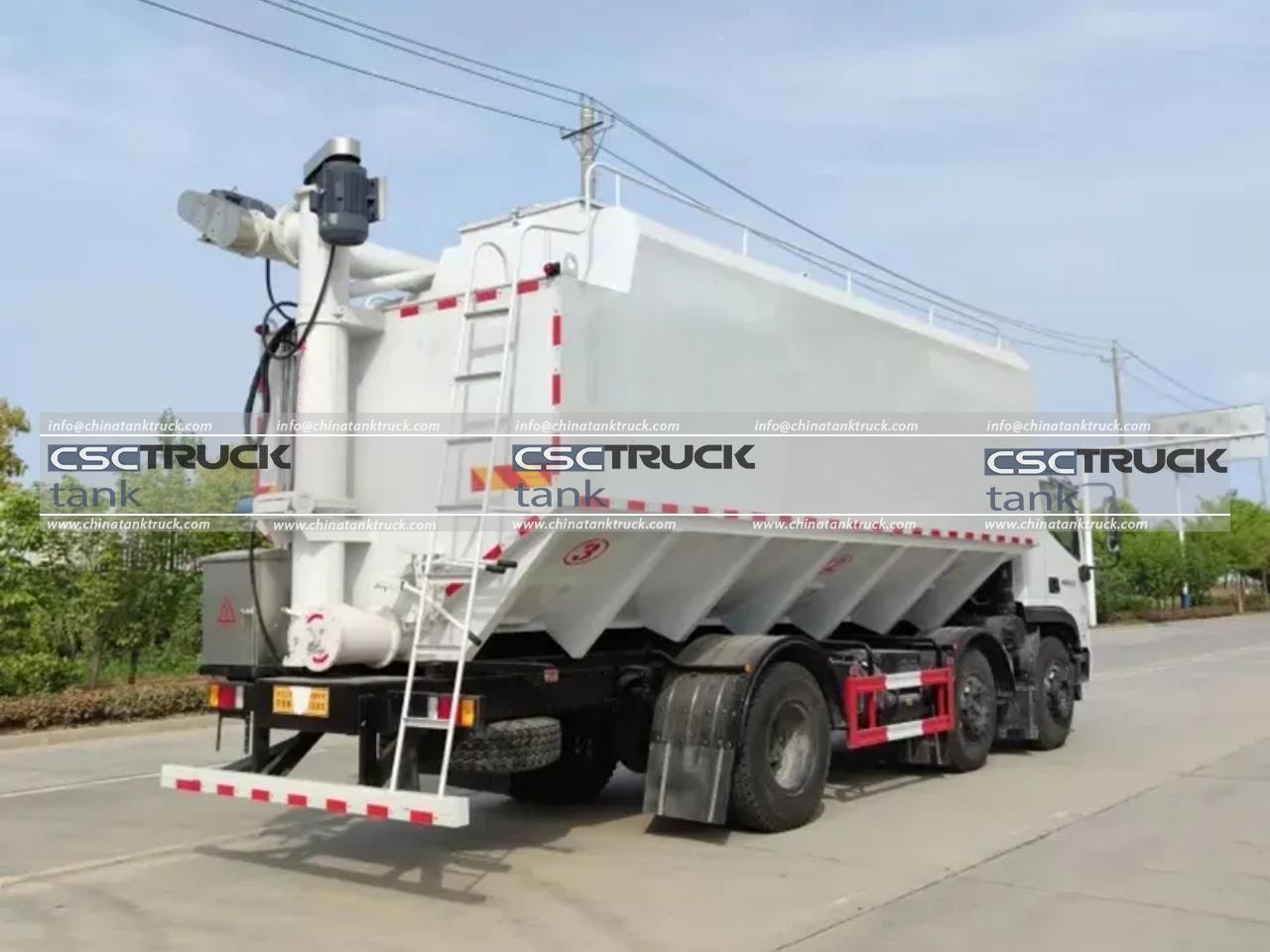

The Foton 30 CBM dry bulk tank truck (Model No. CSCDBTT030) is a specialized bulk feed transport vehicle produced by CSCTRUCK China Tank Truck, under the Beiqi Foton Motor Co., Ltd brand. Designed to efficiently deliver bulk feed to farms and feedmills, this truck combines robust construction with advanced features for optimal performance.
Key specifications include a gross weight of 25,000 kg and a tanker volume of 30 m³, providing ample capacity for bulk feed transportation. The truck’s overall dimensions are 10,000 mm (L) x 2,550 mm (W) x 3,850 mm (H), and it features a curb weight of 10,900 kg. Its wheelbase spans 1,995 + 3,950 mm, with axle loading of 7,000/7,000/1,100 kg, ensuring stability and durability under heavy loads. The engine is a Dongfeng Cummins F4.5NS5B260, with a displacement of 6.7L and power output of 191 kW, ensuring a maximum speed of 89 km/h.
The Foton 30 CBM dry bulk tank truck‘s design incorporates a 3-compartment tank (divisible into 2 to 4 sections), suitable for transporting different types of feed. This ensures flexibility in its application, whether for different feed types or various farm operations. The screw auger system for unloading is powered by either 3-phase electrical power or the truck’s generator, making it versatile for both locations with and without direct electrical supply.
Additional features include an electric PTO system that eliminates the need for external power connections, allowing for self-loading and unloading. This not only reduces reliance on industrial electricity but also lowers operational costs. By avoiding feed contamination and reducing feed loss, the truck ensures better feed quality management and enhances overall feed logistics efficiency.
In summary, the Foton 30 CBM dry bulk tank truck is a reliable, cost-effective solution for bulk feed transportation, offering advantages such as labor cost savings, increased efficiency, and improved feed quality control.
FEATURES
- High-Capacity Tank: The truck features a 30 m³ bulk feed tank with the flexibility to divide it into 2 to 4 sections. This design allows for the transportation of various feed types, making it versatile for different farm and feedmill operations.
- Advanced Unloading System: The truck is equipped with a screw auger unloading system, which can be powered by either a 3-phase electrical supply or the truck’s generator. This ensures versatility in locations with and without access to industrial electricity.
- Electric PTO for Self-Loading and Unloading: The electric PTO system enables self-loading and unloading without the need for external power connections. This not only reduces the dependency on electricity but also cuts operational costs.
- Robust Construction for Stability: With a gross weight of 25,000 kg and a wheelbase of 1,995 + 3,950 mm, the truck is designed to provide stability under heavy loads, ensuring durability and safe transportation even in challenging conditions.
- Efficient Power System: Powered by a Dongfeng Cummins F4.5NS5B260 engine with 191 kW of power and a 6.7L displacement, the truck can reach a maximum speed of 89 km/h, ensuring efficient transportation while maintaining good fuel efficiency.
SPECIFICATION
| Model No. | CSCDBTT030 | Truck model | Bulk feed truck |
| Gross weight | 25,000kg | Tanker volume | 30m³ |
| Rated weight | 13,905kg | Overall dimensions(LxWxH) | 10,000×2,550×3,850mm |
| Curb weight | 10,900kg | Body dimension | × × |
| Cabin seat | 3 | ||
| A/D angle | 18/11 | F/R overhang | 1,400/2,415mm |
| Axles | 3 | Wheel base | 1,995+3,950mm |
| Axles loading | 7,000/7,000/1,100kg | Max speed | 89km/h |
| Tanker Dimension | 7,500×2,500×2,000(length ×width×height )(mm). | ||
| Chassis model | BJ1250FX | ||
| Brand Name | Foton | Manufacturer | Beiqi Foton Motor Co., Ltd |
| Overall dimensions(LxWxH) | 10,000×2,550×3,850 | Tyre quantity | 8+1Spare |
| A/D angle | 18/11 | Tyre size | 11.00R20 18PR |
| Leaf spring quantity | 3/3/4+3 | Front track | 1,915/1,915mm |
| Fuel type | Diesel | Rear track | 1,930mm |
| Standard | Euro III | ||
| Engine model | Manufacturer | Displacement | Power |
| F4.5NS5B260 | Dongfeng Cummins Engine Co.,Ltd | 6,700ml | 191kW |
| Equipment | 1. Electrical Auger Bulk Feed Truck adopt truck chassis, suitable for different breeding farms and feedmills. 2. Adopt screw auger to discharge, use three phase power or power of generator drived by truck, so can satisfy customers with or without three phase power at work site. 3. The tank can be divided into 2 to 4 compartments for different kinds of feed. With simple structure, it is easy to control and maintenance. 4. Use PTO and generator to make electrical power, offer optimal performance and price ratio. Loading and Unloading by itself, don’t need to connect the Industrial electric power. |
||
| Advantages | -Successfully saving feed packing cost and labor cost compared with bagged feed transportation. -Easy to supply feed at certain time and certain place, convenient to manage. Continuous operation increases work efficiency. -Deliver feed in hermetic tank, can avoid feed pollution, assure feed quality, and reduce feed loss. |
||
