BRIEF

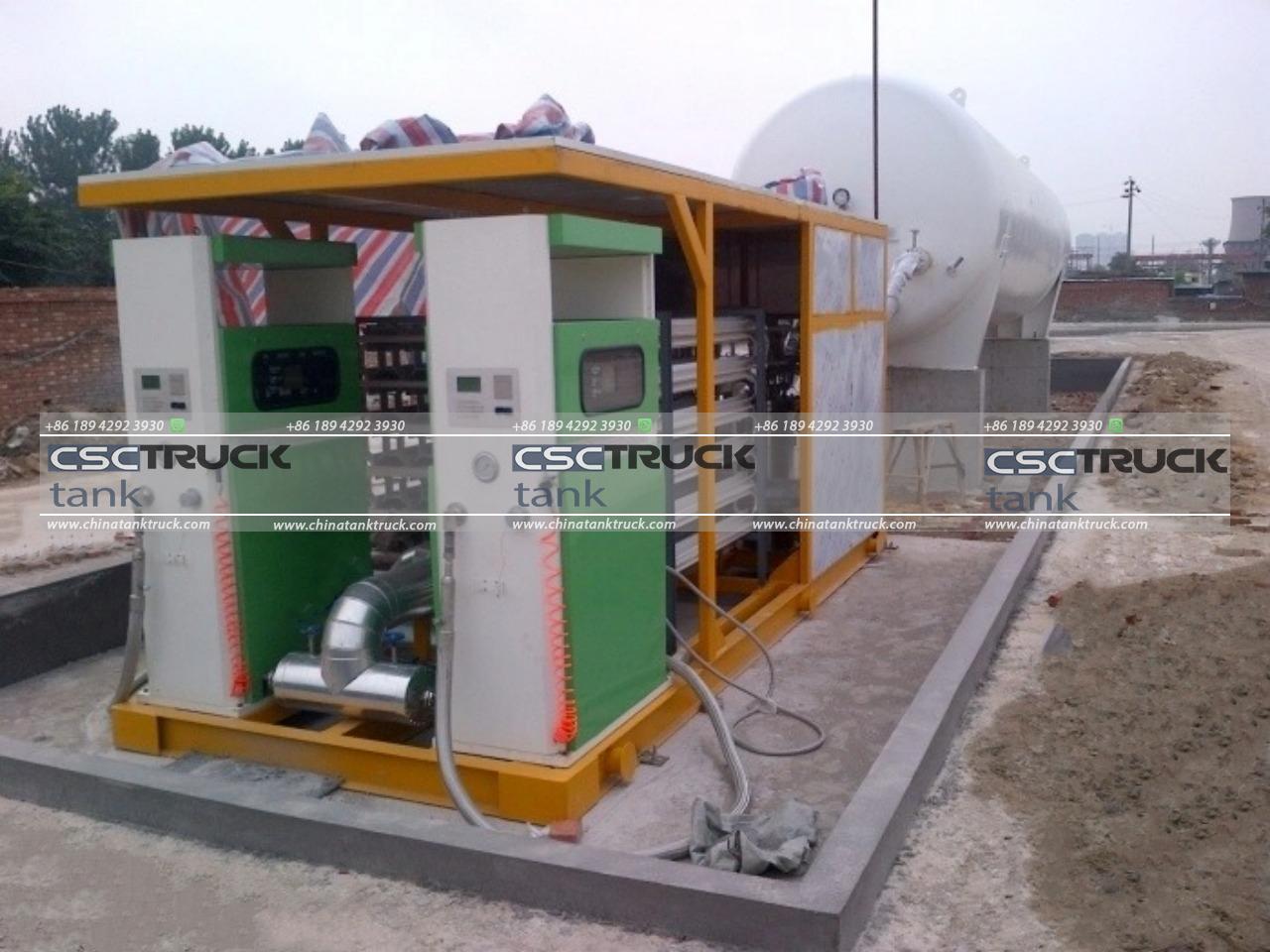

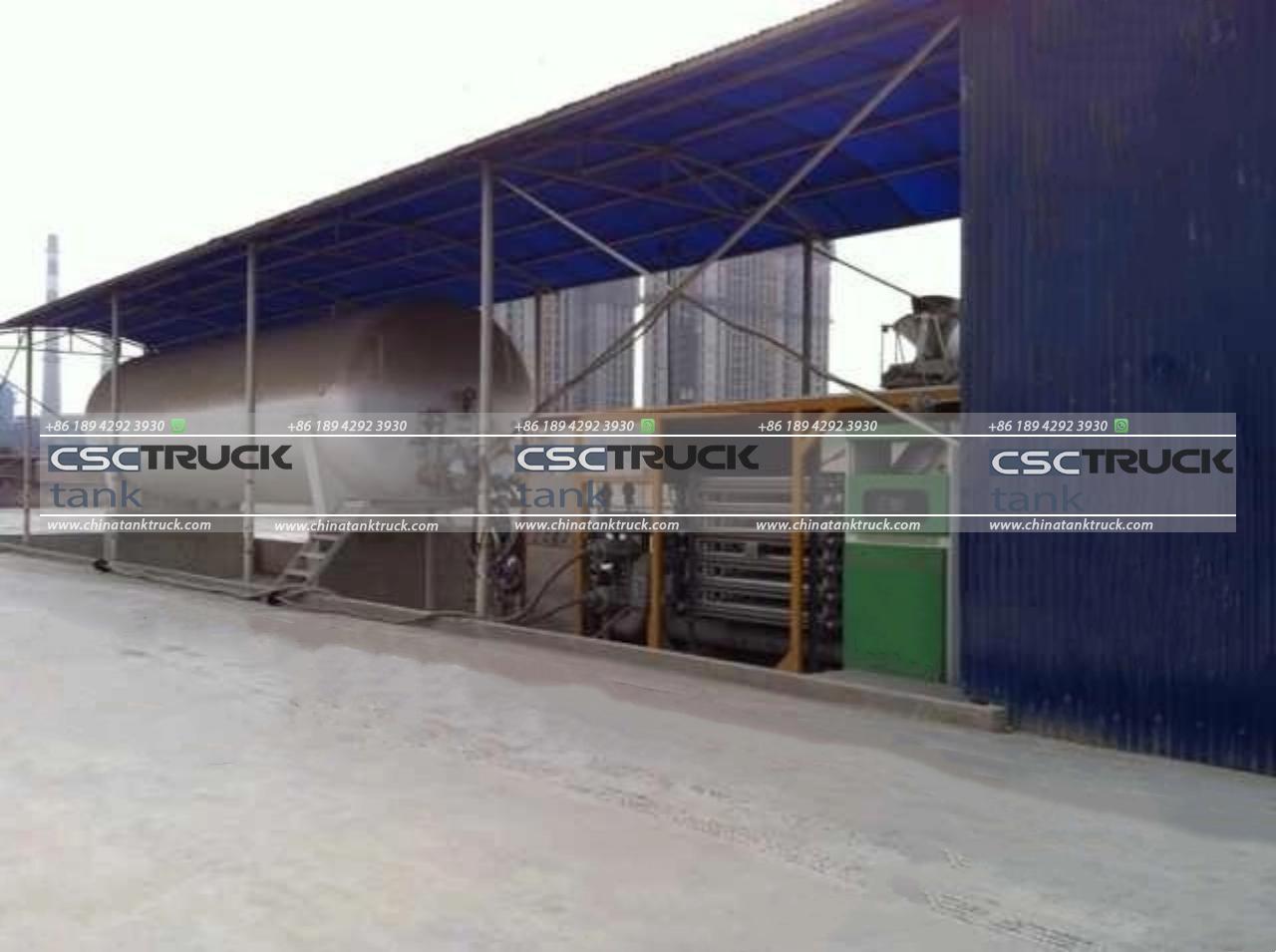

The 60 CBM skid-mounted LNG filling station, manufactured by CSCTRUCK China Tank Truck, is a high-performance solution for liquefied natural gas (LNG) refueling. It features a 60 cubic meter tank volume, enabling substantial storage capacity for LNG. The station is equipped with a 340 L/min submersible pump operating at 220 meters, ensuring efficient fuel transfer.
To support operations, the system includes an 80-liter vacuum pump pool, rated at 1.6 MPa, and a robust pipeline valve with specifications of 4.0 MPa at -196°C, suitable for extreme temperature and pressure conditions. The LNG filling station also incorporates a dual-capacity air-heated vaporizer with ratings of 2.5 MPa and capacities of 300 Nm³ + 150 Nm³, designed for efficient vaporization of LNG.
Fuel dispensing is facilitated through a charging gun with a flow rate of 190 L/min and a pressure rating of 1.6 MPa. For accurate measurement, the station is equipped with a 1.0 class single or double measurement mass flowmeter. Additionally, the system includes an instrument wind system delivering 0.33 m³/min at 0.8 MPa for auxiliary operations.
The control of the LNG filling station is automated via a PLC + PC IC card management system, enabling seamless operation and efficient fuel management. This design ensures reliable, high-capacity LNG filling services in a compact, skid-mounted form.
FEATURES
1. Tank Capacity: The filling station has a 60 CBM LNG storage tank, providing significant fuel capacity for efficient refueling operations.
2. High-Performance Pump System: It includes a 340L/min@220m submersible pump and an 80L 1.6MPa vacuum pump pool, ensuring reliable and high-speed LNG transfer.
3. Advanced Pipeline and Valve: Equipped with a 4.0MPa@-196°C pipeline valve, the system is designed to withstand extreme temperatures and pressures common in LNG handling.
4. Air-Heated Vaporizer: The filling station features a 2.5MPa 300+150Nm³ air-heated vaporizer, enabling the efficient vaporization of LNG for use in various applications.
5. Automated Control System: A PLC+PC IC card management control system is integrated for precise control, monitoring, and management of LNG dispensing operations, enhancing user convenience and safety.
SPECIFICATION
| Item | Performance indicator |
| Day aerated scale | ≥12,000 Nm³ |
| LNG storage | 14T@30m³/28T@60m³ (maximum) |
| Overall dimensions (length x width x height) | 13.5×2.8×3.3m |
| Equipment Quality | ~15 |
| Equipment energy consumption | 380V 12KW |
| Charging speed | 0~65Kg/min |
| Measuring accuracy | 1% |
| Item | Technical specification | Manufacturers |
| Cryogenic storage tank | 30m³ 1.2MPa | OEM |
| Immersed pump | 340L/min@220m | Hangzhou Xinya |
| Vacuum pump pool | 80L 1.6MPa | OEM |
| Pipe valve | 4.0MPa@-196°C | Furui |
| Pipe cold insulation | PIR or vacuum pipe | OEM |
| Air-heated vaporizer | 2.5MPa 300Nm³ | OEM |
| LNG charging gun | 1.6MPa 190L/min | US Carter |
| Mass flowmeter | 1.0 class | E+H |
| Instrument wind system | 0.19m³/min 0.8MPa | Ingersoll Rand |
| Control system | PLC | OEM |
| Item | Technical specifications | Manufacturers |
| Cryogenic Storage Tank | 60m³ or 2×60³1.2MPa | |
| Submersible Pump | 340L/min@220m | France CRYOSTAR/United States ACD |
| Vacuum Pump Pool | 80L 1.6MPa | Domestic well-known brand |
| Pipeline Valve | 4.0MPa@-196°C | HORSE, Furui, CCK |
| Pipe Cold Insulation | PIR or vacuum pipeline | |
| Air-Heated Vaporizer | 2.5MPa 300+150Nm³ | Domestic well-known brand |
| Charging Gun | 1.6MPa 190L/min | Jieneng/American Carter |
| Mass Flowmeter | 1.0 class single or double measurement | E+H |
| Instrument Wind System | 0.33m³/min 0.8MPa | Ingersoll Rand |
| Control System | PLC+PC IC card management | OEM |
