BRIEF

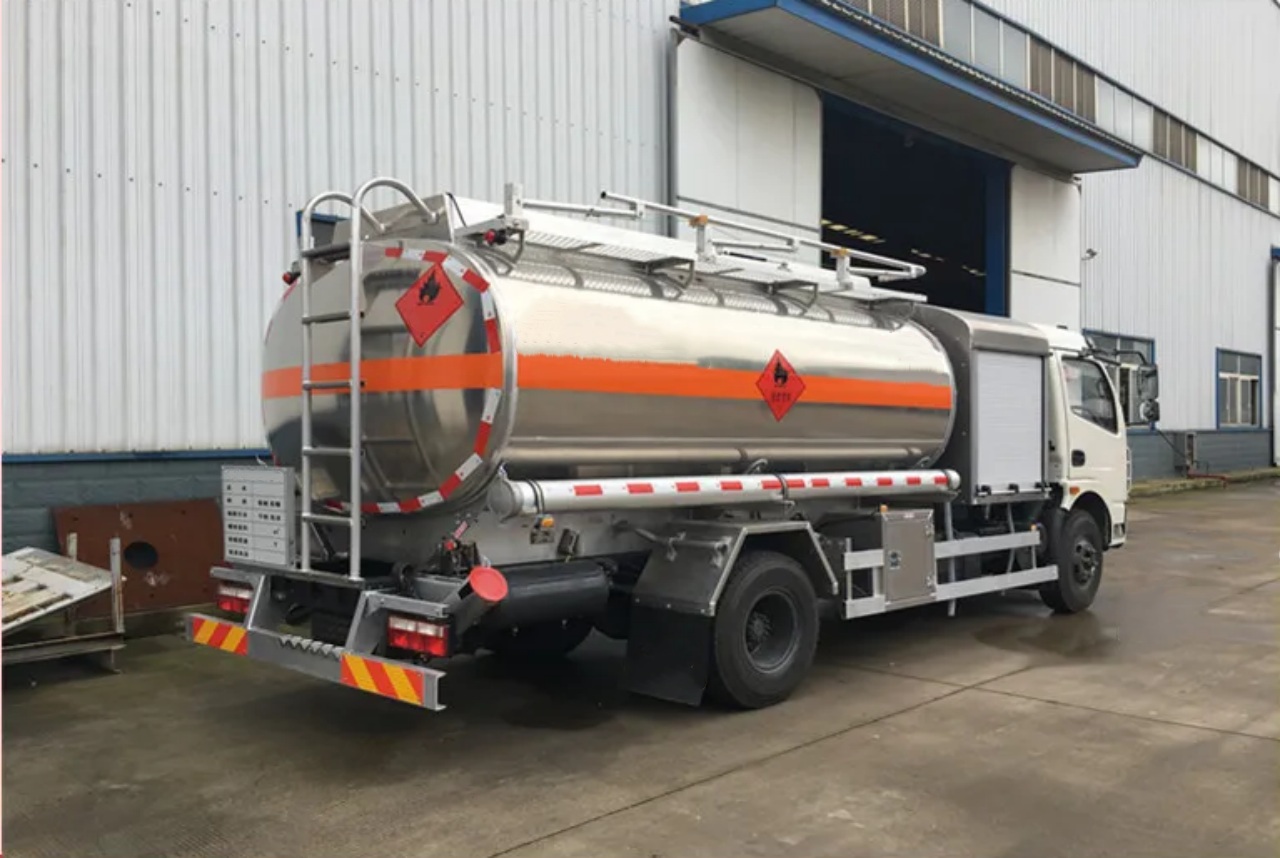

The 6-wheeler 10,000-liter aircraft refueling truck, produced by CSCTRUCK China Tank Truck, is a high-performance fuel transport vehicle designed for efficient and safe aircraft refueling operations. Built on the Dongfeng/EQ1110 chassis model, it has a CY4102 engine that delivers 120 horsepower and complies with Euro 3 emission standards for environmentally responsible operation.
The 6-wheeler 10,000-liter aircraft refueling truck features a robust 10,000-liter fuel tank made from premium aluminium-magnesium alloy (5083), ensuring durability, corrosion resistance, and lightweight construction. The tank is a single-compartment, designed to store and transport aviation fuel safely and efficiently. For optimal filtration, the truck is equipped with an 80WGF-24/10 filter system, providing a rated flow of 24 cubic meters per hour (m³/h) and capable of handling a maximum working pressure of 1.0 MPa and a maximum working temperature of 46°C.
To ensure fast and secure fueling operations, the truck comes with a SANJIANG YOJE 80/60 aluminum alloy pump, designed for high efficiency and long-lasting performance. The truck also features a 20-meter hose reel and a filling nozzle, facilitating quick and safe fuel-filling procedures. This equipment is ideal for airports and airfields, where quick turnaround times and precise fueling are critical.
In summary, the 6-wheeler 10,000L aircraft refueling truck is a reliable and efficient vehicle, offering advanced features like high fuel capacity, robust construction, and modern filtration and pumping systems, making it a dependable choice for aircraft refueling needs.
FEATURES
- Fuel Tank Construction: The truck is equipped with a 10,000L aluminum-magnesium 5083 fuel tank, which is lightweight and resistant to corrosion, enhancing both the durability and efficiency of fuel storage.
- Powerful Engine: The truck is powered by a Dongfeng EQ1110 chassis model with a CY4102 engine producing 120hp, providing reliable performance for efficient fuel delivery and overall operation.
- High-Performance Filter and Pump: It uses an 80WGF-24/10 filter with a 24m³/h rated flow, ensuring clean fuel delivery, while the SANJIANG YOJE 80/60 Aluminium alloy pump further supports optimal fuel transfer.
- Efficient Fuel Dispensing System: The truck features a 20-meter hose reel and filling nozzle for smooth and fast fuel refilling, ideal for aircraft refueling operations.
- Advanced Safety and Operational Standards: It complies with Euro 3 emission standards, operates at a maximum working temperature of 46ºC, and supports a 1.0MPa working pressure, ensuring safe and environmentally responsible fueling operations.
SPECIFICATION
| Model | CSCART010 | ||||
| General specification | Gross weight | 9,950kg | |||
| Curb weight | 5,000kg | ||||
| Overall dimensions(LxWxH) | 7,000*2,100*2,750mm | ||||
| Chassis specification | Chassis model | EQ1110 | |||
| Chassis brand | Dongfeng | ||||
| Drive mode | 4X2 | ||||
| Fuel type | Diesel | ||||
| Steering type | LHD/RHD | ||||
| Rated passenger | 3 | ||||
| Tire number | 6+1spare tire | ||||
| Tire type | 7.50R20 | ||||
| Wheelbase | 3,800mm | ||||
| Front tread/Rear tread | 1,130/2,070mm | ||||
| Gearbox | Wanliyang 5Â forward+1 reverse | ||||
| Emission standard | Euro 3 | ||||
| Engine specification | Engine Brand | Chaochai | |||
| Engine model | CY4102 120hp | ||||
| Tank specification | Tank shape | Elliptical | |||
| Tank material | Aluminum-magnesium 5083 | ||||
| Tank thickness | 5mm | ||||
| Tank capacity | 10,000L | ||||
| Compartment | 1 | ||||
| Filter | Model | 80WGF-24/10 | |||
| Rated flow | 24m³/h | ||||
| Capacity | 145L | ||||
| Work pressure | 1.0Mpa | ||||
| Maximum work temperature | 46ºC | ||||
| Pump | Brand | SANJIANG YOJEÂ 80/60 Aluminium alloy pump |
| Accessories | Fire extinguisher | 2 units (4kg/unit) |
| Discharge hose | 2 units | |
| Discharge hose housings | 2 units | |

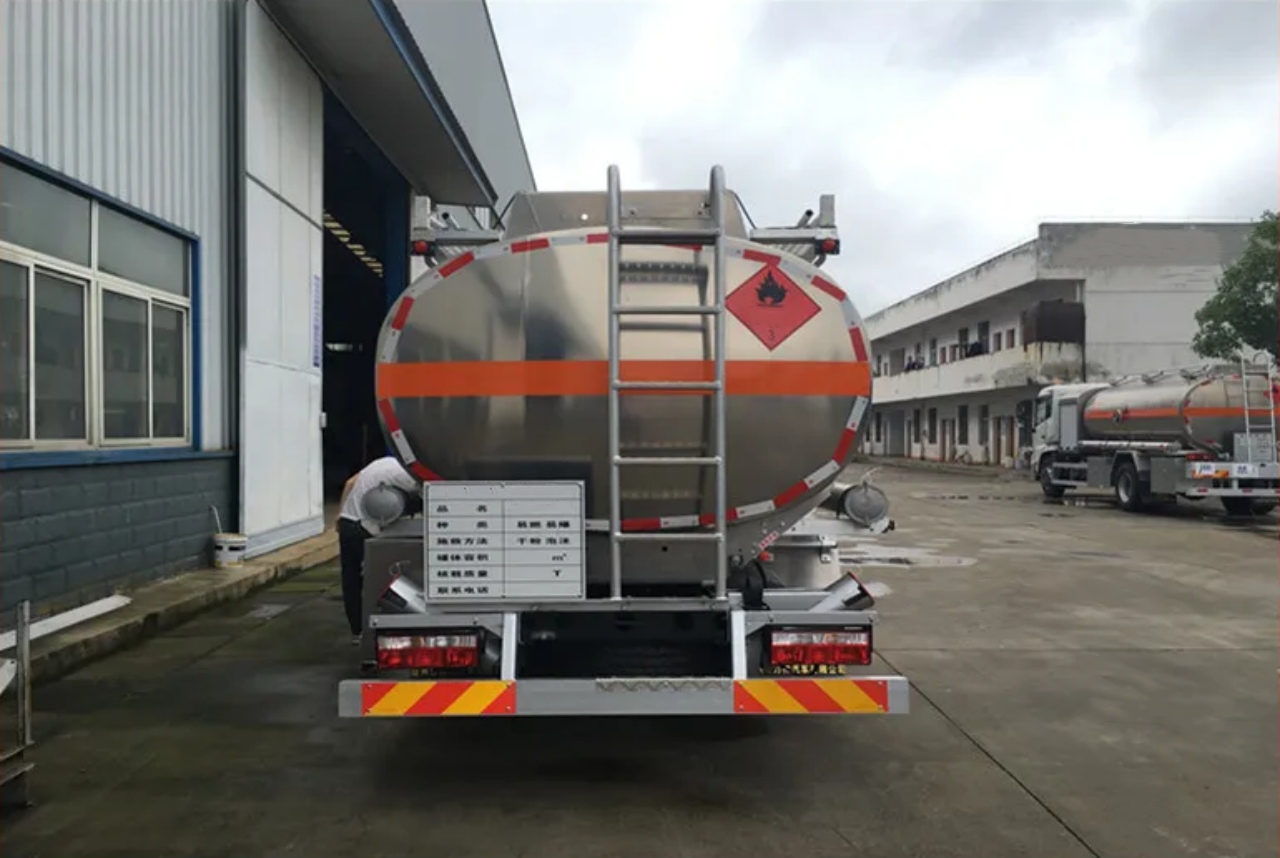

| Ladder | On the rear | |
| Railing Material | Aluminum alloy | |
| Fuel filling device | 20-meter hose reel and filling nozzle | |
| Level instrument | Shanghai Leihang 50. |
