What are the Parts of a Tanker Truck?
Tanker trucks play a vital role in transporting liquids and gases safely and efficiently over long distances. These specialized vehicles are engineered with precision to handle a variety of materials, ranging from hazardous chemicals to edible liquids like milk. To fully appreciate the complexity and functionality of tanker trucks, let’s delve into their main components and their specific purposes.
1. Chassis
The chassis forms the structural backbone of a tanker truck. This robust framework supports the weight of the tank, the liquid cargo, and other components of the vehicle. The chassis is typically made of high-strength steel to ensure durability and the ability to withstand heavy loads.
Key features of the chassis include:
- Axles: Distribute the weight of the truck and cargo evenly.
- Suspension system: Ensures smooth transport, minimizing vibrations that could affect sensitive liquids.
- Frame rails: Provide the structural foundation for mounting the tank and other components.
2. Tank
The tank is the primary component of a tanker truck, designed to hold the transported liquid or gas. Tanks come in various shapes, sizes, and materials depending on the cargo type.
- Material:
- Stainless steel for food-grade liquids like milk or juice.
- Aluminum for lightweight transport.
- Carbon steel for petroleum products.
- Design:
- Cylindrical shape: Minimizes pressure and ensures structural integrity.
- Compartments: Tanks may be divided into multiple compartments to transport different liquids simultaneously or to reduce the effects of liquid sloshing.
- Lining: Internal linings or coatings are often used for corrosive or sensitive materials to prevent contamination and corrosion.
3. Manhole Covers
Manhole covers are secure access points located on top of the tank. They allow for filling, inspection, and maintenance of the tank.
Features:
- Sealing mechanism: Prevents leaks and contamination.
- Pressure relief valves: Integrated to control internal tank pressure, especially for volatile materials.
4. Valves and Fittings
Valves and fittings control the flow of the liquid cargo and provide connection points for hoses and other equipment.
- Loading and unloading valves:
- Ensure precise flow control during filling and emptying.
- Can be manual or automated.
- Emergency shut-off valves:
- Installed for safety to prevent leaks during accidents.
- Couplings and connectors:
- Enable secure attachment of hoses.
5. Pump System
The pump system facilitates the transfer of liquids into and out of the tank. It is especially critical for materials that cannot flow by gravity, such as viscous liquids, or when unloading at higher elevations.
Types of pumps:
- Centrifugal pumps: Commonly used for high-volume liquids.
- Diaphragm pumps: Suitable for corrosive or sensitive materials.
- Vacuum pumps: Often used for cleaning or extracting residual liquids.
6. Baffles
Baffles are internal partitions within the tank that reduce the movement of liquid cargo during transit. Liquid sloshing can destabilize the truck, especially during braking or cornering.
Characteristics:
- Perforated design: Allows controlled movement of liquids while minimizing turbulence.
- Strategic placement: Ensures optimal stability and safety.
7. Hoses and Hose Reels
Hoses are essential for loading and unloading operations. They are stored on hose reels mounted on the tanker truck for easy accessibility.
Specifications:
- Material: Chemical-resistant materials like rubber or PVC.
- Length: Varies depending on operational needs.
- Connections: Fitted with couplings compatible with the tank’s valves.
8. Insulation and Heating Systems
For temperature-sensitive liquids, tanker trucks may include insulation and heating systems to maintain the desired temperature during transport.
- Insulation:
- Made from materials like foam or fiberglass.
- Prevents heat exchange with the environment.
- Heating systems:
- Steam coils or electric heating elements maintain or raise the cargo temperature.
- Commonly used for products like asphalt, oil, or certain chemicals.
9. Safety Systems
Safety is paramount for tanker trucks, especially those transporting hazardous materials. Multiple systems ensure the safety of the driver, cargo, and environment.
- Fire suppression systems: Automatically detect and extinguish fires.
- Spill containment kits: Minimize environmental damage in case of leaks.
- Anti-rollover systems: Prevent the truck from overturning during sharp turns.
- Pressure relief valves: Release excess pressure to prevent explosions.
10. Lighting and Signage
Proper lighting and signage are crucial for visibility and compliance with transportation regulations.
- Lighting:
- LED markers, brake lights, and turn signals for road safety.
- Interior tank lights for inspection purposes.
- Signage:
- Hazard warning labels (e.g., flammable, corrosive).
- Reflective strips for visibility at night.
11. Cab and Controls
The cab is the driver’s operational hub, equipped with controls and monitoring systems for the truck’s functions.
Key features:
- Instrumentation: Displays for pressure, temperature, and tank levels.
- Navigation systems: GPS and routing tools for efficient travel.
- Communication systems: Radios or telematics for real-time updates.
- Comfort amenities: Air conditioning and ergonomic seating for long-haul journeys.
12. Brake and Suspension Systems
Given the significant weight of a loaded tanker truck, advanced brake and suspension systems are essential for safe operation.
- Brake systems:
- Air brakes are commonly used.
- Anti-lock braking systems (ABS) to prevent skidding.
- Suspension:
- Leaf spring or air suspension systems enhance stability and reduce wear.
13. Spill Containment System
In the event of a leak or spill, a spill containment system helps prevent the cargo from spreading into the environment.
Components:
- Drip trays: Catch minor leaks during loading/unloading.
- Retention systems: Collect larger spills to minimize environmental impact.
14. Exhaust and Emission Systems
Modern tanker trucks are equipped with advanced exhaust and emission systems to comply with environmental regulations.
- Diesel particulate filters (DPFs): Reduce soot emissions.
- Selective catalytic reduction (SCR): Converts harmful nitrogen oxides into harmless gases.
15. Additional Accessories
To enhance functionality and safety, tanker trucks may include additional accessories such as:
- Toolboxes: Store essential tools and equipment.

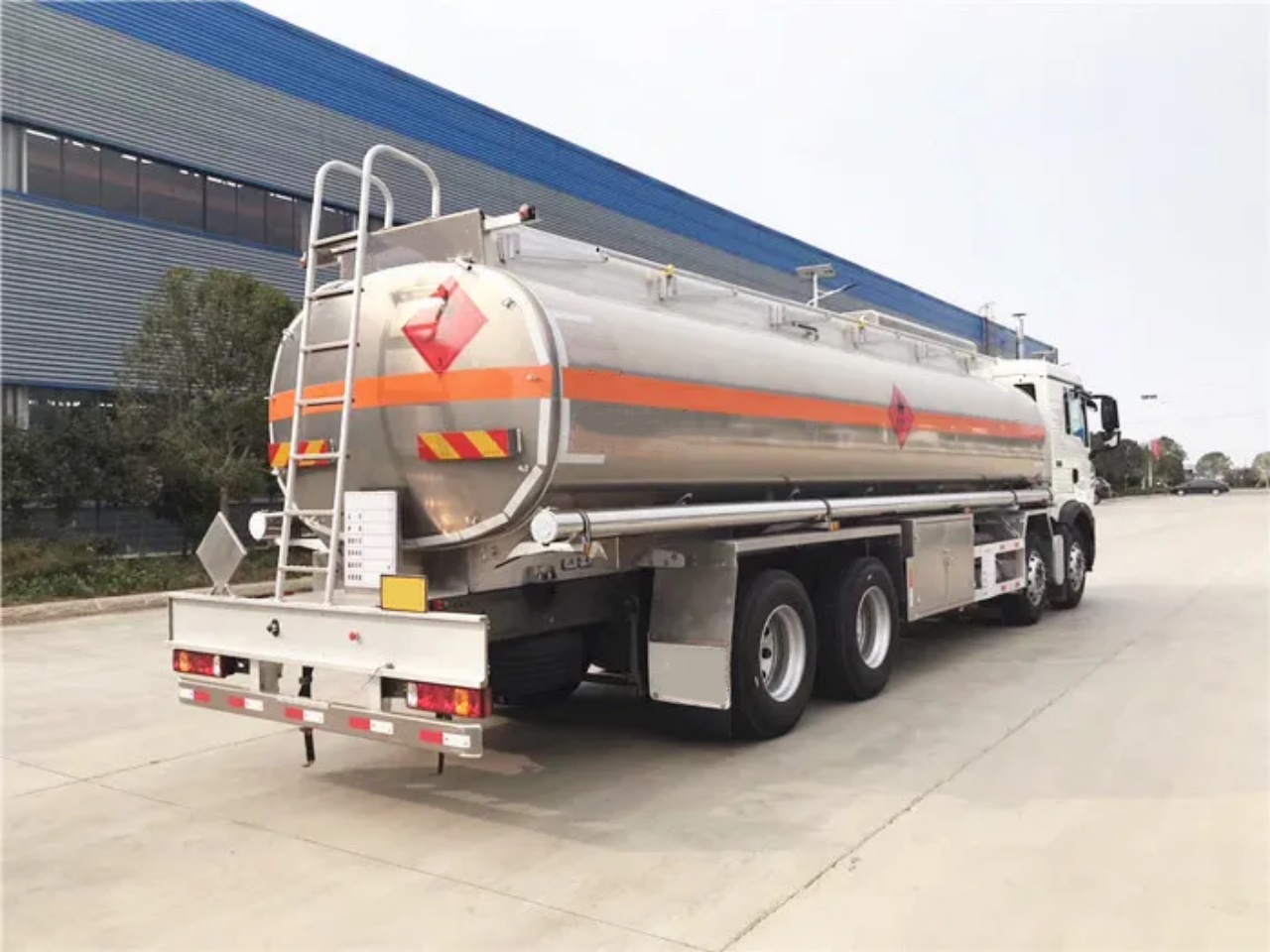

- Ladders and walkways: Provide access to the top of the tank for inspection.
- Cameras: Improve visibility and eliminate blind spots.
- Monitoring systems: Track tank pressure, temperature, and liquid levels in real-time.
Conclusion
A tanker truck is a sophisticated vehicle composed of multiple interdependent parts, each designed to ensure the safe and efficient transport of liquid or gaseous cargo. From the robust chassis to the intricately engineered tank and safety systems, every component plays a critical role in its operation. Understanding these parts not only highlights the engineering marvel behind tanker trucks but also underscores their importance in various industries, from agriculture to petrochemicals.
