Description

BRIEF

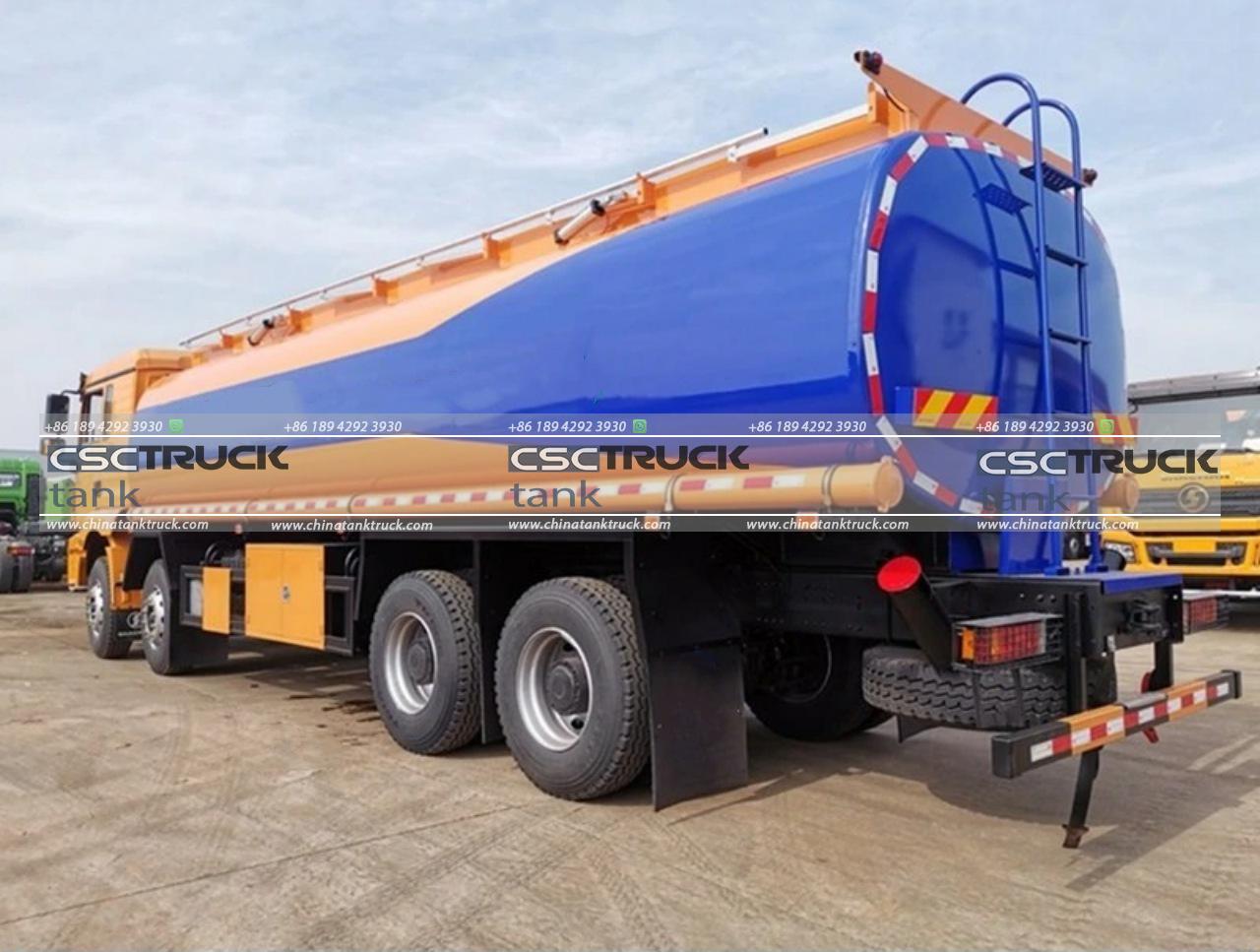

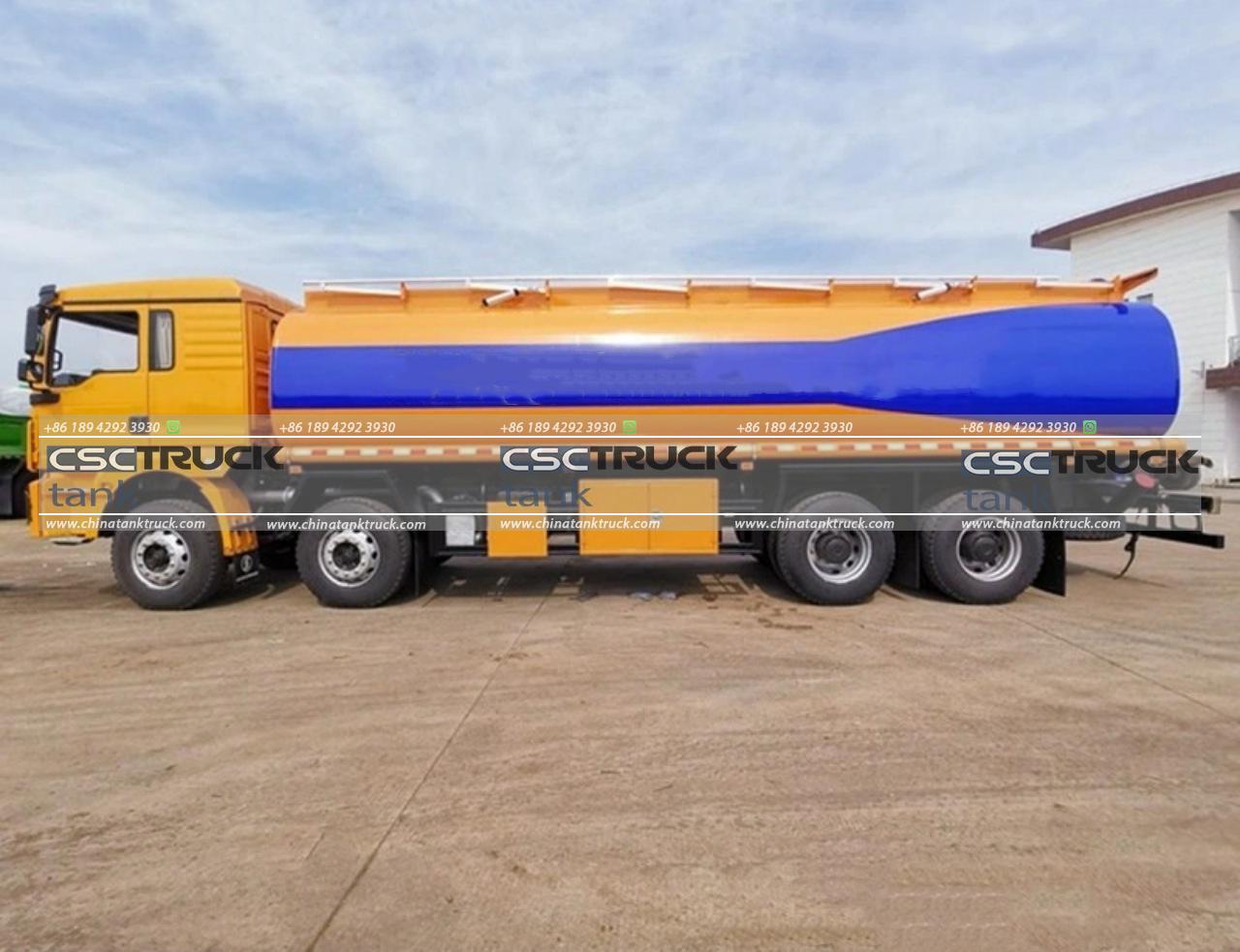

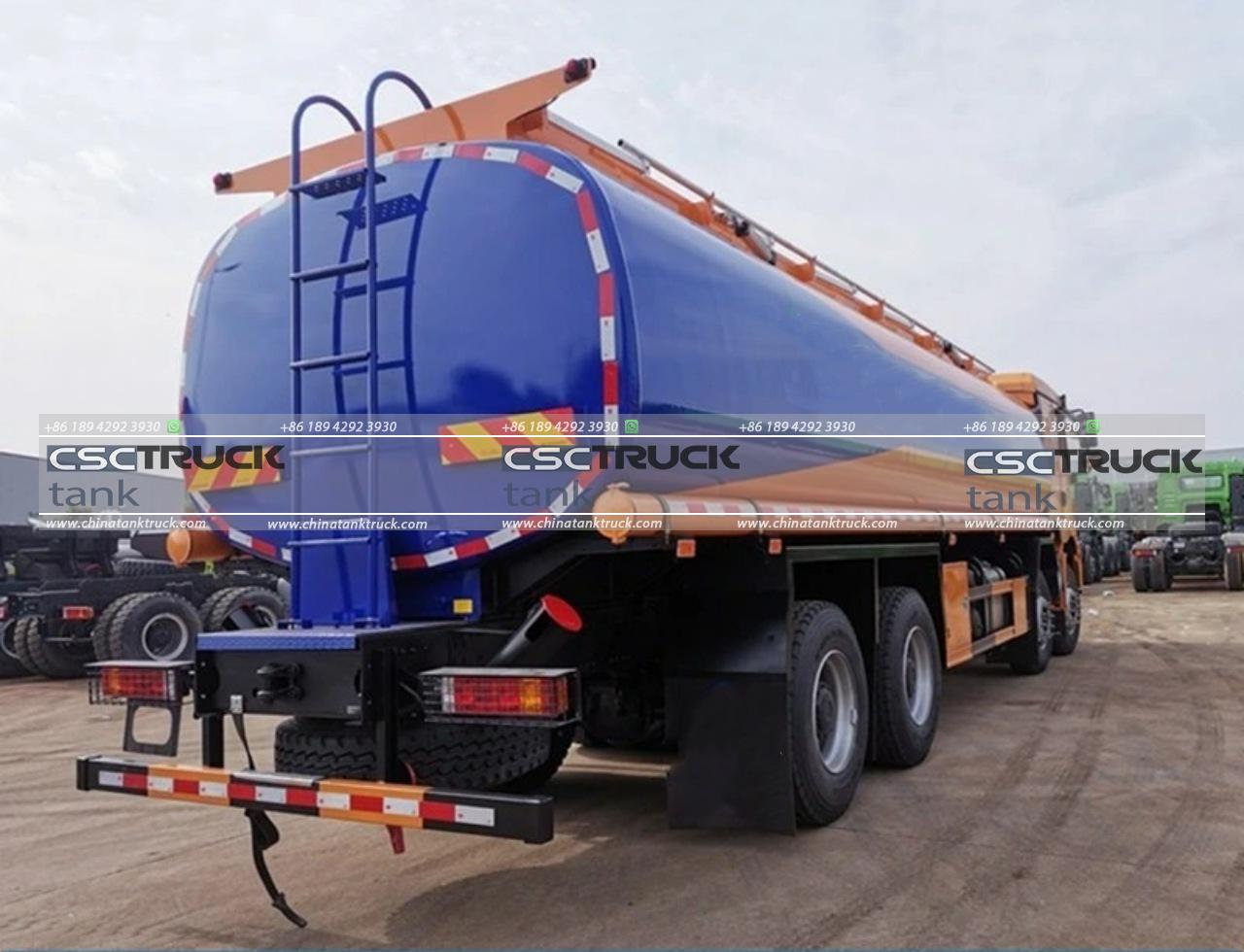

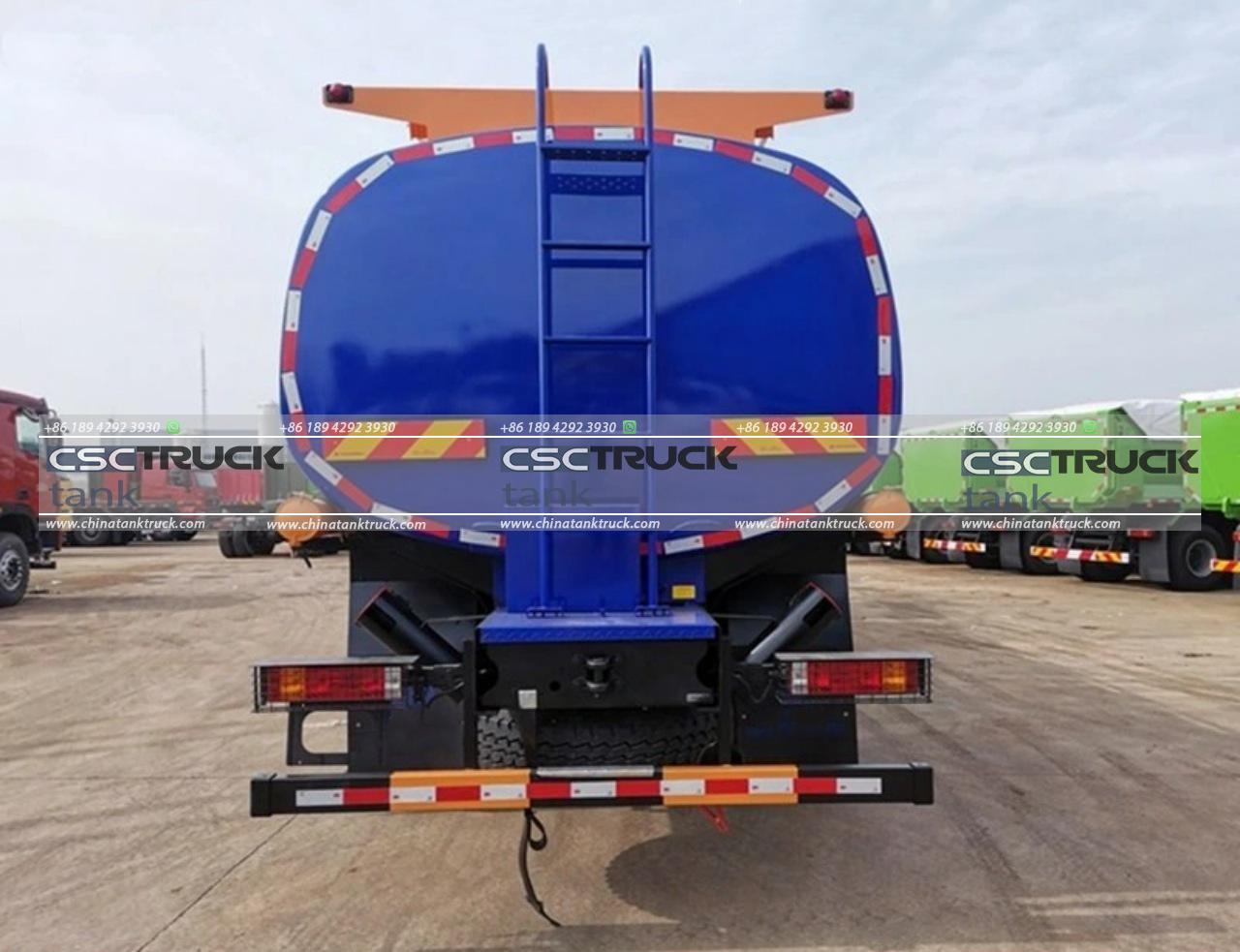

The SHACMAN H3000 30CBM crude oil tank truck, produced by CSCTRUCK China Tank Truck, represents a robust and efficient solution for the transportation of crude oil. This model features a 30 cubic meter(CBM) capacity tank made from durable carbon steel, ensuring the safe and reliable carriage of substantial quantities of crude oil.

Built on the SHACMAN H3000 chassis, this crude oil tank truck benefits from the renowned reliability and strength of SHACMAN‘s engineering. The chassis is designed to withstand the rigorous demands of heavy-duty transport, making it an ideal choice for the oil and gas industry. The truck operates on an 8×4 drive configuration, providing enhanced traction and stability, which is particularly beneficial for navigating challenging terrains and maintaining control under heavy loads.

Powering this formidable vehicle is the CUMMINS ISM345 30 engine, known for its robust performance and reliability. With an engine power of 345 horsepower (HP), the SHACMAN H3000 is capable of handling demanding transport tasks with ease. This engine meets the Euro 3 emission standards, reflecting a balance between performance and environmental considerations, though it may not align with more stringent modern emissions standards like Euro 6.

In summary, the SHACMAN H3000 30CBM crude oil tank truck by CSCTRUCK China Tank Truck is a heavy-duty, reliable vehicle tailored for the efficient transport of crude oil. Its sturdy carbon steel tank, powerful CUMMINS engine, and SHACMAN’s robust chassis design make it a dependable choice for businesses in the oil and gas sector.

FEATURES

1. Model and Manufacturer:

– Model: SHACMAN H3000 30CBM crude oil tank truck

– Manufacturer: CSCTRUCK China Tank Truck

2. Tank Specifications:

– Tank Capacity: 30 cubic meters (30CBM)

– Material: Carbon steel

– Application: Designed for transporting crude oil

3. Chassis and Drive:

– Chassis: SHACMAN H3000

– Drive Type: 8×4 (8 wheels on the ground, 4 wheels powered)

4. Engine Specifications:

– Engine Model: CUMMINS ISM345 30

– Engine Power: 345 horsepower (HP)

– Emission Standard: Euro 3

5. Additional Features:

– Robust Construction: Built for durability and reliability in transporting heavy loads over long distances.

– Compliance: Meets Euro 3 emission standards, ensuring reduced environmental impact compared to older models.

– Brand Reliability: SHACMAN is known for producing reliable and efficient heavy-duty trucks.

SPECIFICATION

Vehicle Description
Overall dimensions(LxWxH)	11,9002,5503,600mm
GVW	31,000kg
Curb weight	14,155kg
Chassis brand	SHACMAN H3000
Traction type	8×4, left/right-hand drive
Chassis Description
Chassis model	SX1315
Cab	H3000 single cabin with flat roof, hydraulic driver seats with one sleeper, four-point hydraulic suspension cab, AC.
Wheelbase	1,800+4,575+1,400mm
Tire specification	12R22.5
Tire quantity	12+1 units
Engine	Engine model	CUMMINS ISM345 30
	Emission level	Euro 3
	Displacement/output	10,800ml/254kW
	Horsepower	345HP
Gearbox	Type	10JSD180
	Number of gears	10 forward gears& 2 reverse
Brake system	Type	Drum
	Service brake	Dual circuit compressed air brake
	Park brake	Power spring brake acting on the rear wheel
	Auxiliary brake	Exhaust brake
Axle	Front	7.5T*2-MAN technology
	Rear	13T*2-MAN technology, double reduction axle
Suspension	Front	8- Leaf spring
	Rear	9-Leaf spring
Fuel tanker	Type	Steel fuel tank, with lockable cap
	Capacity	350L
Up-part description
Tanker	Capacity	30CBM
	Material	Carbon steel
	Thickness	5mm
Standard configuration	Equipped with 4 sets of manholes. Equipped with a double discharge valve and valve box. Equipped with surge baffles, ladder, roof coaming, skid-resistant walkway, and toolbox. Equipped with electrostatic conducting tape and double fire extinguishers.
