| Model No.: | CSCFDT033 |
| Fuel Tank Volume: | 33 CBM |
| Overall Dimensions(LxWxH): | 11,900×2,500×3,720mm |
| Chassis Brand: | SHACMAN |
| Drive Type: | 8X4 |
| Wheelbase: | 1,800+4,575+1,350mm |
| Engine Power: | 336HP |
| Emission Standard: | EURO III |
| Loading Capacity: | 21,000KG |
| Tank Material: | 5mm carbon steel |
| Max. Speed: | 80km/h |
BRIEF
The SHACMAN 33 CBM fuel delivery truck, produced by CSCTRUCK China Tank Truck, is a high-performance vehicle designed for efficient fuel transportation. Built on a robust SHACMAN chassis with an 8×4 drive type, this truck is engineered for durability and stability, even under challenging road conditions. It features a powerful 336HP engine that complies with the EURO III emission standard, ensuring a balance between performance and environmental considerations.
The tank truck is equipped with a large 33 cubic meter (CBM) fuel tank made of 5mm thick carbon steel, providing a secure and corrosion-resistant solution for carrying fuel. With a maximum loading capacity of 21,000 kilograms, it is ideal for large-scale fuel delivery operations. The 80 km/h maximum driving speed ensures timely deliveries while maintaining safe operational limits.
This fuel delivery truck‘s thoughtful engineering and specifications make it suitable for industries requiring reliable and efficient bulk fuel transportation, including logistics, mining, and energy sectors. Its compliance with EURO III standards demonstrates a commitment to reduced emissions, aligning with modern environmental practices.
The SHACMAN 33 CBM fuel delivery truck is a robust and practical choice for businesses seeking a high-capacity, reliable, and environmentally conscious solution for their fuel transport needs.
FEATURES
- Large Fuel Tank Capacity: Equipped with a 33 CBM (cubic meters) carbon steel fuel tank with a thickness of 5mm, ensuring robust fuel storage and delivery capability.
- Powerful Engine and Emission Standard: Features a 336HP engine complying with the EURO III emission standard, balancing power and environmental considerations.
- High Loading Capacity: Designed to handle a maximum loading capacity of 21,000 kg, making it suitable for large-scale fuel transportation.
- Durable SHACMAN Chassis: Built on a reliable SHACMAN 8×4 chassis with an 8-wheel drive type for stability and rugged performance on diverse terrains.
- Efficient Transportation: Achieves a maximum driving speed of 80 km/h, ensuring timely fuel delivery over long distances.
SPECIFICATION
General Technical Parameters |
||||
| Overall Dimensions(LxWxH) | 11,900×2,500×3,720(mm) | Gross Vehicle Weight | 31,000(kg) | |
| Curb Weight | 10,805(kg) | Loading Weight | 21,000(kg) | |
Chassis Specification |
||||
| Chassis Parameters | Chassis Brand | Shacman | ||
| Cabin | Row and half, Left-Hand Driving | |||
| Engine | Power | 336HP | ||
| Emission standard | EURO III | |||
| Displacement | 7.79L | |||
| Fuel type | Diesel | |||
| Gearbox | 12 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | 8T/16T | |||
| Wheel Base | 1,800+4,575+1,350(mm) | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 12R22.5, 12 Pieces | |||
| Maximum speed | 80(km/h) | |||
Tank Body |
||||
| Shape | Monoblock Cylinder | |||
| Total Volume(m3) | 33m3 | |||
| Tanker Body Material | 5mm carbon steel | |||

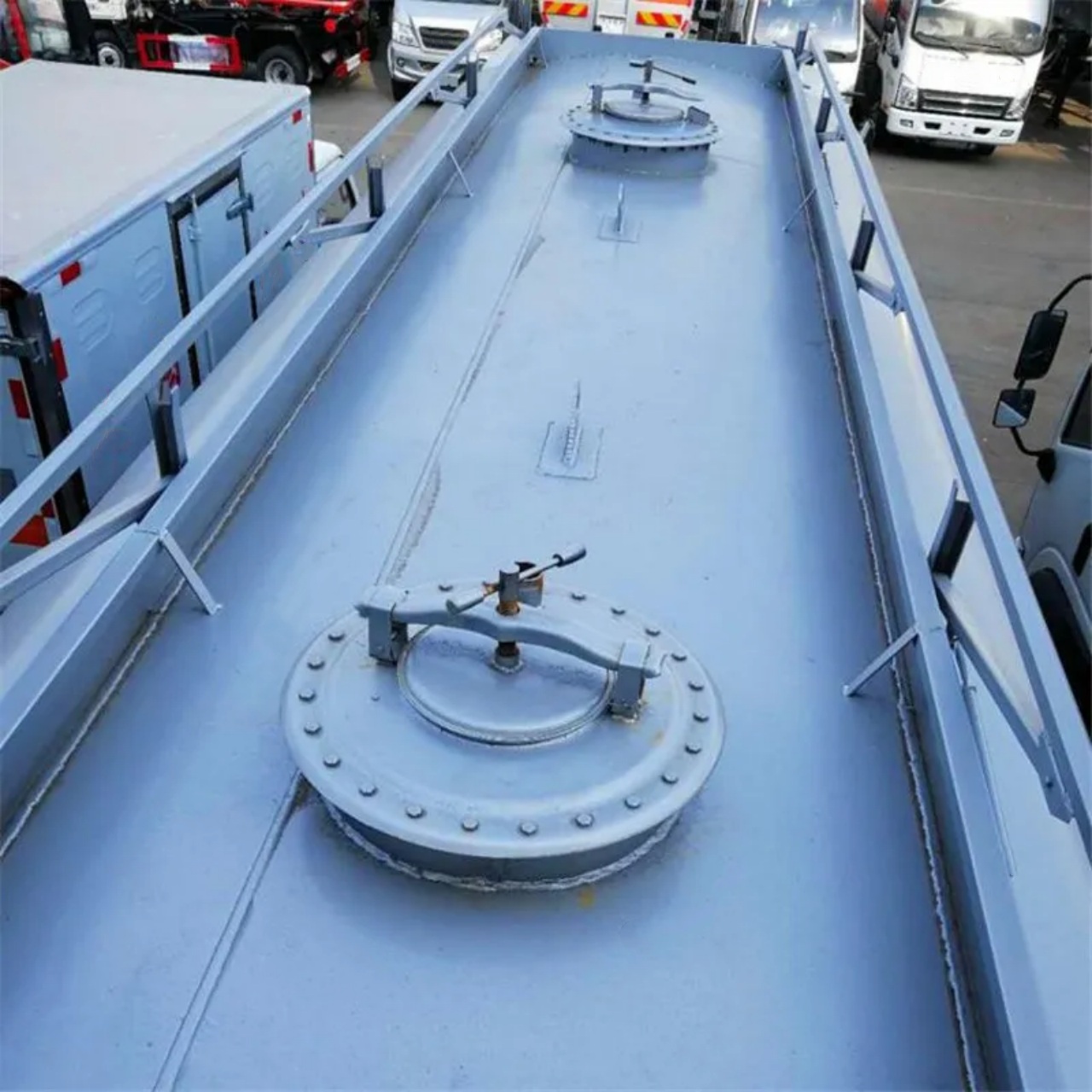

| Manhole Cover | 500mm, 1 set with 1 breather valve | |||
| Bottom Valve | 1 set | |||
| Discharging Valve | 1 set  80mm discharging valve | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||
| Accessories | 1 standard toolbox. | |||
| Tank Mounted on Chassis Brand |
|---|
