Model No.: | ISUZU FVZ 10000 Liters Milk Tank Truck |
Milk Tank Volume: | 10,000 Liters |
Overall Dimensions(LxWxH): | 8,400×2,460×3,100mm |
Chassis Brand: | ISUZU FVZ |
Drive Type: | 6×4 |
Wheelbase: | 4,500mm+1,350mm |
Engine Model: | ISB180 50 |
Engine Power: | 180HP |
Emission Standard: | Euro III or EURO IV or Euro V |
Milk Tanker Material: | 304 2B Stainless Steel |
Max Speed: | 100km/h |
Categories: Milk Tank Truck, Stainless Steel Tank Truck
Description
BRIEF

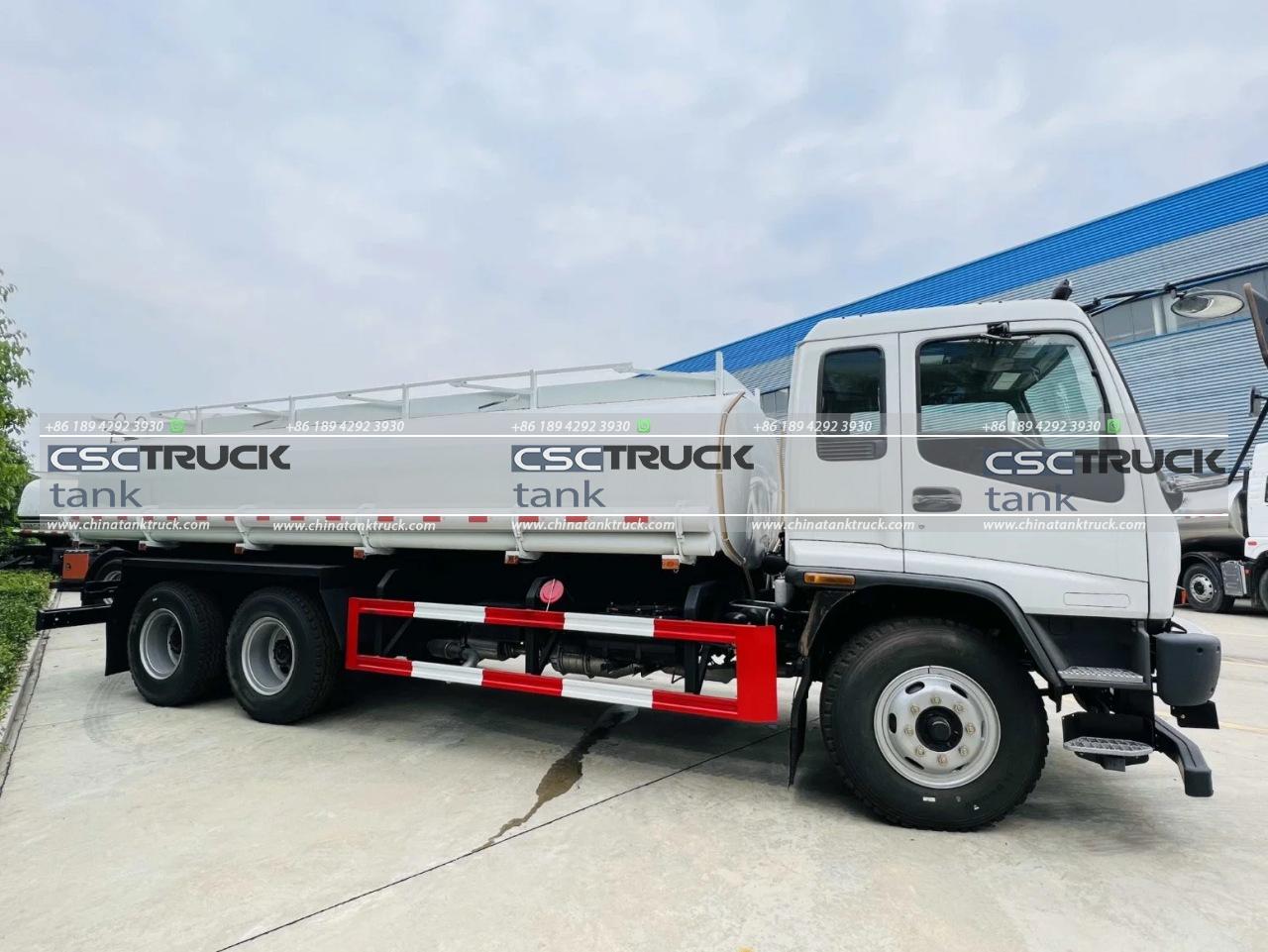

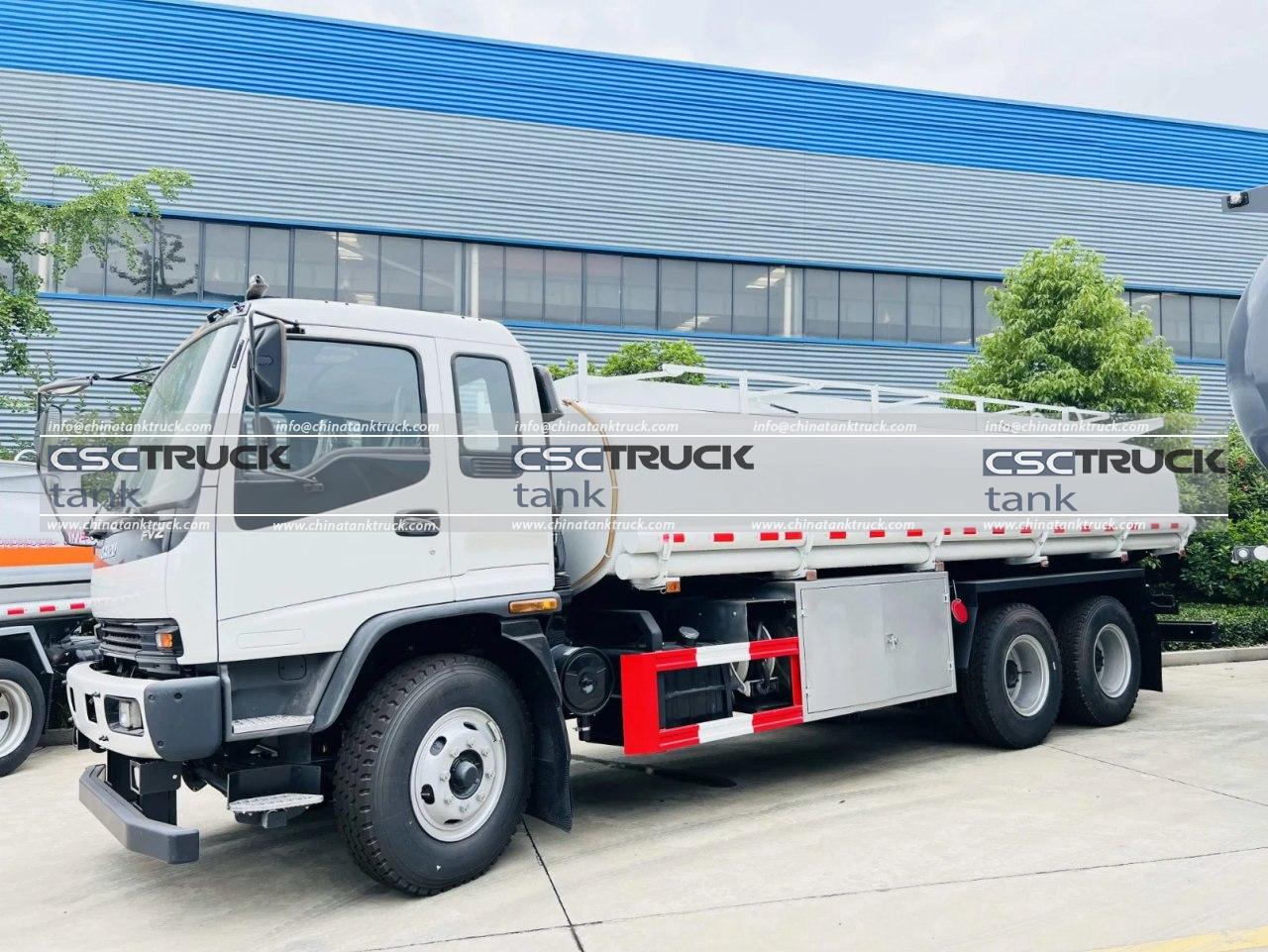

The ISUZU FVZ 10,000 liters milk tank truck, produced by CSCTRUCK China Tank Truck, is a robust and efficient vehicle designed for the safe and reliable transportation of milk. This truck features a 6×4 drive configuration, providing excellent stability and traction on various road conditions, making it suitable for both urban and rural areas.
At the heart of this milk tank truck is the ISB180 50 engine, a powerful 180 horsepower unit that ensures smooth and efficient performance. The engine complies with multiple emission standards, including Euro III, Euro IV, and Euro V, making it an environmentally friendly option. This flexibility in emission standards allows the truck to meet diverse regulatory requirements in different regions.
The milk tanker itself is constructed from high-quality 304 2B stainless steel, ensuring durability and maintaining the purity of the milk during transportation. The tanker has a capacity of 10,000 liters, making it ideal for large-scale milk collection and distribution. With a maximum speed of 100 km/h, the truck can cover long distances, ensuring timely delivery efficiently.
Designed with practicality and efficiency in mind, the ISUZU FVZ milk tank truck is a reliable choice for dairy farms and milk distributors. Its robust construction, powerful engine, and compliance with various emission standards make it a versatile and environmentally conscious vehicle. CSCTRUCK China Tank Truck‘s commitment to quality and performance is evident in this model, which combines advanced engineering with practical design to meet the demands of modern dairy transportation.
FEATURES
1. Large Capacity Milk Tanker:
  – The truck is equipped with a 10,000 liters milk tank, allowing it to transport a significant volume of milk efficiently.
2. High-Quality Stainless Steel Tank:
  – The milk tanker is constructed from 304 2B stainless steel, known for its corrosion resistance and durability, ensuring the milk remains uncontaminated and at the optimal temperature during transportation.
3. Powerful and Efficient Engine:
  – It features an ISB180 50 engine model with 180HP, providing a good balance of power and fuel efficiency. The engine complies with Euro III, Euro IV, or Euro V emission standards, reflecting its environmental friendliness.
4. Robust Drive Type:
  – The truck has a 6×4 drive type, offering enhanced traction and stability, making it suitable for various road conditions and ensuring reliable performance even in challenging terrains.
5. Impressive Maximum Speed:
  – The truck can reach a maximum speed of 100 km/h, facilitating timely delivery of milk to its destination without compromising safety and quality.
SPECIFICATION
ISUZU FVZ 10000 Liters Milk Tank Truck |
||
General | Chassis Brand | ISUZU FVZ |
Approx. Dimensions(LxWxH) | 8,400×2,460×3,100mm | |
GVW | 15,800Kg | |
Curb weight | 7,980kg | |
Cab | Cab Capacity | 3 people allowed |
Chassis | Drive Type | 6×4, left-hand drive/ |
right-hand drive | ||
Fuel Type | Diesel | |
Power | 180HP | |
Engine Model | Cummins, ISB180 50 | |
Displacement | 5,900ml | |
Emission Standard | Euro III or EURO IV or Euro V | |
Wheelbase/No.of axle | 4,500mm+1,350mm/2 | |
Tyre Specification | 9.00R20 | |
Tyre Number | 6 tires and 1 spare tire | |
Max Speed | 100km/h | |
Tanker Body | Capacity | 10,000 Liters |
Material | 1. The inner is made of 4mm 304 2B Stainless Steel | |
2. The middle layer of the tank is made of 80mm thick polyurethane | ||
3. The outer layer of the tank is made of stainless steel | ||
The temperature | The temperature rise or fall during transportation is less than or equal to 1 degree within 24 hours. | |
Automatic cleaning system | An automatic cleaning system is adopted in the tank, and the cleaning device rotates 360 degrees to ensure no residual milk. | |

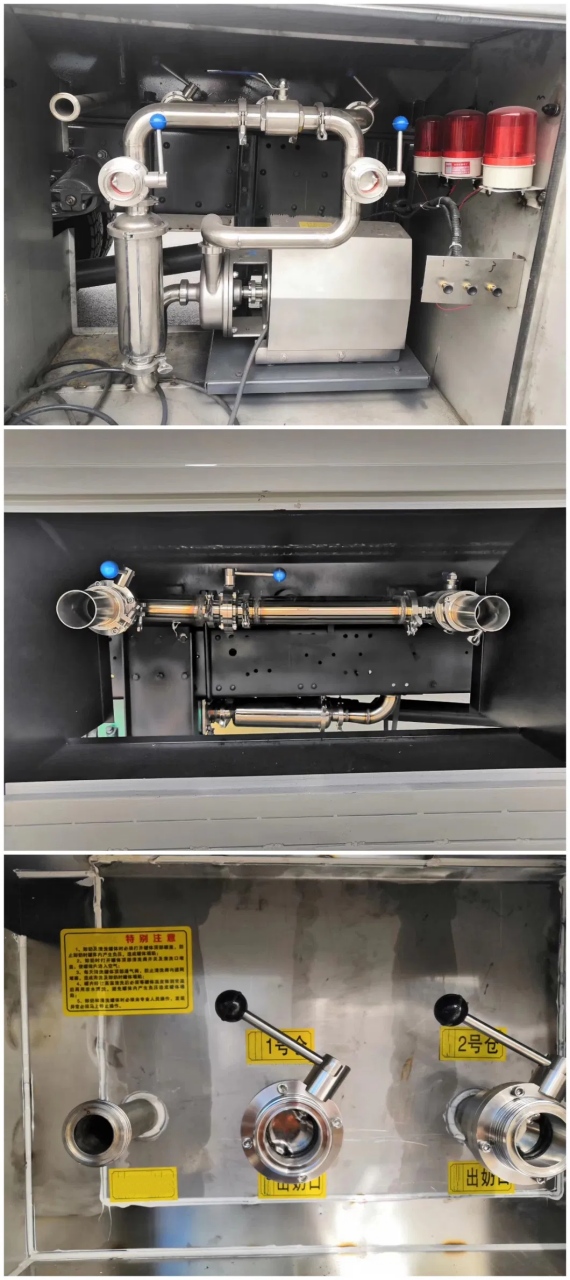

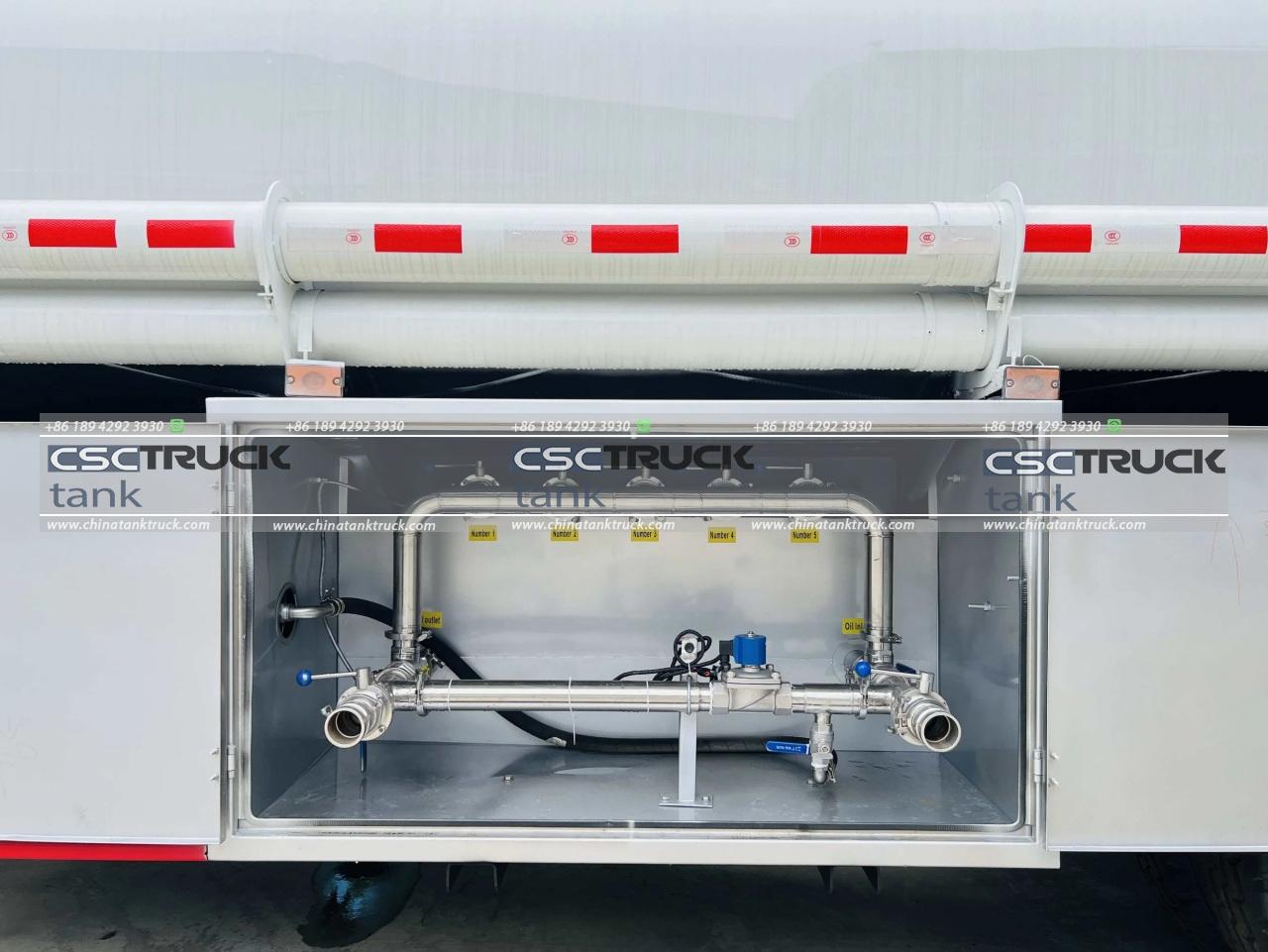

Valve and | All valves and pipelines are made of stainless steel. | |
Pipeline |
