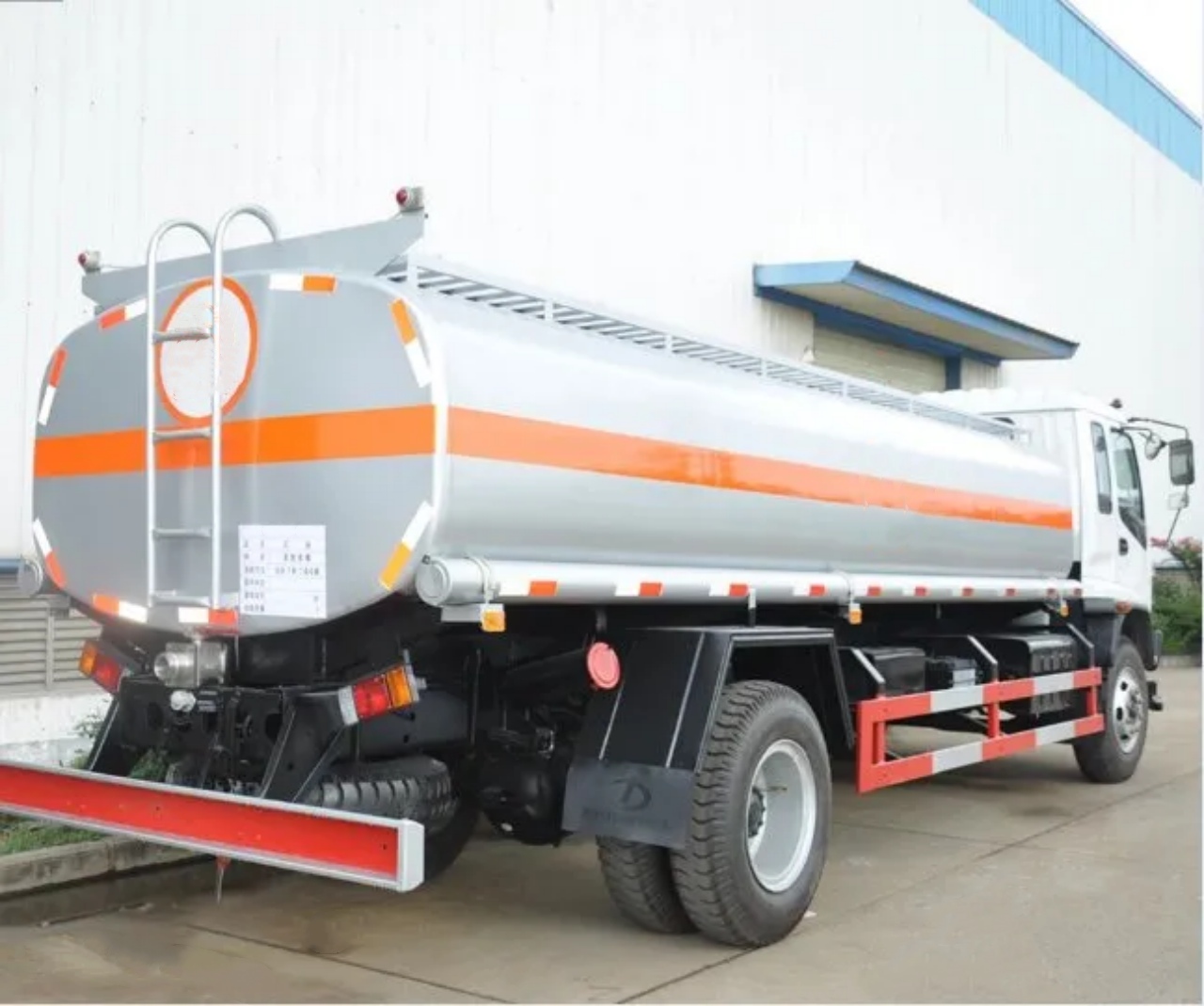

ISUZU FVR 15000 Liters Oil Refueling Tanker Truck

ISUZU FVR 15000 Liters Oil Refueling Tanker Truck (3)

Model No.:	CSCORTT015
Fuel Tank Volume:	15,000 Liters
Overall Dimensions(LxWxH):	8,290×2,370×2,760mm
Chassis Brand/Model:	ISUZU FVR/QL1160
Drive Type:	4X2
Wheelbase:	4,700mm
Maximum speed:	90km/h
Engine Model:	4HK1-TC50
Engine Power:	208HP
Emission Standard:	Euro 5
Fuel Tank Material:	Carbon steel

Truck Enquiry

Categories: Carbon Steel Tank Truck, Fuel Tank Truck

Description

BRIEF

The ISUZU FVR 15000 liters oil refueling tanker truck, produced by CSCTRUCK China Tank Truck, is a robust and reliable vehicle designed to transport fuel with efficiency and safety. Built on the ISUZU FVR/QL1160 chassis, this truck is equipped with a 4X2 drive type, offering a stable and smooth driving experience. The fuel tank has a generous capacity of 15,000 liters, ideal for medium to large-scale refueling operations.

Under the hood, the ISUZU FVR 15000-liter oil refueling tanker truck is powered by a 4HK1-TC50 engine, delivering a reliable 208 horsepower. This engine is designed to meet the Euro 5 emission standard, ensuring that the vehicle is both environmentally friendly and compliant with modern emission regulations. The truck’s maximum speed is capped at 90 km/h, providing a balance between operational efficiency and safety.

The fuel tank itself is constructed from high-quality carbon steel, offering durability and resistance to wear and tear. Carbon steel is known for its strength and ability to withstand the pressures of transporting hazardous liquids like fuel. The design of the tank is optimized to prevent leaks and other potential risks, making it a safe option for transporting flammable liquids.

The ISUZU FVR 15000-liter oil refueling tanker truck combines advanced technology, high durability, and compliance with stringent environmental standards. It is an ideal choice for fuel delivery companies, airports, and other operations requiring a reliable and safe tanker for fuel transportation. Its robust engineering and efficient performance make it an excellent option for daily fuel distribution and refueling tasks.

FEATURES

High Fuel Capacity: The tanker truck is equipped with a 15,000-liter fuel tank, making it ideal for long-distance fuel transportation and refueling operations.
Reliable ISUZU Chassis: Built on the ISUZU FVR/QL1160 chassis, this truck offers durability and stability for heavy-duty operations, ensuring reliable performance over long periods.
Efficient Engine Performance: Powered by the 4HK1-TC50 engine, this vehicle provides 208 horsepower (HP), offering sufficient power for transporting large volumes of fuel while maintaining efficiency.
Euro 5 Emission Standard: The truck adheres to the Euro 5 emission standards, reducing environmental impact by lowering emissions and improving fuel efficiency compared to older models.
Carbon Steel Fuel Tank: The tank is made from carbon steel, known for its strength and resistance to wear, providing long-term durability and safety for storing and transporting fuel.

SPECIFICATION

Chassis Parameter
Chassis model			QL1160	Chassis brand	ISUZU
Overall dimensions(LxWxH)			8,290×2,370×2,760mm	Wheelbase	4,700mm
Front/rear wheel track			1,880/1,800mm	Front/rear suspension	1,430/2,160mm
Approach/departure angle			20/13°	Maximum speed	90km/h
Cab	Configuration		One and a Half row deluxe cab(with sleeping berth), hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers.
	Color		White, and other colors are optional
Engine	Model		4HK1-TC50
	Emission		Euro 5
	Type		6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, diesel engine.
	Rated power		208hp, rated power speed 2,500rpm
	Displacement		5,900ml
	Max. torque		750N·m
	Bore x stroke		102x120mm
	Manufacturer		ISUZU Engine Co., Ltd.
Tire	Size		9.00-20 nylon tire
	Number		6+1 nos
Clutch	Push-type diaphragm spring clutch, Φ395mm.
Frame	(250x80x[7+4])mm
Fuel tank	200L, steel
Front axle	6.3T
Rear axle	13T main reduction ratio 5.286
Drive form	4X2
Rated voltage	24V, DC
Transmissions	Gearbox MLD-6Q, 6 speed forward 1 reverse.
Steering device	Power-assisted steering.
Steering wheel	Left-hand drive.
Selective configuration		Steel wire tire

Fuel Tank Structure Parameters
Tank dimensions(LxWxH)		6,200×2,050×1,445mm	Tank volume	15,000L
Tank material		Carbon steel	Tank thickness	5mm
Color and Logo	Optional
Standard configuration	Chassis, carbon steel fuel tank, subframe, oil pump, 2 aluminum alloy flow valves, toolbox, manhole, climbing ladder, fire extinguisher, oil hose.
