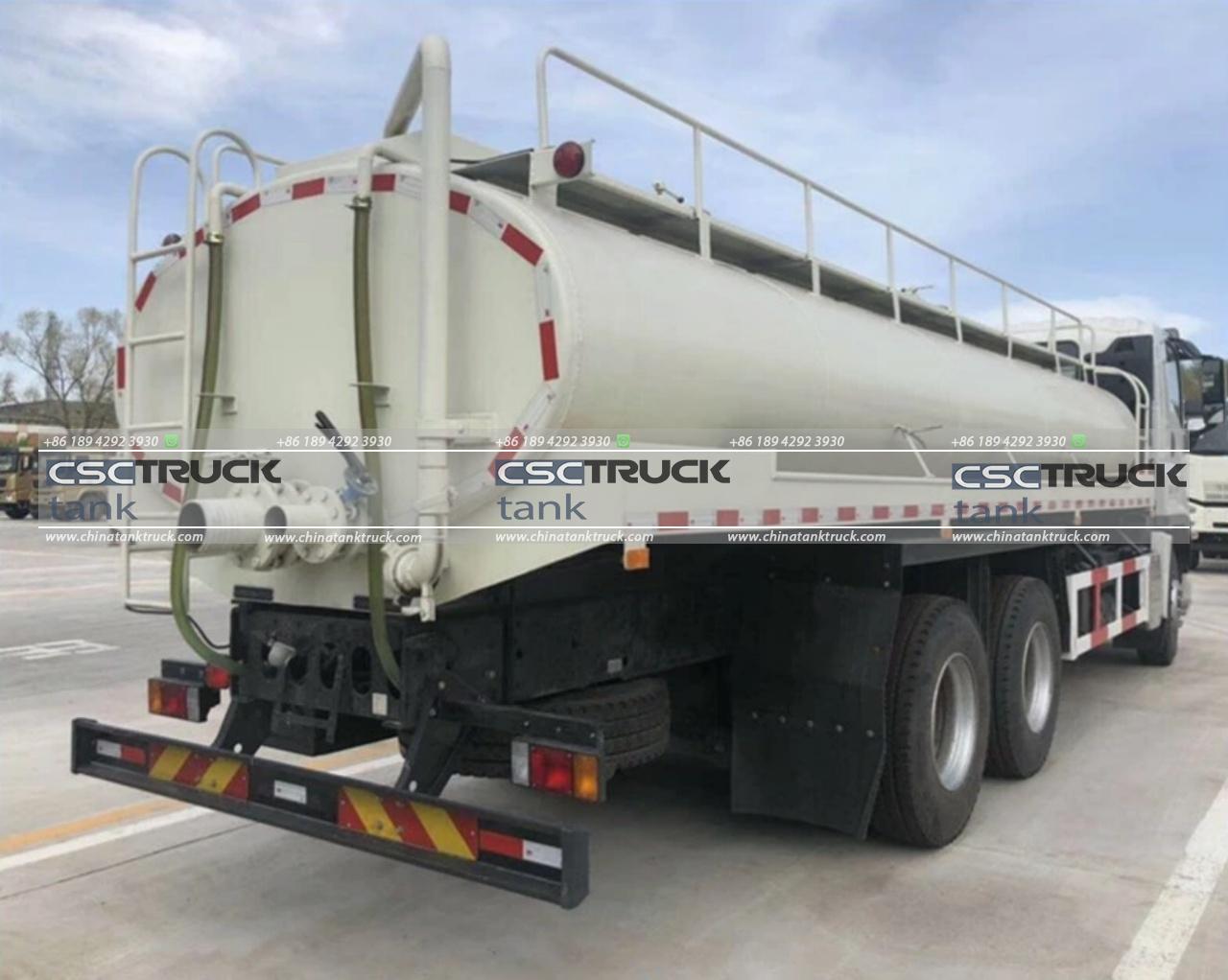

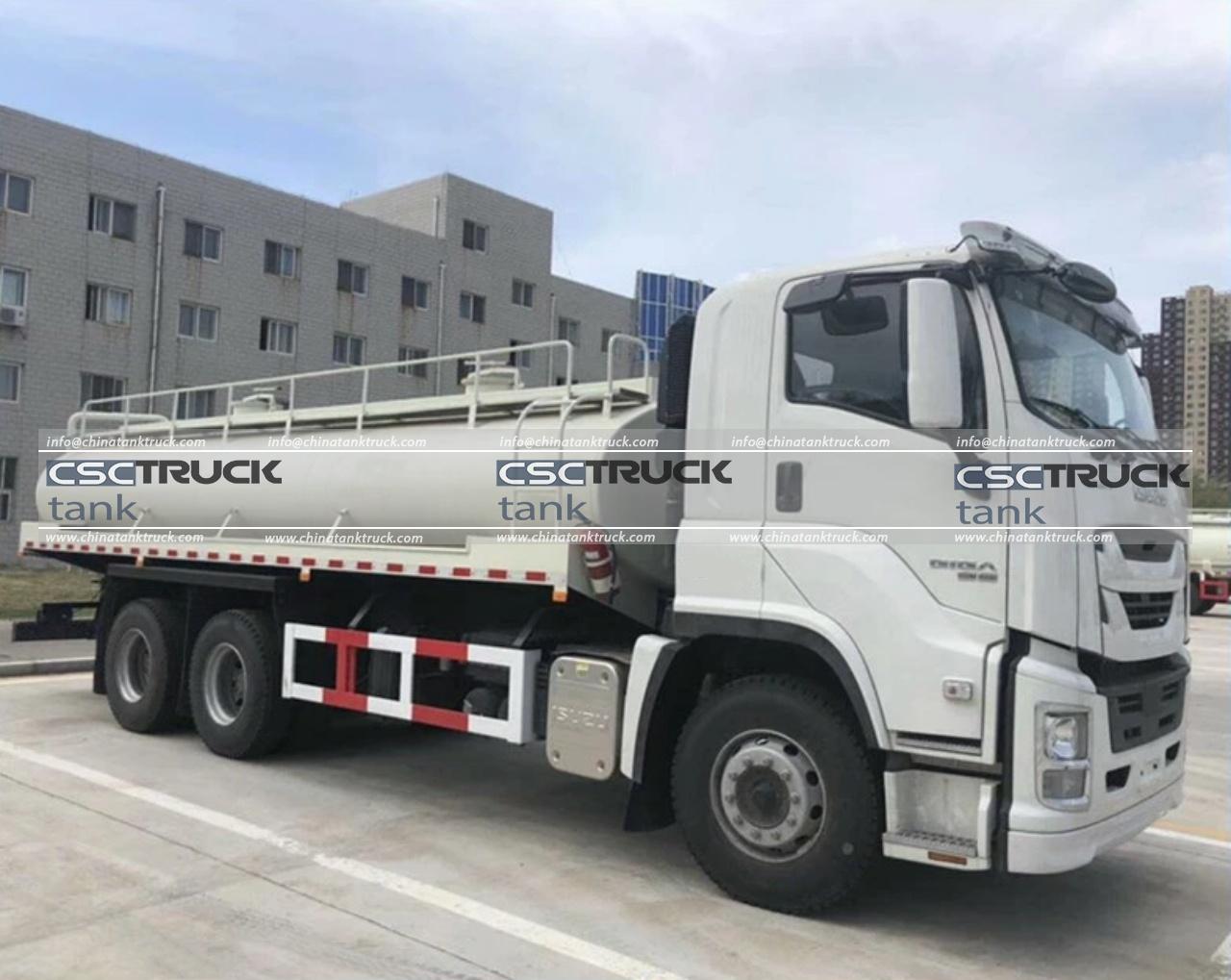

Model No.:	ISUZU 20000 Liters Water Tank Truck
Water Tanker Volume:	20,000 Liters
Overall Dimensions(LxWxH):	10,580×2,500×3,850mm
Chassis Brand:	ISUZU
Drive Type:	6×4
Wheelbase:	5,350+1,300mm
Payload:	Approx 20,000kg
Engine Brand/Model:	WEICHAI POWER/WD615.69
Engine Power:	336HP
Emission standard:	Euro III
Water Tanker Material:	Carbon steel, thickness 5mm

Truck Enquiry

Categories: Carbon Steel Tank Truck, Water Tank Truck

Description

BRIEF

The ISUZU 20000 liters water tank truck, crafted by CSCTRUCK China Tank Truck in China, epitomizes reliability and efficiency in water transportation. With its robust build and advanced features, it stands as a testament to modern engineering prowess.

At its heart lies the formidable WD615.69 engine model, renowned for its power and durability. Generating 336HP, it propels the truck forward effortlessly, ensuring smooth navigation across diverse terrains. Coupled with a 6×4 drive type, it guarantees stability and control even in challenging conditions.

With a capacious 20,000-liter water tank, this truck is tailored to meet demanding water transport needs. Its approximate 20,000kg payload capacity allows for substantial water carriage, making it indispensable in various industries and applications.

Moreover, adhering to Euro III emission standards underscores its commitment to environmental sustainability. By minimizing harmful emissions, it not only complies with regulations but also contributes to a cleaner ecosystem.

The 5mm carbon steel water tanker adds another layer of durability and longevity to the truck. Engineered to withstand rigorous usage, it ensures that the transported water remains secure and uncontaminated throughout the journey.

In essence, the ISUZU 20000 liters water tank truck represents a harmonious blend of power, efficiency, and environmental consciousness. Its unwavering performance and reliability make it an indispensable asset in water transportation, catering to the diverse needs of industries worldwide.

FEATURES

1) Featuring a robust self-suction water pump boasting high-pressure capabilities and swift suction.

2) Outfitted with front, rear, and side sprinklers, along with a high-position sprinkler and rear working platform.

3) The water cannon, mounted on the working platform, offers 360-degree rotation and adjustable water flow, ranging from straight to heavy rain, moderate rain, and drizzle, with a maximum reach of 30 meters.

4) Includes fire couplings, flow valves, filter screens, and a water level gauge.

5) Optionally equipped with a crane, high working platform, and spraying machine, tailored to customer specifications.

6) Primarily designed for urban road washing, tree watering, greening efforts on green belts and lawns, and dust suppression at construction sites. Additionally, it serves functions such as delivering drinking water and firefighting.

SPECIFICATION

ITEM	UNIT	DESCRIPTION
Vehicle		ISUZU water tank truck
Overall dimensions	mm	10,580×2,500×3,850
Garbage tank volume	L	16,000-20,000
GVW	kg	Appro×30,580
Curb weight		Appro×10,580
Loading Weight		Appro×20,000
Wheelbase	mm	5,350+1,300
Front/Rear overhang	mm	1,450/3,480
Approach/departure angle	°	21/8
Standard configuration	1) Carbon steel water tank, thickness 5mm. 2) With water pump. 3) With a rear working platform. 4) With suction pipe. 5) With fire connector. 6) With gravity valve.
Applicable scope	a. for a variety of road cleaning b. City green sanitation c. Trees, green belt, and lawn watering d. High altitude building rinse e. Delivery water
Special performance	1) Front and rear spraying water. 2) Left and right side spraying water. 3) The platform has a sprinkler and sprays water. 4) The water column can be adjusted into the mist. 5) Width of spraying water: ≥14m. 6) Distance of spraying water: ≥28m.
Chassis Parameter
Cabin	One-half cabin, air conditioner, with power steering, 3 passengers.
Traction system	6×4, 3 axles
Engine	Brand : WEICHAI POWER Model : WD615.69, 336hp Type: diesel, 6-cylinder, turbocharged, intercooled. Displacement: 5,900cc Emission standard: Euro III
Gearbox	8-speed, manual
Tire model	10.00R20
No.of tires	10+1
