Model No.: | FT15QL240L6 |
Fuel Tanker Volume: | 15,000 Liters |
Overall Dimensions(LxWxH): | 8,500×2,550×3,200(mm)(approx.) |
Chassis Brand: | ISUZU |
Drive Type: | 4×2 |
Wheelbase: | 4,500mm |
Max. Speed: | 89km/h |
Engine Model: | 6HK1-TCG61240 |
Engine Power: | 240HP |
Emission Standard: | Euro 6 |
Fuel Tanker Material: | High-quality mild steel |
Fuel Pump: | It can pump fuel into & out the fuel tank |
Categories: Carbon Steel Tank Truck, Fuel Tank Truck
Description
BRIEF
The ISUZU 15,000 liters fuel tank truck, produced by CSCTRUCK China Tank Truck, is a robust and efficient vehicle designed for large-scale fuel transportation. This model is built on the reliable ISUZU chassis, featuring a 4×2 drive type, which offers excellent maneuverability and stability on the road. With a maximum driving speed of 89 km/h, this truck ensures timely and efficient fuel delivery over long distances.
Under the hood, the truck is powered by the 6HK1-TCG61240 engine model, boasting a substantial 240 horsepower. This engine is compliant with the Euro 6 emission standard, reflecting the latest in environmental regulations and technology, reducing harmful emissions and ensuring a cleaner operation significantly.
The fuel tank itself is crafted from high-quality mild steel, providing durability and resistance to the corrosive nature of fuels. With a capacity of 15,000 liters, this tanker is ideal for high-volume fuel distribution, catering to various industries such as logistics, construction, and retail fuel stations.
CSCTRUCK China Tank Truck has ensured that the design and functionality of the ISUZU fuel tanker meet the highest standards of safety and efficiency. The truck’s build quality, combined with ISUZU’s reputable engineering, guarantees a reliable and long-lasting vehicle that can withstand the demands of frequent and heavy-duty usage.
Overall, the ISUZU 15,000 liters fuel tank truck by CSCTRUCK China Tank Truck is a powerful, environmentally-friendly, and dependable solution for businesses requiring substantial fuel transport capabilities.
FEATURES
1. Fuel Tank Capacity:
  – The truck is equipped with a high-capacity fuel tanker that can hold up to 15,000 liters, making it suitable for large-scale fuel transportation needs.
2. Chassis and Drive Type:
  – Built on an ISUZU chassis, the truck features a 4×2 drive type, providing a balance of power and efficiency for various road conditions.
3. Engine Specifications:
  – The truck is powered by a 6HK1-TCG61240 engine model, delivering 240 horsepower. This engine meets the stringent Euro 6 emission standards, ensuring it is environmentally friendly and compliant with modern regulations.
4. Maximum Driving Speed:
  – It has a maximum driving speed of 89 km/h, which is adequate for safe and efficient highway travel.
5. Construction Material:
  – The fuel tanker is constructed from high-quality mild steel, ensuring durability and reliability in various operational conditions.
SPECIFICATION
PARTS |
ITEM |
DESCRIPTION |
1)Â General Information | 1.1 Make & Model | l FT15QL240L6 |
2) | 1.2 Year of Manufacture | l 2024 |
3) | 1.3 Drive Type | l Left-hand drive |
4) | 1.4 Body Volume | l 15,000L |
5) | 1.5 Drive Wheel (Tires) | l 6+1spare tire |
6) | 1.6 Specs. Of Tires | l 295/80R22.5 |
7) | 1.7 Model & Make of Truck | l ISUZU |
8) | 1.8 Max. Speed | l 89km/h |
9) | 1.9 Drive Model | l 4×2 |
1.10 Gross Vehicle Weight | l 18,000kg | |
1.11 Curb Weight | l 3,000kg (approx.) | |
1.12 Capacity | l 15,000kg | |
1.13 Overall Dimension
(L x W x H) |
l 8,500×2,550×3,200(mm)(approx.) | |
1.14 Wheelbase | l 4,500mm | |
10) Engine | 2.1 Type | l Diesel |
2.2 HP | l 240HP | |
2.3 Emission Standard | l Euro 6 Standards | |
2.4 Engine Make / Model | l ISUZU / 6HK1-TCG61240 | |
2.5 Quantities of Cylinder | l 6 pcs | |
2.6 Displacement | l 7.79L | |
11)Â CAB
|
3.1 Color | l  White |
12) | 3.2 ABS | l Installed |
13) | 3.3 Air Conditioner | l Installed |
14) | 3.4 Other Equipment | l Powered windows, center lock, Radio, MP3 |
15)Â Transmission
|
4.1 Operation | l Mechanical, Manual |
4.2 Fuel Type | l Diesel | |
4.3 Forward & Reverse | l 8 Forward & 2 Reverses | |
4.4 Model / Make | l MSB5 / ISUZU | |
16)Â Electrical | 5.1 Electrical System | l 24 volts electrical system |
17) Front/Rear Axle | 6.1 Front Axle Loading | l 6,300kg |
6.2 Rear Axle Loading | l 13,000kg | |
18) Brake | 7.1 Brake | l Pneumatic brake |
19) Fuel Tank | 8.1 Volume | l 15,000L |
20) | 8.2 Material | l High-quality mild steel |
21) Fuel Dispenser | 9.1 Fuel Dispenser | l  fuel dispenser with fuel hose & fuel gun |

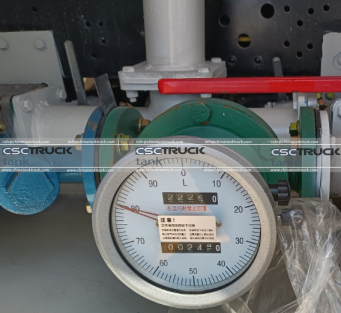

22) Fuel Meter | 10.1 Fuel Meter | l 1pc fuel meter installed
l |
23) Fuel Pump | 11.1 Fuel Pump | l 1pc fuel Pump installed
l It can pump fuel into & out of the fuel tank |
24) PTO | 12.1PTO | l 1pc Side-power driven PTO |
25)Â Painting | 13.3 Painting | l Standard Top 1. Painting
l Color & LOGO on requirement |
