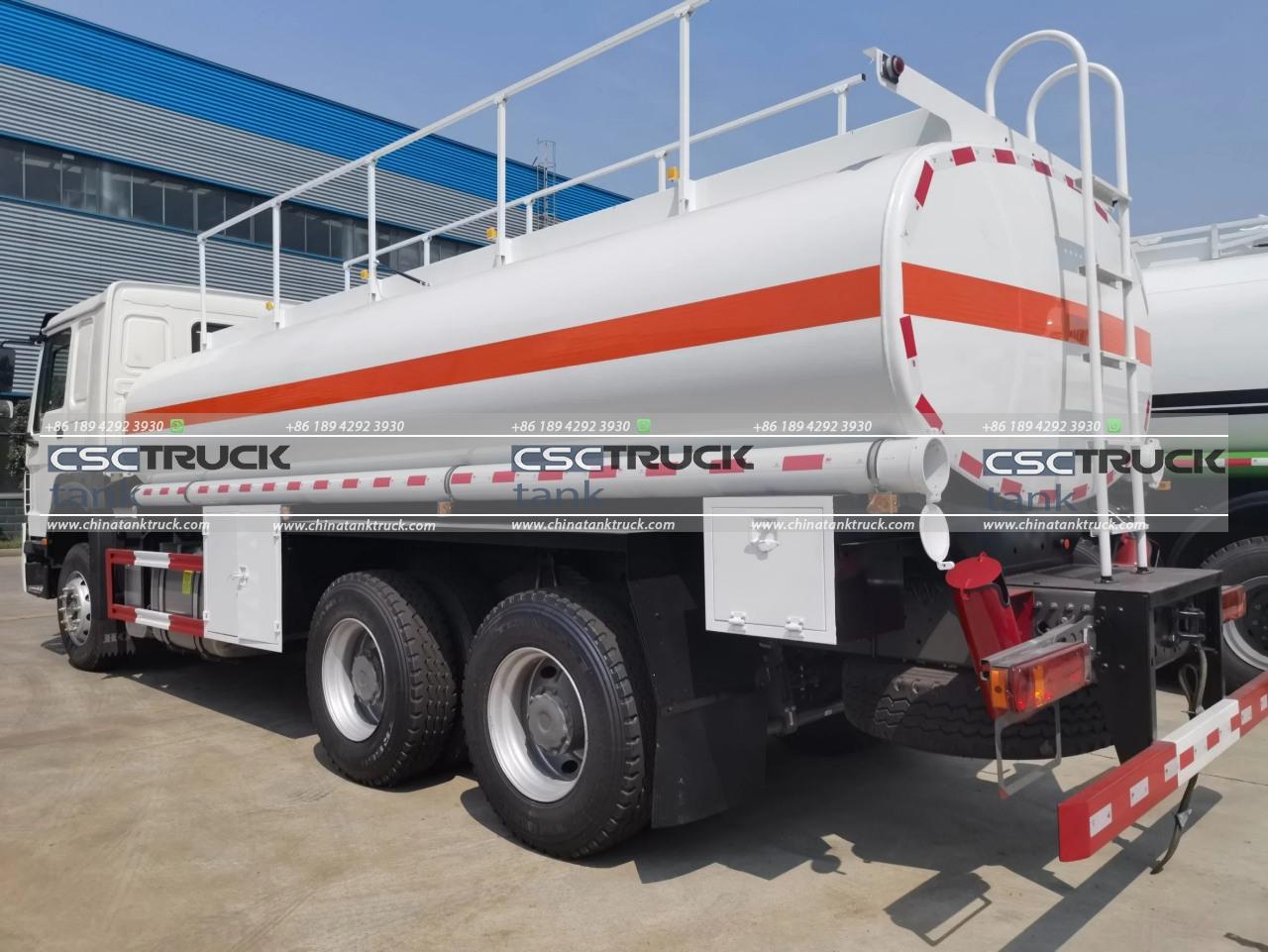

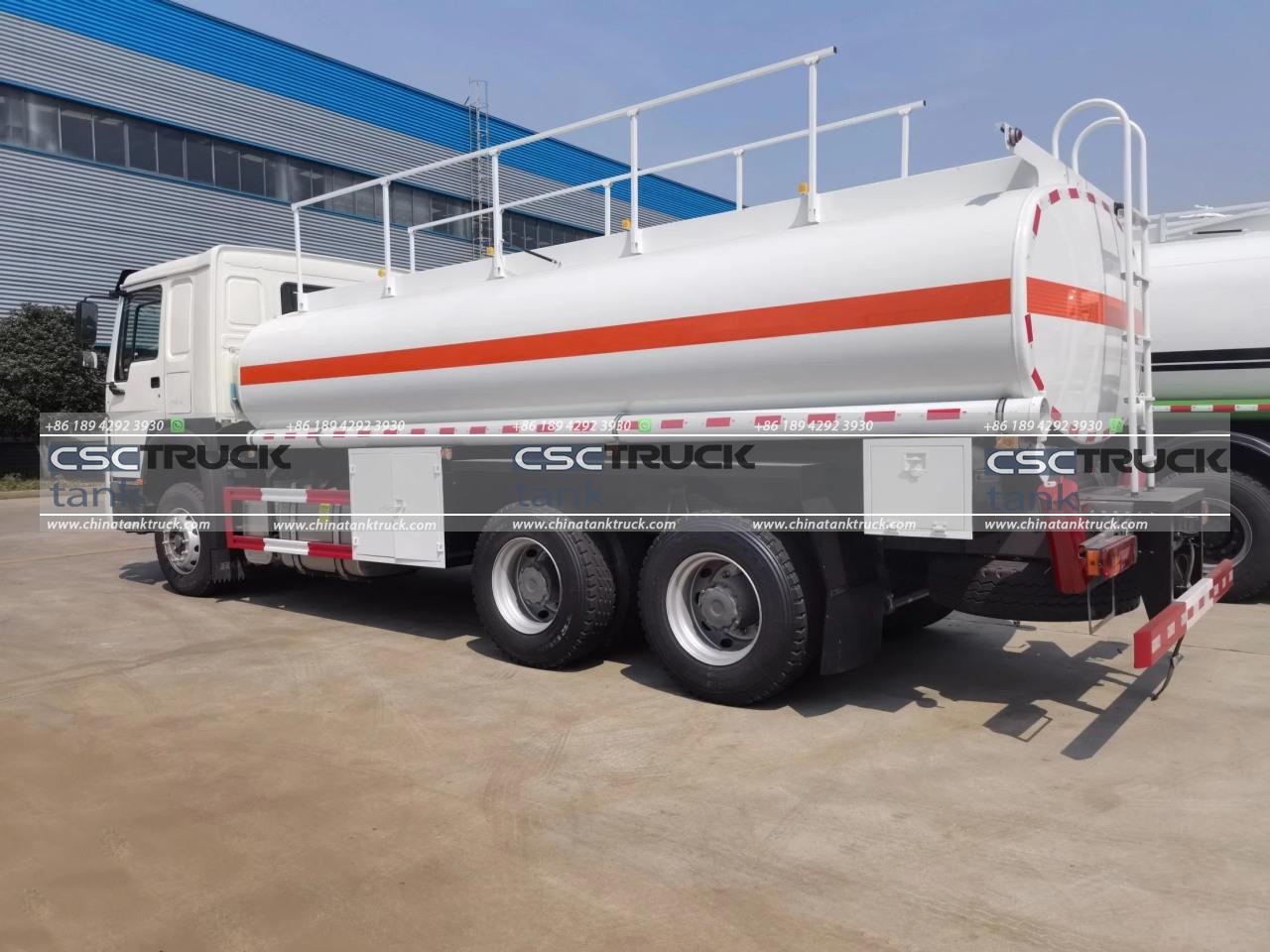

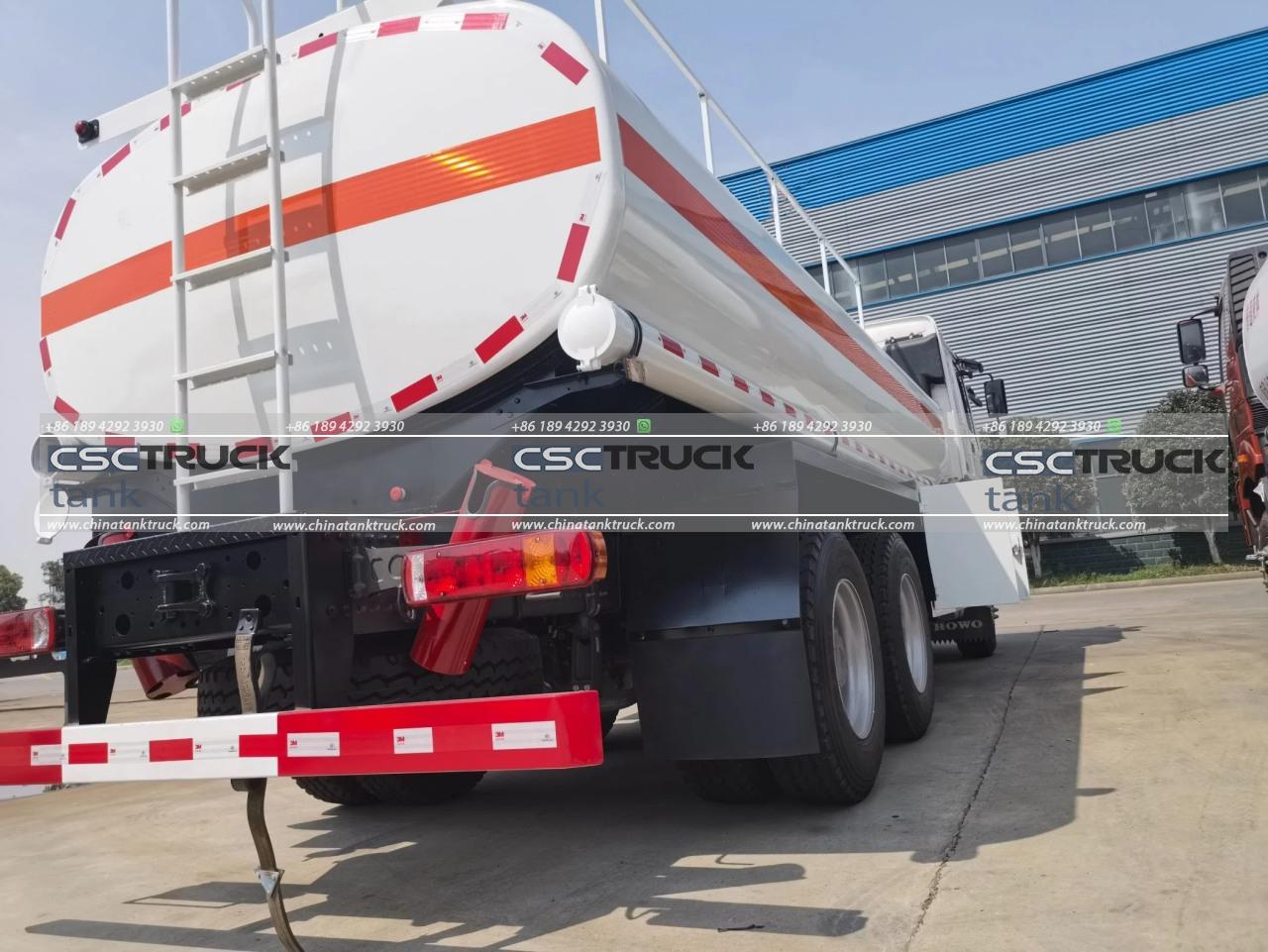

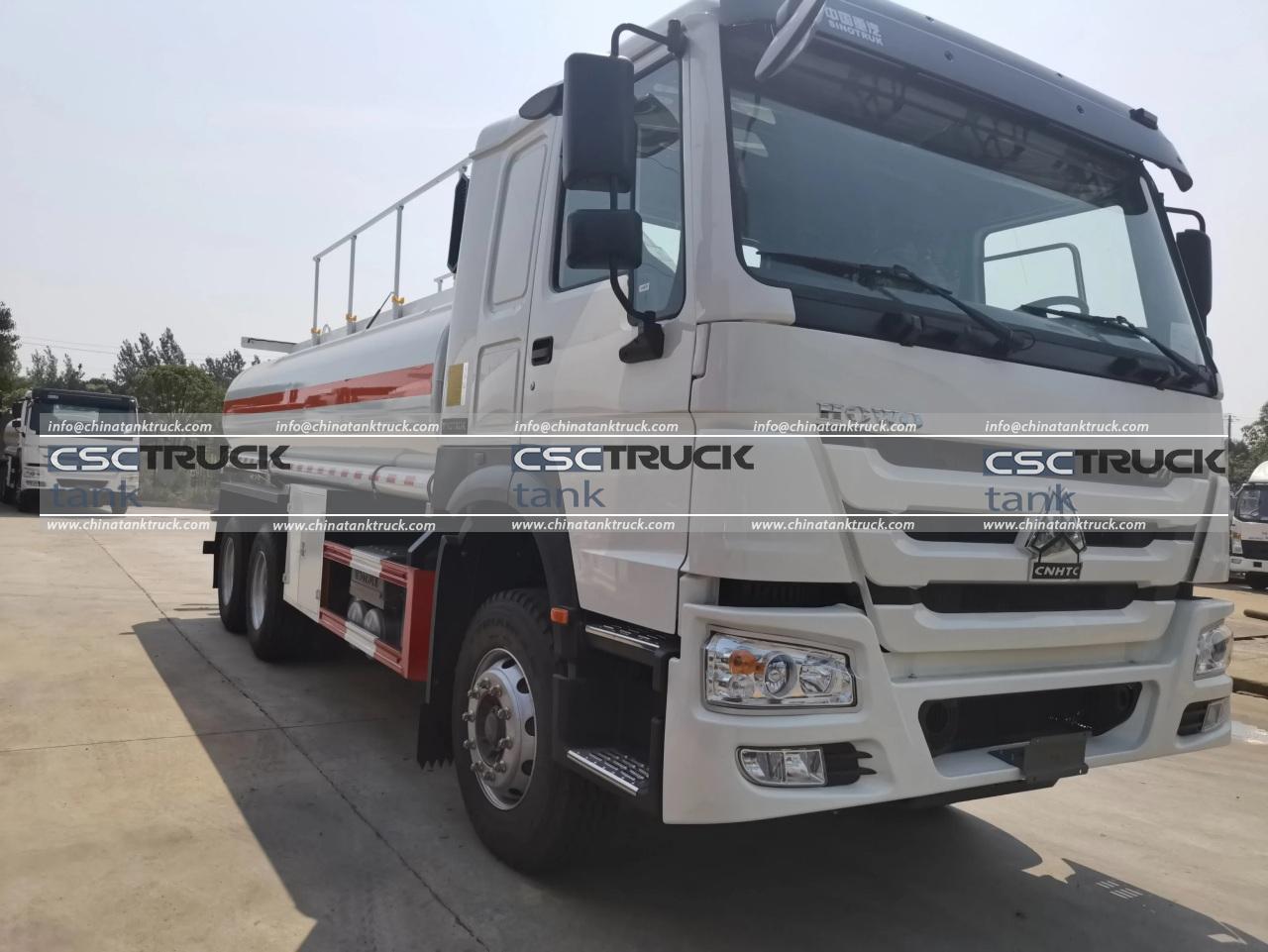

Model No.: | HOWO Crude Oil Tank Truck |
Crude Oil Tank: | 400L |
Crude Oil Tank Material: | Carbon Steel |
Overall Dimensions(LxWxH): | 8,200×2,500×3,350mm |
Chassis Brand: | HOWO |
Drive Type: | 6×4 |
Wheelbase: | 4,625+1,350mm |
Engine Model: | WD615.96C |
Emissions Standard: | Euro III |
Horsepower: | 380HP |
Categories: Carbon Steel Tank Truck, Crude Oil Tank Truck
Description
BRIEF
The HOWO crude oil tank truck, produced by CSCTRUCK China Tank Truck, is a robust and efficient vehicle designed for the safe transportation of crude oil. This tank truck features a 400-liter carbon steel crude oil tanker, providing durability and resistance to the harsh conditions often encountered in the oil transport industry.
Built on a 6×4 drive type chassis, HOWO crude oil tank truck offers superior traction and stability, making it suitable for various terrains and ensuring reliable performance under heavy loads. At the heart of the truck is the WD615.96C engine, a powerful and efficient model that meets the Euro III emission standard, reflecting a commitment to reducing environmental impact. The engine delivers a substantial 380 horsepower, providing the necessary power for long-haul transport and demanding driving conditions.
Overall, the HOWO crude oil tank truck by CSCTRUCK China Tank Truck combines strength, efficiency, and environmental consciousness, making it an ideal choice for companies in the crude oil transportation sector.
FEATURES
1. Tank Capacity and Material:
  – The tank has a capacity of 400 liters, designed to transport crude oil.
  – It is constructed from durable carbon steel, ensuring robustness and resistance to the corrosive nature of crude oil.
2. Drive Type:
  – The truck features a 6×4 drive configuration. This means it has 6 wheels, 4 of which are driven, providing enhanced traction and stability, especially useful for heavy-duty transport.
3. Engine Specifications:
  – Model: The truck is equipped with the WD615.96C engine model, which is known for its reliability and performance.
  – Emission Standard: Complies with the Euro III emission standard, ensuring it meets specific environmental and efficiency criteria.
  – Power: The engine delivers a substantial 380 horsepower (HP), providing ample power for transporting heavy loads.
4. Manufacturer:
  – Produced by CSCTRUCK China Tank Truck, a reputable manufacturer in China known for specializing in a variety of specialized trucks and heavy-duty vehicles.
SPECIFICATION
Item |
Specification |
Remark |
Pilothouse | HW76New front face | Reversible, with sleeper and air conditioning |
Front axle | 7t(HF7) | |
Rear axle | 16t(ST16)*2 | |
Transmission | HW19710 | Sinotruk 10 speed transmission |
Vehicle frame | Straight reinforced beam | |
ABS | yes | |
Power take-off interface | yes | |
Power take-off | HW70 | |
Tire | 10 unit 295/80R22.5 vacuum tires with spare tire | |
Front/rear suspension | Front: 1,500, Rear: 2,525mm | |
Departure angle | Front: 16, Rear: 11 | |
Hang | Leaf spring 10/12 | |
Leaf spring | Top 10, Back 12 | |
Number of axles | 3 | |
Wheelbase | 4,625+1,350mm | |
Number of tires | 10+1 | |
Track width | Front: 2,040, Rear: 1,860/1,860mm | |
Driving Type | 6×4 | |
Engine | WD615.96C | Weichai 380hp |
Emission standard | Euro 3 | |
Hang | Leaf spring | |
Driving style | Steering wheel/left-hand drive | |
Fuel tank capacity | 400L | |
Brake | Drum-type | |
Brake system | Air brake | |
Direction machine | ZF8198 | |
Spare Tire Rack | yes | |
Voltage | 24V | |
Toolbox | yes | |
Color | According to user requirements |
