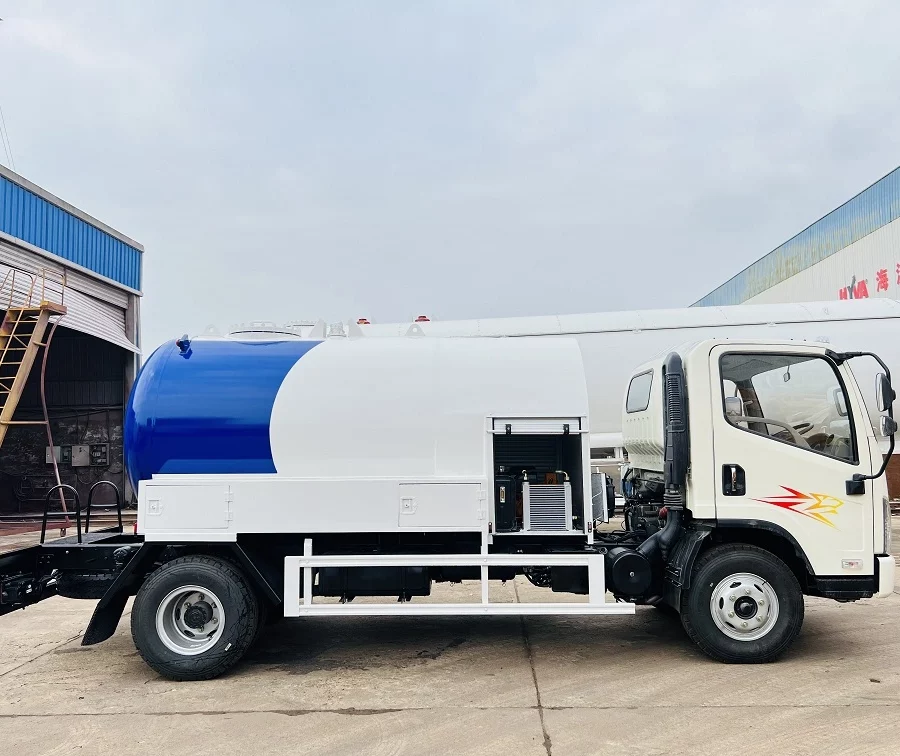

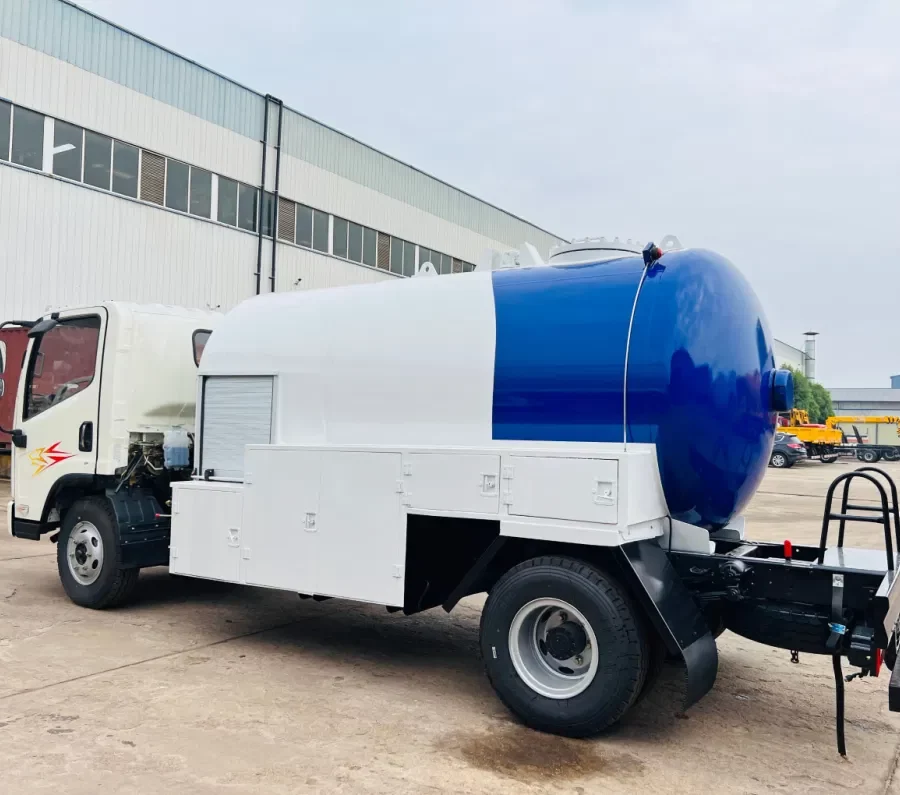

HOWO 7 Ton LPG Bobtail Truck

BRIEF:

The HOWO 7-Ton LPG Bobtail Truck is a robust and reliable vehicle designed for the secure and efficient transportation of LPG (Liquid Petroleum Gas). This versatile truck brings together a durable HOWO chassis, an LPG tank, a LPG vane pump, and a complete PLG filling system, including essential components such as a flow meter, temperature meter, a 15-meter filling hose, and a filling gun. This truck is engineered for the transportation of LPG, particularly when it comprises a butane and propane mixture, with the weight of propane capped at a maximum of 30%. Additionally, the inclusion of an optional electronic scale ensures accurate and accountable LPG deliveries.

This LPG Truck is a high-capacity and reliable solution for the transportation of LPG. It provides the necessary features and optional electronic scale for precise and accountable LPG delivery services. This vehicle is ideal for businesses involved in the safe and efficient transportation of LPG.

FEATURES:

HOWO Truck Chassis: The HOWO truck chassis offers robust performance, featuring a 160hp engine that complies with the Euro 2 emission standard. It boasts a 6-speed manual transmission and is equipped with 9.00R20 tires for stability and reliability on the road.
USA Corken Vane Pump: The truck is fitted with a dependable USA Corken vane pump, specifically the Z2000 model. This pump guarantees efficient LPG handling and delivery.
15,000-Liter LPG Tank: The LPG tank is constructed from durable Q345R material with a 10mm thickness, providing a substantial 15,000-liter capacity. This ensures the transportation of up to 7 tons of LPG while maintaining safety and reliability in varying environmental conditions.
Standard Gauges: The truck comes standard with essential gauges, including a pressure meter, temperature meter, and liquid gauge. These features enhance safety and control during LPG delivery operations.
Optional Electronic Scale: To facilitate precise and accountable LPG deliveries, an electronic scale is offered as an optional feature. This enables users to accurately measure and verify the quantity of gas delivered.

SPECIFICATIONS:

Category	Specifications
Chassis
Size	8,350 x 2,400 x 3,250 mm
GVW/Curb Weight	16,000/8,500 kg
Wheelbase	4,700 mm
Tire	9.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	YUCHAI/WC4E160-33/160hp/Euro 2
Transmission
Model	DC/DC6J65TC
Gears	6F+1R
Operation	Manual
Cabin
Driving	HOWO, 4×2, LHD / RHD
Type	Seats, radio, MP3
Passenger No.	3
LPG TANK
Filling Medium	LPG
Capacity	7 tons/15,000 Liters
Working Temperature	-40 ~ 50°C
Tank Material	Q345
Tank Diameter	1,800 mm
Tank Thickness	10 mm
End Plate Thickness	10 mm
Tank Length	5,070 mm
Gas Phase	Flange Type, DN25, DN50, other sizes optional
Liquid Phase	Flange Type, DN50, DN80, other sizes optional
Working Pressure	1.61 Mpa
Design Pressure	1.71 Mpa
Testing Pressure	2.21 Mpa
Corrosion Allowances	1.0 mm
