| Mobile No.: | CSCFTT005 |
| Fuel Tank Volume: | 5,000 Liters |
| Overall Dimensions(LxWxH): | 5,990X2,100X2,650mm |
| Chassis Brand: | HOWO |
| Drive Type: | 4X2 |
| Wheelbase: | 3,360mm |
| Engine Model: | YN4102QBZL |
| Engine Power: | 116HP |
| Emission Standard: | Euro 3 |
| Fuel Tanker material: | 4mm Q235B |
| Pumping System: | Pump in and out, 60/90 Aluminum |
| Fuel Dispenser: | Hengshan |
| Flow Meter: | Ningbo |
| Measurement Accuracy: | ±0.3% |
| Standard Flow Rate: | 4.5-45L/min |
BRIEF

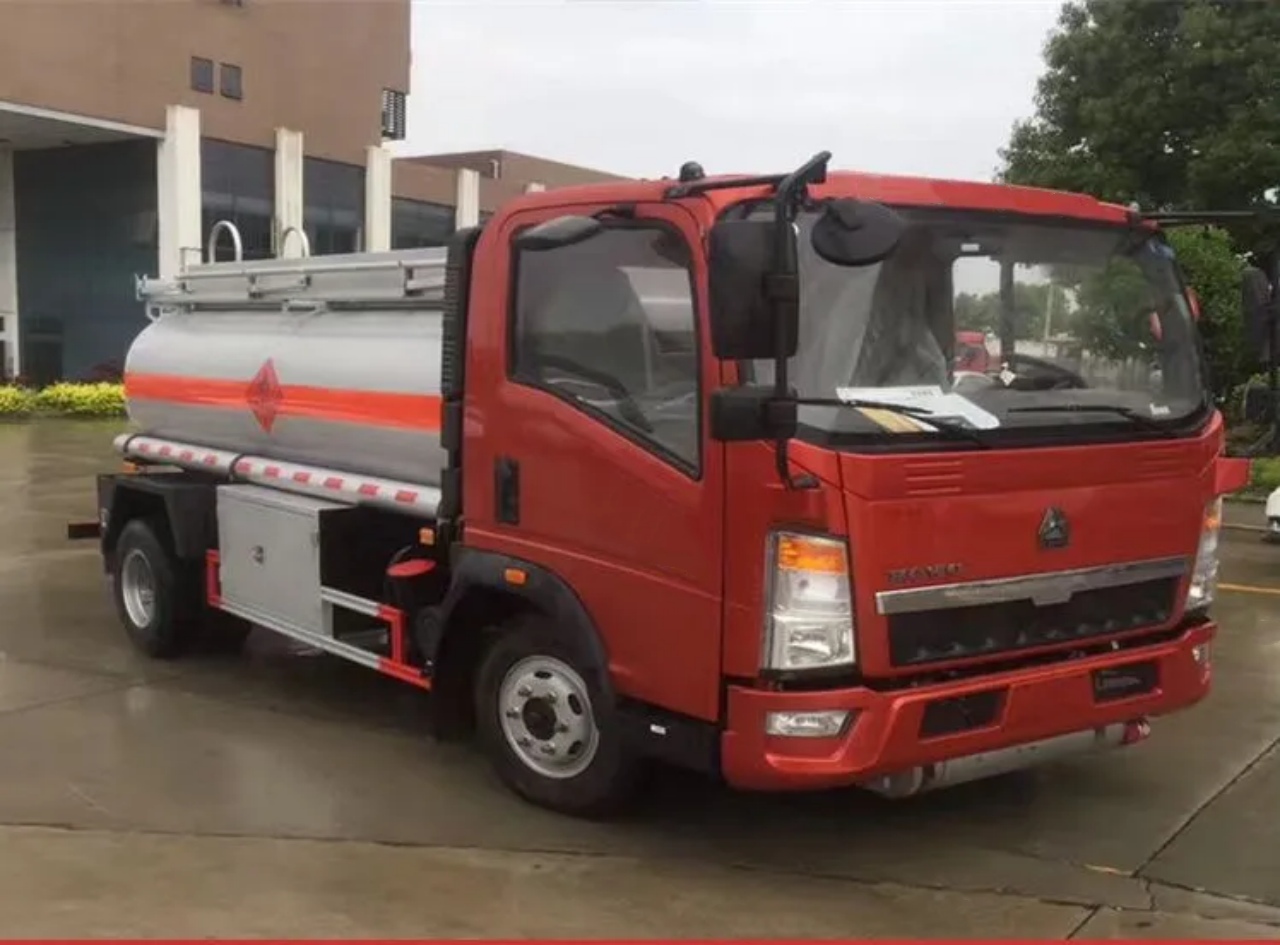

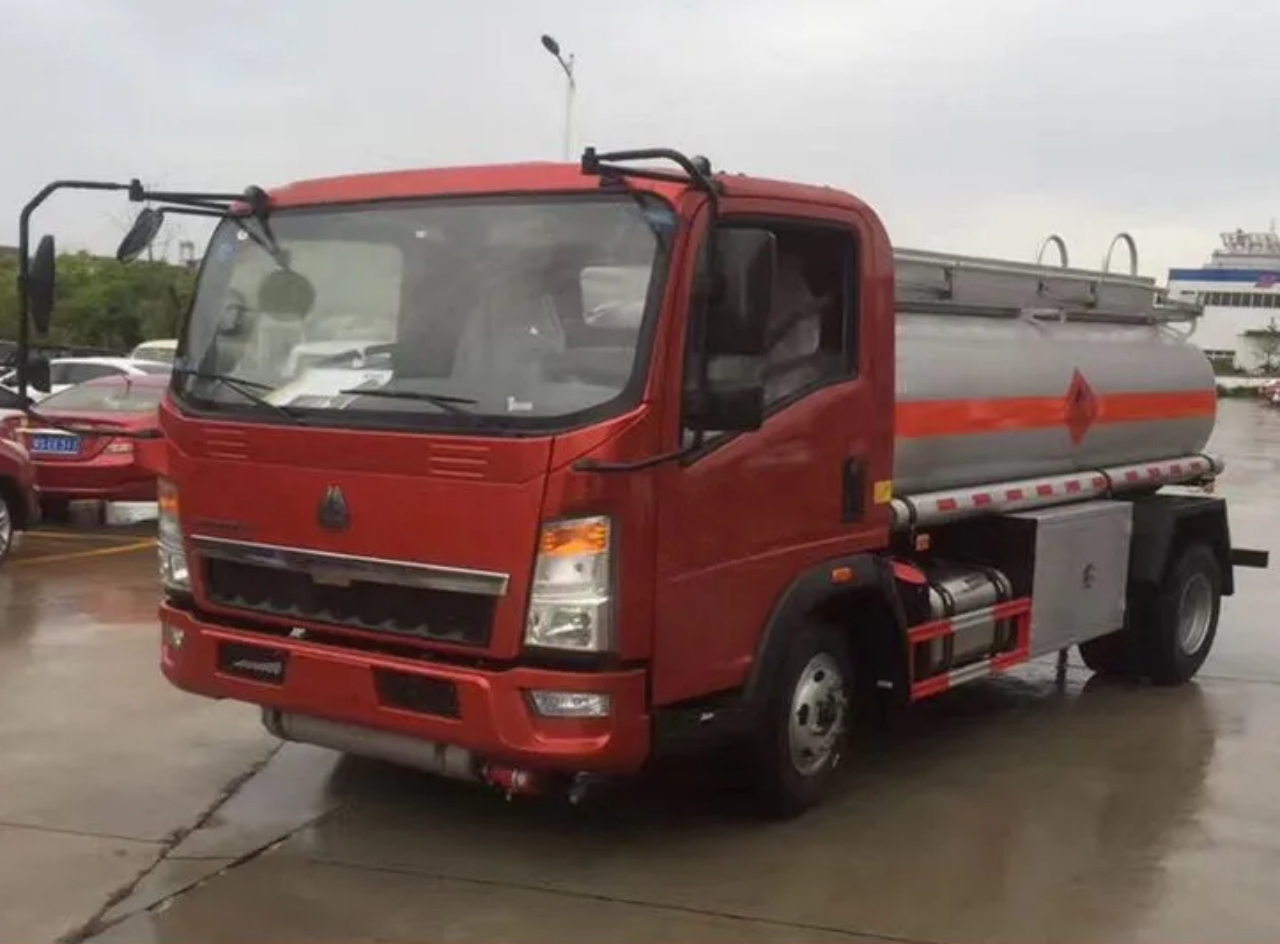

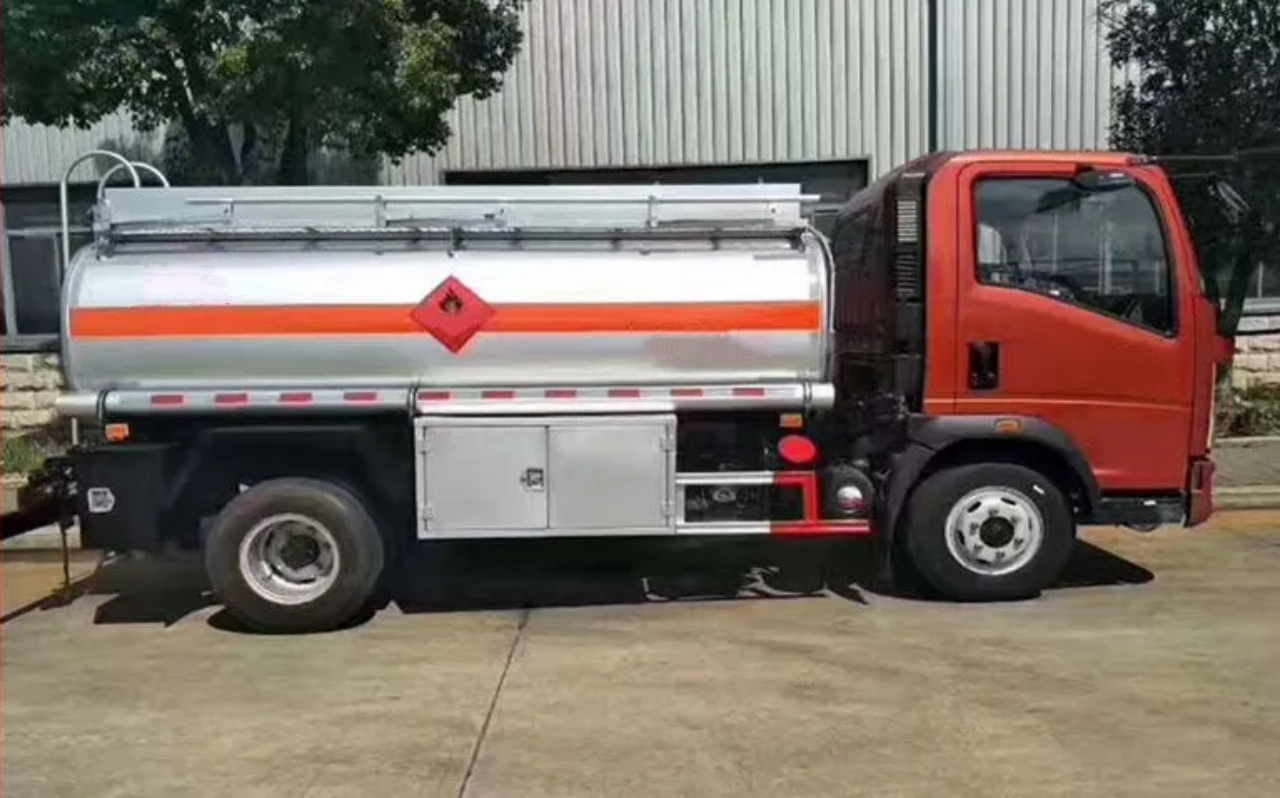

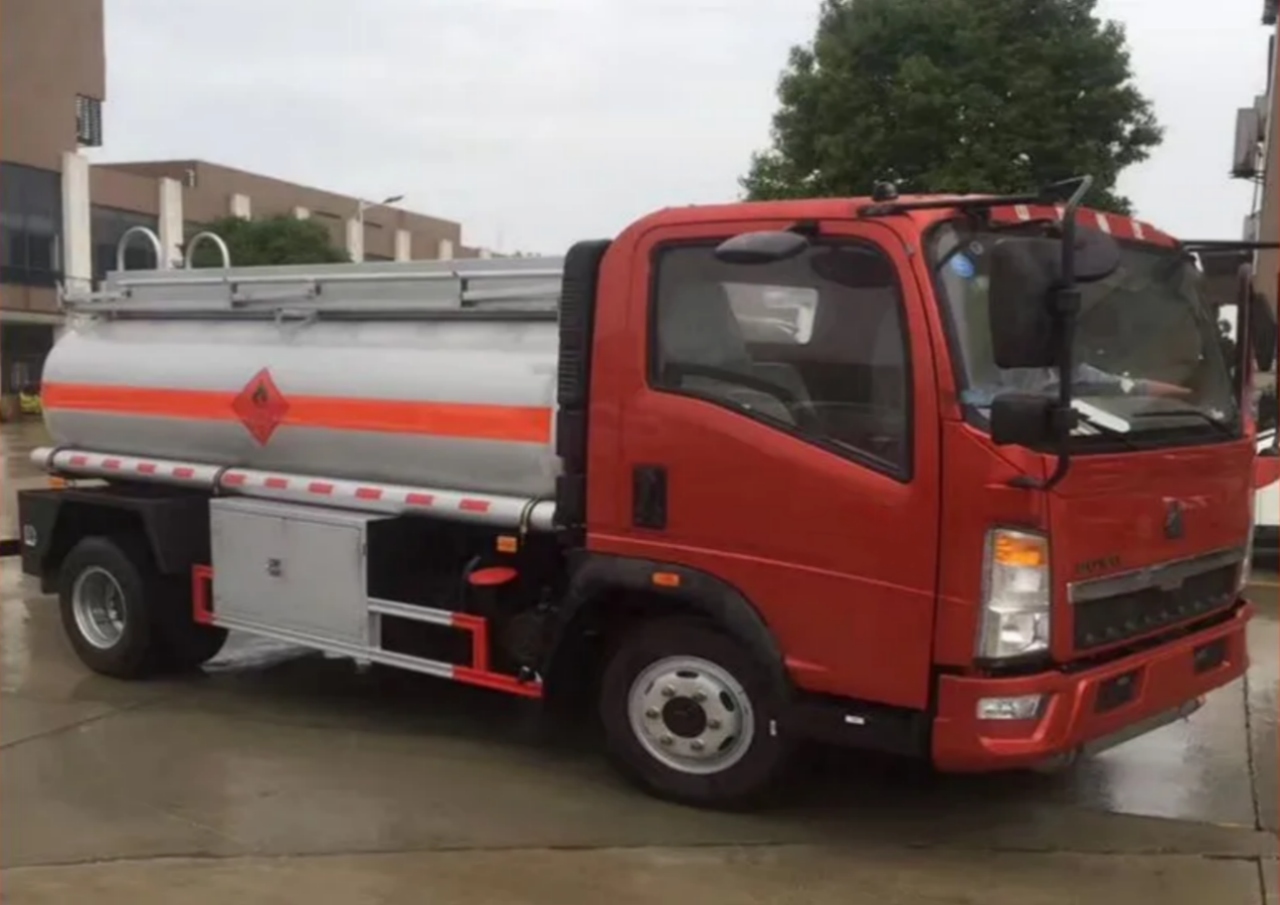

The HOWO 5000-liter fuel transport truck, produced by CSCTRUCK China Tank Truck, is a versatile and reliable vehicle for transporting and distributing fuel. Built on the durable HOWO chassis with a 4×2 drive configuration, it is equipped with a YN4102QBZL engine, offering 116HP engine power. This model adheres to Euro 3 emission standards, ensuring it meets environmental regulations while providing efficient fuel transport capabilities.
The truck features a 5,000-liter fuel tank with a 4mm thick Q235B steel construction, ensuring durability and safety during fuel transportation. The tank is designed with a pump-in and pump-out system, making it ideal for both receiving and dispensing fuel efficiently. The pumping system is a 60/90 aluminum setup, providing smooth and reliable fuel transfer.
For dispensing fuel, the fuel transport truck is equipped with a Hengshan fuel dispenser, known for its high-quality construction and accuracy. The fuel transfer process is controlled by a Ningbo flow meter, ensuring precise measurement with an accuracy of ±0.3%. The flow meter allows for a standard flow rate of 4.5-45L/min, catering to various fuel delivery needs.
The overall design of the HOWO 5000-liter fuel transport truck makes it an excellent choice for fuel transportation across a wide range of applications, from small-scale fuel distribution to larger commercial needs. Its robust construction, coupled with advanced fuel handling systems, ensures efficient, safe, and environmentally friendly operation.
FEATURES
- Fuel Tank Capacity & Construction: The truck is equipped with a 5,000-liter fuel tank made from durable 4mm Q235B steel, offering reliable fuel storage and transportation capabilities.
- Engine & Performance: Powered by the YN4102QBZL engine with 116 horsepower, the truck provides solid performance, supported by the Euro 3 emission standard for reduced environmental impact.
- Aluminum Pumping System: It features a high-quality 60/90 Aluminum pumping system, designed for efficient fuel transfer, making it ideal for fueling stations and large-scale transport needs.
- Precision Measurement: The fuel dispenser uses a Ningbo flow meter with ±0.3% measurement accuracy, ensuring precise fuel delivery and minimizing the chances of fuel loss or mismeasurement.
- Fuel Dispensing Capabilities: With a standard flow rate of 4.5-45L/min, the Hengshan fuel dispenser ensures fast and efficient fuel pumping, optimizing fueling operations and saving time.
SPECIFICATION
| Chassis no. | ZZ1047 |
| Chassis brand | HOWO |
| Drive Model | Left-Hand Drive/RHD |
| No. of axle | 2 |
| Wheelbase(mm) | 3,360 |
| Overall dimensions(mm)(LxWxH) | 5,990×2,100×2,650(mm) |
| Approach angle( °) | 19 |
| Departure angle( °) | 17 |
| Allowable passengers | 3,2 |
| No. Of tire | 6+1 spare tire |
| Tire specification | 7.00R16 |
| G.V.W(kg) | 8280kg |
| Engine model | YN4102QBZL |
| Fuel type | Diesel |
| Horsepower | 116HP |
| Traction | 4*2 |
| Braking system | Air braking |
| Electric system | 24 V |
| Fuel Tanker material | 4mm Q235B |
| Fuel Tanker capacity | 5,000L |
| Pumping System | Pump in and out, 60/90 Aluminum |
| Fuel Dispenser | Hengshan |
| Flow Meter | Ningbo |
| Measurement accuracy | ±0.3% |
| Standard Flow Rate | 4.5-45L/min |
| Tank Mounted on Chassis Brand |
|---|
