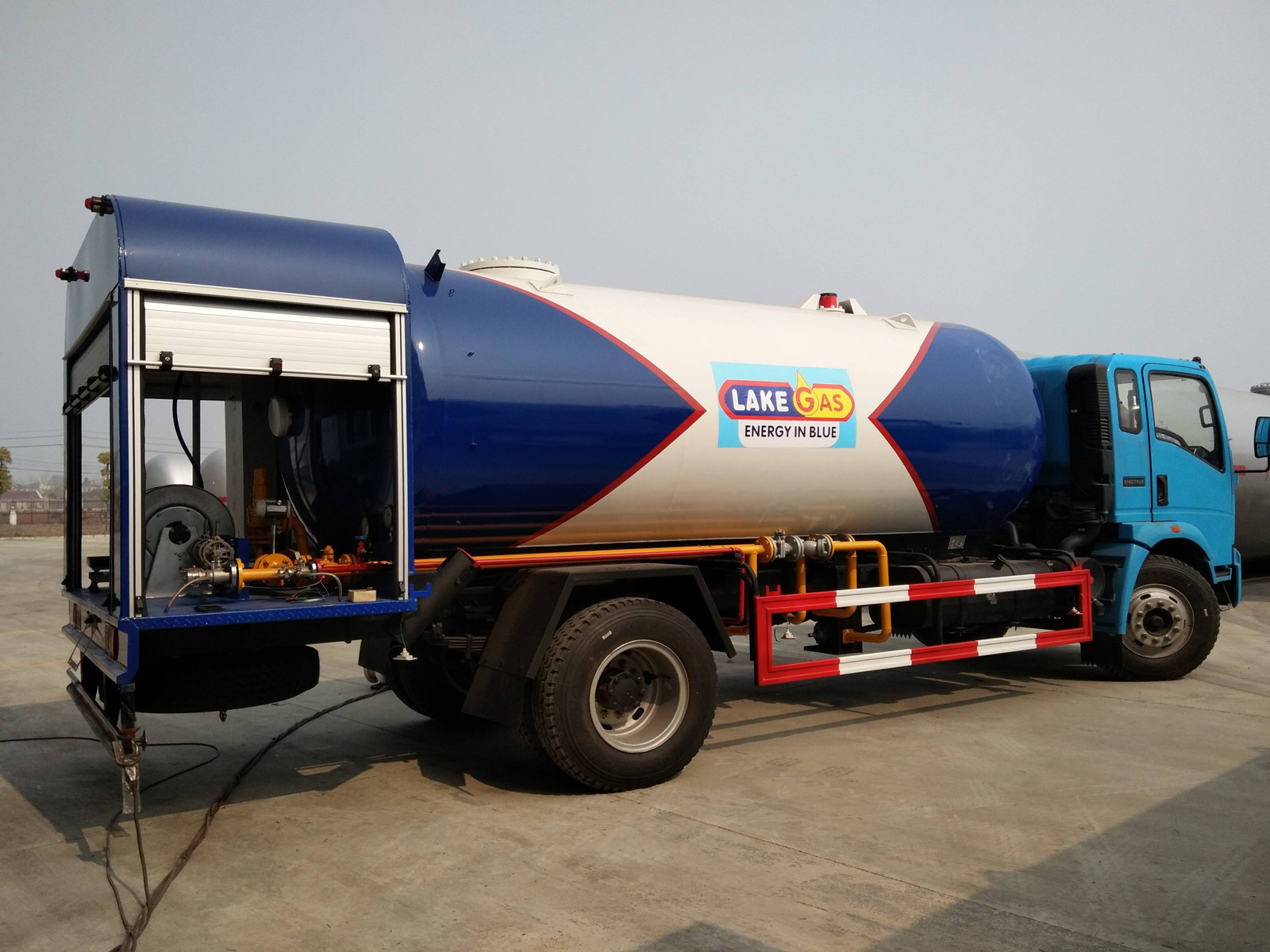

HOWO 5 Ton LPG Bobtail Truck

BRIEF:

The HOWO 5-Ton LPG Bobtail Truck is a versatile and reliable vehicle designed for the transportation of LPG (Liquid Petroleum Gas) with precision and safety. This specialized truck combines a sturdy HOWO chassis with a dedicated LPG tank and efficient filling system, including essential components such as a flow meter, temperature meter, a 15-meter filling hose, and a filling gun. This truck is engineered to transport LPG, especially when it consists of a mixture of butane and propane, with the weight of propane being capped at a maximum of 30%. With the optional electronic scale, this vehicle provides a complete solution for LPG delivery businesses.

This LPG Bobtail Truck is built to ensure safe and efficient LPG transportation with its robust features and optional electronic scale for precise deliveries. This vehicle is suitable for businesses looking to start or expand their LPG delivery services.

FEATURES:

HOWO Truck Chassis: The HOWO truck chassis offers robust performance. It features a 160hp engine, complies with the Euro 2 emission standard, and is equipped with a 6-speed manual transmission for seamless operation. The truck’s tire size is 9.00R20, ensuring stability and reliability on the road.
USA Corken Vane Pump: The truck is equipped with a dependable USA Corken vane pump, specifically the Z2000 model. This pump guarantees efficient LPG handling and delivery.
12,000-Liter LPG Tank: The LPG tank, made from durable Q345R material with a 10mm thickness, provides a 12,000-liter capacity, making it suitable for transporting up to 5 tons of LPG. It is built to withstand various environmental conditions and ensure the safety of the transported cargo.

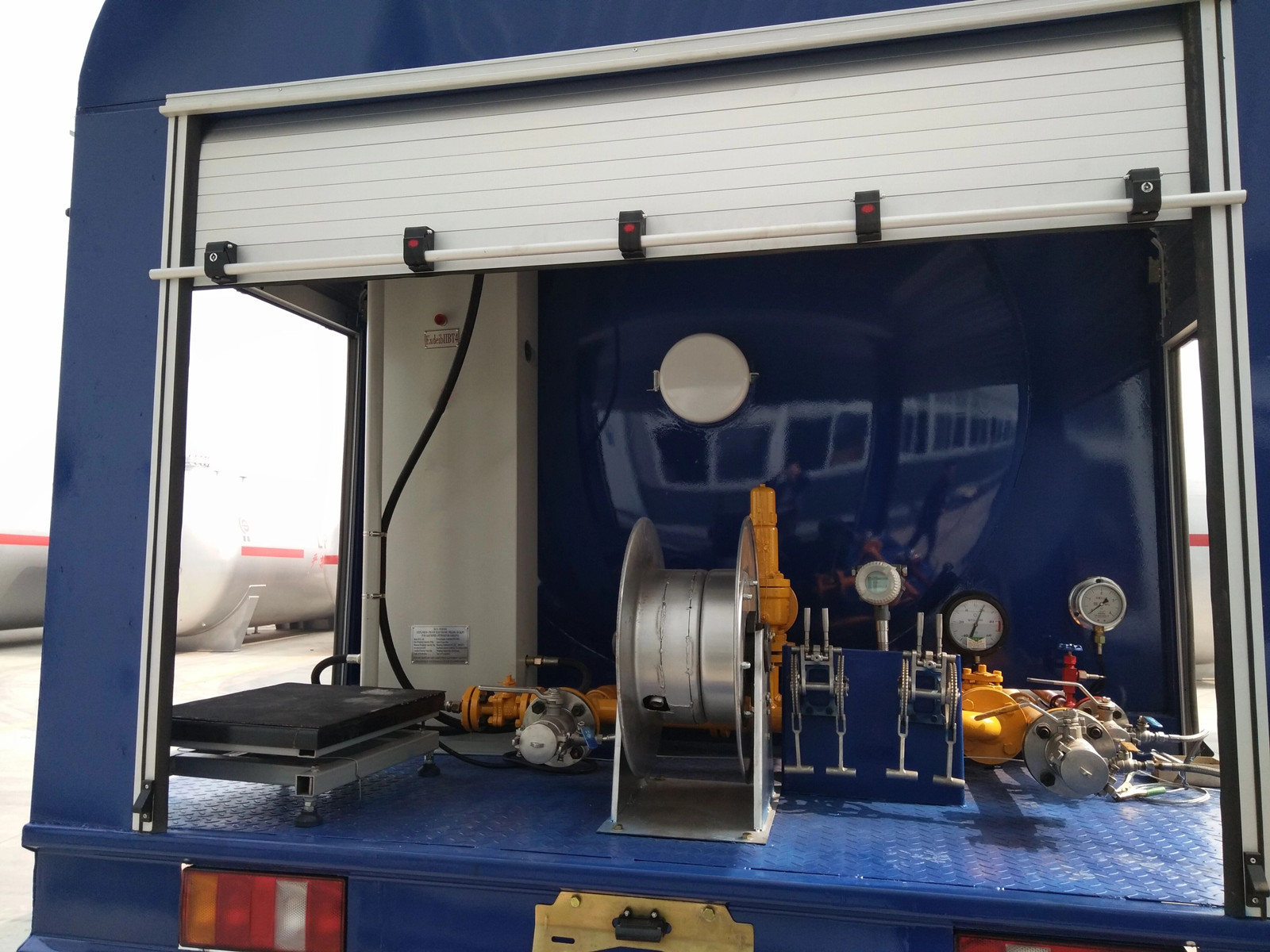

Standard Gauges: Pressure meter, temperature meter, and liquid gauge are standard features of the truck, enhancing safety and control during LPG delivery operations.
Optional Electronic Scale: For precise and accountable LPG delivery, an electronic scale is offered as an optional feature, allowing users to measure and verify the quantity of gas delivered accurately.

SPECIFICATIONS:

Category	Specifications
Chassis
Size	8,350 x 2,400 x 3,250 mm
GVW/Curb Weight	13,500/8,500 kg
Wheelbase	4,700 mm
Tire	9.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	YUCHAI/WC4E160-33/160hp/Euro 2
Transmission
Model	DC/DC6J65TC
Gears	6F+1R
Operation	Manual
Cabin
Driving	HOWO, 4×2, LHD / RHD
Type	Seats, radio, MP3
Passenger No.	3
LPG TANK
Filling Medium	LPG
Capacity	5 tons/12,000 Liters
Working Temperature	-40 ~ 50°C
Tank Material	Q345
Tank Diameter	1,800 mm
Tank Thickness	10 mm
End Plate Thickness	10 mm
Tank Length	5,070 mm
Gas Phase	Flange Type, DN50/2”, other sizes optional
Liquid Phase	Flange Type, DN50/2”, other sizes optional
Working Pressure	1.61 Mpa
Design Pressure	1.71 Mpa
Testing Pressure	2.21 Mpa
Corrosion Allowances	1.0 mm
