Model No.: | CSCFDT020 |
Fuel Tank Volume: | 20,000 Liters |
Overall Dimensions(LxWxH): | 9,900×2,500×3,300mm |
Chassis Brand/Model: | HOWO/ZZ1257N4641W |
Drive Type: | 6×4 |
Wheelbase: | 4,600+1,350mm |
Engine Model: | WD615.69 |
Engine Power: | 336HP |
Emission Standard: | Euro 2 |
Tanker material: | Carbon steel |
Categories: Carbon Steel Tank Truck, Fuel Tank Truck
Description
BRIEF

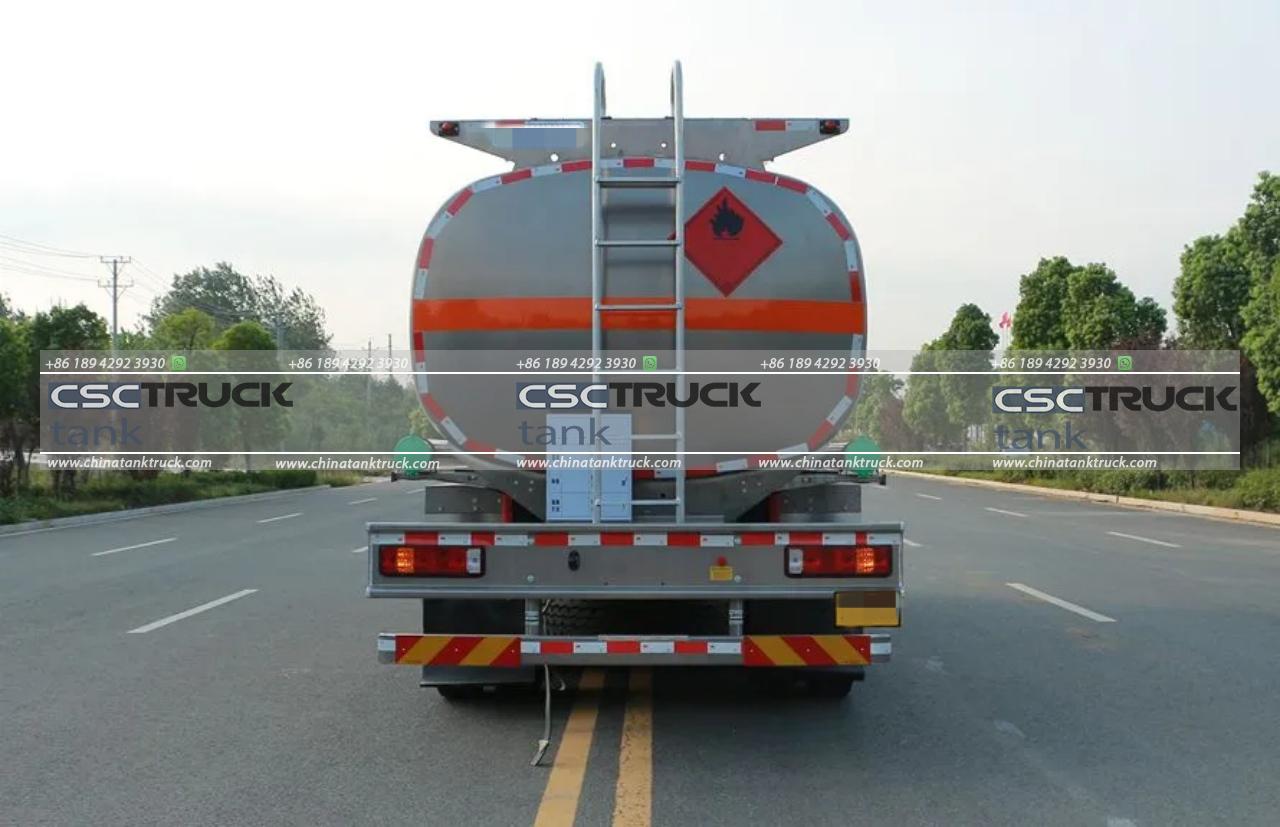

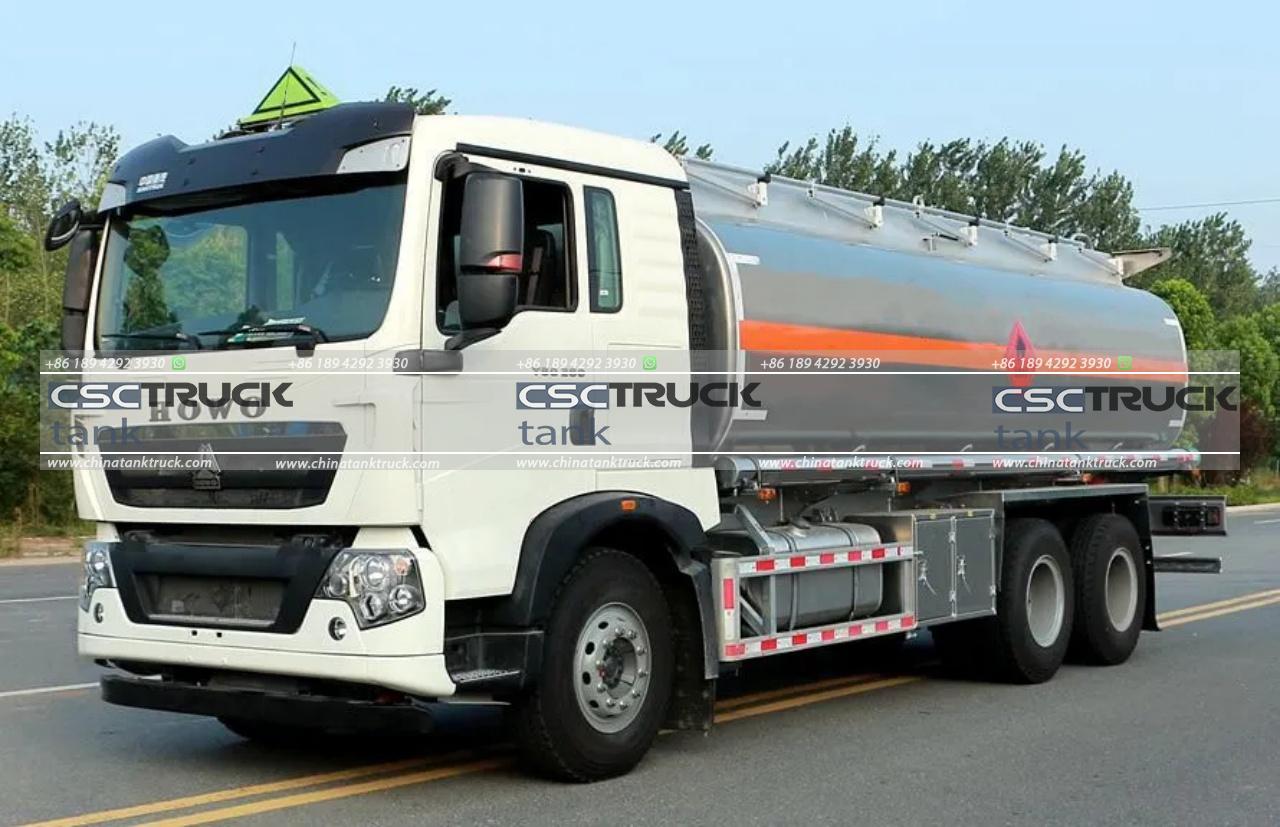

The HOWO 20,000-liter fuel delivery truck, manufactured by CSCTRUCK China Tank Truck, is a reliable and efficient solution for large-scale fuel transportation. Built on the sturdy HOWO/ZZ1257N4641W chassis, this vehicle features a 6×4 drive configuration, ensuring excellent traction and maneuverability, even under challenging road conditions.
The tank truck is powered by the WD615.69 engine, delivering 336 horsepower. This robust engine operates at a Euro 2 emission standard, making it suitable for regions with basic environmental regulations while maintaining operational efficiency and durability.
The fuel tank, with a substantial capacity of 20,000 liters, is constructed from carbon steel, ensuring strength, longevity, and resistance to wear. This tank is ideal for transporting large volumes of fuel safely and securely.
Designed for performance and practicality, the truck balances power, fuel efficiency, and payload capacity, making it a popular choice for fuel distributors. The 6×4 drive type offers enhanced load-handling capabilities, while the carbon steel tank material ensures compliance with industrial safety standards.
In summary, the HOWO 20,000-liter fuel delivery truck combines reliability, power, and capacity, making it a versatile choice for fuel transportation in various industries. Its durable build and efficient design reflect the quality and engineering expertise of CSCTRUCK China Tank Truck, ensuring seamless operations and value for investment.
FEATURES
1. Large Fuel Tank Capacity: The truck is equipped with a 20,000-liter carbon steel fuel tank, ideal for bulk fuel transport.
2. Reliable Chassis and Configuration: Built on the HOWO/ZZ1257N4641W chassis, offering durability and compatibility for heavy-duty applications.
3. Powerful Engine: Features the WD615.69 engine model with a power output of 336HP, ensuring efficient performance and reliability.
4. 6×4 Drive Type: The 6-wheel-drive configuration provides excellent traction and stability, especially suitable for heavy loads and long-distance travel.
5. Euro 2 Emission Standard: Adheres to Euro 2 emission standards, ensuring compliance with basic environmental regulations.
SPECIFICATION
Vehicle Description |
||
Overall dimensions(LxWxH) | 9,900X2,500X3,300mm | |
GVW | 25,000kg | |
Curb weight | 10,805kg | |
Chassis brand | SINOTRUK HOWO | |
Traction type | 6X4 | |
Tanker Description |
||
Tank capacity | 20,000 Liters | |
Tanker material | Carbon steel | |
Thickness | Tanker body | 5mm |
End cover | 5mm | |
Tanker shape | Square | |
Tanker compartment | 3 compartments (optional: several compartments) | |
Standard configuration | 3 set manhole (3 sets manhole for a capacity of more than 7,000L+7,500L+7,500L). | |
Equipped with a double discharge valve and valve box. | ||
Equipped with surge baffles, ladder, roof coaming, skid-resistant walkway, and toolbox. | ||
Electrostatic conducting tape and double fire extinguishers. | ||
Optional | Tanker material: Aluminum alloy; stainless steel | |
Chinese standard configuration is available, or other world-famous fuel configuration. | ||
Overflow probe system, vapor recovery system, bottom valve, API adaptors. | ||
Emergency bottom valve and foldable aluminum handrail. | ||
Others: fuel pump, refueling dispenser, flow meter, dipstick, etc. | ||
Chassis Description |
||
Chassis model | ZZ1257N4641W | |
Cab | HW76-extended cab, single berth, adjustable steering wheel, VDO instrument and control module, safety belt with double locking mechanism, exterior sunroof, and air-conditioner. | |
Wheelbase | 4,600+1,350mm | |
Tire specification | 12.00R20 | |
Tire quantity | 10+1 units | |
Engine | Engine model | WD615.69 |
Emission level | Euro 2 | |
Displacement/output | 9,726ml/247kW | |
Horsepower | 336HP | |
Gearbox | Model | HW19710 |
Number of gears | 10 forward gears& 2Â reverse, planetary reducer | |
Brake system | Service brake:dual-circuit pneumatic brake; | |
Parking brake: Energy storage spring air cutoff brake; | ||
Auxiliary brake: Engine exhaust brake. | ||
Axle | Front | HF-9T |
Rear | ST-16T*2 | |
Suspension | Front | Leaf springs |
Rear | Leaf springs | |
Fuel tanker | Type | Steel tanker, with lockable cap |
Capacity | 400L |
