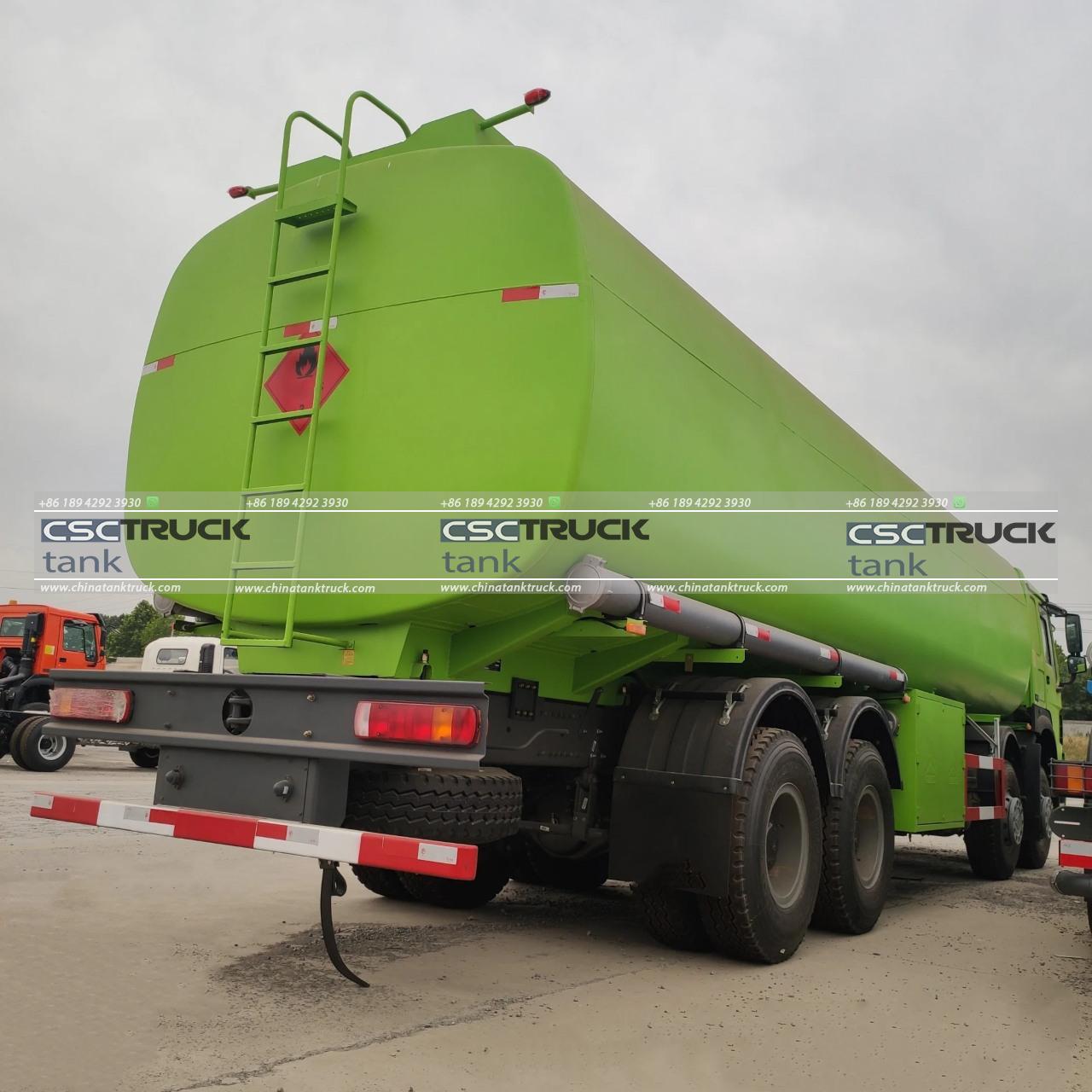

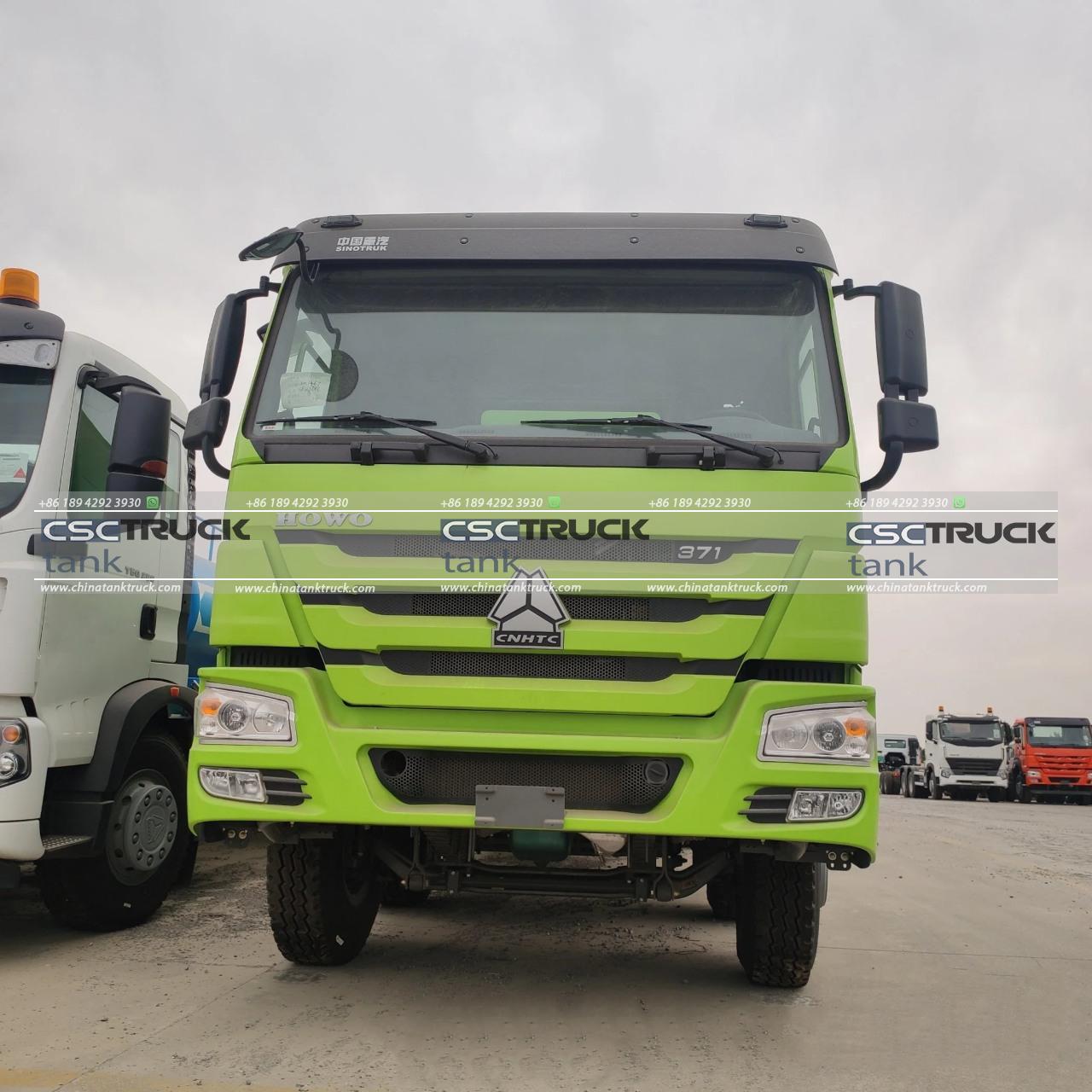

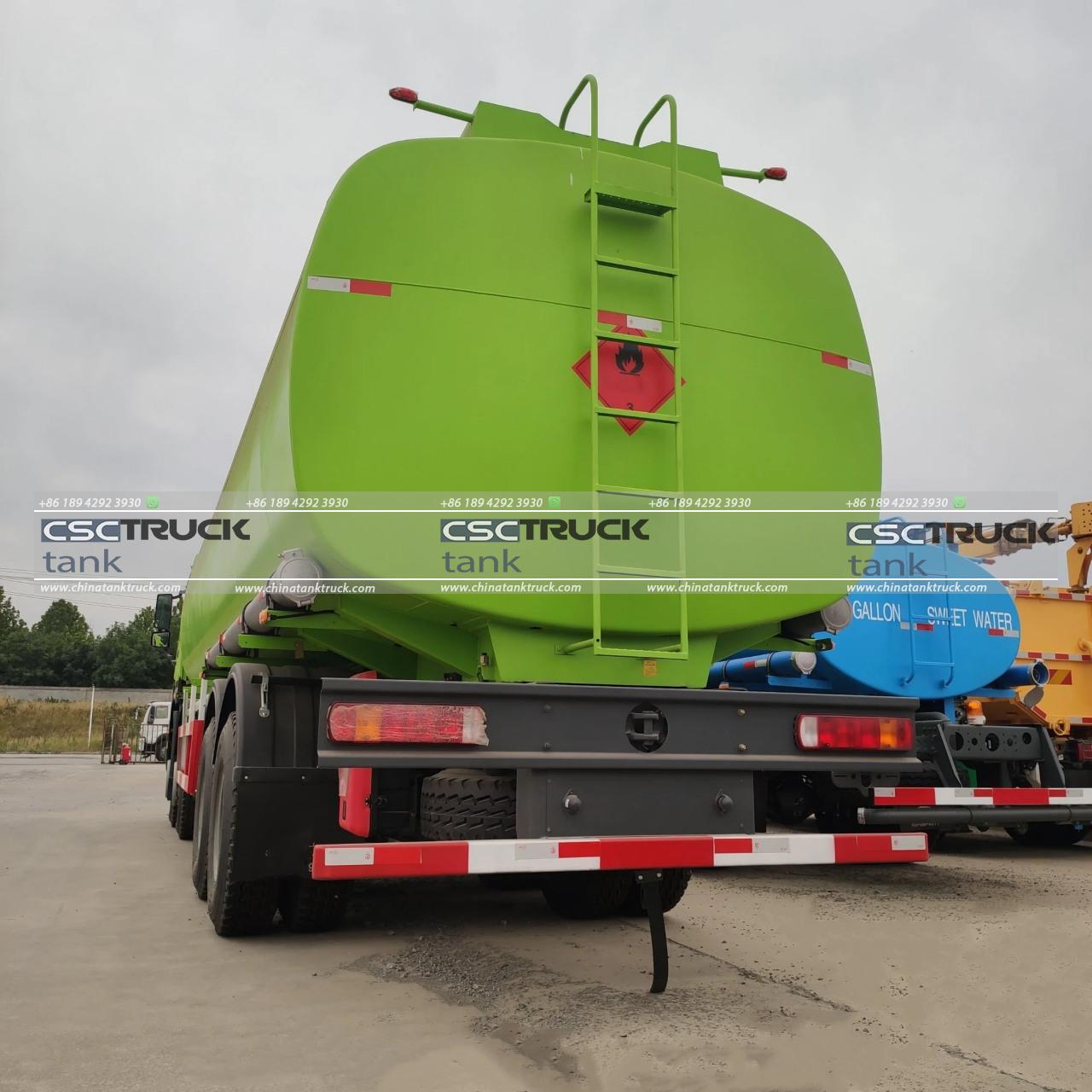

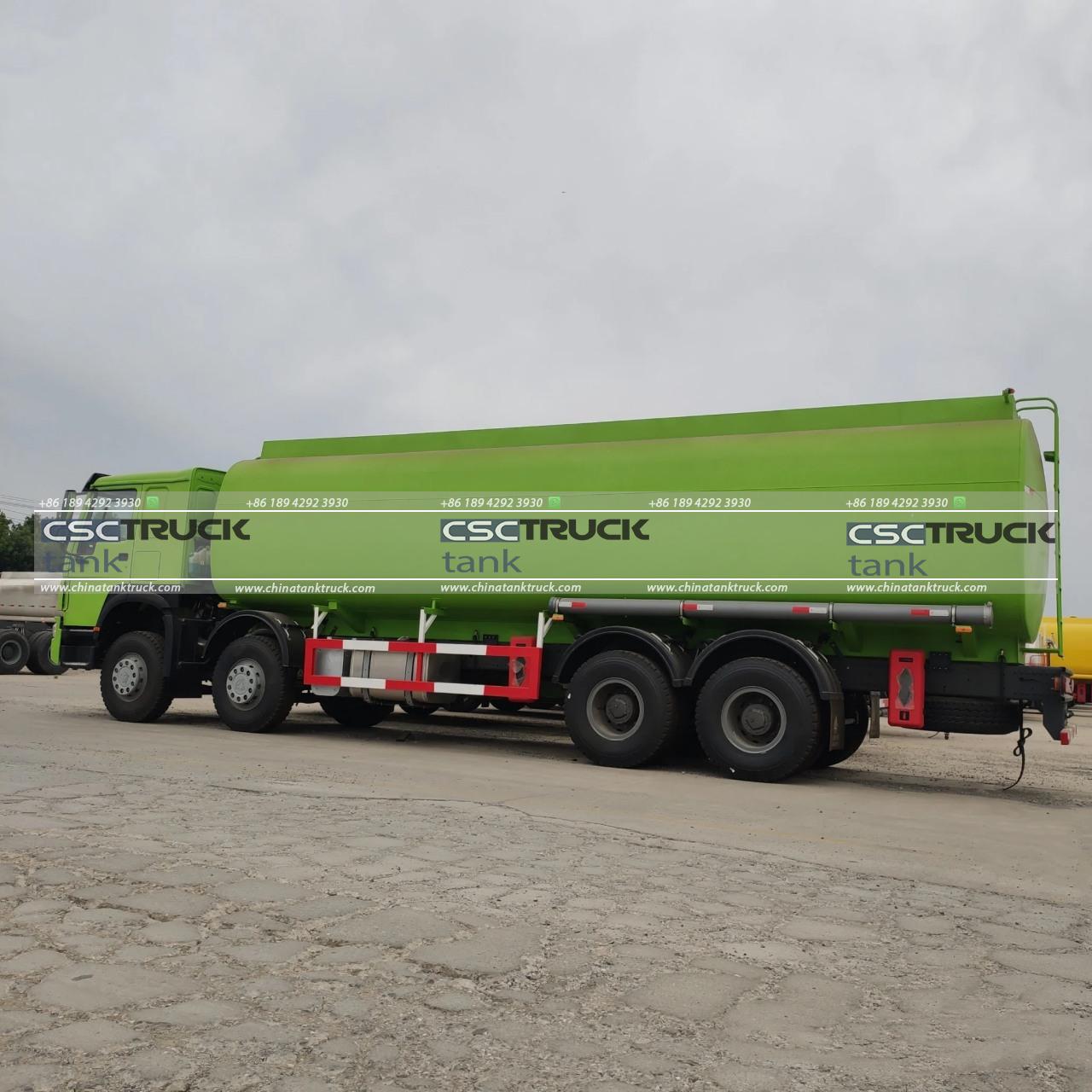

Model No.: | HOWO 20 CBM Fuel Tank Truck |
Fuel Tank Volume: | 20 CBM |
Overall Dimensions(LxWxH): | 11,975×2,550×3,450mm |
Chassis Brand: | HOWO |
Drive Type: | 8×4 |
Engine Model: | WD615.87 |
Engine Power: | 300HP |
Emission Standard: | EURO 2 |
Fuel Tank Material: | Q235B Carbon Steel |
Categories: Carbon Steel Tank Truck, Fuel Tank Truck
Description
BRIEF
The HOWO 20 CBM fuel tank truck, crafted by CSCTRUCK China Tank Truck, stands as a pinnacle of efficiency and reliability in the realm of fuel transportation. Designed to meet the demands of rigorous haulage, this tanker boasts a capacious 20 cubic meters capacity, ensuring substantial fuel carriage. Its robust 8×4 drive type guarantees steadfast traction across varied terrains, maintaining stability even under challenging conditions.
Powering this formidable tanker is the WD615.87 engine model, delivering a formidable 300HP engine power. Such potency enables swift and steady movement, ensuring timely deliveries without compromise. Despite its formidable performance, the fuel tank truck adheres to EURO 2 emission standards, showcasing a commitment to environmental responsibility.
Crafted from Q235B carbon steel, the fuel tanker guarantees durability and resilience against the rigors of daily operation. This choice of material ensures both strength and longevity, essential qualities in the demanding field of fuel transportation.
The HOWO 20 CBM fuel tank truck represents a harmonious fusion of power, efficiency, and durability. It embodies the renowned engineering prowess of CSCTRUCK China Tank Truck and stands as a testament to its dedication to excellence. Whether traversing highways or navigating rugged terrain, this fuel tanker stands poised to meet the challenges of modern transportation, ensuring the seamless delivery of fuel wherever it is needed.
FEATURES
1. Tank Capacity: The fuel tank truck boasts a substantial 20 CBM(cubic meter) fuel tanker, allowing for efficient transportation of large volumes of fuel.
2. Drive Type: Equipped with an 8×4 drive type, this configuration enhances traction and stability, especially when maneuvering on challenging terrains or carrying heavy loads.
3. Engine Model: Powered by the WD615.87 engine model, known for its reliability and durability in demanding industrial applications.
4. Engine Power: With a robust engine delivering 300HP (horsepower), the fuel tank truck ensures sufficient power to tackle long distances and varied road conditions while maintaining efficiency.
5. Emission Standard: Compliant with EURO 2 emission standards, this truck aligns with environmental regulations, reducing harmful exhaust emissions for a cleaner operation.
6. Tank Material: Constructed with Q235B carbon steel, the fuel tanker ensures strength and corrosion resistance, prolonging the lifespan of the tank and maintaining the integrity of transported fuel.
7. Safety Features: Equipped with safety features such as an anti-lock braking system (ABS) and advanced suspension systems, ensuring stability and control even during sudden maneuvers or emergency braking.
8. User-Friendly Design: Designed with user convenience in mind, the truck features ergonomic controls, easy-to-access maintenance points, and a comfortable cabin environment for long-haul journeys.
9. Versatile Applications: Suitable for various fuel transportation tasks including diesel, gasoline, and other petroleum products, making it a versatile asset in the logistics and transportation industry.
10. Quality Assurance: Manufactured by CSCTRUCK China Tank Truck, a reputable company known for producing high-quality commercial vehicles, ensuring reliability, and performance backed by rigorous quality control standards.
SPECIFICATION
 Cabin | Driving type 8×4 LHD/RHD Model: ZZ5257M4341B |
|
HW76 Lengthen cab, single bunk, safety belts, left-hand driving, air conditioner. | ||
Overall Dimensions | 11,975×2,550×3,450mm | |
Wheel Base | 1,800+4,575+1,400mm | |
GVW | 25,000kg | |
Front axle loading capacity | 1 x 7,000kg | |
Rear axle loading capacity | 2 x 16,000kg | |
Engine | Brand | HOWO |
Model | WD615.87 | |
Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
Displacement | 9.726L | |
Bore x Stroke | 126x130mm | |
Horse Power(HP) | 300 | |
Emission standard | Euro II | |
Max Speed | 102 km/h | |
Tire | 12.00-20, 12.00R20 | |
Transmission | HW19710 or HW19710 transmission, 10 forward & 2 reverse, with PTO | |
Steering | ZF8098 | |
Oil Tank | 300L | |
Tank Volume | 20 CBM | |
Brake System | Service brake: Dual circuit compressed air brake | |
Parking brake (emergency brake): Spring energy, compressed air operating on rear wheels | ||
Auxiliary brake: Engine exhaust valve brake | ||
Electrics | Operating voltage: 24V,negative grounded | |
Batteries: 2×12 V, 165 Ah | ||
Horn, headlamps, fog lights, brake lights, indicators, and reverse light | ||
Option | Vertical Muffler, ABS, Automatic Break Clearance Adjusting Arm, Traveling Data Recorder, Metal Pipeline, Engine Protective Board. |
