| Model No.: | CSCLTT015 |
| Propane Tank Volume: | 15 CBM |
| Overall Dimensions(LxWxH): | 8,500×2,495×3,250mm |
| Chassis Brand: | HOWO |
| Drive Type: | 4×2 |
| Wheelbase: | 4,700mm |
| Engine Model: | YC4E160-33 |
| Engine Power: | 160 HP |
| Emission Standard: | EURO III |
| Max Driving Speed: | 95 km/h |
| Tank Material: | Q345R |
BRIEF

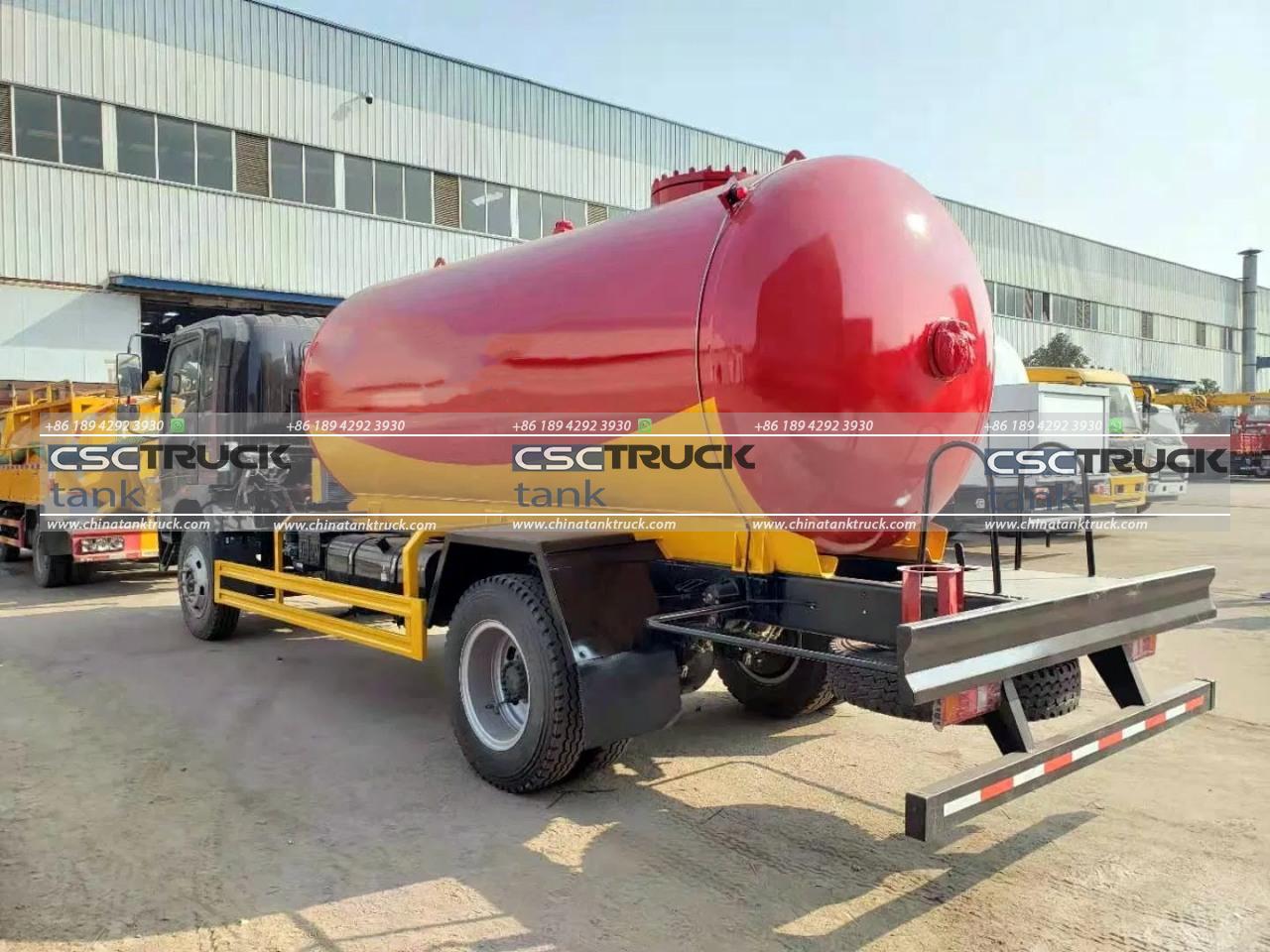

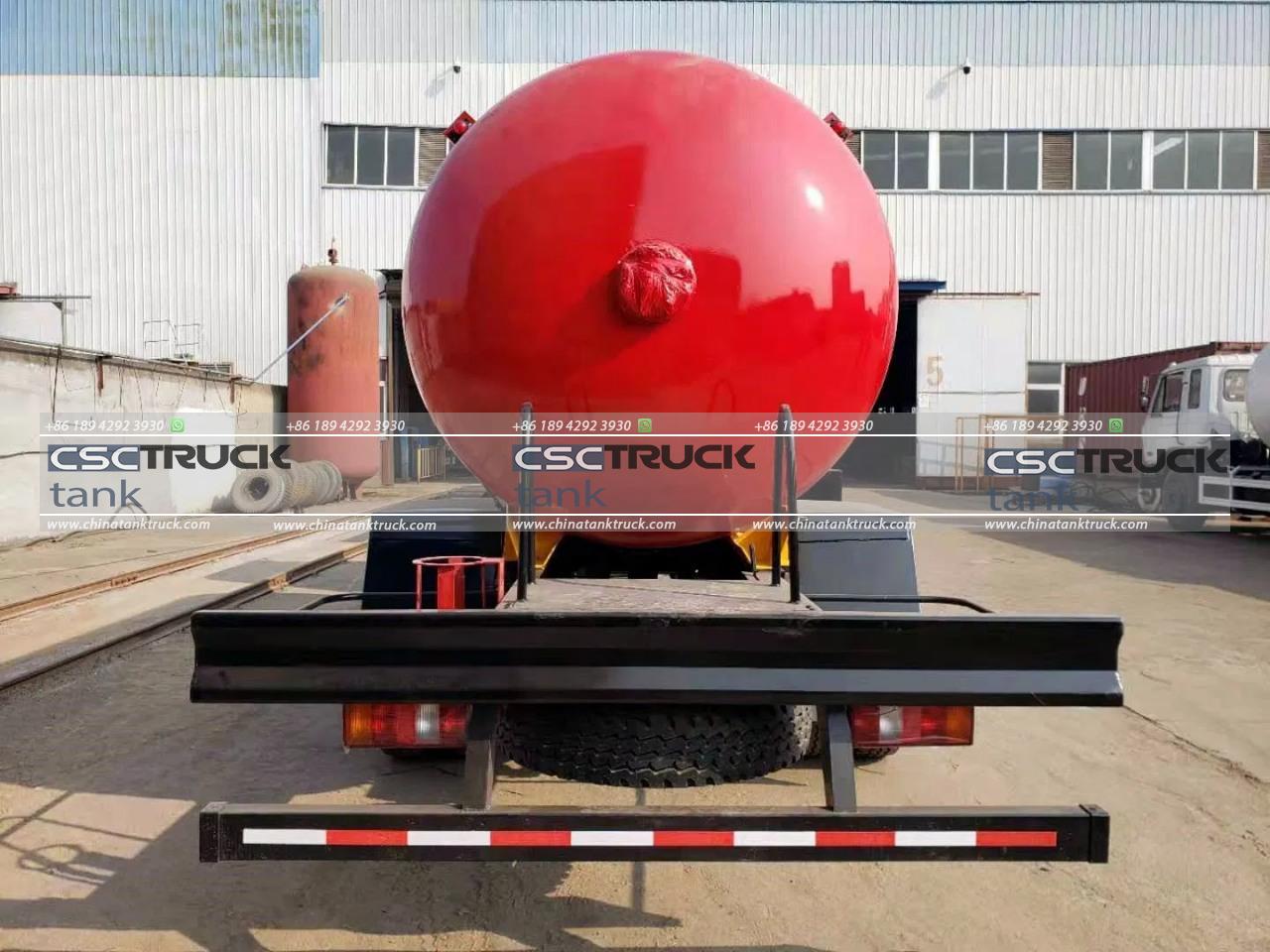

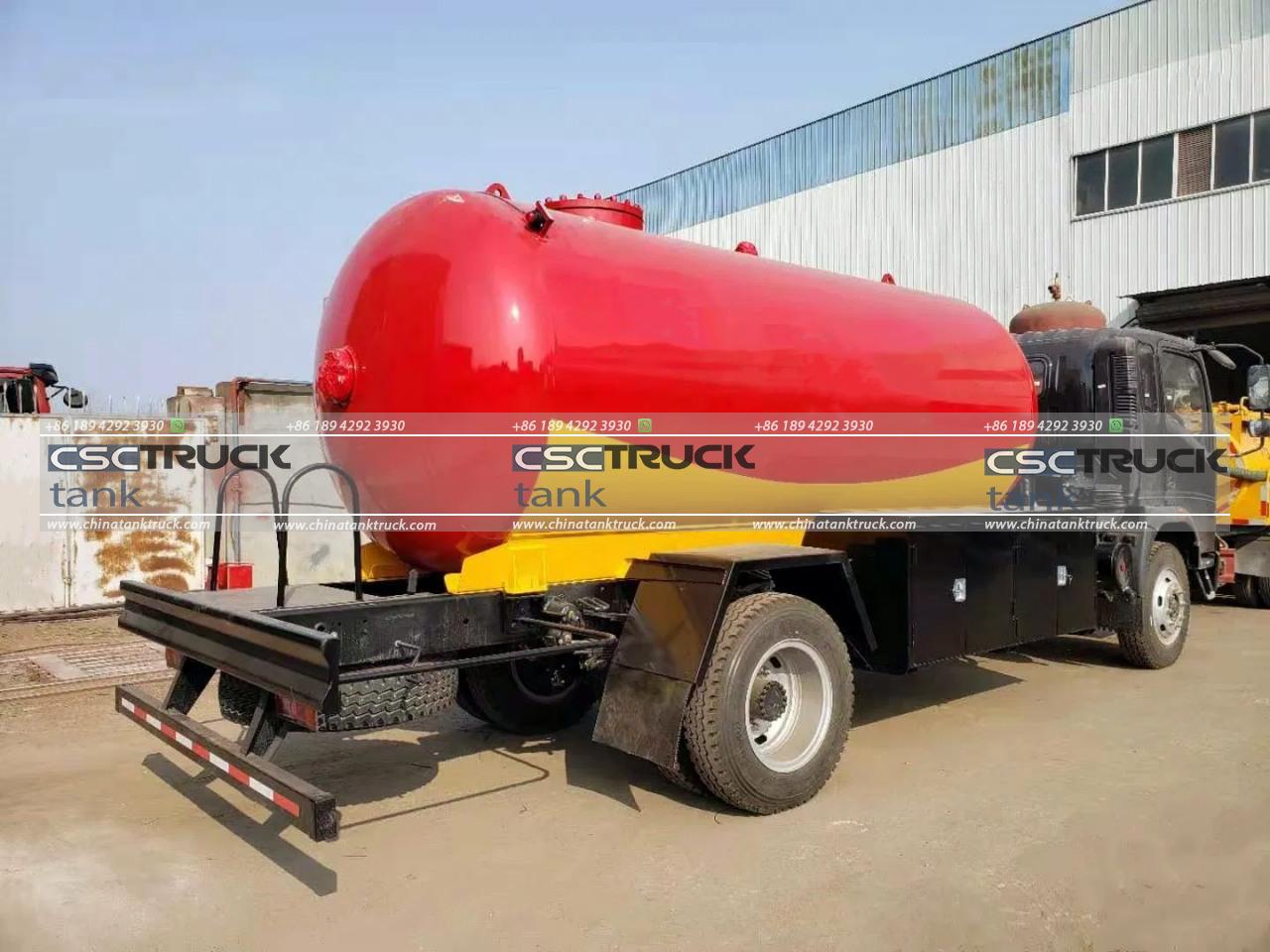

The HOWO 15 CBM LPG tank truck, produced by CSCTRUCK China Tank Truck, is a reliable and efficient vehicle designed for transporting liquefied petroleum gas (LPG). Built on the robust HOWO chassis, the truck features a 15 cubic meter propane tank, which offers ample storage capacity for LPG distribution. The tank is made from high-quality Q345R material, a steel known for its excellent strength and resistance to low temperatures, ensuring safe and durable operation even under challenging conditions.
Powered by a YC4E160-33 engine, the HOWO LPG tank truck delivers 160 horsepower, providing sufficient power for various transportation needs. The engine meets EURO III emission standards, making it an environmentally friendly option within the industry by reducing harmful exhaust emissions.
The truck is equipped with a 4×2 drive type, offering improved maneuverability and stability on both urban and rural roads. Its maximum driving speed is 95 km/h, making it capable of efficiently navigating highways and city streets. This performance capability, combined with a reliable braking system, ensures both safety and efficiency in LPG transportation operations.
Overall, the HOWO 15 CBM LPG tank truck is a strong contender in the market for transporting propane and other LPG products. It combines powerful performance, safety features, and environmental compliance, making it a practical choice for businesses involved in the distribution of liquefied gases.
FEATURES
- LPG Tank Capacity: The truck is equipped with a 15 CBM (cubic meter) propane tank, allowing for efficient storage and transport of liquefied petroleum gas (LPG).
- Engine and Performance: Powered by the YC4E160-33 engine, this vehicle delivers 160 HP (Horsepower) of power, which provides sufficient strength for reliable transportation of LPG with a maximum speed of 95 km/h.
- Chassis and Drive Type: The truck is built on a HOWO chassis with a 4×2 drive configuration, which ensures a stable and manageable ride for urban and rural transportation routes.
- Emission Standard: The vehicle adheres to the EURO III emission standard, making it compliant with global environmental regulations while reducing harmful emissions.
- Durable Tank Material: The LPG tank is made of Q345R steel, a high-strength material that ensures the tank’s durability, corrosion resistance, and overall safety for the transport of LPG.
SPECIFICATION
| Item No. | Parameters |
| Overall Dimensions(LxWxH) | 8,500×2,495×3,250mm |
| Driving Model | Right-hand drive |
| Gross Vehicle Weight | 15,795 kg |
| Curb Weight | 9,940 kg |
| Payload | 5,660 kg |
| Wheel Base | 4,700 mm |
| Front/rear Tread | 1,886/1,845 mm |
| Approach/Departure Angle | 27/20Â degree |
| Engine | Yuchai 4110, YC4E160-33 |
| Engine horsepower | 160 HP, EURO III |
| Displacement | 4,260ml (Diesel) |
| Max Driving Speed | 95Â km/h |
| Cabin | 2~3 Passenger allowed, with A/C |
| Tire | 9R20Â (6 pc with 1 spare) |
| LPG tank | |
| Volume: | 15CBM |
| Tank material: | Q345R |
| Tank diameter: | 2,000mm |
| Tank thickness: | 10mm |
| End plate | 10mm |
| Tank length: | 5,140mm |
| Gas phase | DN50 |
| Liquid Phase | DN50 |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |

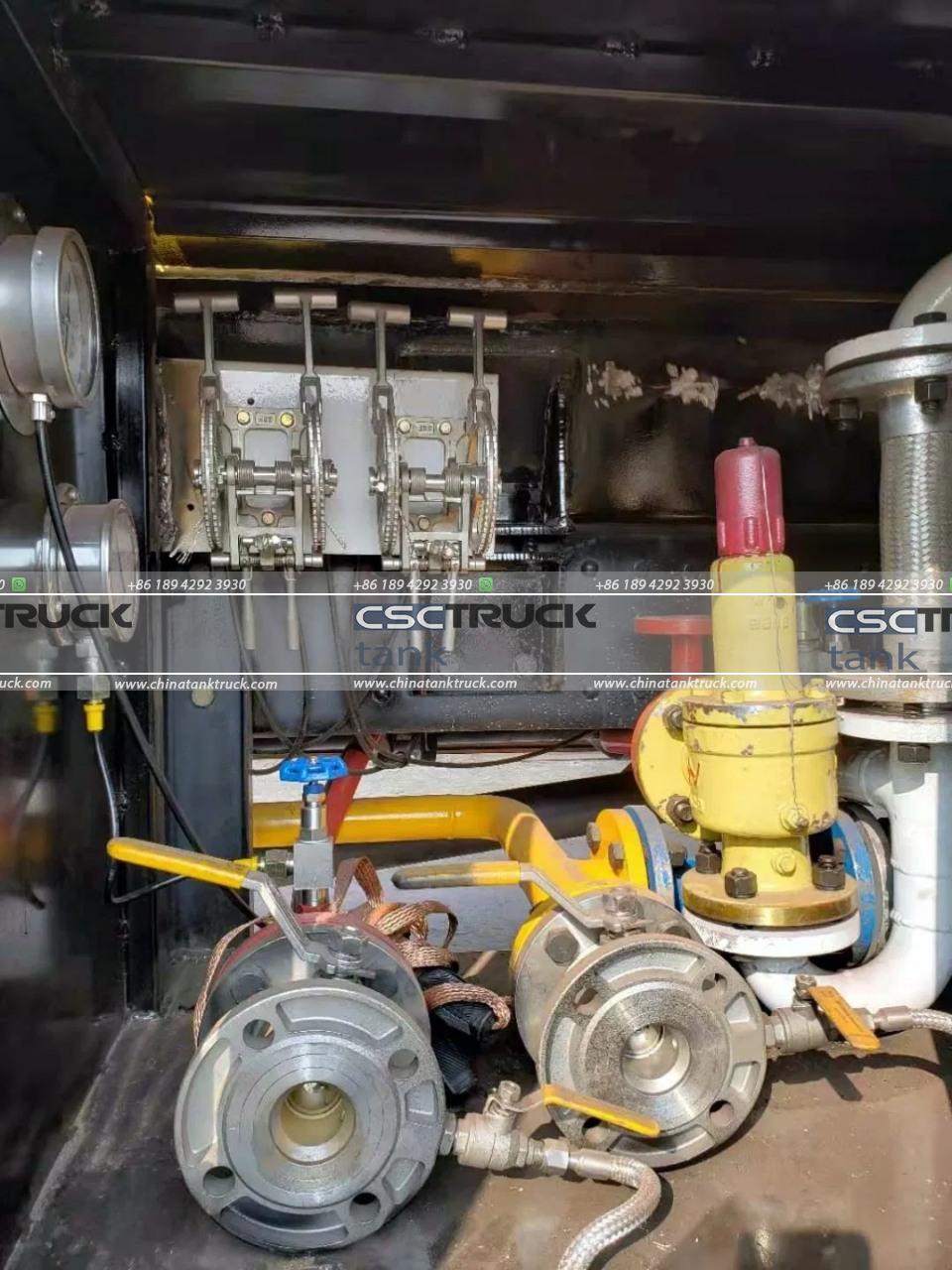

| Accessory | |
| Level Gauge | Manual rotation type, at the rear of the tank |
| Safety Valve | 1, DN80 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Exhaust shaft | At the front of the truck for safety |
