Model No.: | HOWO 10 Wheelers Milk Tank Truck |
Milk Tanker Volume: | 16CBM |
Overall Dimensions(LxWxH): | 9,500×2,500×3,210mm |
Chassis Brand: | HOWO |
Drive Type: | 6×4 |
Wheelbase: | 4,300+1,350mm |
Payload: | 25,000kg |
Max. driving speed(km/h): | 90 |
Engine Brand/Model: | SINOTRUK/WD615.47 |
Horse Power(HP): | 371HP |
Emission standard: | Euro 2 |
Tank Material: | 4MM 304-2B food-grade stainless steel |
Categories: Milk Tank Truck, Stainless Steel Tank Truck
Description
BRIEF

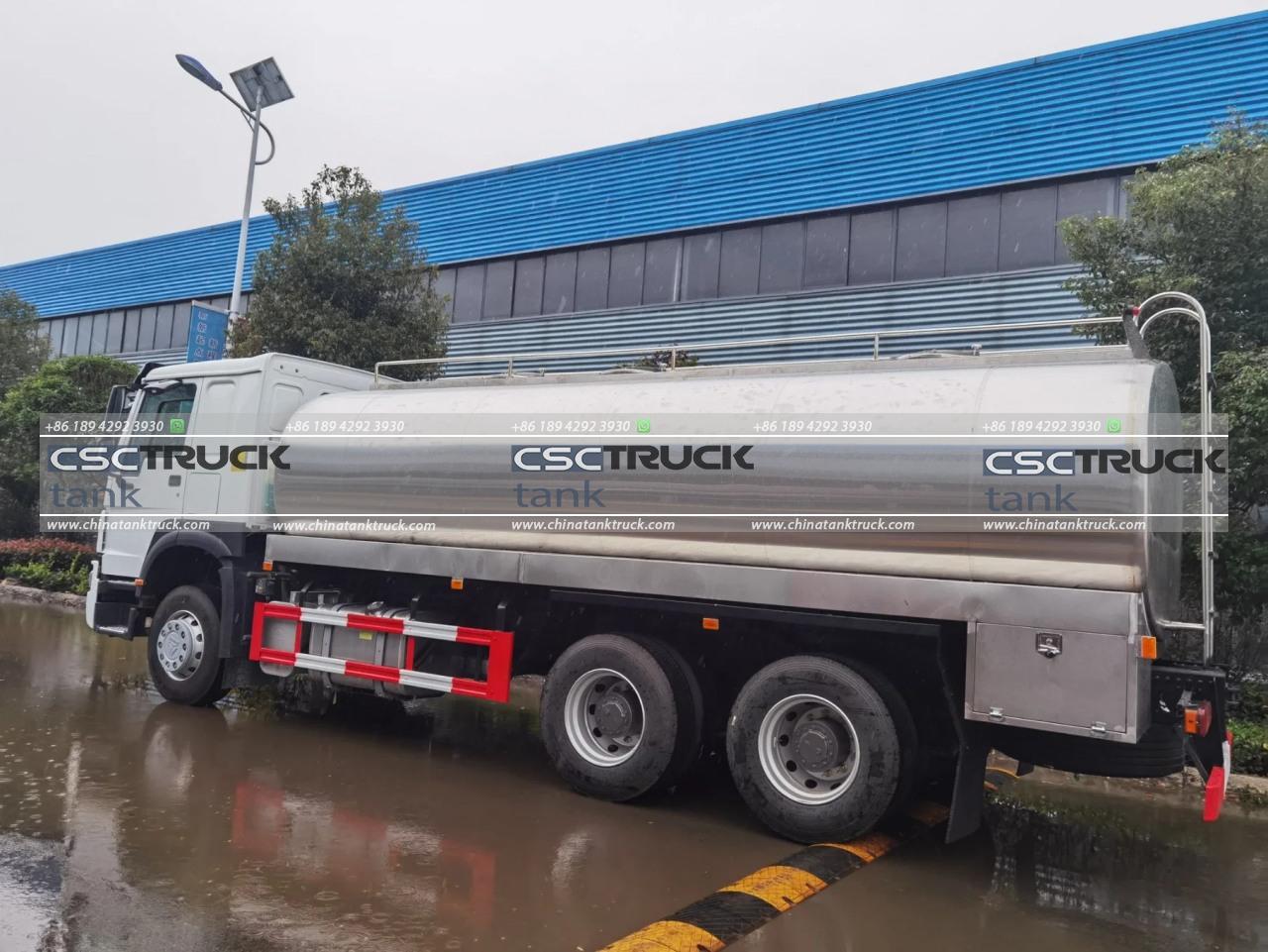

The HOWO 10-wheelers milk tank truck produced by CSCTRUCK CHINA TANK TRUCK embodies efficiency and reliability, designed for seamless transportation of milk with precision and safety. Boasting a capacious 16CBM milk tanker volume, it ensures ample space for transporting large quantities of milk without compromising quality.
Built on the robust HOWO chassis with a 6×4 drive type, this tanker truck guarantees stability and durability even on challenging terrains. With a massive 25,000kg payload capacity, it can handle substantial loads effortlessly, making it an ideal choice for dairy industries of varying scales.
Powered by the potent SINOTRUK/WD615.47 engine model, delivering 371HP engine power ensures smooth and powerful performance while adhering to Euro 2 emission standards for eco-friendliness. Its maximum driving speed of 90km/h enables swift transportation, enhancing operational efficiency.
Crafted from high-grade 4MM 304-2B food-level stainless steel, the tanker ensures the integrity of the milk during transit, maintaining its freshness and purity. Whether navigating through urban streets or rural landscapes, the HOWO 10-wheelers milk tank truck is a testament to quality engineering, offering a dependable solution for dairy transport needs.
FEATURES
1. Tanker Volume: 16CBM milk tanker volume, providing ample capacity for transporting milk efficiently.
2. Chassis: Built on a reliable HOWO chassis known for its durability and strength, ensuring stability during transportation.
3. Drive Type: Equipped with a 6×4 drive type, offering enhanced traction and control on various road conditions.
4. Payload Capacity: Carrying up to 25,000kg of milk, enabling large-scale transportation operations.
5. Maximum Driving Speed: With a maximum driving speed of 90km/h, it can swiftly deliver milk to its destination while maintaining safety standards.
6. Engine Model: Powered by a SINOTRUK/WD615.47 engine model, renowned for its performance and efficiency in heavy-duty applications.
7. Engine Power: The engine boasts a robust 371HP, providing ample power to tackle steep inclines and long distances with ease.
8. Emission Standard: Adheres to Euro 2 emission standards, promoting environmental sustainability and compliance with regulations.
9. Tanker Material: Constructed with 4MM 304-2B food-grade stainless steel, ensuring the purity and integrity of the transported milk.
SPECIFICATION
Specifications for the milk tankÂ
Tanker volume | 16CBM |
Material | 4MM 304-2B food-grade stainless steel |

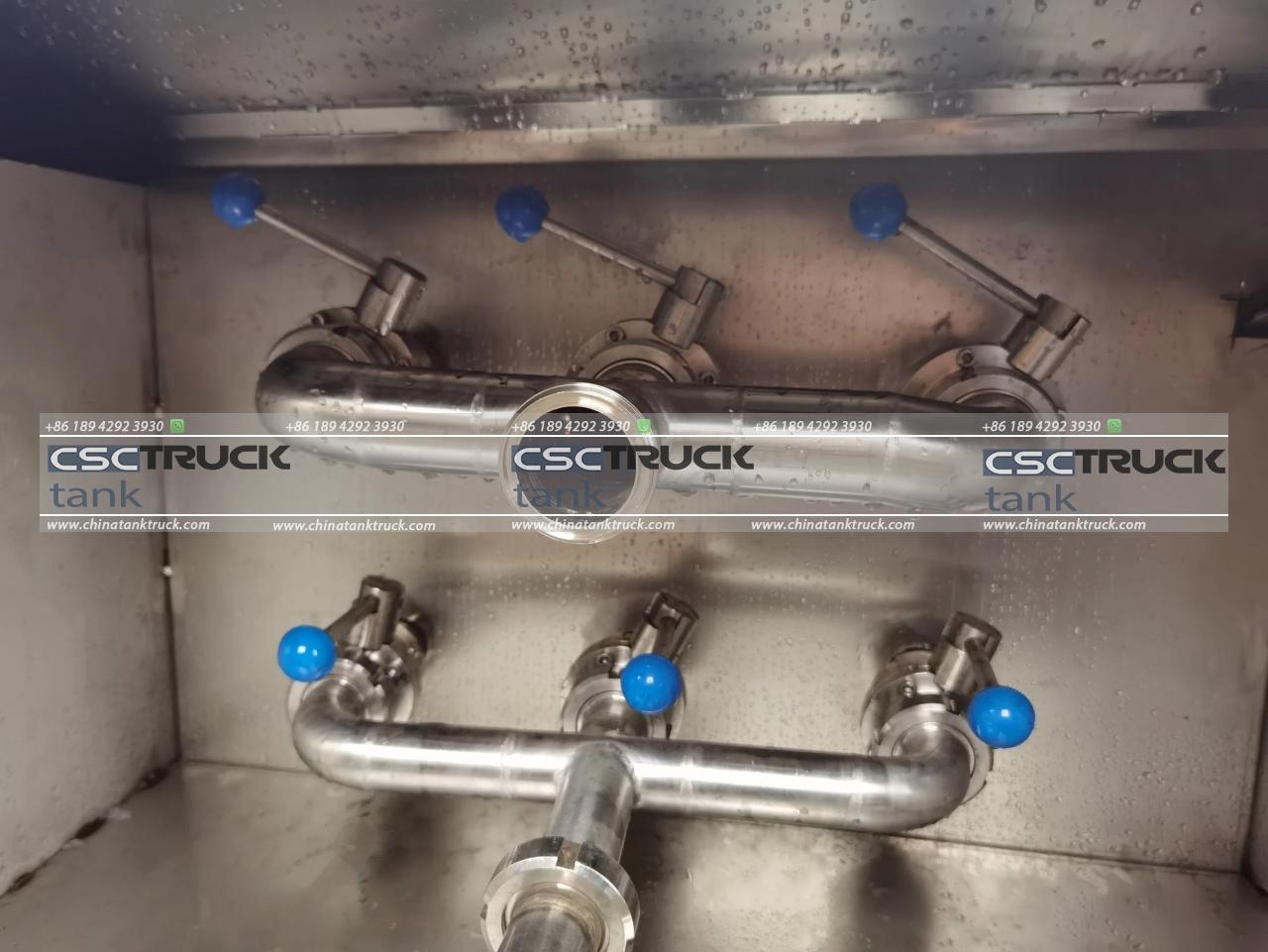

Others | With a PIC clean system; With an insulating layer, 80mm polyurethane foam, and 2mm thickness stainless steel plate outside; Thermal insulation function: 24-hour medium temperature rise and fall≤1ºC. |
Main Specifications for 6X4 16,000liters Milk tank truckÂ
Cabin | Driving type 6×4 LHD/RHD HW76 cab, with one bed and air condition |
|
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9,500×2,500×3,210 |
Wheelbase (mm) | 4,300+1,350 | |
Wheel track  (front/rear) (mm) | 2,020/1,800 | |
Weight in KGS | Tare Weight | 13,500 |
payload | 25,000 | |
Front axle loading capacity | 1×7,000 | |
Rear axle loading capacity | 2×16,000 | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | SINOTRUK |
Model | WD615.47 | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charged and inter-cooled | |
Horse Power(HP) | 371 HP | |
Emission standard | Euro 2 | |
Gearbox | HW15710, 10-speed forward and 2Â reverse gear | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering | ZF8098, power steering, hydraulic steering with power assistance | |
Oil tank | 400 liters | |
Tire | 12R22.5 tubeless tire 11 pcs including one spare tire |
