| Model No.: | CSCMTT020 |
| Milk Tank Volume: | 20 CBM |
| Overall Dimensions(LxWxH): | 10,000×2,550×3,360mm |
| Chassis Brand: | FAW |
| Drive Type: | 6×2 |
| Wheelbase: | 1,900+3,800mm |
| Engine Power: | 195kW |
| Tank Body Material: | SUS304-2B food grade |
| Curb Weight(kg): | 9,805 |
BRIEF

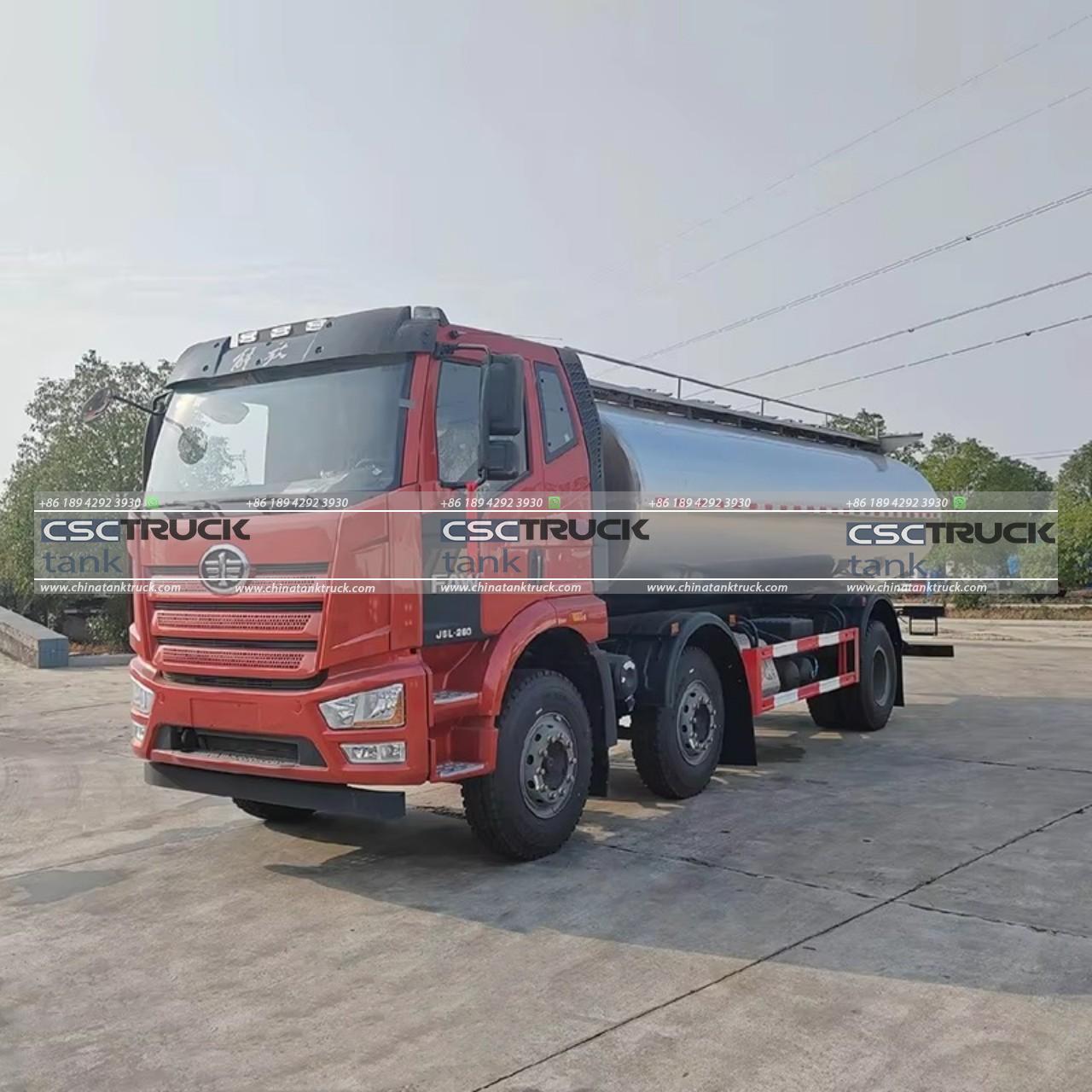

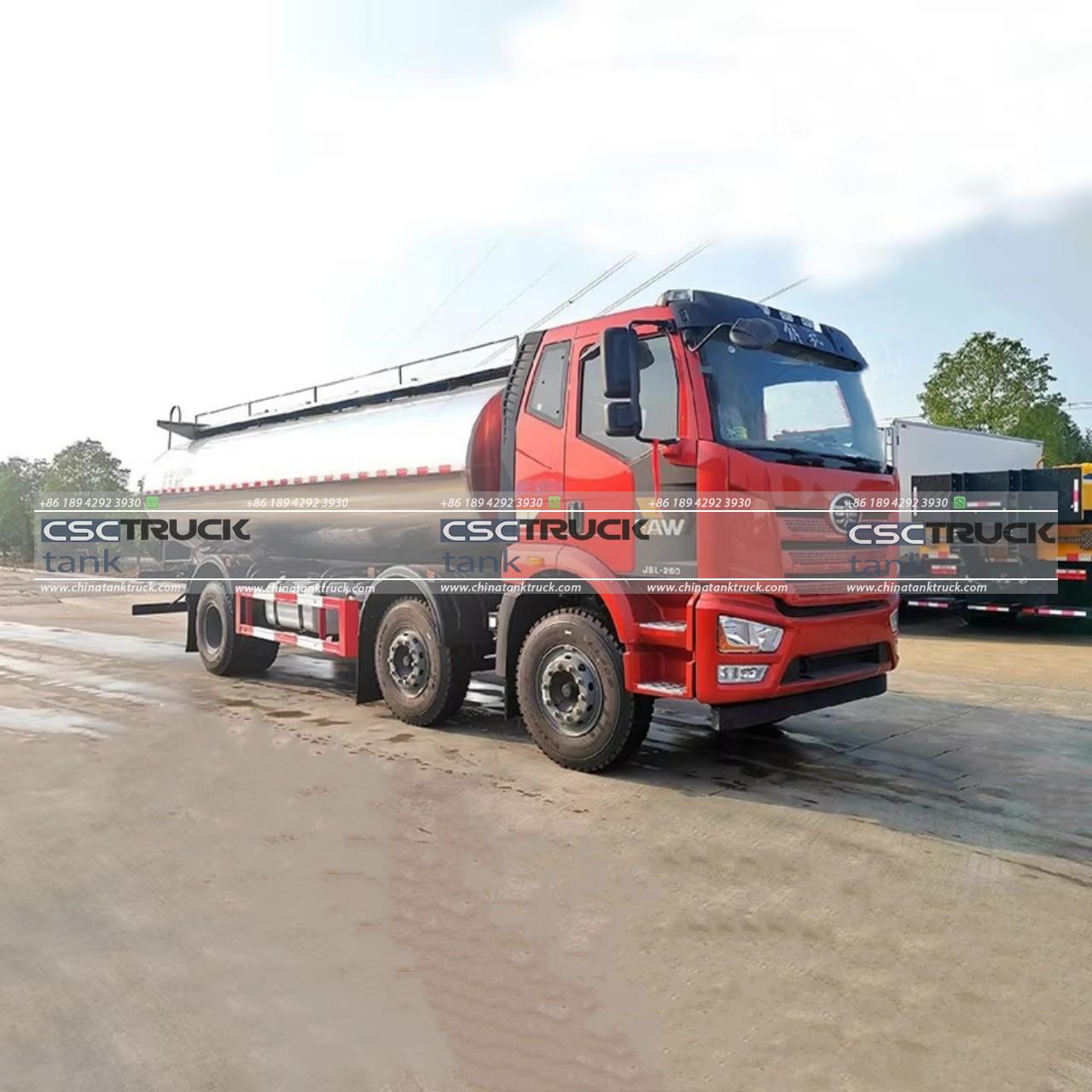

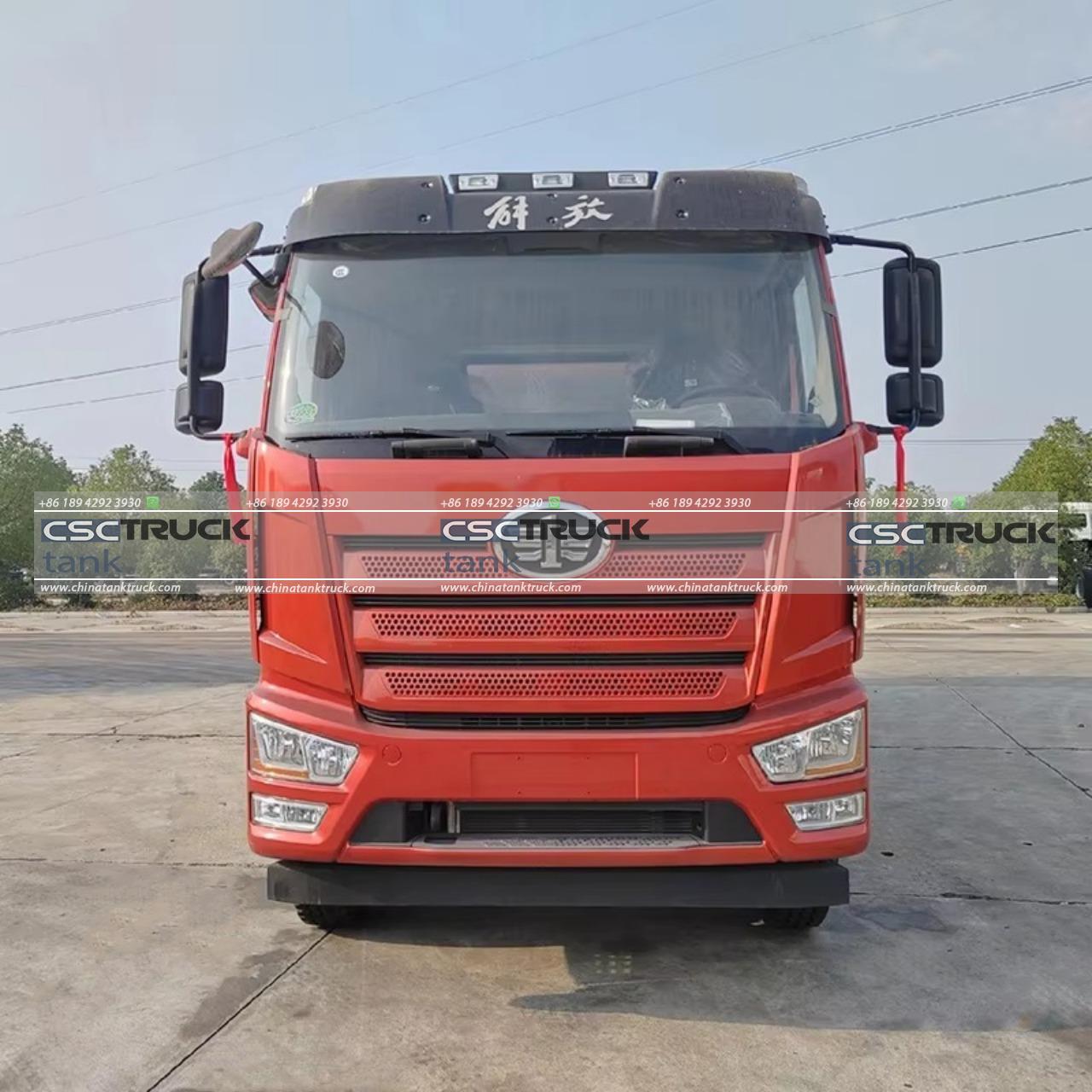

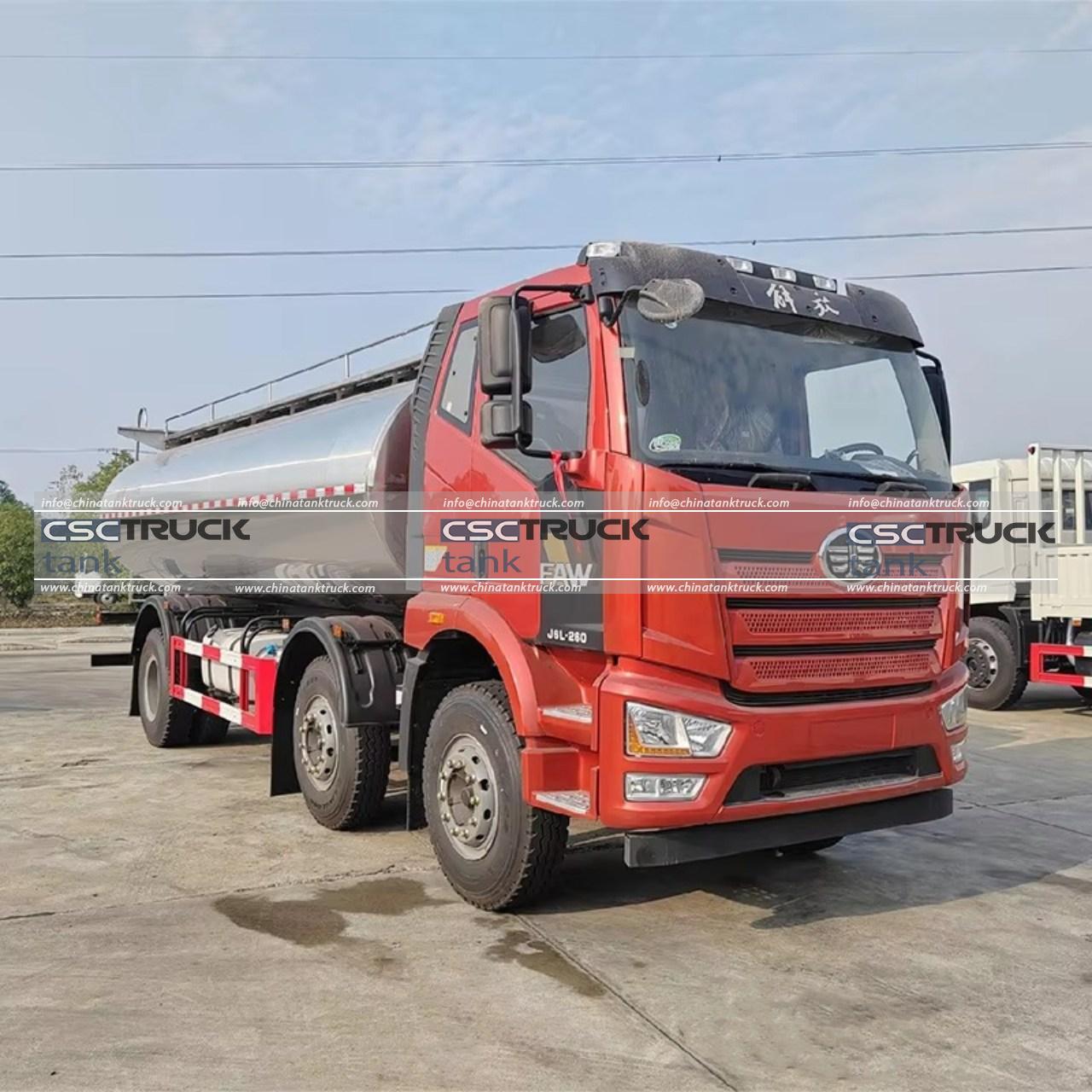

The FAW 20000 liters milk tanker truck, produced by CSCTRUCK China Tank Truck, is a robust and reliable vehicle designed for the transportation of milk and other liquid food products. It features a spacious 20 CBM (cubic meter) SUS304-2B food-grade stainless steel milk tank, ensuring safety and compliance with hygiene standards during transportation. Built on a durable FAW chassis, this truck operates with a 6×2 drive type and is powered by a 195kW engine, providing efficient performance and handling. The milk truck has a curb weight of 9,805 kg, indicating a sturdy build that balances payload capacity and maneuverability. This milk tanker is ideal for dairy farms and processing plants, offering secure and efficient milk transportation. Its food-grade tank construction guarantees product integrity, while the reliable FAW chassis and powerful engine enable it to handle long-distance hauls with ease, making it a versatile choice for the dairy industry.
FEATURES
SPECIFICATION
|
[General Technical Parameters ]
|
|
|
Product Name
|
Milk Tank Truck
|
|
Curb Weight(kg)
|
9,805
|
|
Boundary Dimensions(mm)(LxWxH)
|
10,000×2,550×3360
|
|
Tank Size(mm)(LxWxH)
|
7,300×2,490×1,720
|
|
Tank Volume(m³)
|
20
|
|
Tank Body Material
|
SUS304-2B food grade
|
|
Operating Ambient Temperature（°C）
|
-20~45
|
|
Milk Outlet Diameter（mm）
|
∮51
|
|
Inner Tank Thickness（mm）
|
δ3.0
|
|
Outer Tank Thickness（mm）
|
δ1.0
|
|
Heat Insulating Materials
|
70 mm Polyurethane Spraying
+10mm Rubber and Plastic Insulation Cotton |
|
Heat Retention Performance
|
The use of polyurethane spray foam, the heat preservation performance for 24 hours does not exceed 2 °C
|
|
Cleaning Method
|
CIP automatic cleaning, each warehouse is equipped with cleaning balls, to meet the requirements of 360° cleaning
|
|
Compartment
|
As Required
|
|
[Chassis Technical Parameters]
|
|
|
Chassis Brand
|
FAW
|
|
Brake
|
Automatically Air-Cut Brake
|
|
Type of Fuel
|
Diesel Oil
|
|
Engine Power(kW)
|
195
|
|
Front Axle/Rear Axle（t）
|
7/7/12
|
|
Gearbox
|
9 Speed Manual Transmission
|
|
Number of Axes
|
3
|
|
Wheelbase(mm)
|
1,900+3,800
|
|
Number of Tires
|
8
|
|
Tyre Specification
|
11.00R20
|
