| Size | 5,850*2,400*2,650 (mm) |
| GVW/Curb Weight/Payload | 8,160/5,850/2,310kg |
| Wheelbase | 3260mm |
| Tire | 7.00R16, 6+1 tires |
BRIEF

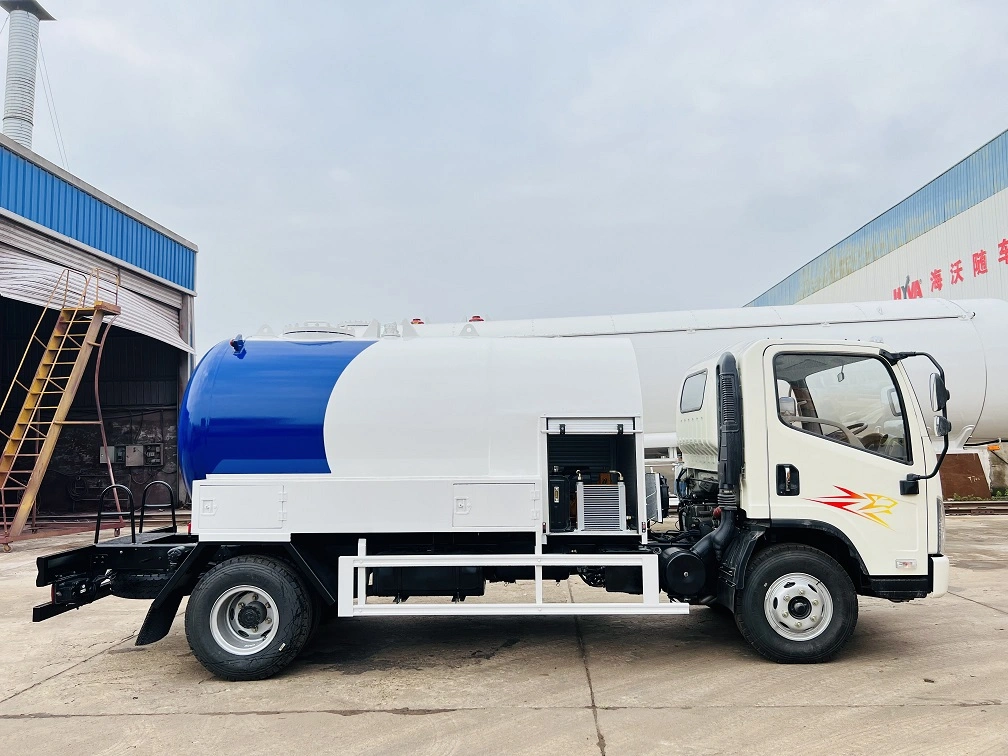

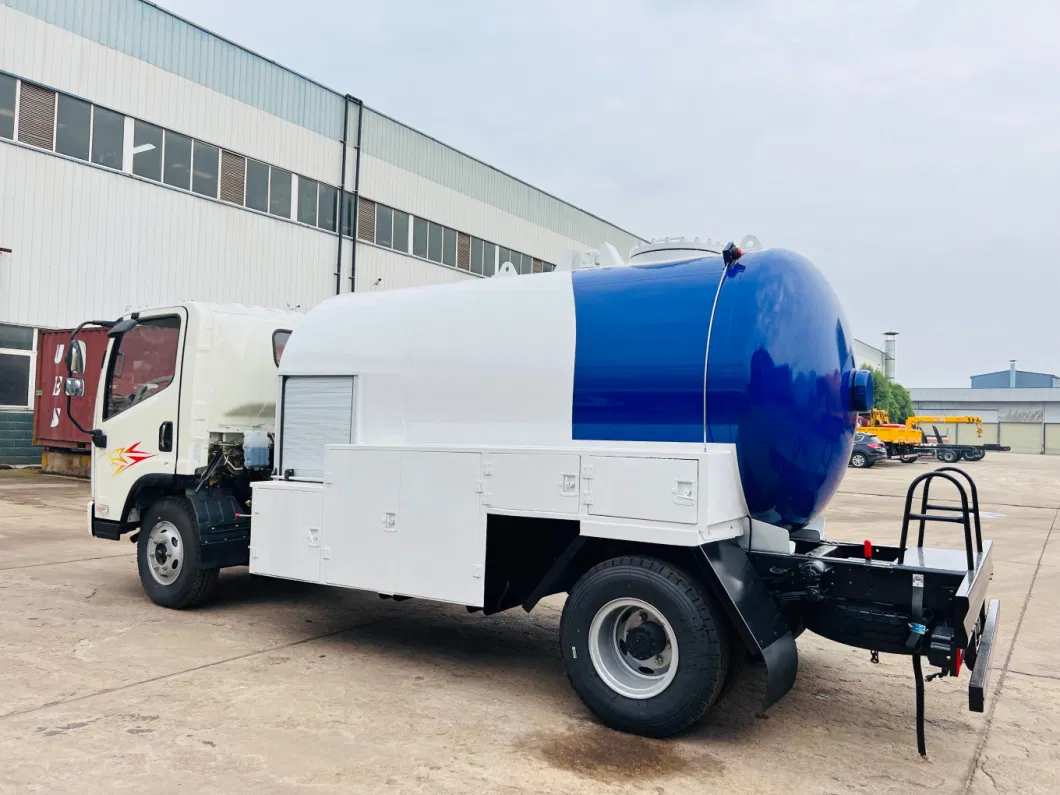

The FAW 2 Ton LPG Bobtail Truck is a versatile and efficient solution designed for the transportation and distribution of LPG (Liquid Petroleum Gas). This specialized vehicle consists of a robust FAW truck chassis, an LPG tank, a reliable LPG vane pump, and a comprehensive PLG filling system. The LPG tank is engineered to safely handle the transportation of LPG, particularly a propane-butane mixture where the weight of propane doesn’t exceed 30%.
This well-equipped LPG Bobtail Truck combines safety, efficiency, and reliability, making it a valuable asset for LPG distribution and transportation. It adheres to industry standards to ensure the secure handling of LPG throughout the distribution process.
FEATURES
- Chassis and Performance
- FAW truck chassis with a 120hp engine
- Compliant with Euro 2 emission standards
- Equipped with a 5-speed manual transmission (5 front gears and 1 reverse)
- Tires: 7.00R16, providing stability and durability
- Vane Pump
- Utilizes the dependable USA Corken vane pump, specifically the Z2000 model, ensuring efficient LPG transfer and handling.
- LPG Tank
- The 5,000-liter LPG tank is constructed from high-strength Q345R material, featuring a 10mm thickness.
- It has a loading capacity of 2 tons, making it suitable for various LPG distribution needs.
- Instrumentation
- The vehicle is equipped with essential instrumentation, including a pressure meter, temperature meter, and a standard liquid gauge, ensuring accurate monitoring and control during operations.
- Optional Electronic Scale
- An electronic scale is offered as an optional feature. This facilitates precise measurements, making it ideal for applications requiring precise quantities of LPG.
SPECIFICATION
| Chassis | |
| Size | 5,850*2,400*2,650 (mm) |
| GVW/Curb Weight/Payload | 8,160/5,850/2,310kg |
| Wheelbase | 3260mm |
| Tire | 7.00R16, 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | DACHAI/CA498E3-12/120hp/ Euro2 |
| Transmission | |
| Model | WLY/WLY5 |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FAW, 4×2, LHD / RHD |
| Type | Seats, radio, MP3 |
| Passenger No. | 3 |
| LPG TANK | |
| Filling Medium | LPG |
| Capacity | 2tons/5,000Liters |
| Working Temperature | -40 ~ 50°C |
| Tank Material | Q345 |
| Tank Diameter | 1600mm |
| Tank Thickness | 10mm |
| End Plate Thickness | 10mm |
| Tank Length | 3070mm |
| Gas Phase | Flange Type |
| Liquid Phase | Flange Type |
| Working Pressure | 1.61Mpa |
| Design Pressure | 1.71Mpa |
| Testing Pressure | 2.21Mpa |
| Corrosion Allowances | 1.0mm |
| Tank Mounted on Chassis Brand |
|---|
