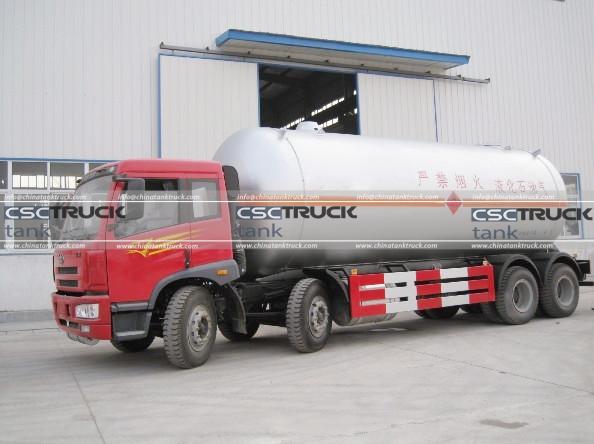

FAW 15 Ton LPG Bobtail Truck

BRIEF

The FAW 15-Ton LPG Bobtail Truck represents a versatile and high-capacity solution meticulously crafted for the secure and efficient transportation of LPG (Liquid Petroleum Gas). It seamlessly integrates an FAW truck chassis, an LPG tank, a LPG vane pump, and a comprehensive PLG filling system. This system includes vital components such as a flow meter, temperature gauge, a 15-meter filling hose, and a precise filling gun. The primary objective of this tank truck is to facilitate the transportation of LPG in its liquid form, specifically when it encompasses a blend of butane and propane. The maximum allowable proportion of propane within the mixture is capped at 30%.

FEATURES

Chassis and Performance
- Equipped with a robust FAW truck chassis, featuring a powerful 380hp engine.
- Complies with Euro 2 emission standards for reduced environmental impact.
- Features a 9-speed manual transmission (9 front gears and 2 reverse).
- Utilizes 12.00R20 tires, including 10 regular tires and 1 spare tire for enhanced stability.
Vane Pump
- Employs the renowned USA Corken vane pump, specifically the Z2000 model, ensuring efficient and secure LPG transfer.
LPG Tank
- The LPG tank has an impressive 35,000-liter capacity and is constructed from robust Q345R material with a 10mm thickness.
- Designed to handle a substantial loading capacity of 15 tons, making it suitable for various high-capacity LPG transportation needs.
Instrumentation
- Standard instruments include a pressure meter, temperature meter, and a liquid gauge, providing precise monitoring and control.
Optional Electronic Scale
- For enhanced precision and accuracy in LPG measurements, an electronic scale is available as an optional feature.

SPECIFICATIONS

Chassis
Size	11,800 x 2,490 x 3,690 (mm)
GVW/Curb Weight	31,000/14,910 kg
Wheelbase	1,860 + 4,600 + 1,350 mm
Tire	12.00R20, 10 regular tires + 1 spare tire
Engine
Type	Diesel
Make/Model	WEICHAI/WP10.380E22 / 380hp / Euro 2
Transmission
Model	FAW/CA9TB160
Gears	9F + 1R
Operation	Manual
Cabin
Driving	FAW, 8×4, LHD / RHD
Type	Seats, radio, MP3
Passenger No.	2 seats & 1 sleeper
LPG TANK
Filling Medium	LPG
Capacity	15 tons / 35,000 liters
Working Temperature	-40 ~ 50°C
Tank Material	Q345
Tank Diameter	2,350 mm
Tank Thickness	12 mm
End Plate Thickness	12 mm
Tank Length	8,960 mm
Gas Phase	Flange Type, DN50, other sizes optional
Liquid Phase	Flange Type, DN80, other sizes optional
Working Pressure	1.61 Mpa
Design Pressure	1.71 Mpa
Testing Pressure	2.21 Mpa
Corrosion Allowances	1.0 mm
