| Model No.: | CSCFDT010 |
| Fuel Tank Volume: | 10000 Liters |
| Overall Dimensions(LxWxH): | 8,290×2,370×2,760mm |
| Chassis Brand/Model: | Beiben/ND1160 |
| Drive Type: | 4×4 |
| Wheelbase: | 4,800mm |
| Maximum speed: | 90km/h |
| Engine Model: | WP10.240E22 |
| Engine Power: | 240HP |
| Emission Standard: | Euro 2 |
| Fuel Tank Material: | Carbon steel |
BRIEF
The Beiben 4WD 10000-liter fuel dispenser truck, produced by CSCTRUCK China Tank Truck, is a robust and versatile vehicle designed for efficient fuel dispensing in challenging environments. With a fuel tank capacity of 10,000 liters, this truck is well-suited for refueling operations in remote locations, construction sites, and industrial zones where mobility and reliability are paramount.
Built on the Beiben/ND1160 chassis model, the truck features a 4×4 drive type, providing enhanced traction and stability, especially in off-road or rough terrains. The 4WD system ensures that the truck can operate effectively in various conditions, making it ideal for rural or rugged areas.
The Beiben fuel dispenser truck is powered by the WP10.240E22 engine, which delivers a substantial 240 horsepower (HP), ensuring sufficient power for the truck’s operations, including carrying a full load of fuel and driving on uneven surfaces. Its engine complies with the Euro 2 emission standard, reflecting a commitment to reducing emissions and operating within environmental guidelines.
The maximum driving speed of the truck is 90 km/h, making it efficient for transport and fueling operations within a reasonable range. The carbon steel fuel tank is built to last, providing durability and resistance to external wear, and is designed specifically for the safe transportation and dispensing of fuels.
In addition to the technical features, the Beiben 4WD fuel dispenser truck integrates high-quality dispensing systems for fueling operations, making it not just a transport vehicle but also a mobile fueling station. This combination of strong performance, durability, and versatility makes the Beiben 4WD fuel dispenser truck an ideal choice for various industrial and logistical applications where fuel transportation and dispensing are required.
FEATURES
- Chassis and Drive Type: Built on the Beiben/ND1160 chassis with a 4×4 drive configuration, this truck offers superior off-road and all-terrain capabilities, ideal for remote or rugged locations.
- Engine Power: Powered by the WP10.240E22 engine, delivering 240 horsepower (HP), ensuring strong performance and efficiency for fuel transportation and dispensing operations.
- Fuel Tank Capacity: Equipped with a 10,000-liter carbon steel fuel tank, providing a substantial volume for fuel transportation, perfect for long-range fuel distribution needs.
- Maximum Speed: The truck is capable of reaching a top speed of 90 km/h, making it suitable for medium-distance fuel delivery while maintaining decent highway performance.
- Emission Standard: Adhering to the Euro 2 emission standard, this truck complies with basic environmental regulations, though it’s designed more for performance and durability than advanced eco-friendly specs.
SPECIFICATION
Chassis Parameter |
|||||
| Chassis model | ND1160 | Chassis brand | North Benz(Beiben) | ||
| Overall dimensions(LxWxH) | 8,290×2,370×2,760mm | Wheelbase | 4,800mm | ||
| Front/rear wheel track | 1,960/1,880mm | Front/rear suspension | 1,430/2,160mm | ||
| Approach/departure angle | 20/13° | Maximum speed | 90km/h | ||
| Cab | Configuration | NG80 short can, hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers. | |||
| Color | white, and other colors are optional. | ||||
| Engine | Model | WP10.240E22 | |||
| Emission | Euro 2 | ||||
| Type | 6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, diesel engine. | ||||
| Rated power | 240hp | ||||
| Displacement | 9,726ml | ||||
| Manufacturer | China Weichai Diesel Engine Co., Ltd | ||||
| Tire | Size | 11.00R20, off-road tires are optional | |||
| Number | 6+1 nos | ||||
| Clutch | Push-type diaphragm spring clutch, Φ420mm | ||||
| Front axle | 7T loading capacity front axle | ||||
| Rear axle | 9T loading capacity rear axle | ||||
| Drive form | 4×4 AWD, 4×4 off-road, 4×4 all terrain | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | Gearbox FAST brand, 9-speed forward 1 reverse. | ||||
| Steering device | Power-assisted steering | ||||
| Steering wheel | Left-hand drive.RHD is optional | ||||
Fuel Tank Structure Parameters   |
||||
| Tank dimensions(LxWxH) | 5,500×2,050×1,450mm | Tank volume | 10,000L | |
| Tank material | Carbon steel | Tank thickness | 5mm | |
| Color and Logo | Optional | |||

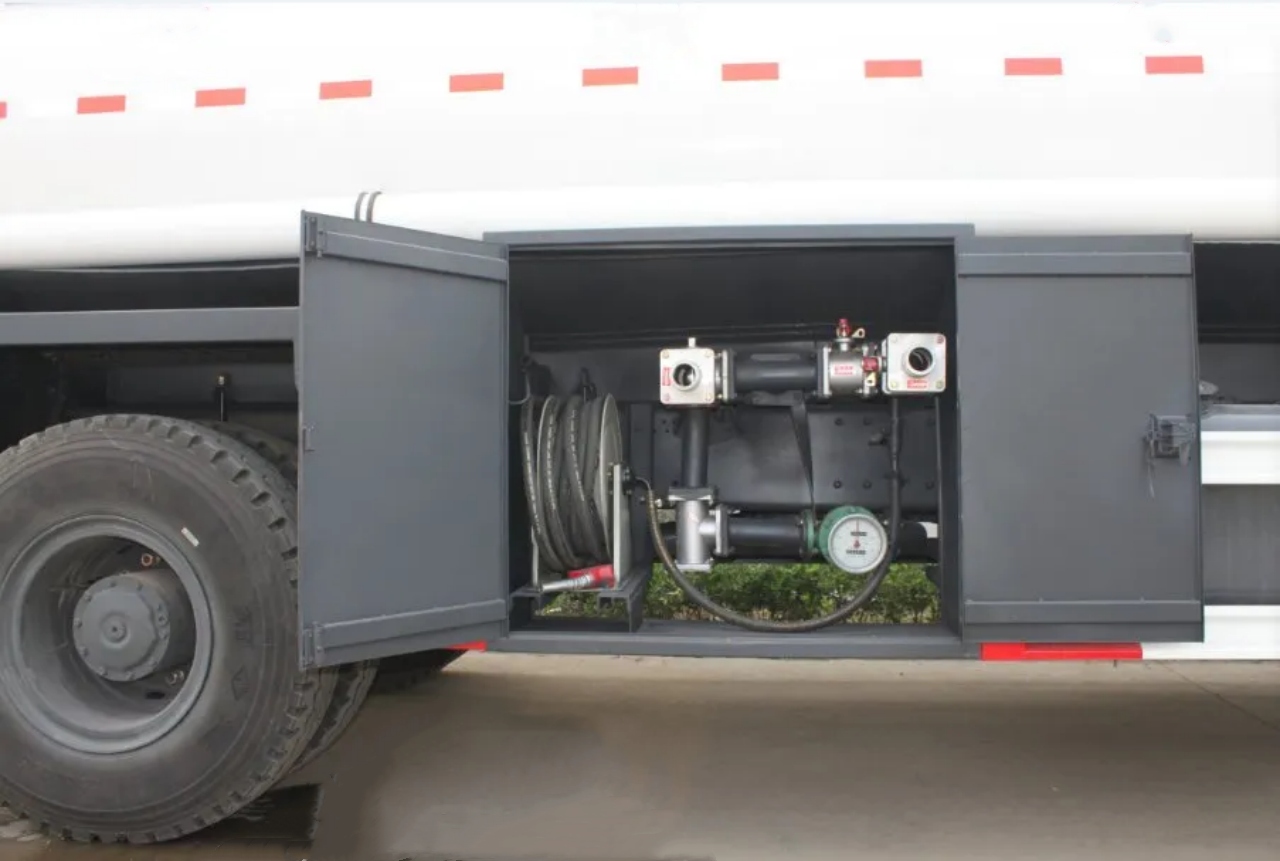

| Standard configuration | Chassis, carbon steel fuel tank, subframe, oil pump, 2 aluminum alloy flow valves, toolbox, manhole, climbing ladder, fire extinguisher, oil hose. Other: Equipped with fuel dispenser gun, reel hose, and flow meter. |
|||
| Tank Mounted on Chassis Brand |
|---|
