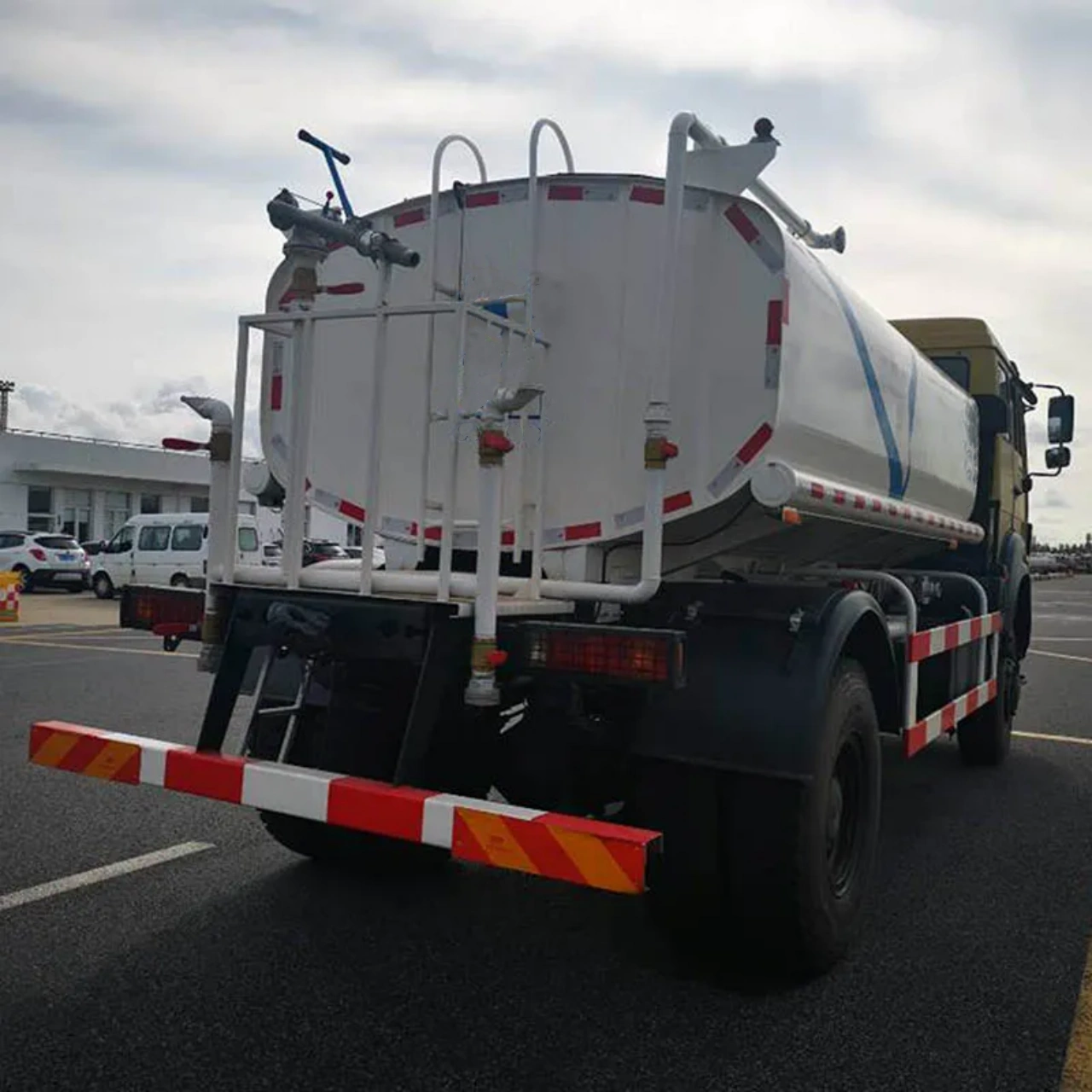

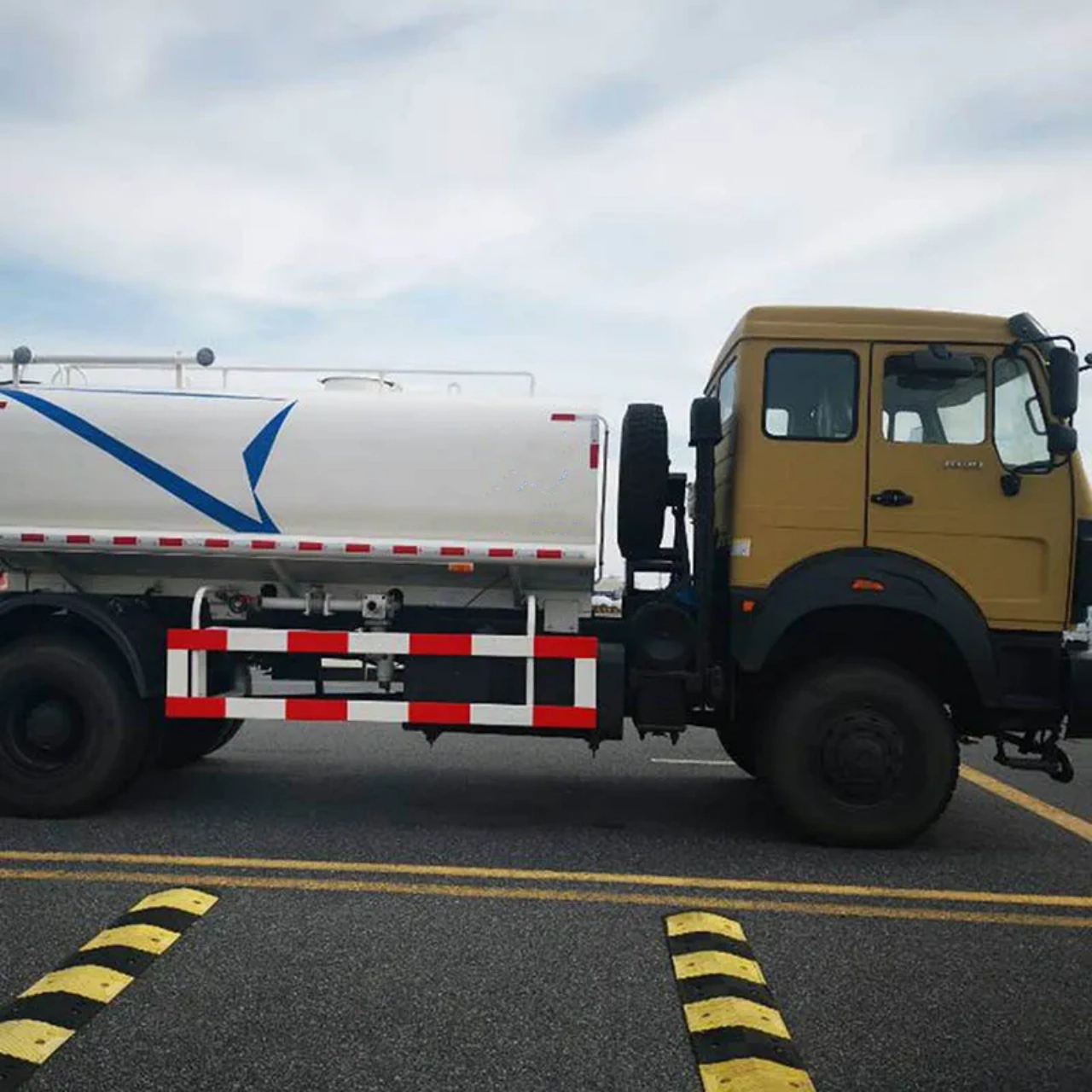

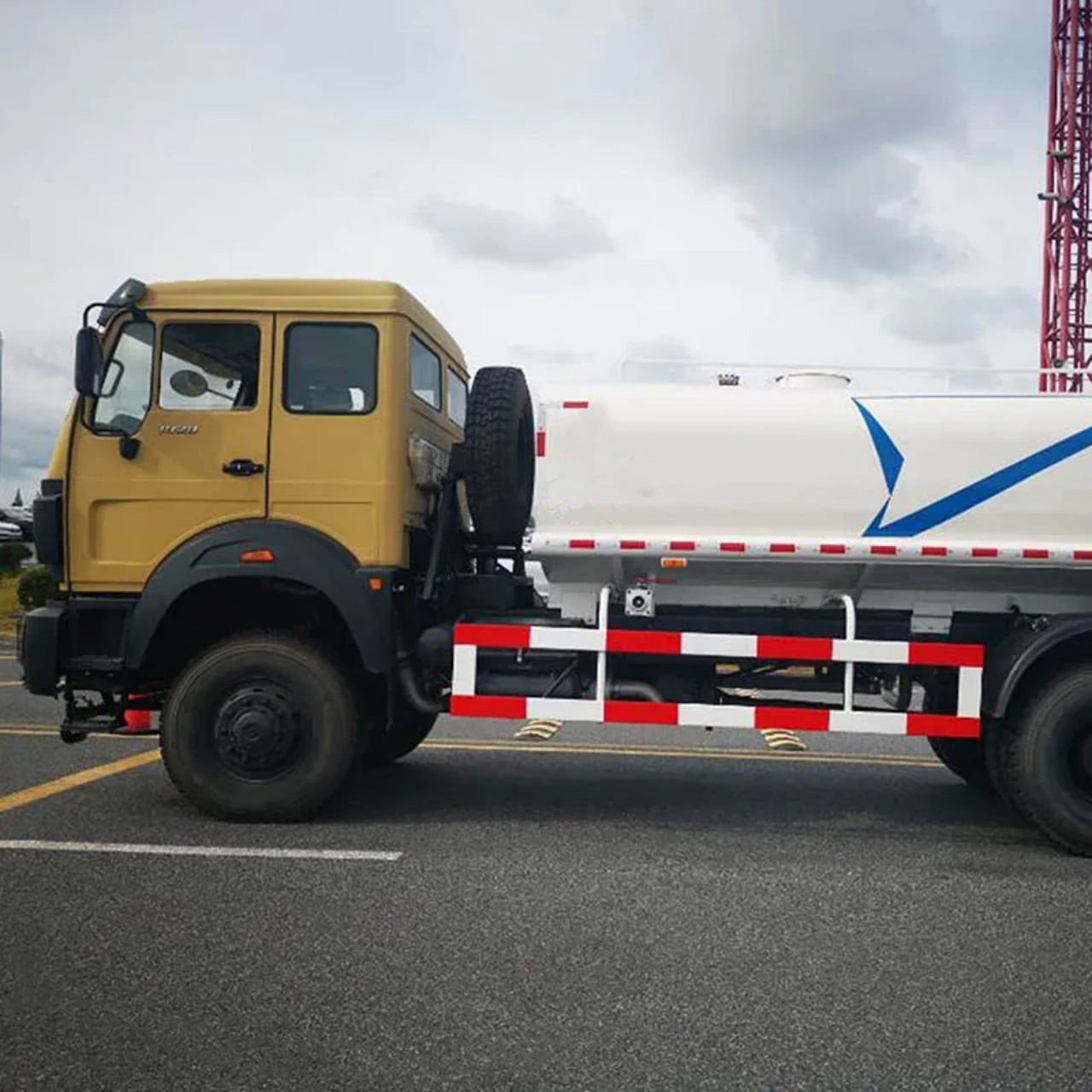

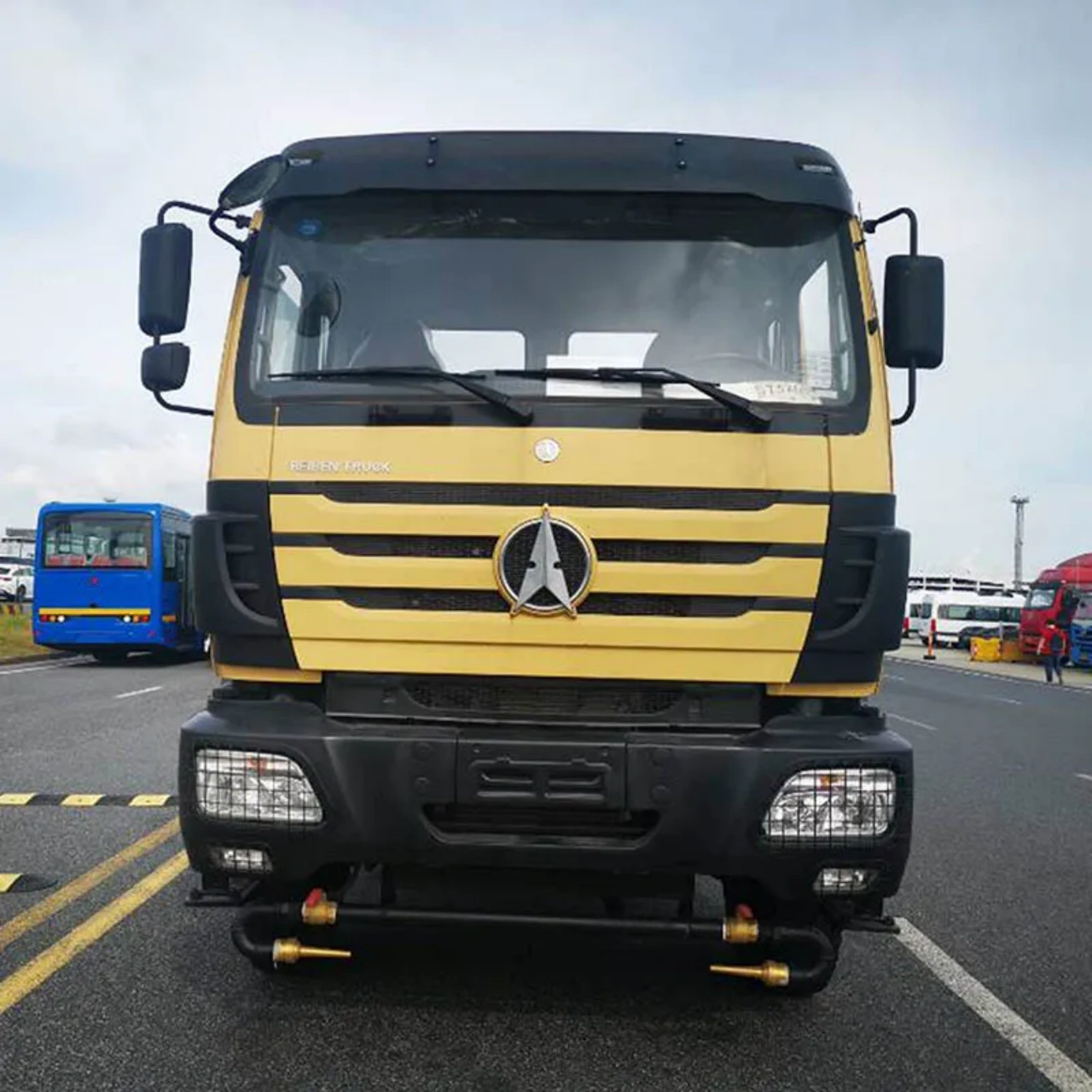

Beiben 4WD 10 CBM Water Tanker Truck

Filter

Beiben 4WD 10 CBM Water Tanker Truck (2)

Beiben 4WD 10 CBM Water Tanker Truck (3)

Beiben 4WD 10 CBM Water Tanker Truck (4)

Beiben 4WD 10 CBM Water Tanker Truck (5)

Beiben 4WD 10 CBM Water Tanker Truck (6)

Model No.:	CSCWTT010
Water Tank Volume:	10,000 Liters
Overall Dimensions(LxWxH):	8,6902,5003,400mm
Chassis Brand:	Beiben
Drive Type:	4×4
Wheelbase:	4,800mm
Engine Brand/Model:	WEICHAI/WP10.290E32
Engine Power:	290hp
Emission Standard:	Euro III
Maximum Driving Speed:	90km/h
Water Tank Material:	Q235
Max Loading Capacity:	12,000kg

Truck Enquiry

Categories: Carbon Steel Tank Truck, Water Tank Truck

Description

BRIEF

The Beiben 4WD 10 CBM water tanker truck, manufactured by CSCTRUCK China Tank Truck, is a rugged and high-performance vehicle designed for water transport in off-road and challenging terrains. Built on a Beiben chassis with a 4×4 drive type, this truck ensures excellent traction and stability, making it suitable for various industrial, construction, and municipal applications.

Equipped with a WEICHAI WP10.290E32 engine, the truck delivers 290 horsepower, providing strong performance and durability. It meets the Euro III emission standard, balancing power efficiency with environmental compliance. With a maximum driving speed of 90 km/h, it ensures efficient water delivery across different locations.

The water tank, constructed from Q235 carbon steel, has a capacity of 10,000 liters (10 CBM), making it ideal for dust suppression, road cleaning, and emergency water supply. It features a robust structure designed to withstand harsh working conditions. The tanker’s maximum loading capacity is 12,000 kg, ensuring a substantial water payload while maintaining operational efficiency.

This Beiben water tanker is engineered for demanding environments where reliable water transportation is essential. Its 4WD system, combined with a powerful engine, makes it highly capable in off-road conditions, such as construction sites, mining areas, and remote locations. The truck’s sturdy chassis enhances durability, while its well-designed tank structure ensures stability and safety during transport.

Overall, the Beiben 4WD 10 CBM water tanker truck is a reliable and high-capacity solution for water distribution needs, offering powerful performance, off-road capability, and durable construction for both urban and rugged terrains.

FEATURES

High-Capacity Water Tank – Equipped with a 10,000-liter (10 CBM) Q235 steel water tank, suitable for various water transport and distribution applications.
Powerful Engine – Powered by a WEICHAI WP10.290E32 engine, delivering 290 horsepower, ensuring reliable performance in demanding conditions.
Robust Beiben Chassis – Built on a durable Beiben 4×4 chassis, providing excellent off-road capability and stability for rough terrains.
Heavy-Duty Loading Capacity – Designed to handle a maximum load of 12,000 kg, making it ideal for heavy-duty water transport operations.
Efficient and Compliant Performance – Meets the Euro III emission standard, with a maximum speed of 90 km/h, balancing efficiency with environmental considerations.

SPECIFICATION

General Specification
Chassis Model	1934T
Series	NG80
Wheel Traction/Drive Style	4X4
Full Load Mass Weight	kg	19,000
Curb Mass/Self Weight	kg	7,500
Steering Wheel Position	LHD/Rhd	LHD (Left Hand Drive)
Engine
Model	WP10.290E32
Brand	WEICHAI
Displacement	9.726L
Type	In-line, Six-cylinder, Four-stroke, Water-cooled, Direct Injection, Intercooled Turbocharged Diesel Engine

Engine Classification / Standard	EURO III
Bore/Stroke	mm	126/130
Rated Horse Power	hp	290
Net Power	kW/rpm	213kW/2,200rpm
Torque (N·m/rpm):	N·m/rpm	1160N·m @ 1,200-1,600rpm
Clutch & Gear Box Systems
Clutch	BEIBEN‘s 430 diaphragm spring clutch
Gear Box	9JS150A
Gear Speed/Lever	9 forwards/ 1 reverse
Gear Ratio	12.57,8.39,6.15,4.59,3.4,2.47,1.81,1.35 reverse1: 13.14

Axle & Steering
Steering Model	8098
Front Axle	7T
Rear Axle	13T, Drum Brake
Ratio of Rear Axle	5.263
Loading Capacity per Axle	Front	7,000kg
	Rear	13,000kg
Brake System & Suspension
Service Brake	Dual circuit compressed air brake
Auxiliary Brake	Engine exhaust valve brake
Parking Brake (Emergency Brake)	Front	spring energy
	rear	compressed air
Suspension Type	Front	10pcs leaf spring
	rear	13pcs leaf spring
Wheels & Tires
Wheel Type	Radial Tires
Number of Tires	6+1 (spare tire)
Tire Type/Size	12.00R20
Track	Front	1,995mm
	rear	1,800mm

General Performance Parameters
Maximum Driving Speed	km/h	90
Average Fuel Consumption	liter/km	30liters/100km
Maximum Gradeability	%	≈35°
Max Loading Capacity	kg	12,000
Cabin (NG80B Model)
“Long cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be forwardly tipped; Interior trimming: High back/shock absorption seat for the driver. Inner A/C, Manual door locks, manual glass lift; Exterior trimming: NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.”

ONE SLEEPER

WITH A/C

Chassis & Dimensions
Frame Details		317x70x8.5

Overall Dimension	length	8,690mm
	width	2,500mm
	height	3,400mm
Wheelbase	mm	4,800
Ground Clearance	mm	314
Vehicle Overhang	Front	1,410
	rear	2,480
Front/Approach angle	%	25°
Rear/Departure angle	%	24°
Electrical System
Battery	V/ah	24V/165ah
	quantity	2
Alternator	volts	28V
Operating Voltage	volts	24V
Fuel Tank
Capacity	liters	400
Shape / Structure		Rectangular / Iron
Water Tanker
Water tank capacity	CBM	10
Thickness of tank body	mm	4
Material		Q235
Main equipment	Water pump
Full-set spraying system	Front and rear sprinkle system, high-pressure water gun.
