| Model No.: | CSCFRTT030 |
| Fuel Tank Volume: | 30,000L |
| Chassis Brand: | Beiben |
| Drive Type: | 8×4 |
| Wheelbase: | 1,500+4,750+1,450mm |
| Engine Model: | Weichai WP10.340E22 |
| Engine Power: | 340HP |
| Emission Standard: | Euro II |
| Tank Material: | Q235A |
| Oil Pump: | 1-off, Chinese famous brand |
| Flowmeter: | 1-off, with 15M rotary filling gun |
BRIEF

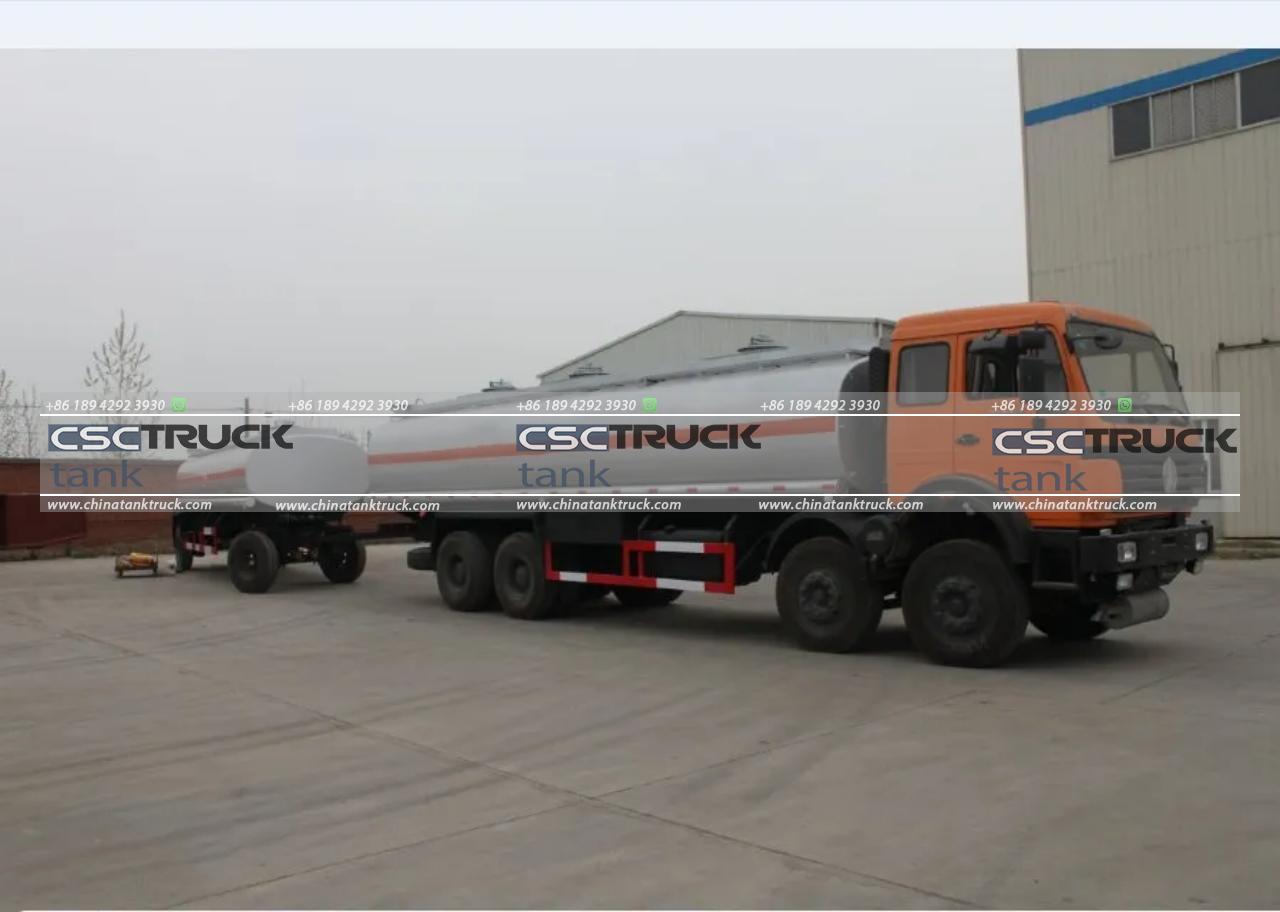

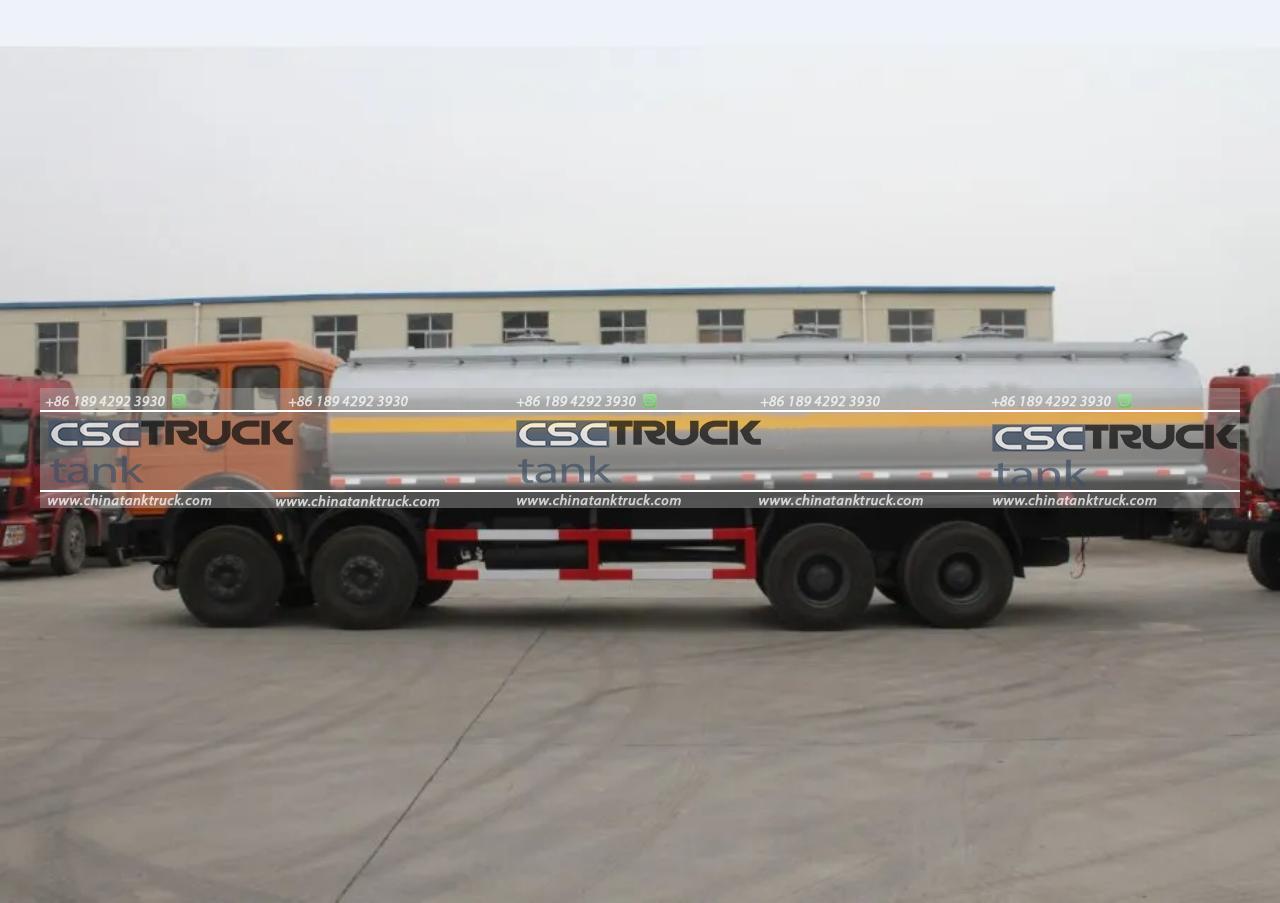

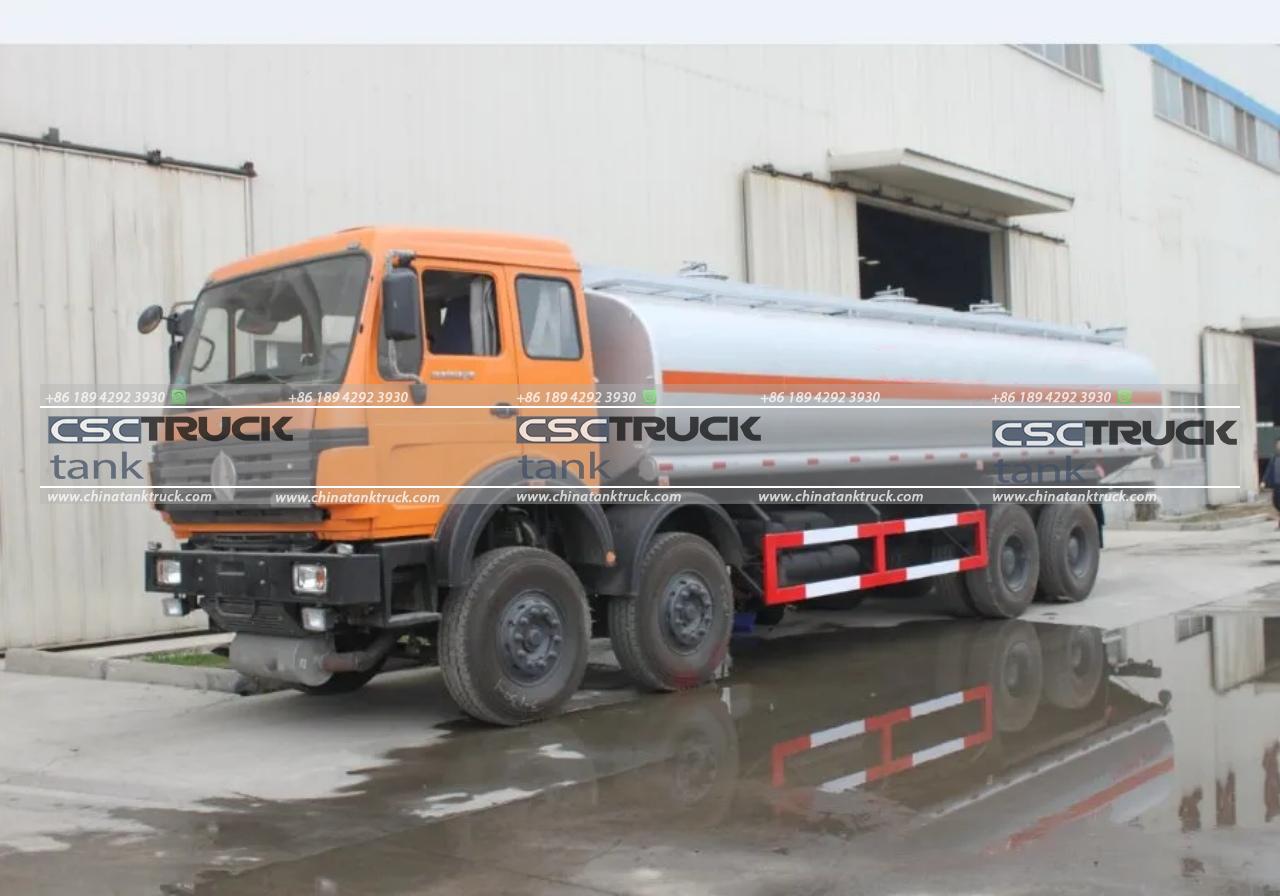

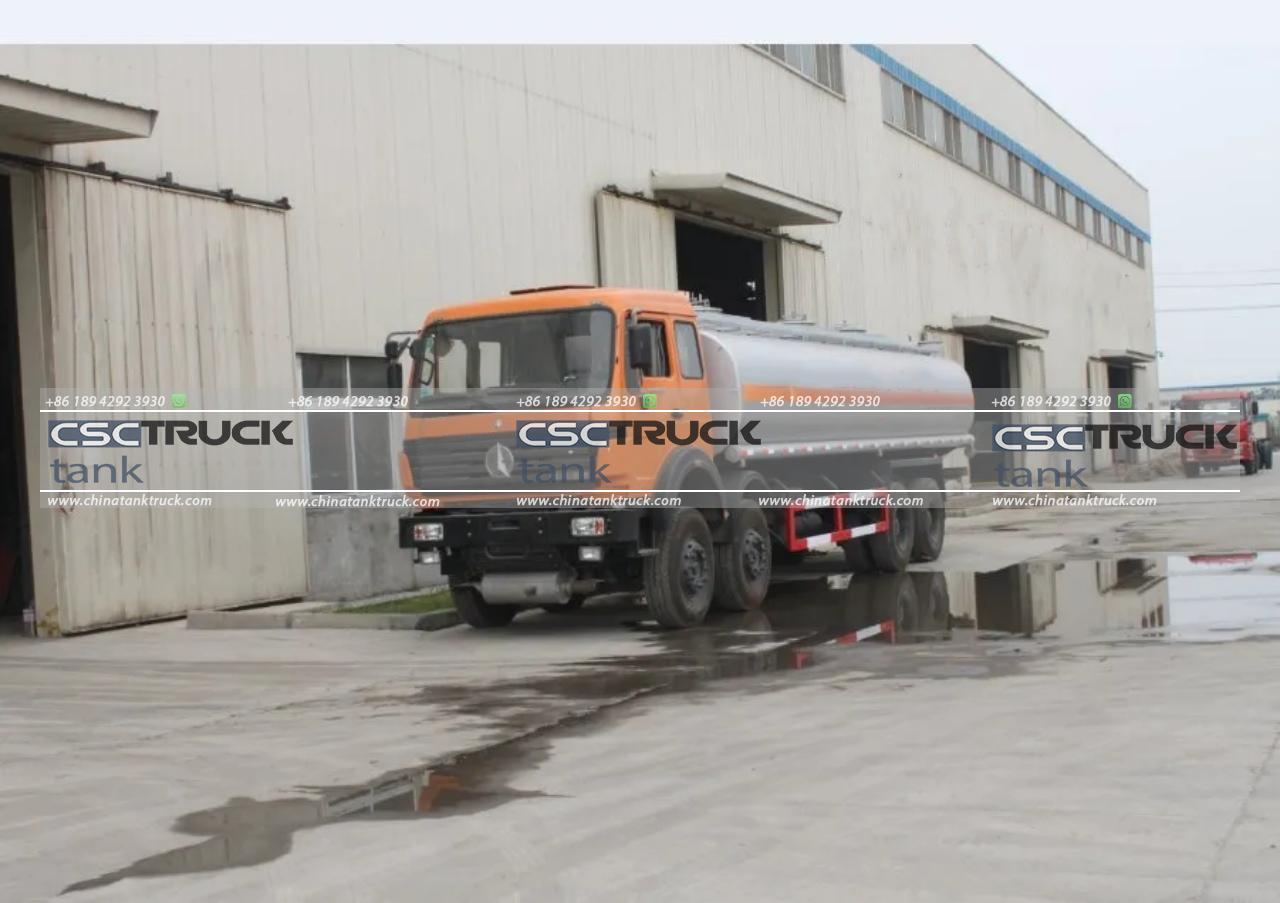

The Beiben 30,000-liter fuel refueling tank truck, produced by CSCTRUCK China Tank Truck, is designed for efficient fuel transportation and refueling operations. It features a robust Beiben chassis with an 8×4 drive configuration, ensuring optimal stability and load-bearing capacity for the 30,000-liter fuel tank. The truck is powered by a Weichai WP10.340E22 engine, which delivers 340 horsepower (HP) and meets the Euro II emission standard, balancing performance with environmental considerations.
The fuel tank itself is made from high-quality Q235A steel, known for its durability and resistance to corrosion, ensuring long-lasting use in demanding conditions. The tank truck is equipped with a Chinese-famous brand oil pump, providing reliable fuel delivery. In addition, the truck is fitted with a flowmeter and a 15-meter rotary filling gun, which facilitates accurate and efficient fuel dispensing during refueling operations.
This refueling truck is designed for high capacity, combining advanced technology and durable components to meet the needs of both commercial and industrial fuel transport. The 30,000-liter capacity allows it to transport large volumes of fuel over long distances, making it suitable for a variety of applications, from airport refueling to industrial fuel supply. With a focus on safety, performance, and efficiency, the Beiben 30,000L fuel refueling tank truck is a reliable choice for fueling fleets and operations requiring high-capacity transport.
FEATURES
- High Fuel Capacity: The Beiben 30000L fuel refueling tank truck features a large 30,000L fuel tank, providing substantial fuel storage and transportation capability.
- Durable Chassis: Built on a Beiben 8×4 chassis, designed for heavy-duty applications, ensuring robust support for the vehicle’s weight and fuel load.
- Powerful Engine: Equipped with the Weichai WP10.340E22 engine, delivering 340HP, offering reliable power for long-distance and heavy-load transportation.
- Advanced Fuel Dispensing: Includes a Chinese famous brand oil pump and a flowmeter with a 15-meter rotary filling gun, ensuring precise fuel transfer and efficient operation.
- Compliance and Build Quality: Meets the Euro II emission standard, with a Q235A steel fuel tank for enhanced durability and safety during fuel transport.
SPECIFICATION
Truck Chassis |
||||||
| Chassis Brand | North Benz(Beiben)Â | F/R Axle | 7.5T,7.5T/ 16T(2 axles combined) | |||
| Wheelbase | 1,500+4,750+1,450mm | Gearbox | FAST RT11509C, 9 forward, 2 reverse | |||
| Tire | 12.00R20, 10+1pcs | Brake | Air brake type | |||
| Cabin | NG80, 1-and-a-half cabin, with A/C, hydraulic driver’s seat, manual reversal, etc. | |||||
| Engine | Model | Weichai WP10.340E22 | ||||
| Horsepower | 340HP | |||||
| Displacement | 9.726L | |||||
| Emission | Euro II | |||||
| Type | 6 cylinders in-line, 4 strokes, water-cooled, turbo-charged intercooler, direct injection. | |||||
Fuel Tank |
||||||
| Tank | Volume | 30,000L, Single compartment | ||||
| Material & Thick | Steel Q235A; end 6mm, body 5mm | |||||
| Color & Logo | Customized | |||||
| Fittings | Manhole | 1-off GLME(Chinese best brand), DN500 | ||||
| Breather Valve | 1-off GLME | |||||
| Bottom Valve | 1-off GLME | |||||
| Oil Pump | 1-off, Chinese famous brand | |||||
| Discharge Valve | 1-off GLME, ball valve | |||||
| Flowmeter | 1-off, with 15M rotary filling gun | |||||
| Anti-static roil | 1-off GLME | |||||
| Emergency Cutoff Device | 1-off GLME | |||||
| Vapor Recovery System | N/A, in optional | |||||
| Overfill sensor | N/A, in optional | |||||
| Tool Box | 1pc | |||||
| Fire extinguisher | 1pc | |||||
| Tank Mounted on Chassis Brand |
|---|
