Model No.: | 8 Wheelers 10000 Liters Milk Tank Truck |
Milk Tank Volume: | 10,000 Liters |
Overall Dimensions(LxWxH): | 9,200×2,300×2,650mm |
Chassis Brand: | Dongfeng |
Drive Type: | 6×2 |
Engine Brand: | Chaocai/CY4102-E3C |
Engine Power: | 95 HP |
Emission Standard: | Euro 3 |
Milk Tank Material: | 5mm Stainless steel 304-2B |
Categories: Milk Tank Truck, Stainless Steel Tank Truck
Description
BRIEF

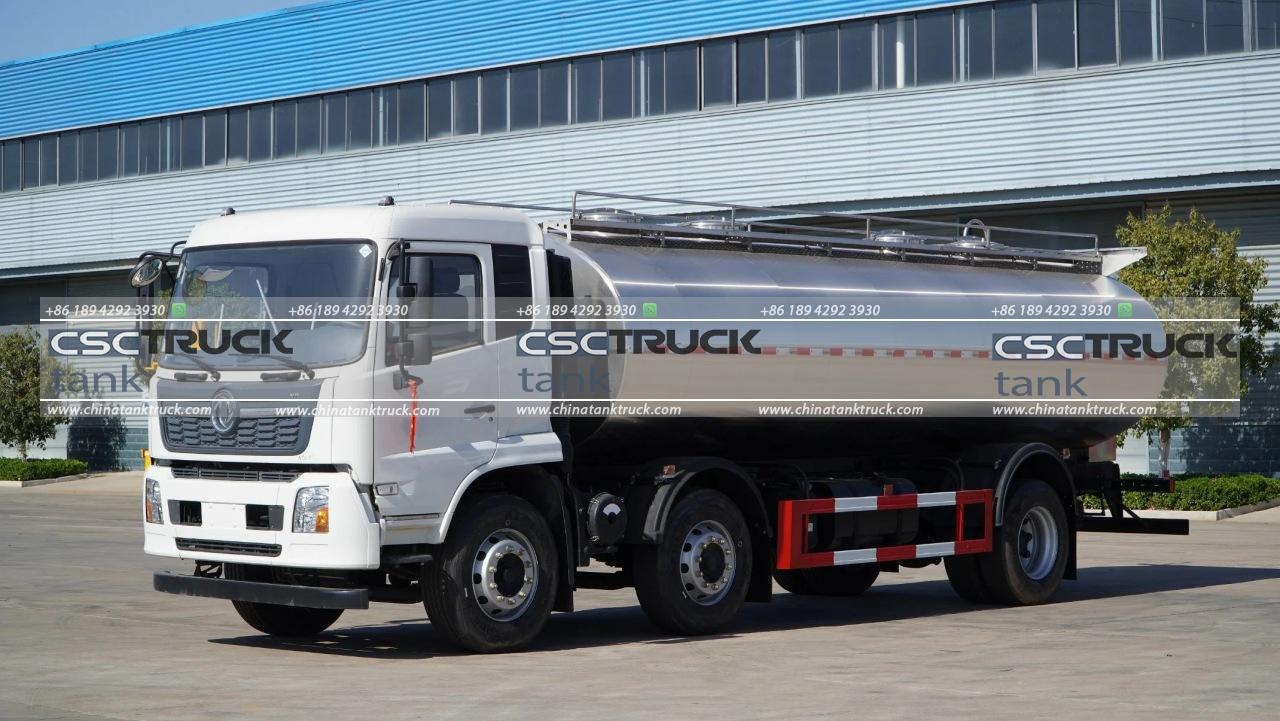

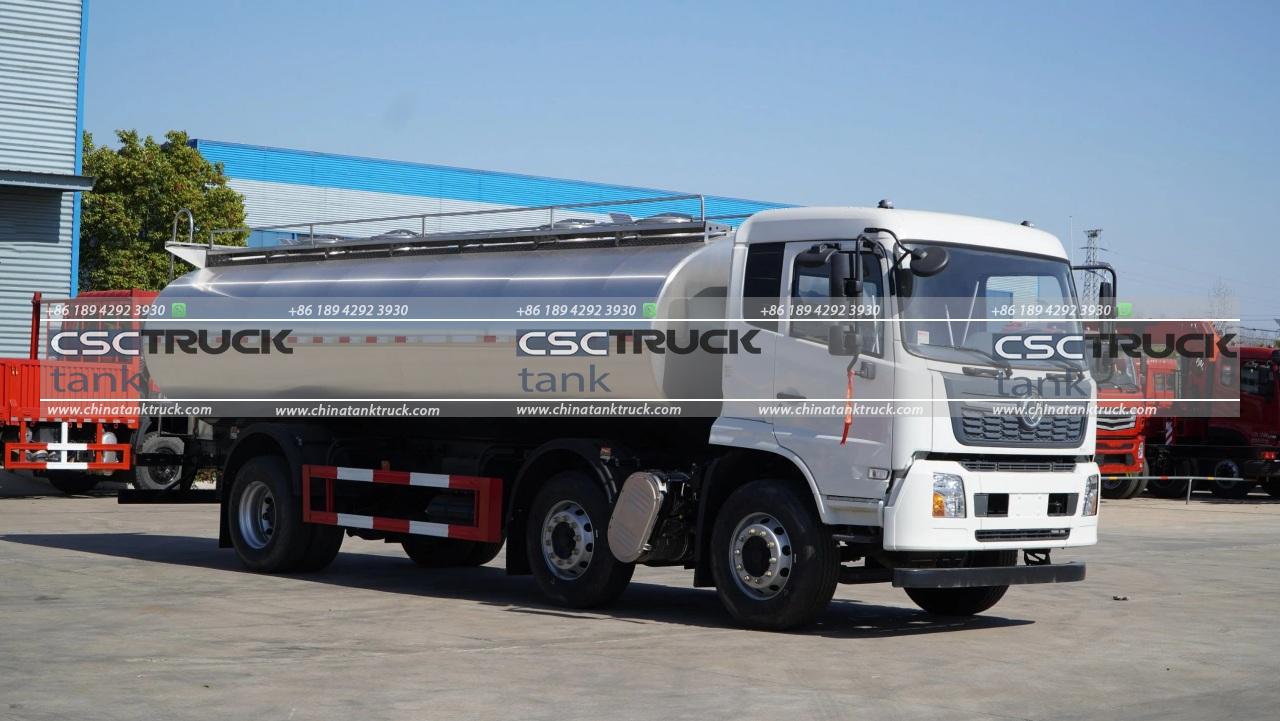

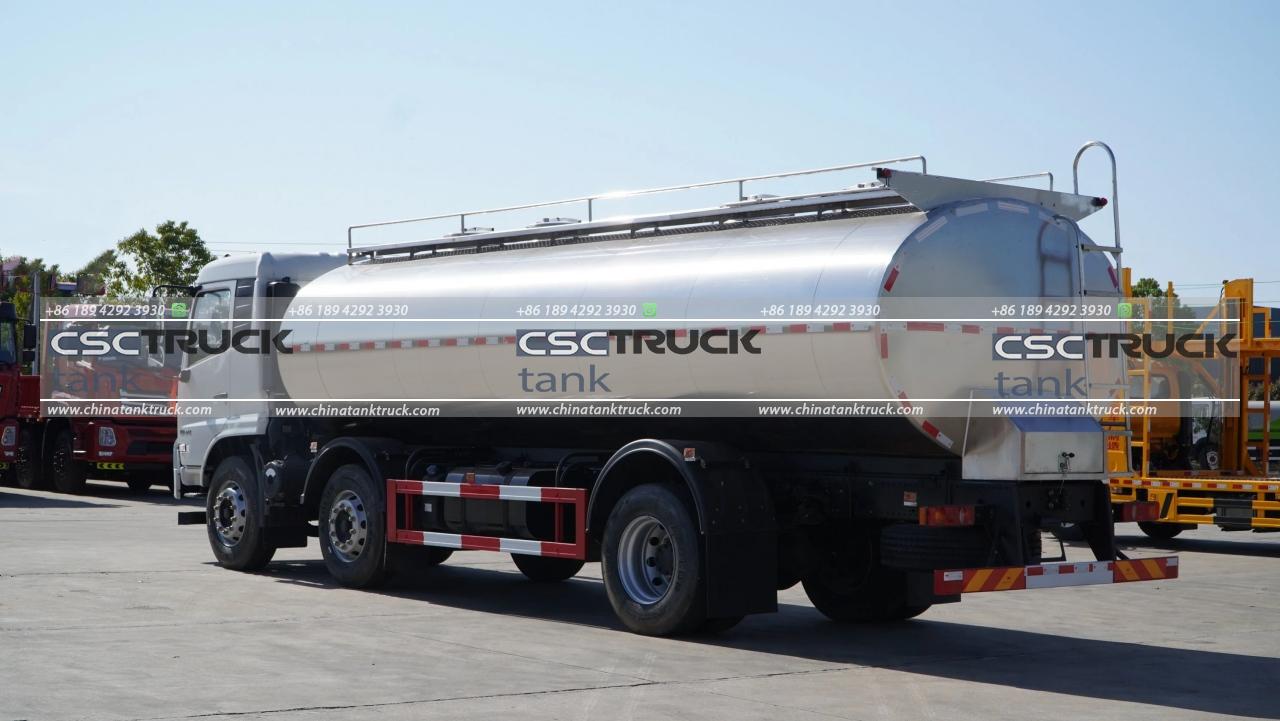

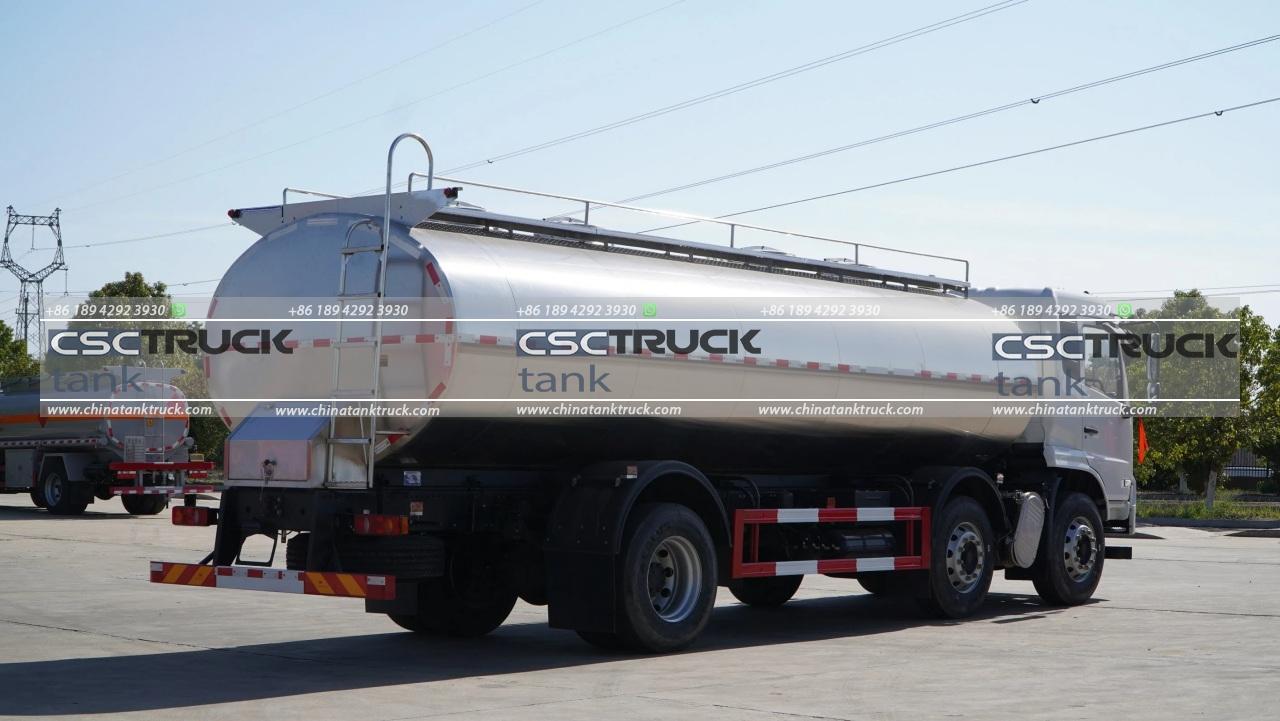

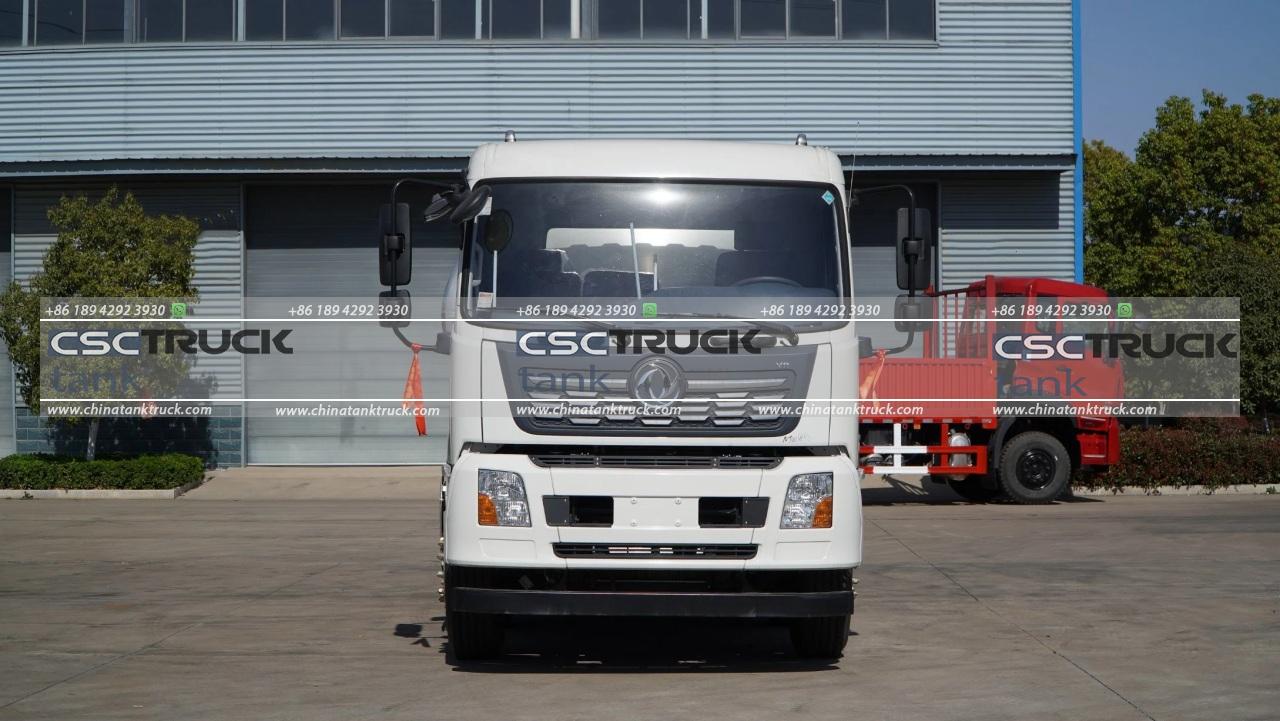

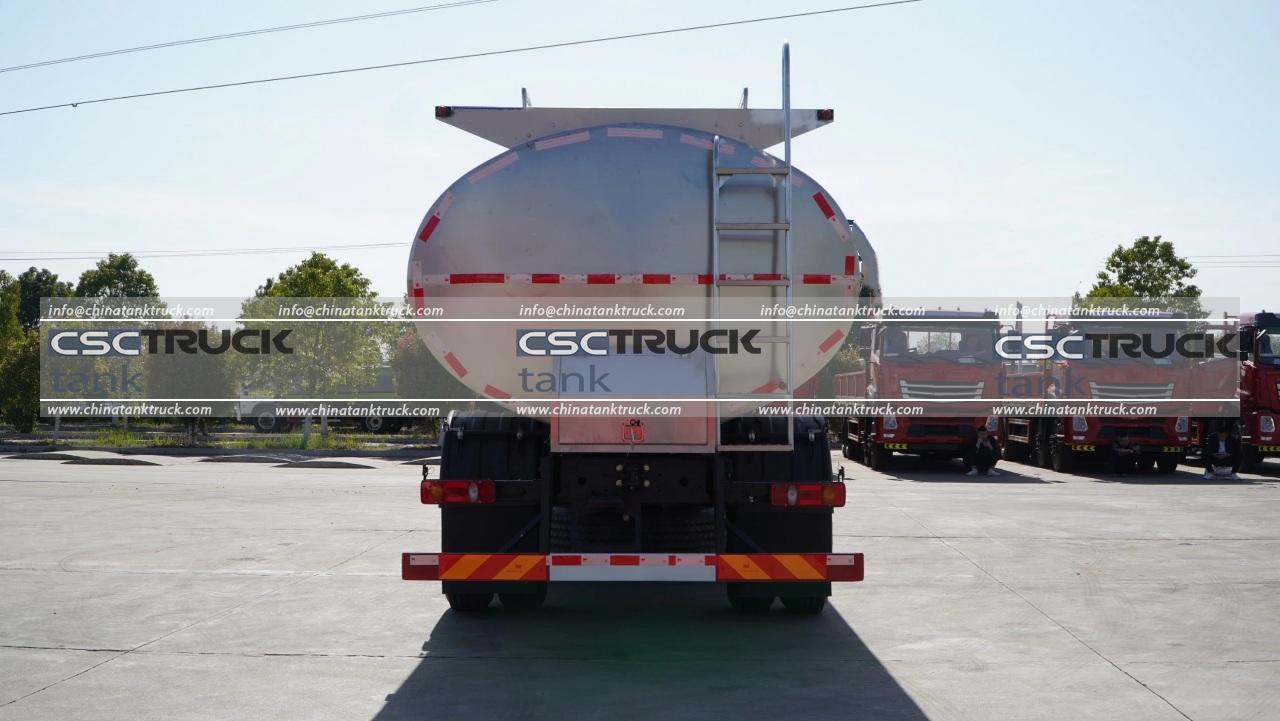

The 8-wheeler 10,000 liters milk tank truck manufactured by CSCTRUCK China Tank Truck stands as a pinnacle of efficiency and reliability in the dairy transportation industry. Built on a robust Dongfeng chassis, this milk tanker boasts a 6×2 drive type, ensuring superior traction and maneuverability even on challenging terrains.
Under the hood, the Chaocai/CY4102-E3C engine delivers a formidable 95 horsepower, guaranteeing smooth and powerful performance while adhering to the Euro 3 emission standard, thus minimizing environmental impact. This combination of power and eco-friendliness ensures both operational excellence and sustainability.
The heart of the milk tank truck lies in its 5mm stainless steel 304-2B milk tank, a testament to its durability and hygiene standards. This high-quality tank not only safeguards the purity of the transported milk but also ensures easy cleaning and maintenance, meeting the stringent requirements of the dairy industry.
With a generous payload capacity of 20,000kg, this tanker offers unmatched efficiency in transporting large volumes of milk, enabling dairy producers to meet the demands of their customers with ease. Whether traversing urban streets or rural landscapes, this milk tanker remains a reliable companion, ensuring timely delivery and preserving the integrity of its precious cargo.
In essence, the 10,000 liters milk tank truck by CSCTRUCK China Tank Truck represents a fusion of cutting-edge engineering, superior performance, and uncompromising quality, making it the preferred choice for dairy transportation needs across various landscapes and operational environments.
FEATURES
1. Capacity: The truck has a large capacity of 10,000 liters, ideal for transporting significant quantities of milk efficiently.
2. Manufacturer: Manufactured by CSCTRUCK China Tank Truck, ensuring high-quality production standards and reliability.
3. Chassis: Built on a Dongfeng chassis, known for its durability and performance in various terrain and road conditions.
4. Drive Type: Features a 6×2 drive type, providing stability and traction, especially when carrying heavy loads like milk.
5. Engine: Equipped with a Chaocai/CY4102-E3C engine with 95 HP engine power, delivering sufficient power to navigate through different terrains while maintaining fuel efficiency.
6. Emission Standard: Complies with Euro 3 emission standards, emphasizing environmental friendliness and adherence to regulations regarding emissions.
7. Tank Material: The milk tank is constructed with durable 5mm stainless steel 304-2B, ensuring hygiene and preservation of milk quality during transportation.
8. Payload: With a payload capacity of 20,000kg, the truck can transport large quantities of milk efficiently over long distances, minimizing the need for frequent trips.
SPECIFICATION
The Parameters of 8 Wheelers 10000 Liters Milk Tank Truck |
|
Overview |
|
Name | 8 Wheelers 10000 Liters Milk Tank Truck |
Dimension(LxWxH) | 9,200×2,300×2,650(mm) |
Total Mass | 25,000kg |
Rated Payload | 20,000kg |
Curb Weight | 10,000kg |
Passenger | 3 |
Approach/Departure Angle | 24/13 |
The Parameters of Chassis |
|
Manufacturer/Model | Dongfeng/EQ1070TJ9AD3 |
Driving Type | 6×2 left/right-hand drive |
Gearbox | Seven-speed lever with six-speed forward and one reverse, manual |
Front/Rear Track | 1,835/1,640(mm) |
Tyre | 8.25 |
The Number of Tyre | 6+1(spare tyre) |
Front/ Rear Suspension | 1,180/1,715(mm) |
Leaf Spring Number | 11/9+7 |
The Parameters of Engine |
|
Manufacturer/Model | Chaocai/CY4102-E3C |
Rated Power | 95HP |
Fuel Type | Diesel oil |
Displacement/Capacity | 3,856ml |
Emission Standard | Euro 3 |
Cylinder | Straight/4/intercooling |
Max. torque | 450N.m |
Velocity | 2,500rpm |
The Parameters of Tank | |
Color/LOGO | Customizable |
Material | 5mm Stainless steel 304-2B |
Function | Transporting potable liquid such as fresh milk, fresh water, beer, wine, edible oil, etc. |
Tank | 10 m3 |
Baffle | 2 |
Ports | 2 (Optional) |
Thermal Insulation within 24 hours | ≤1ºC |
