Filter

Model No.:	CSCDRTT006
Diesel tank volume:	6 CBM
Overall Dimensions(LxWxH):	5,990×2,050×2,500mm
Chassis Brand:	Dongfeng
Wheelbase:	3,300mm
Drive Type:	4×2
Engine Power:	110HP
Emission Standard:	EURO 2
Max Driving Speed:	90 km/h
Diesel tank material:	Q235, carbon steel

Truck Enquiry

Categories: Carbon Steel Tank Truck, Fuel Tank Truck

Description

BRIEF

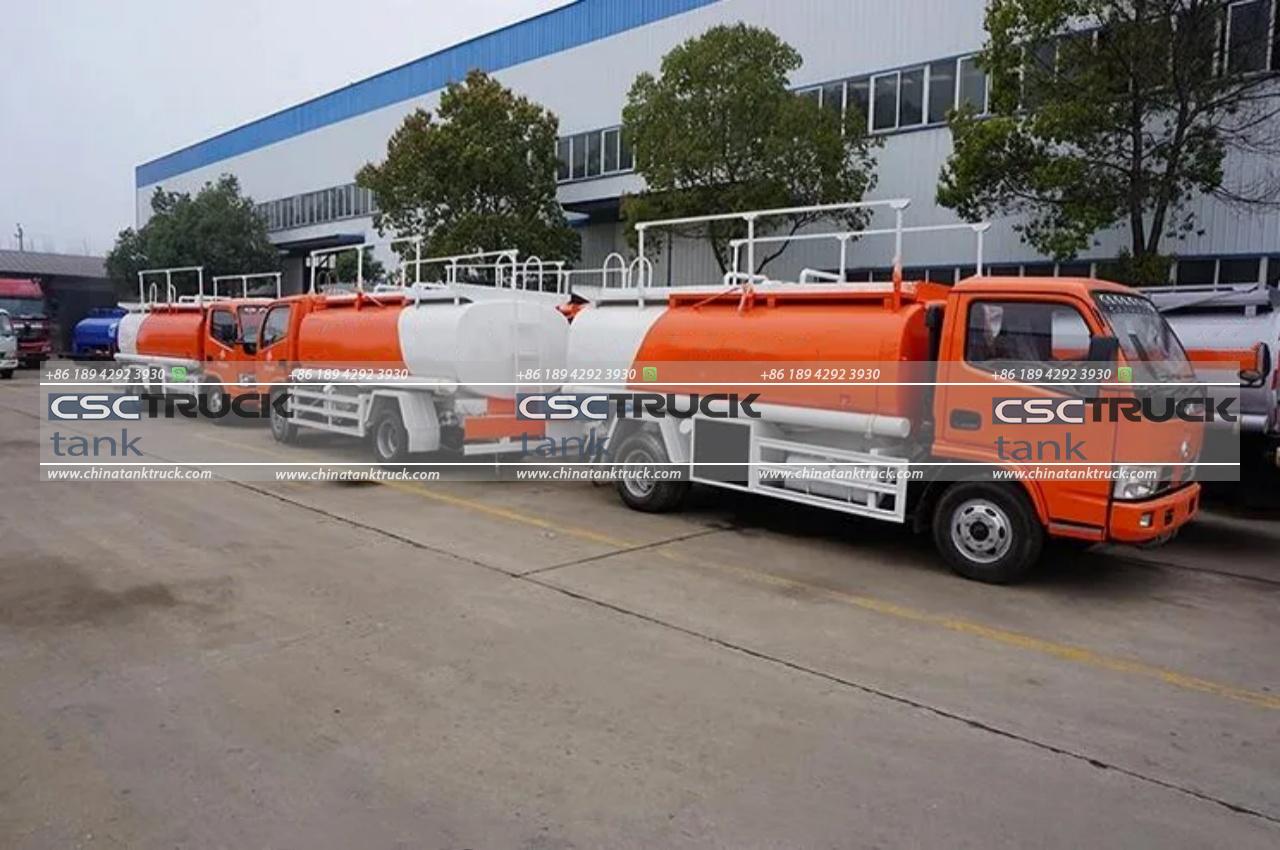

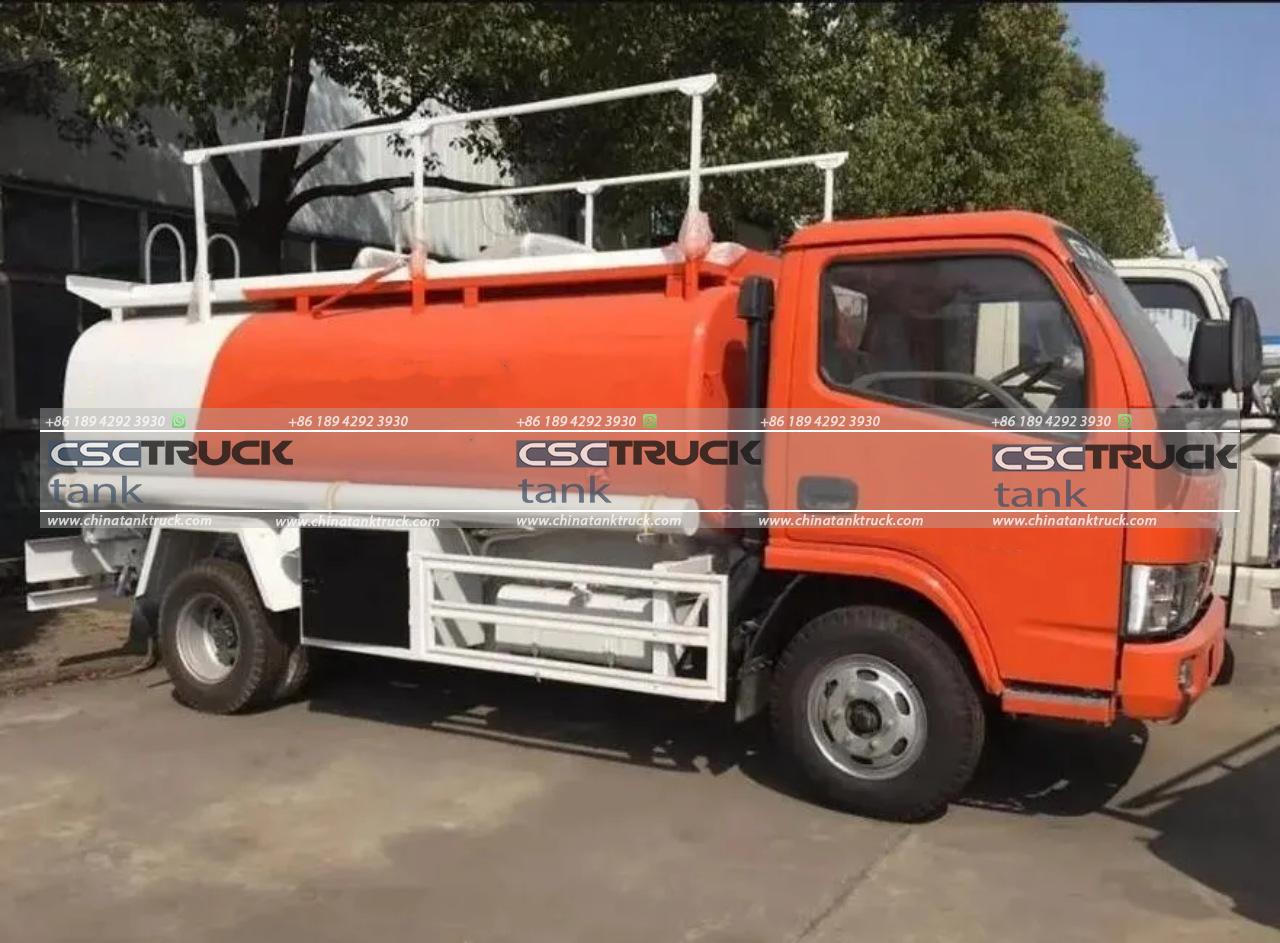

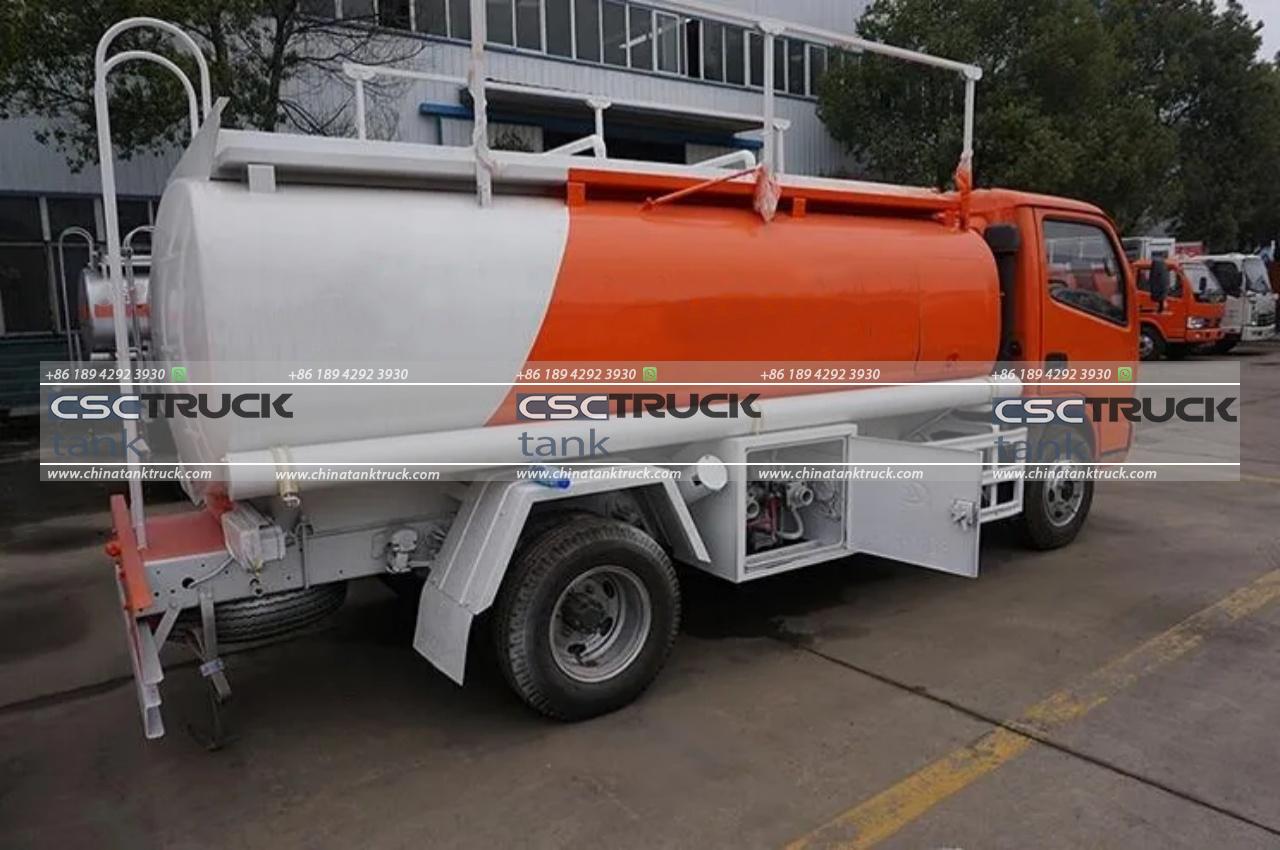

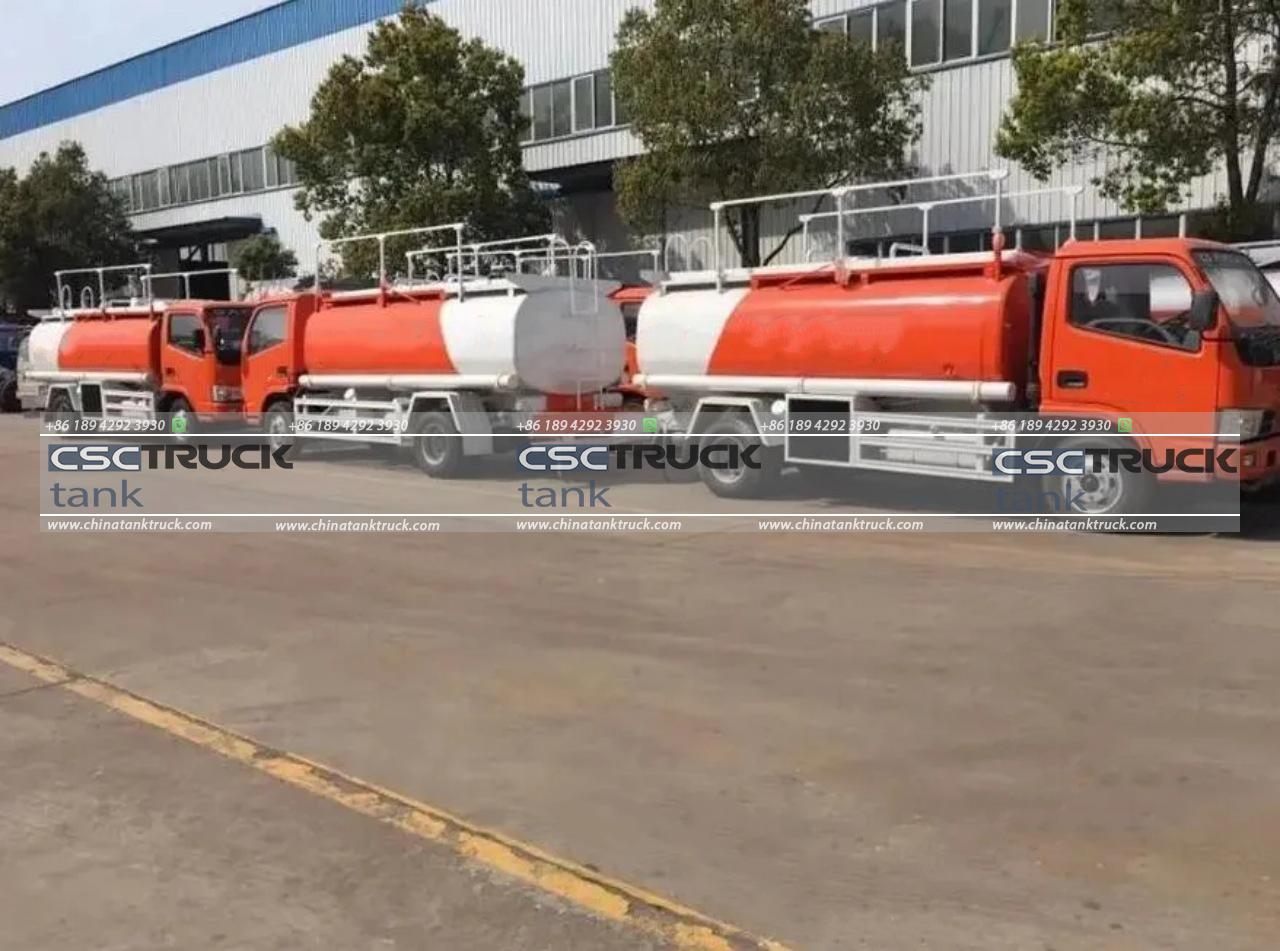

The 6CBM diesel refueling tank truck by CSCTRUCK China Tank Truck, a prominent Chinese manufacturer, is a robust and efficient diesel transportation and refueling solution. Designed with a 6 cubic meter diesel tank, this vehicle is built to meet the demands of industries requiring fuel delivery in various terrains and conditions.

The tank truck is constructed on a Dongfeng chassis, a proven platform renowned for its reliability and durability. Its 4×2 drive type ensures excellent maneuverability and stability, making it suitable for urban and rural applications. The 110HP engine provides ample power for its operations, with the added benefit of adhering to the EURO 2 emission standard, ensuring an environmentally conscious performance.

It was built with Q235 carbon steel, and the diesel tank offers exceptional strength and resistance to corrosion, ensuring safe and secure fuel transport. The vehicle can achieve a maximum speed of 90 km/h, optimizing delivery times while maintaining operational safety.

This 6CBM diesel refueling tank truck is particularly suited for small- to medium-scale fuel distribution, agricultural applications, or fleet operations requiring on-site refueling. Its compact size and efficient design make it a versatile and economical choice for businesses seeking a reliable refueling solution. With CSCTRUCK China Tank Truck‘s reputation for quality and the robust features of this tank truck, it represents a practical investment for enterprises prioritizing performance, durability, and compliance with industry standards.

FEATURES

Tank Capacity and Material:
- Diesel tank with a capacity of 6 cubic meters (CBM).
- Constructed from Q235 carbon steel, ensuring durability and resistance to wear.
Chassis and Drive System:
- Built on a Dongfeng chassis, known for reliability and efficiency.
- Features a 4×2 drive type, offering effective traction for various terrains.
Engine Specifications:
- Equipped with a 110HP engine, providing ample power for refueling operations.
- Complies with EURO 2 emission standards, ensuring reduced environmental impact.
Performance:
- Maximum driving speed of 90 km/h, balancing efficiency and safety.
Design Purpose:
- Specifically engineered for diesel refueling, suitable for industrial and commercial needs.

SPECIFICATION

General Technical Parameters
Overall Dimensions(LxWxH)			5,990×2,050×2,500(mm)
Gross Vehicle Weight			7,360(Kg)
Curb Weight			3,760(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		4×2
Cabin		Dongfeng, Single, LHD, with air conditioner
Number of Passengers		2
Engine	Model	4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, with ABS.
	Power	81kW / 110HP
	Emission standard	EURO 2
	Fuel type	Diesel
Gearbox		5 Forwards & 1 Reverse, manual operation. With power steering.
Brake System		Oil break
Wheel Base		3,300mm
Front/Rear Axle Loading		2,000/5,000(Kg)
Tire		7.00-16, 6pcs with 1 spare tire
Max Driving Speed		90(km/h)

Upper Structure Specification
Oil Tank	Effective Volume	6CBM
	Transport Oil Type	Diesel
	Tank dimensions(LxWxH)	4,000×1,700×1,100mm
	Tank Thickness	4mm
	Tank Material	Q235, carbon steel(Also can choose stainless steel, aluminum)
Refueling System	1. Oil pump; 2. Oil dispenser machine; 3. Hose reel with filling gun.
Equipment	1. Manhole 1 Unit; 2. Ladder handrail; 3. Electrostatic Wire Reel; 4. Loading, Discharge; 5. Emergency cut-off valve 1 Unit.
Options	Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.
