| Model No.: | CSCFTRT014 |
| Fuel Tank Volume: | 14 CBM |
| Overall Dimensions(LxWxH): | 8,450×2,500×3,200mm |
| Chassis Brand: | FAW |
| Drive Type: | 4X2 |
| Wheelbase: | 4,700mm |
| Engine Power: | 180 HP |
| Emission Standard: | Euro 2 |
| Tank Material: | Aluminum alloy |
BRIEF

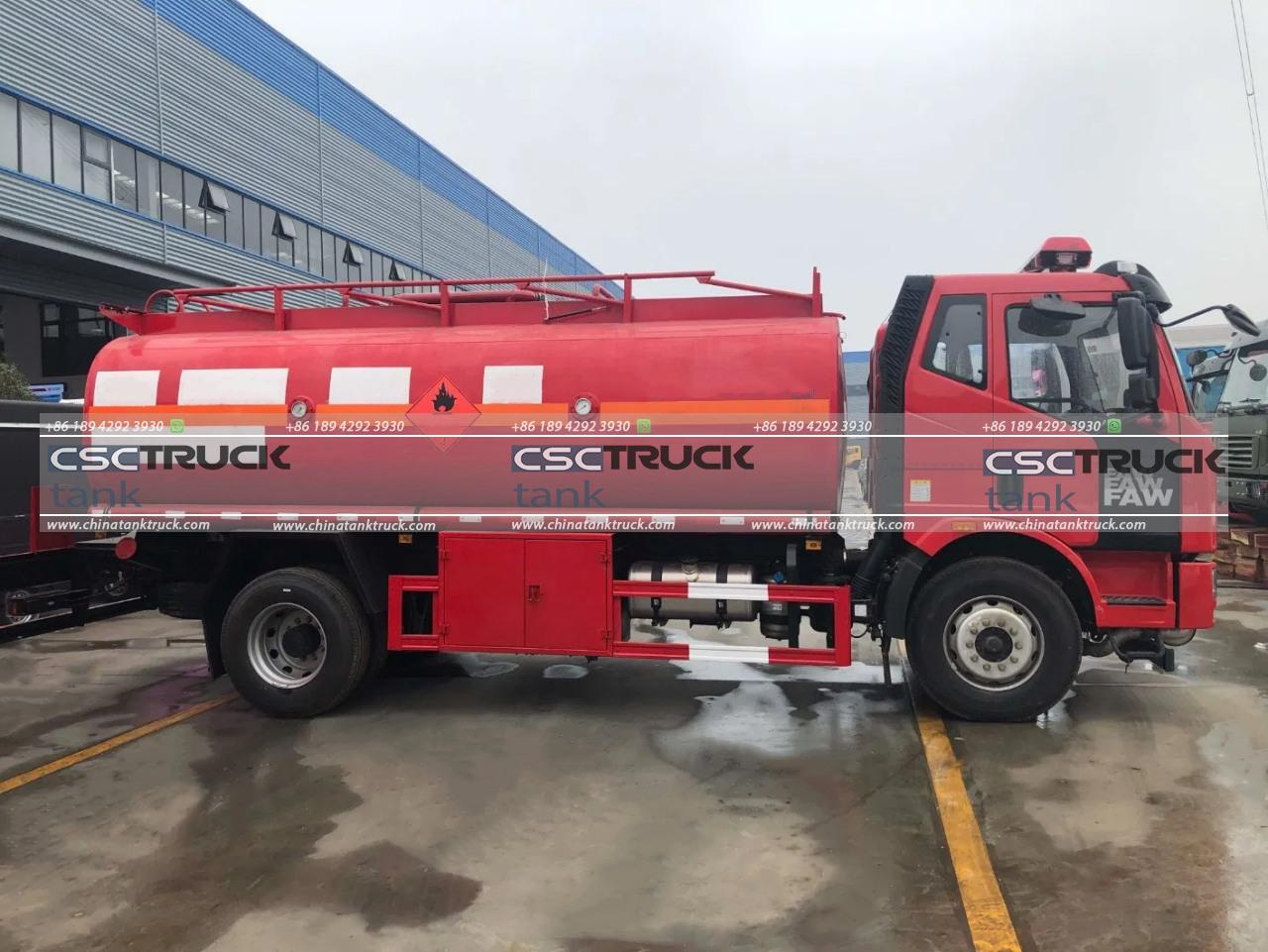

The 6-wheeler 14 CBM fuel tanker refueling truck produced by CSCTRUCK China Tank Truck is a robust and efficient solution for fuel transportation and refueling operations. Designed for reliability and performance, this truck is equipped with a 14-cubic-meter (CBM) aluminum alloy fuel tank, ensuring lightweight construction, corrosion resistance, and enhanced durability.
The tanker truck is built on an FAW chassis, known for its strength and dependability in heavy-duty applications. The vehicle operates on a 4×2 drive type, making it ideal for on-road fuel delivery across urban and suburban environments. Its 180-horsepower engine provides ample power for efficient transport, even when fully loaded, and adheres to the Euro 2 emission standard, ensuring moderate environmental compliance.
The aluminum alloy tank not only reduces the truck’s overall weight but also improves fuel efficiency and allows for greater payload capacity. The tanker features advanced safety systems, including spill prevention mechanisms, secure locking systems, and anti-static devices to ensure the safe handling of combustible fuels.
With its robust design, efficient engine, and quality construction, this fuel tanker refueling truck is suitable for use in fuel distribution companies, gas stations, and industrial operations requiring reliable fuel transportation. CSCTRUCK China Tank Truck‘s attention to detail and quality manufacturing make this tanker a valuable asset for operators seeking high-performance and cost-effective solutions in the fuel logistics sector.
FEATURES
- Fuel Tank Capacity: Equipped with a 14 CBM (14,000 liters) fuel tank, making it ideal for large-scale refueling operations.
- Chassis and Drive Type: Built on a durable FAW chassis with a 4×2 drive configuration, ensuring stability and performance on varied road conditions.
- Engine Power: Powered by a robust 180 HP engine, delivering reliable performance for both urban and rural routes.
- Emission Standard: Compliant with Euro 2 emission standards, balancing performance with environmental considerations.
- Material Construction: The aluminum alloy fuel tank reduces overall weight while offering excellent corrosion resistance, extending the vehicle’s service life.
SPECIFICATION
Vehicle Description |
||
| Overall dimensions(LxWxH) | 8,450X2,500X3,200mm | |
| GVW | 18,000kg | |
| Curb weight | 6,650kg | |
| Chassis brand | FAW | |
| Traction type | 4×2 | |
Tanker Description |
||
| Tank capacity | 14 CBM | |
| Tanker material | Aluminum alloy | |
| Thickness | Tanker body | 6mm |
| End cover | 6mm | |
| Tanker shape | Ellipse | |
| Tanker compartment | 1 compartment (Optional: several compartment) | |
| Standard configuration | 1 set manhole. | |
| Equipped with a double discharge valve and valve box. | ||
| Equipped with surge baffles, ladder, roof coaming, skid-resistant walkway, and toolbox. | ||
| Electrostatic conducting tape and double fire extinguishers. | ||
| Optional | Tanker material: Aluminum alloy; Stainless steel. | |
| Chinese standard configuration is available, or other world-famous fuel configuration. | ||
| Overflow probe system, vapor recovery system, bottom valve, API adaptors. | ||
| Emergency bottom valve and foldable aluminum handrail. | ||
| Others: fuel pump, refueling dispenser, flow meter, dipstick, etc. | ||
Chassis Description |
||
| Cab | 3 Passengers, with air-conditioner. | |
| Wheelbase | 4,700 mm | |
| Tire specification | 10.00R20 | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 2 |
| Brand | Famous Brand | |
| Horsepower | 180 HP | |
| Gearbox | Number of gears | 6 forward gears& 1 reverse |
| Brake system | Oil brake | |
| Axle | Front | 6,000kg |
| Rear | 9,000kg | |
| Suspension | Leaf springs | |
| Fuel tanker | Type | Steel tanker, with lockable cap. |
