| Model No.: | CSCAR010 |
| Fuel Tank Volume: | 10,000 Liters |
| Overall Dimensions(LxWxH): | 8,290×2,370×2,760mm |
| Chassis Brand/Model: | Dongfeng/EQ1160 |
| Drive Type: | 4×2 |
| Wheelbase: | 4,700mm |
| Maximum speed: | 80km/h |
| Engine Model: | B190 33 |
| Engine Power: | 190HP |
| Emission Standard: | Euro 3 |
| Fuel Tank Material: | Aluminum alloy |
BRIEF

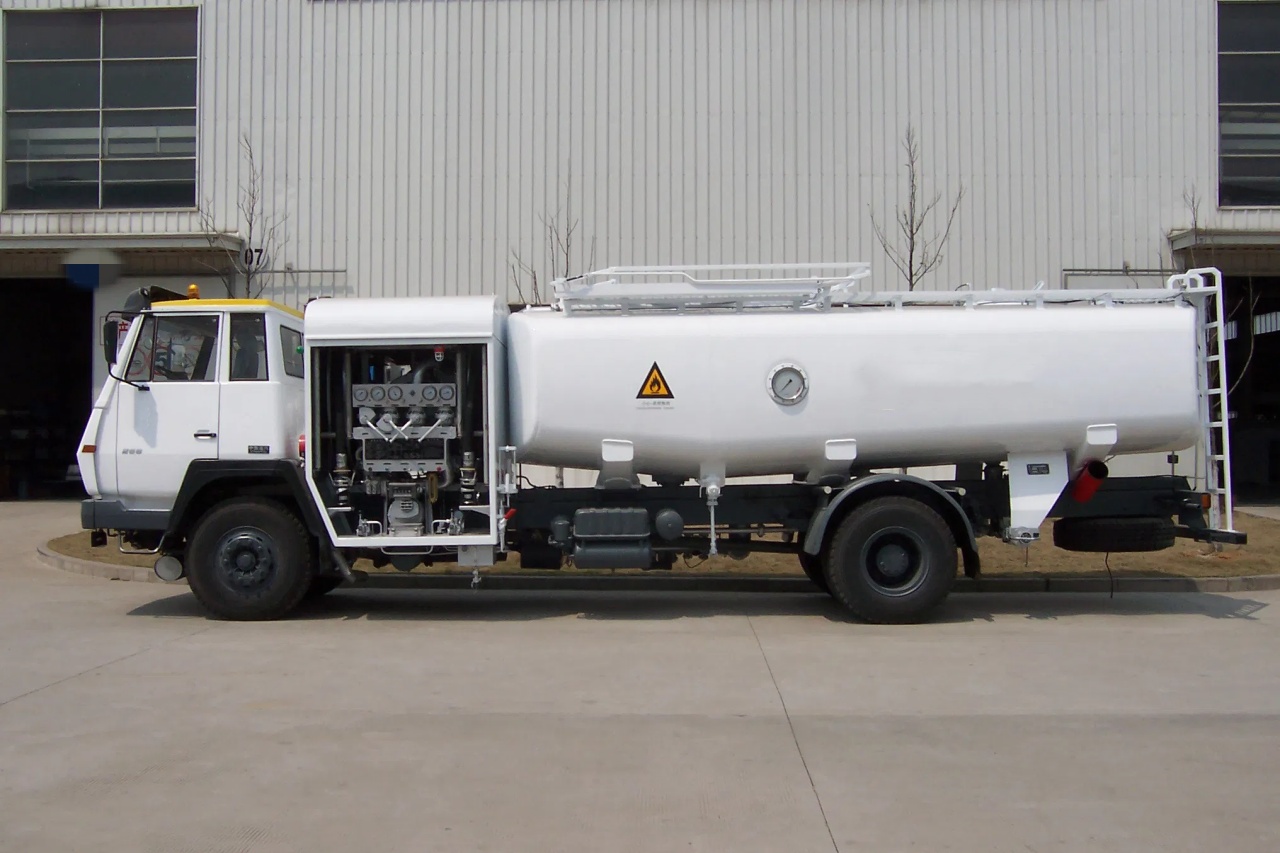

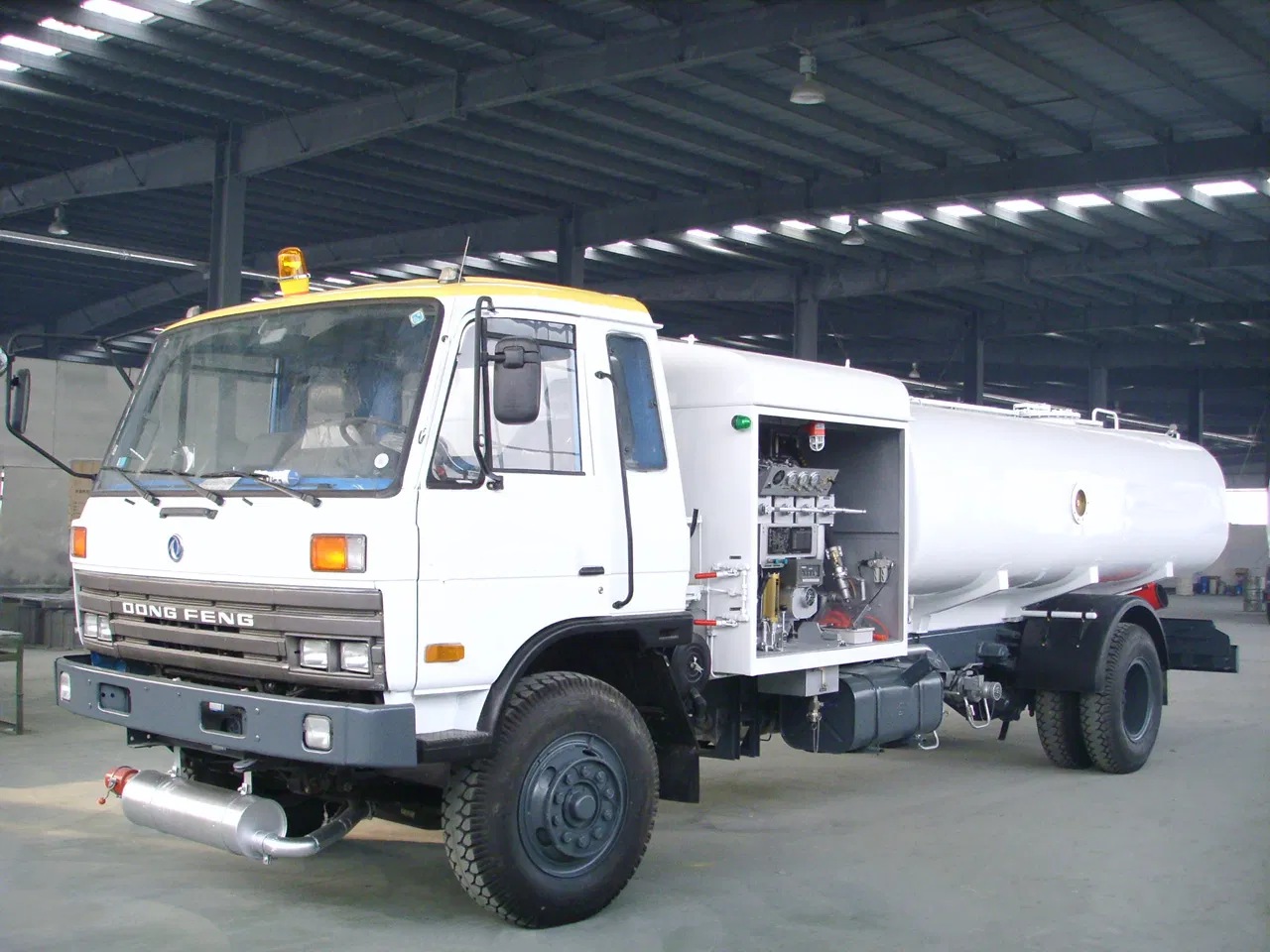

The 6-wheeler 10,000-liter aircraft refueller produced by CSCTRUCK China Tank Truck is a robust and efficient vehicle designed for fueling aircraft at airports and airfields. It features a 10,000-liter fuel tank volume, which provides substantial capacity for fueling operations while maintaining optimal fuel distribution. The truck is built on a Dongfeng/EQ1160 chassis model, with a 4×2 drive type, making it highly maneuverable and stable for airport refueling tasks.
This aircraft refueller is powered by a B190 33 engine with 190 horsepower (HP), delivering reliable performance for daily operations. The engine meets Euro 3 emission standards, ensuring it adheres to environmental regulations while reducing the truck’s environmental footprint. The maximum speed of the vehicle is 80 km/h, which is suitable for the relatively short distances covered within airfields and the surrounding areas.
The fuel tank itself is made of durable aluminum alloy, a material chosen for its strength, lightweight, and resistance to corrosion. This ensures that the tank can withstand the harsh operating conditions typically encountered in aviation fueling operations. Additionally, the 10,000-liter fuel capacity allows for multiple fueling cycles without the need for constant refueling, optimizing efficiency during airport operations.
This 6-wheeler aircraft refueller is an ideal solution for airports and aviation service providers seeking a durable, efficient, and environmentally friendly fuel transport vehicle. With its combination of advanced engineering, high capacity, and low environmental impact, it plays a vital role in ensuring the smooth and timely fueling of aircraft, ultimately supporting seamless airport operations.
FEATURES
- Fuel Capacity & Design: The refueller has a 10,000-liter fuel tank volume, allowing it to carry large amounts of fuel for aircraft refueling operations.
- Chassis & Drive Type: Built on a Dongfeng/EQ1160 chassis, this model uses a 4×2 drive type, offering efficient and stable driving performance in various conditions.
- Powerful Engine: The vehicle is powered by a B190 33 engine model that delivers 190 horsepower, ensuring ample power for smooth operations even with a full tank.
- Speed & Emission Standards: It can reach a maximum speed of 80 km/h, and complies with Euro 3 emission standards, making it more environmentally friendly than older models.
- Durable Tank Construction: The refueller’s tank is made from aluminum alloy, which is lightweight yet durable, providing long-lasting resistance against corrosion and ensuring safe fuel transport.
SPECIFICATION
Chassis Parameter |
|||||
| Chassis model | EQ1160 | Chassis brand | Dongfeng | ||
| Overall dimensions(LxWxH) | 8,290×2,370×2,760mm | Wheelbase | 4,700mm | ||
| Front/rear wheel track | 1,900/1,850mm | Front/rear suspension | 1,430/2,160mm | ||
| Approach/departure angle | 18/13° | Maximum speed | 80km/h | ||
| Cab | Configuration | One and a Half row deluxe cab(with sleeping berth), hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers. | |||
| Color | white, and other colors are optional. | ||||
| Engine | Model | B190 33 | |||
| Emission | Euro 3 | ||||
| Type | 6 cylinders, in-line,4-stroke, water-cooled, turbo inter-cooling, diesel engine. | ||||
| Rated power | 190hp/2,500 rpm | ||||
| Displacement | 5,900ml | ||||
| Max. torque | 640N·m | ||||
| Manufacturer | Dongfeng Cummins engine | ||||
| Tire | Size | 9.00R20,total 6+1 spare tyre | |||
| Number | 6+1 nos | ||||
| Clutch | Push-type diaphragm spring clutch. | ||||
| Front axle | 6T | ||||
| Rear axle | 10T | ||||
| Drive form | 4×2 | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | Gearbox, 6 speed forward 1 reverse. | ||||
| Steering device | Power-assisted steering. | ||||
| Steering wheel | Left-hand drive. RHD is optional. | ||||
Fuel Tank Structure Parameters   |
||||
| Tank dimensions(LxWxH) | 6,200×2,050×1,445 mm | Tank volume | 10,000L | |
| Tank material | Aluminum alloy | Tank thickness | 5mm | |
| Color and Logo | Optional | |||

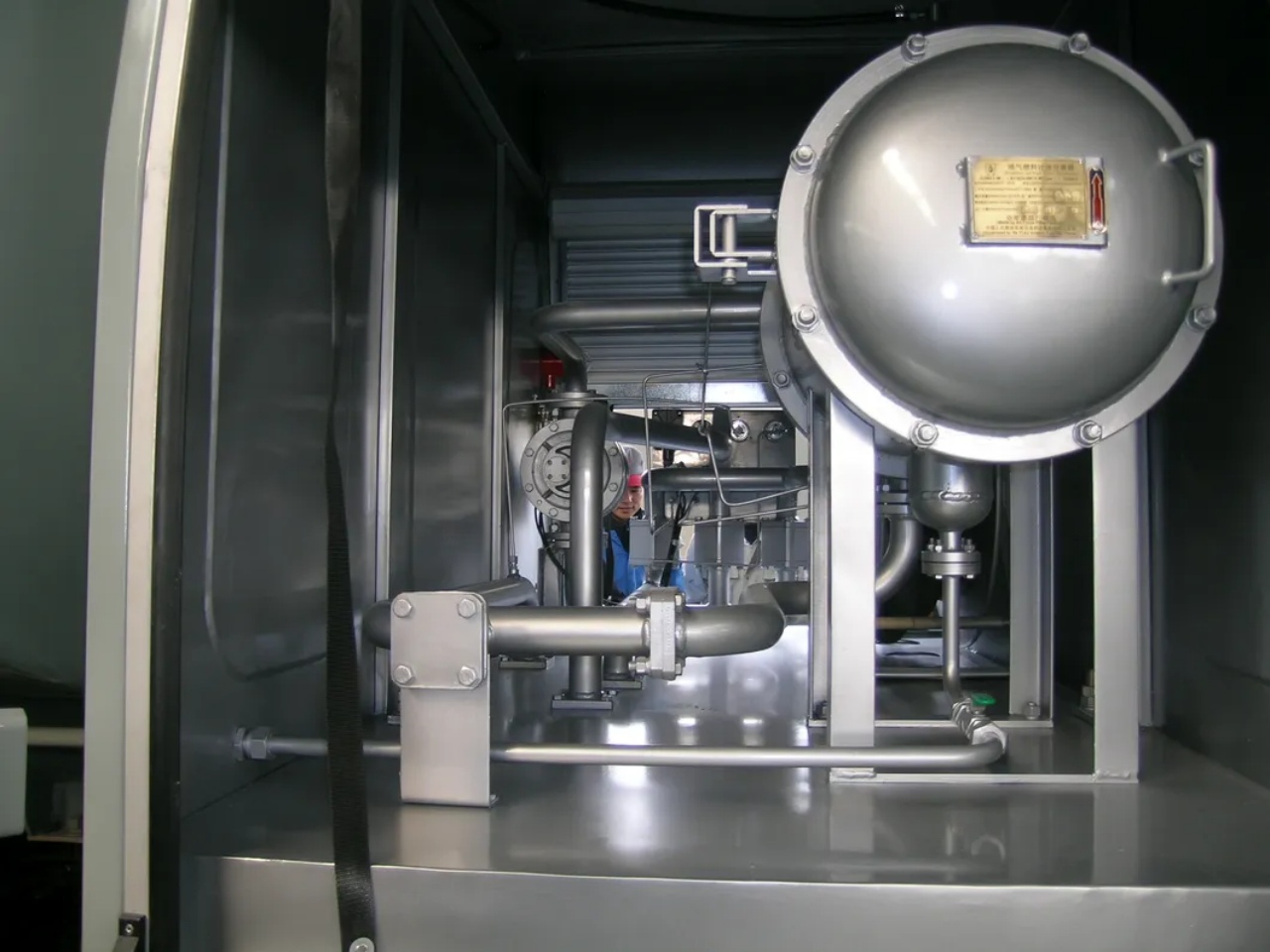

| Standard configuration | Chassis, Aluminum alloy fuel tank, subframe, oil pump, aluminum alloy flow valves, sea valves, oil filter, toolbox, manhole, climbing ladder, fire extinguisher, oil hose. | |||
| Tank Mounted on Chassis Brand |
|---|
