| Model No.: | CSCLBDTT005 |
| Tank Volume: | 5000L |
| Overall Dimensions(LxWxH): | 6,000×2,300×2,650mm |
| Chassis Brand: | HOWO |
| Drive Type: | 4×2 |
| Wheelbase: | 3,360mm |
| Engine Model: | YN4102QBZL |
| Engine Power: | 116HP |
| Emission Standard: | Euro III |
| Tank Material: | High-strength steel Q345R |
| Filling Pump: | HARBIN pump |
| Flowmeter: | JIASONG flowmeter |
BRIEF

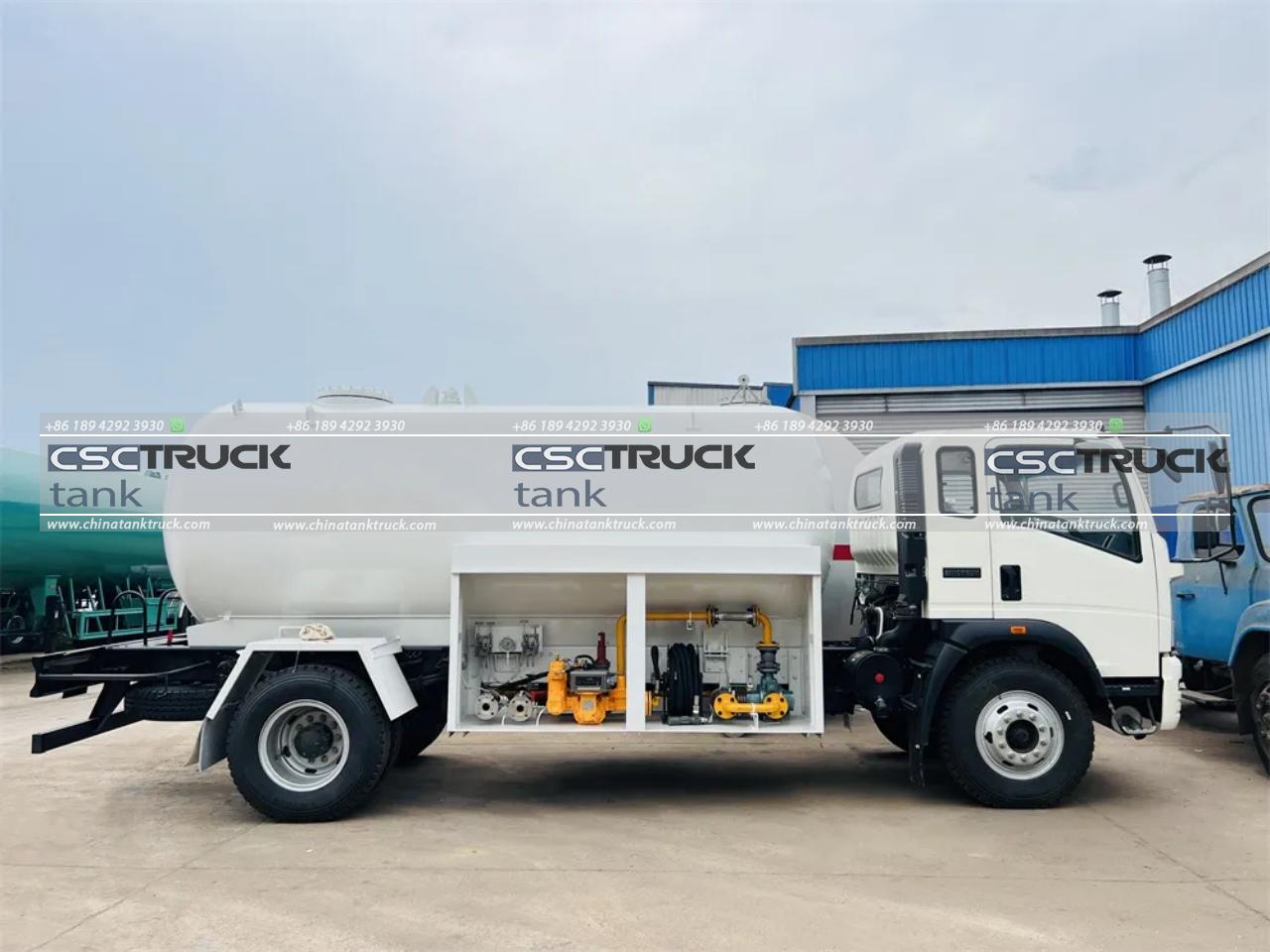

The 5000-liter LPG bobtail dispenser tank truck by CSCTRUCK China Tank Truck is a robust and reliable vehicle for efficient liquefied petroleum gas (LPG) transportation and dispensing. Built on the dependable HOWO chassis, the truck features a 4×2 drive type, making it well-suited for regional and urban operations. The YN4102QBZL engine delivers 116HP of power, conforming to the Euro III emission standard, and ensuring environmental compliance.

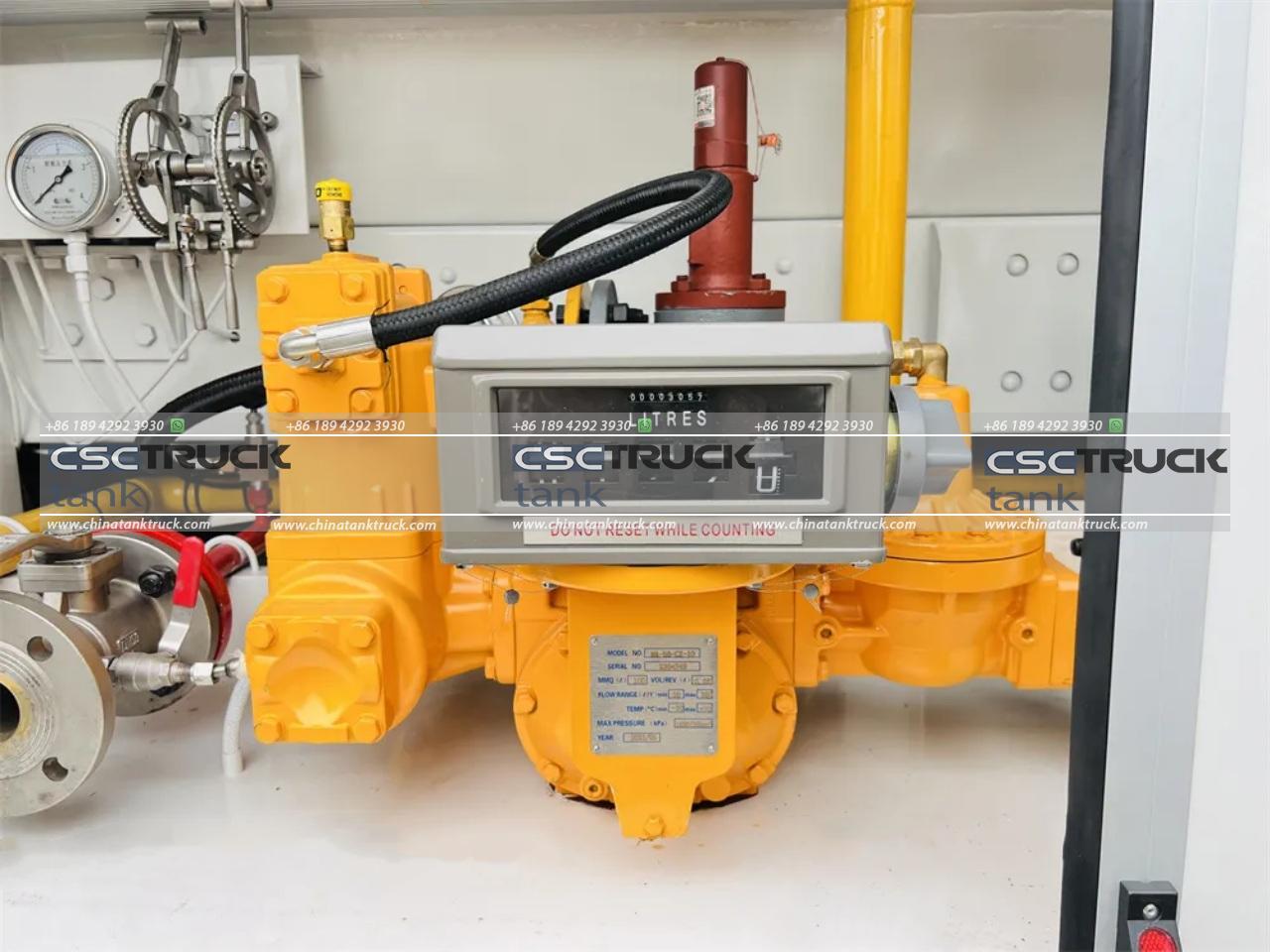

The 5000-liter tank of LPG bobtail dispenser tank truck is crafted from high-strength Q345R steel, providing excellent durability and safety under high-pressure conditions. Its cylindrical design ensures optimal weight distribution and structural integrity during operation. The LPG dispensing system includes a HAERBIN filling pump, known for its efficiency and reliability, coupled with a JIASONG flowmeter for accurate measurement and control during gas filling.
This LPG bobtail dispenser tank truck is ideal for delivering and refilling LPG in industrial, commercial, and residential settings. Its compact size and efficient design make it an excellent choice for navigating congested urban areas while maintaining operational efficiency. CSCTRUCK China Tank Truck’s attention to quality and safety ensures compliance with international standards, making this vehicle a trusted solution for LPG transportation.
FEATURES
- Tank Capacity and Material:
- 5000-liter LPG tank volume.
- Constructed with high-strength Q345R steel for durability and safety.
- Chassis and Drive System:
- Built on a HOWO chassis.
- Equipped with a 4×2 drive type for efficient maneuverability.
- Engine Specifications:
- Powered by the YN4102QBZL engine model.
- Offers an engine power of 116HP and complies with Euro III emission standards for environmental friendliness.
- Dispensing Equipment:
- Integrated with a HAERBIN filling pump for reliable LPG dispensing.
- Fitted with a JIASONG flowmeter for accurate flow measurement and control.
- Application and Functionality:
- Designed for safe and efficient LPG transportation and dispensing.
- Suitable for commercial and industrial fueling operations.
SPECIFICATION
| Item | Description | Specification |
| General | Name | Bobtail Tank Truck |
| Capacity | 2.5t/5,000L | |
| Overall Dimensions(LxWxH) | 6,000×2,300×2,650 mm | |
| Truck Chassis | Model | SINOTRUK |
| Cabin | HOWO 1880, one row, with A/C | |
| Drive Mode | 4×2, RHD or LHD | |
| Wheel Base | 3,360mm | |
| Steering | Manual, 6-Forwards & 1-Reverse | |
| Axles | 2.4tons / 4.2tons | |
| Tire | 7.00R16, 6pcs +1 spare | |
| Truck Engine | Model | YN4102QBZL |
| Horsepower | 116HP | |
| Emission Standard | Diesel, Euro III | |
| Gas Tank | Volume | 5,000L |
| Medium | LPG gas | |
| Material | High-strength steel Q345R | |
| Design Pressure | 1.61MPa | |
| Hydrostatic Test Pressure | 2.66MPa | |
| Filling Pump | HARBIN pump (Chinese famous pump) | |
| Flowmeter | JIASONG flowmeter or JINGDA dispenser is optional | |

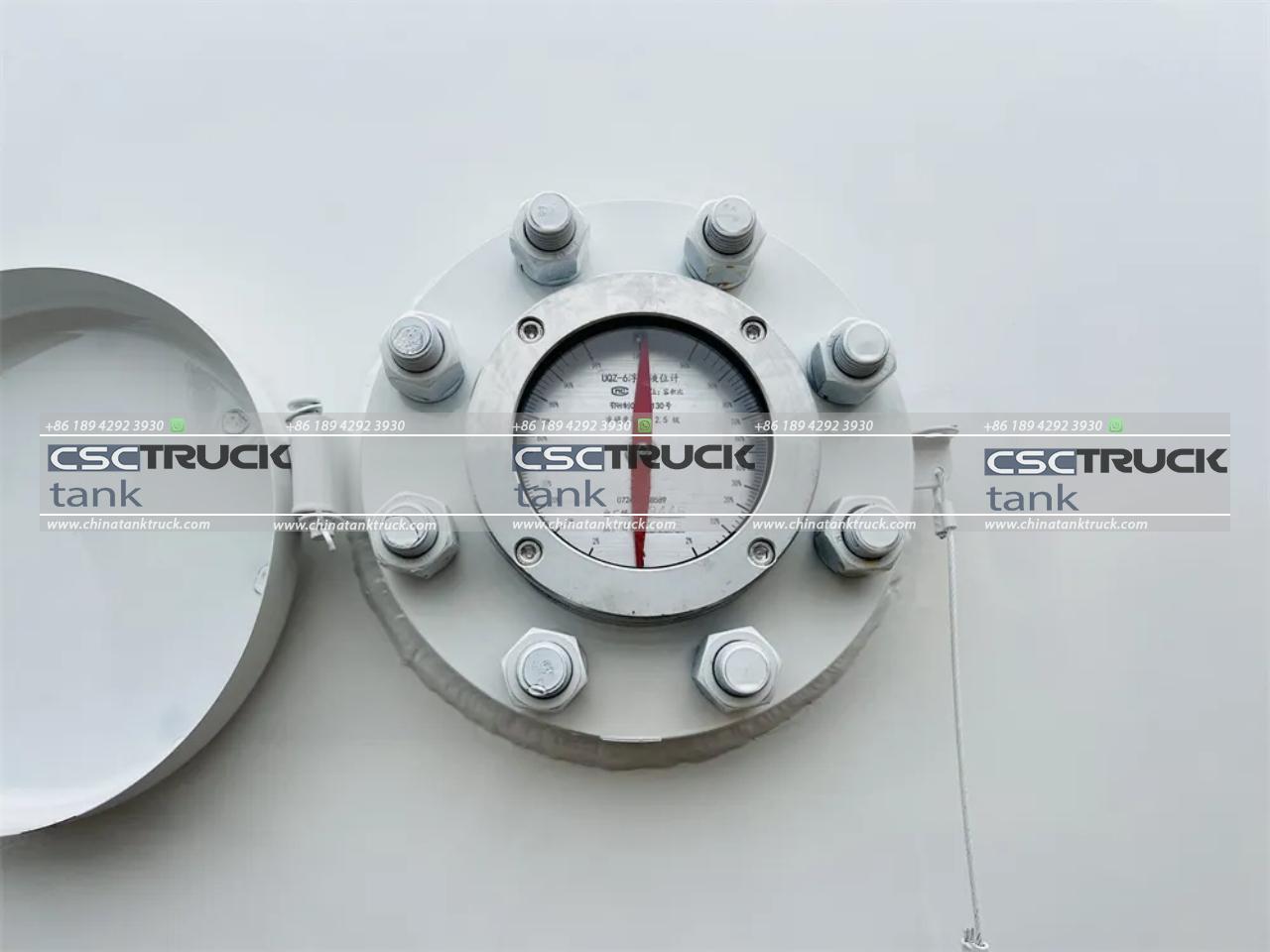

| Other Fittings | Level meter, Thermometer, pressure gauge, safety valve, rotary filling gun, etc. |
