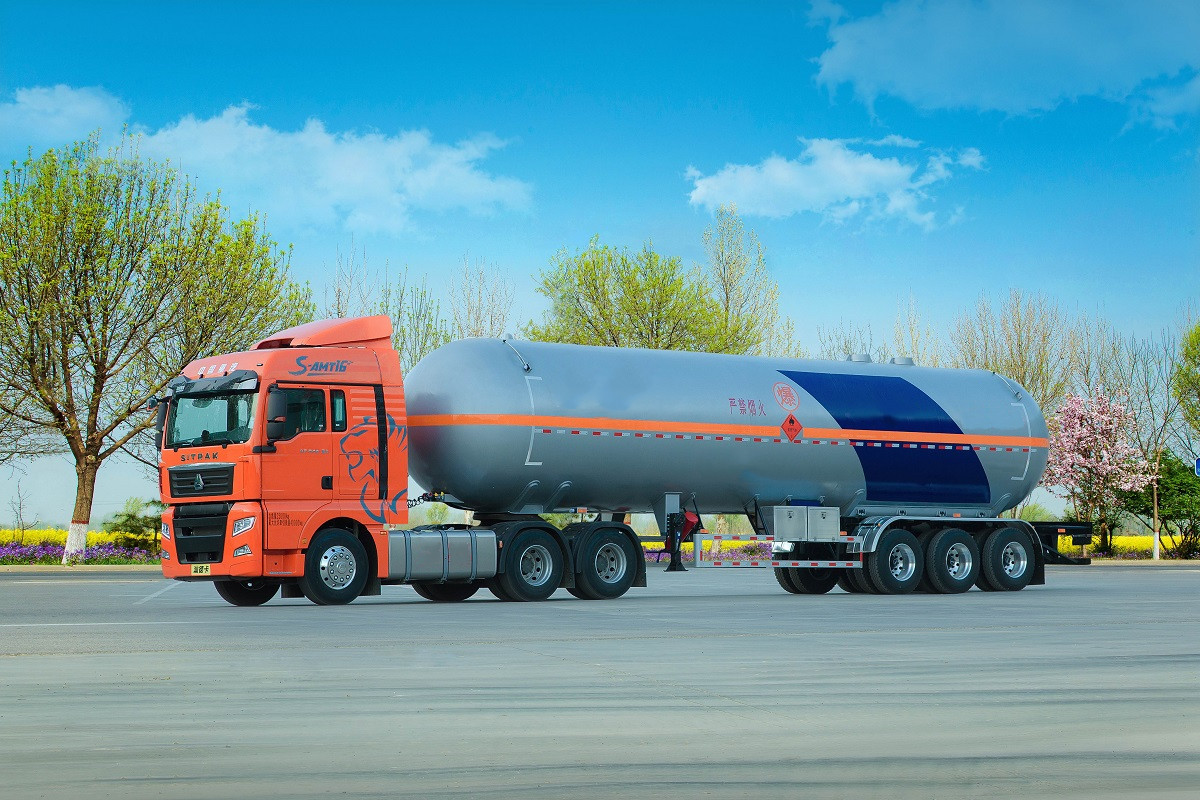

50 CBM 25 Tons LPG Propane Semi Trailer

BRIEF:

The 50 CBM 25 Tons LPG Propane Semi Trailer serves as the ultimate solution for the extensive and secure transportation of LPG (Liquid Petroleum Gas) in large quantities over long distances. It plays a pivotal role in transferring LPG from gas stations or terminal gas stations to smaller LPG stations scattered across various cities. This versatile semi-trailer is designed for quick and efficient loading of both liquid and vapor phases, making it the preferred choice for numerous gas transport companies. It complies with the industry’s rigorous standards, including GB-150, ASME U STAMP, CCC, and ISO.

This propane tank trailer is a robust, high-capacity solution tailored for the secure and efficient long-distance transport of LPG. Its compliance with industry standards and the availability of optional features make it the top choice for gas transport companies, ensuring reliable and safe LPG transportation.

FEATURES:

High-Capacity Tank: The semi-trailer boasts a substantial 49.6CBM tank constructed from robust Q345 material with a 12mm thickness, ensuring the safe and secure transport of flammable Propane.
Triple Axles: Equipped with three 13-ton axles and sturdy 12R22.5 tubeless tires, this semi-trailer offers exceptional stability and load-bearing capacity during extensive long-distance journeys.
Supporting Legs: JOST brand supporting legs provide reliable support during loading and unloading operations, contributing to the overall safety and efficiency of the trailer.
Optional Features: The semi-trailer provides optional equipment such as a ROCHESTER level gauge, flow meter, sun shelter, and LPG pump, allowing customization to meet specific transport requirements.
King Pin Options: You have the flexibility to choose between a 50 or 90 king pin based on your particular needs and preferences.

SPECIFICATIONS:

Category	Specifications
Tank
Filling Medium	Transporting LPG (flammable Propane)
Volume	49.6CBM
Overall Dimensions (LxWxH)	12,740 x 2,480 x 3,800mm
Wheelbase	6,800+1,310+1,310mm
Tank Dimensions (Diameter x length)	2,300 x 12,372mm
Material of Tank	Q345
Thickness of Tank	12mm
Material of Main Frame	16Mn
Manhole	1pc DN450 on top of tank
Safety Valve	2pcs DN80 on top of tank
Designed Temperature	50°C
Designed Pressure	1.61Mpa
Corrosion Allowance	1.00
Weld Joint Factor	1
Painting	Sandblasting, two layers of anti-corrosion painting, color & logo customized
Weight
G.V.W.	36,132kg
Curb Weight	15,300kg
Capacity	20,832kg
Testing
Heat Treatment	Overall treatment in a furnace, 600°C to 640°C
Flaw Detection	100% flat detection
Test Pressure	1.61Mpa
Hydraulic Test	2.1Mpa
Magnaflux Inspection	Aim at welding line where flaw detection can’t reach
Gauges
Emergency Cut-off Valves	2pcs, 1pc for liquid phase and 1pc for vapor phase
Ball Valves	4pcs for loading and discharging at two sides of tank
Liquid Gauge	1pc
Pressure Indicating Thermometer	1pc
Pressure Gauge	1pc
Running System
Axles	3pcs 13Tons axles, brands optional
Tires	12R 22.5 Tubeless tires, 12pcs + 1 spare tire
Rims	Steel rims standard, aluminum alloy rims optional
Supporting Legs	2pcs JOST brand two-speed, manual operating, heavy-duty supporting legs
Suspension	Mechanical suspension, air suspension optional
Braking System	Pneumatic braking system
King Pin	#50 or #90
Accessories
Toolbox	2pcs
Wheel Carrier	1pc
Fire Extinguisher	2pcs
Fender	2pcs
