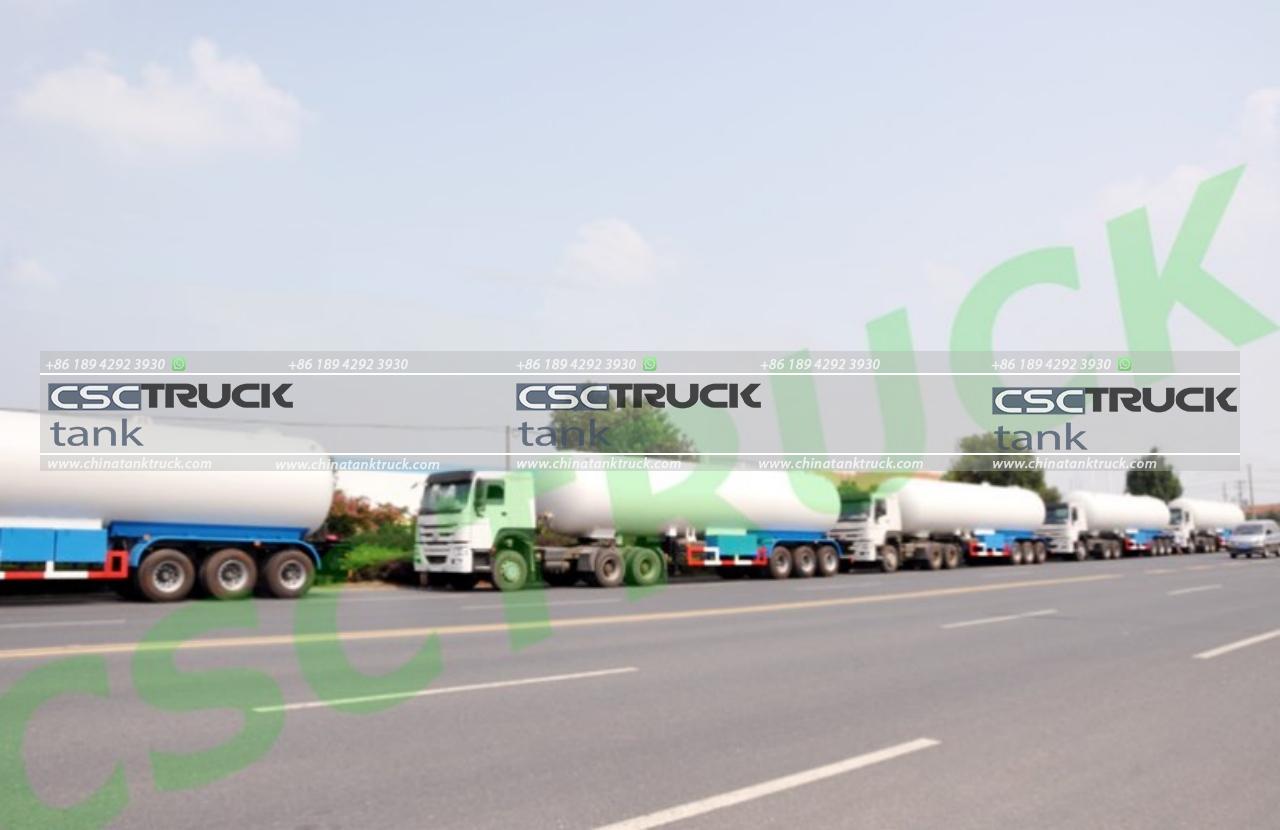

Model No.:	CSCLPGTT45
LPG Tanker Volume:	45m3
Overall Dimensions(LxH):	13,075×4,000(mm)
Tank Type:	Horizontal Cylindrical
Test Pressure:	22.4 bar
Head Type：	Elliptic
Material：	Q420R
Axle:	Brand: FUWA Capacity: 3x13tons
Chassis:	Heavy-duty, high-strengthen steel

Truck Enquiry

Categories: Carbon Steel Tank Truck, Propane Tank Truck

Description

BRIEF

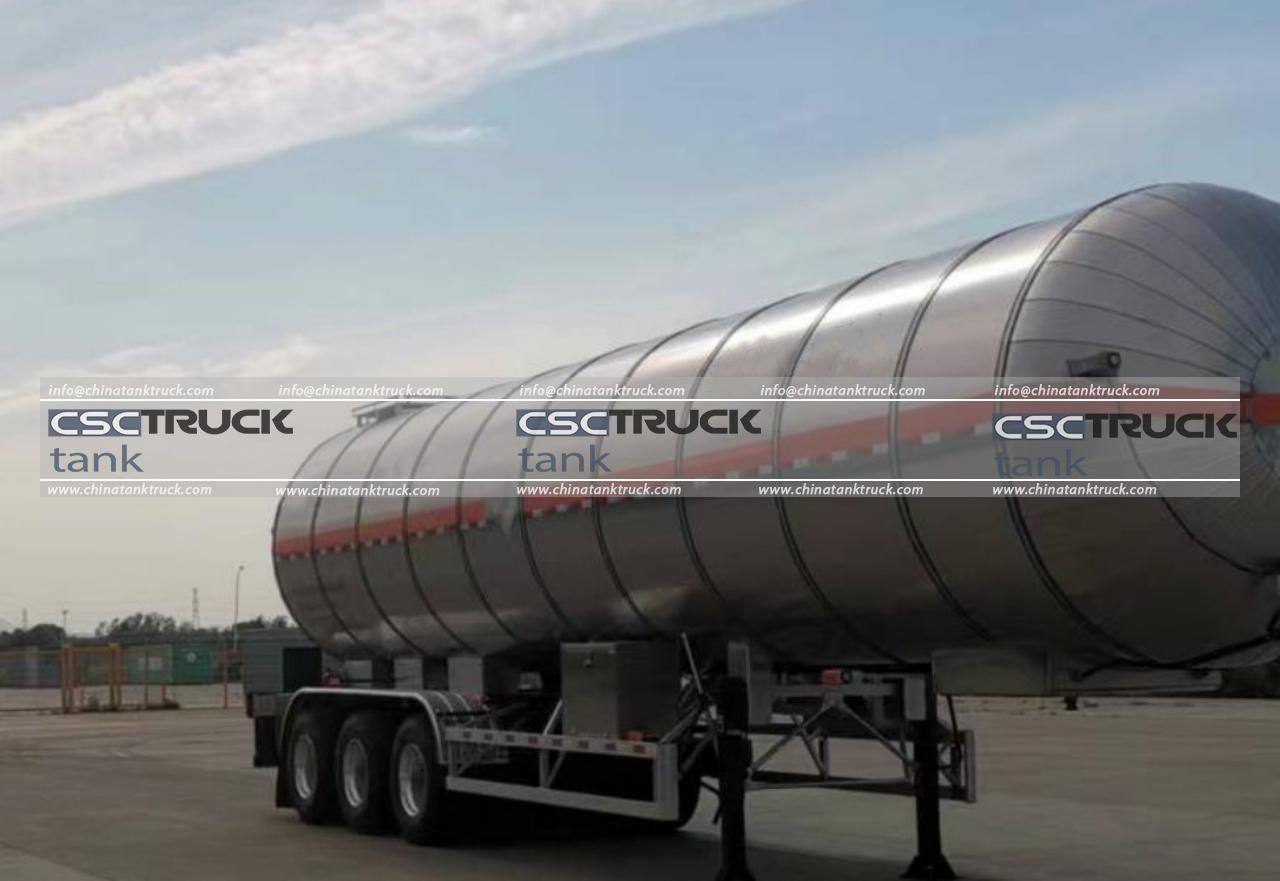

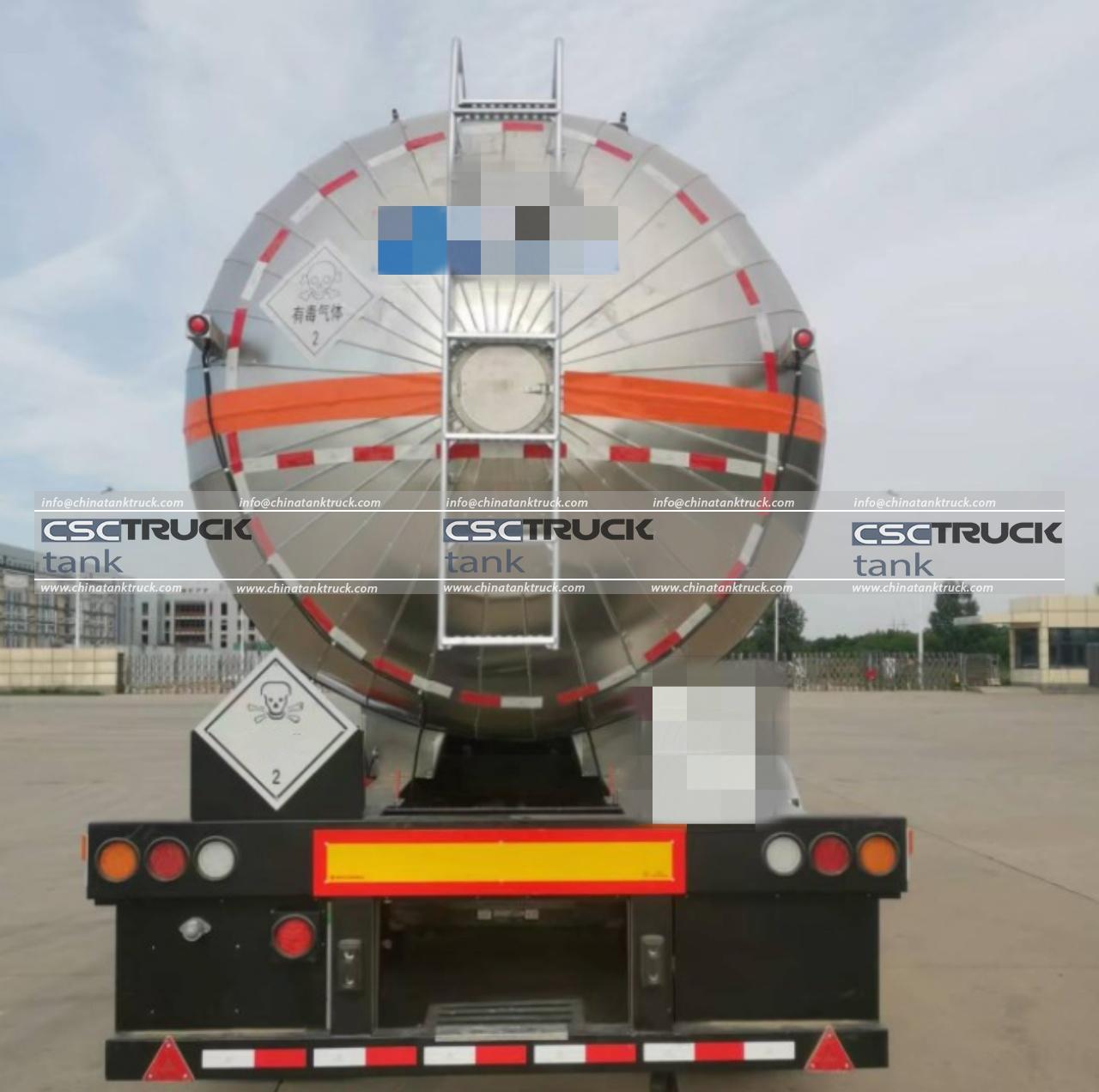

The 45,000-liter LPG tank trailer, produced by CSCTRUCK China Tank Truck, exemplifies advanced engineering and robust construction tailored for the efficient and safe transport of liquefied petroleum gas (LPG). This tanker, with a substantial volume of 45 cubic meters (45m³), is designed as a horizontal cylindrical tank, optimizing the space for maximum storage capacity while ensuring stability and safety during transit.

A notable feature of this tanker is its ability to withstand high pressures, tested up to 22.4 bar, which guarantees resilience under demanding conditions. The tank’s structural integrity is further reinforced by its elliptic head type, a design choice that helps in evenly distributing stress and pressure, thus enhancing the tank’s durability and operational safety.

Constructed from Q420R material, known for its excellent strength and toughness, the LPG tank trailer offers exceptional resistance to high-pressure environments and potential impacts. The choice of Q420R steel ensures that the trailer maintains structural integrity even under rigorous operational demands.

The trailer is built on a heavy-duty, high-strength steel chassis, providing a robust foundation capable of supporting heavy loads and enduring challenging terrains. It features FUWA axles, renowned for their reliability and performance, with a configuration of three axles, each capable of bearing loads up to 13 tons, amounting to a total loading capacity of 39 tons. This configuration ensures smooth and stable transportation, crucial for the safe handling of hazardous materials like LPG.

In summary, the 45,000-liter LPG tank trailer combines high-capacity storage, superior material construction, and advanced engineering to deliver a reliable, safe, and efficient solution for LPG transportation.

FEATURES

1. Large Capacity: The trailer boasts a substantial LPG storage capacity of 45,000 liters (45m³), making it suitable for transporting significant quantities of liquefied petroleum gas.

2. Robust Construction: Constructed from Q420R material, known for its high strength and durability, the tank is designed to withstand high pressures and rough handling, ensuring safety and longevity.

3. High-Pressure Endurance: The tank is tested at a pressure of 22.4 bar, demonstrating its ability to safely contain and transport LPG under high-pressure conditions.

4. Specialized Design: Featuring a horizontal cylindrical shape with an elliptic head type, the design optimizes the trailer’s stability and efficiency during transport, while also simplifying the loading and unloading processes.

5. Heavy-Duty Chassis and Axles: Equipped with a heavy-duty, high-strength steel chassis and FUWA axles with a 3×13 tons loading capacity, the trailer ensures reliable and stable transportation of LPG even under heavy loads.

SPECIFICATION

1: LPG TANK
Model	CSCLPGTT45
Product	LPG Tank Trailer
Transport	LPG
Tank Type	Horizontal Cylindrical
Project Code	China GB 150
Design Temperature	-20° ~ +50°
Design Pressure	17.2 bar
Test Pressure	22.4 bar
Material	Q420R
Head Type	Elliptic
Body Tank Thickness	12mm
Head Tank Thickness	14mm
Total Length of Trailer	13,075mm
Total Height of Trailer	4,000mm
Corrosion	1mm
Tank Volume	45m3
Equipment Tanks Over	2.1 Man-Hole cover – 1 Set Banded manhole 18”. Dia; Closed by clover kept in place by studs on the band at the front of the tank; 2.2 Fill in connection – Tank connection DN80 Valve, Spray pipe installed inside 2.3 Vapor connection – valve DN25, flange Spray pipe installed inside 2.4 Liquid out connection – valve DN50, flange 2.5 Tank Drain connection – valve DN25 2.6 Liquid level gauge 2.8 Pressure relief valve(s) 2 sets of Tank pressure relief valve. DN80 protective cap 2.9 pump 3” 3.0 PASSL Vavle 3.1 2” 3.2 Hannay reels
Painting	Surface painting layers 2 color & LOGO based on requirement, TOP factory standard
Inspection & Tests	Manufacturing The body segments of the tank will consist of one piece. After the dished head is manufactured, thickness measurement will be done and will be recorded. Welding & Workmanship Our company has China GB and ISO certificates in welder and welding management systems. Shell – Shell. Shell – Dished Head and Nozzle welding will be made by certified welders under the appropriate welding method with proven accuracy. Heat Treatment Tank’s Dished Heads stressed relieved will be processed. At the same time, the computer output will be automatically graphic on the paper and placed in the prepared quality file of the tank by each process. TESTS RADIOGRAPHIC CONTROL The tank’s welding seams will be controlled through the radiographic control according to the design code. Radiographic tests shall be carried out under China GB standards. NDT Personnel is certified by China GB. Radiographic tests will be performed using high-precision, panoramic, and linear X-ray devices. PENETRANT TEST OR MAGNETIC PARTICLE TEST Nozzle – Shell and Manhole – Shell welds will be checked by penetrant test or magnetic particle test method according to design standard. HYDROSTATIC TEST At the end of the tank manufactured, the hydrostatic test will be done according to the design standard Clean and tap water will be used during the hydrostatic test. The water temperature which will be used will not be less than below 7C. The hydrostatic test will be approved by a third party. If requested, the customer will be able to supervise the test. The cost for a third party shall be borne by the customer. After the hydrostatic test, will be dried the inside of the tank and all the internal pipes. LEAKAGE TEST Tanks, piping, and instruments will be leak tested.
Inspection Report	The tank shall hold a branding “Inspection Report” issued by BV according to China GB. All required documents we will supply. “Inspection Report” cost afforded by the customer
Anti-slosh Baffles	The tank has 4pcs of Anti-slosh baffles
2. Semi-trailer
Chassis	Heavy-duty, high-strengthen steel
Axle	Brand: FUWA Capacity: 3 x 13tons
Suspension	Leaf Spring, mechanical
Brake	WABCO ABS
Landing Gears	Brand: JOST, double speed, 25tons each landing gear
Types	12R22.5, 12pcs +1spare
Fenders	Factory standard fenders
Kin Pin	2” kin pin, kin pin plate thickness 14mm/material 16Mn steel There are ribs on the kin pin & traction guide plate
Electrical	24V electrical system with China standard 2pcs stop lights on the rear bumper 5pcs lights on each side of the LPG tank Lamps on top of LPG tank
Reflectors	China standard with yellow & red color
Accessories	1pc steel bumper 1pc 30 liters plastic water tank 1pc spare tire carrier basket 2pcs wheel chock & connection 2pcs fire extinguisher cabinet 1pc steel toolbox Sunshade on top of LPG tank LPG loading & discharging system box in the middle under the LPG tank or at the rear of the trailer.
