| Model No.: | CSCFTST045 |
| Fuel Tank Volume: | 45,000 Liters |
| Axle No.: | 4 Axles FUWA Brand |
| Compartments: | 5 |
| Tanker Body Material: | 6mm aluminum alloy 5038 |
| Manhole Cover: | 3 nos. API aluminum manhole covers |
| Bottom Valve: | 3 sets of API Pneumatic Bottom Valve |
| Suspension: | Mechanical suspension or air suspension |
| Landing Leg: | Standard 28Ton |
| King Pin: | 2″(50mm)or 3.5″(90mm) JOST |
| Discharge Valve: | 3 set ∮100mm discharging valves |
| Electrical System: | 24V, 7core socket, lights according to European standards. |
BRIEF

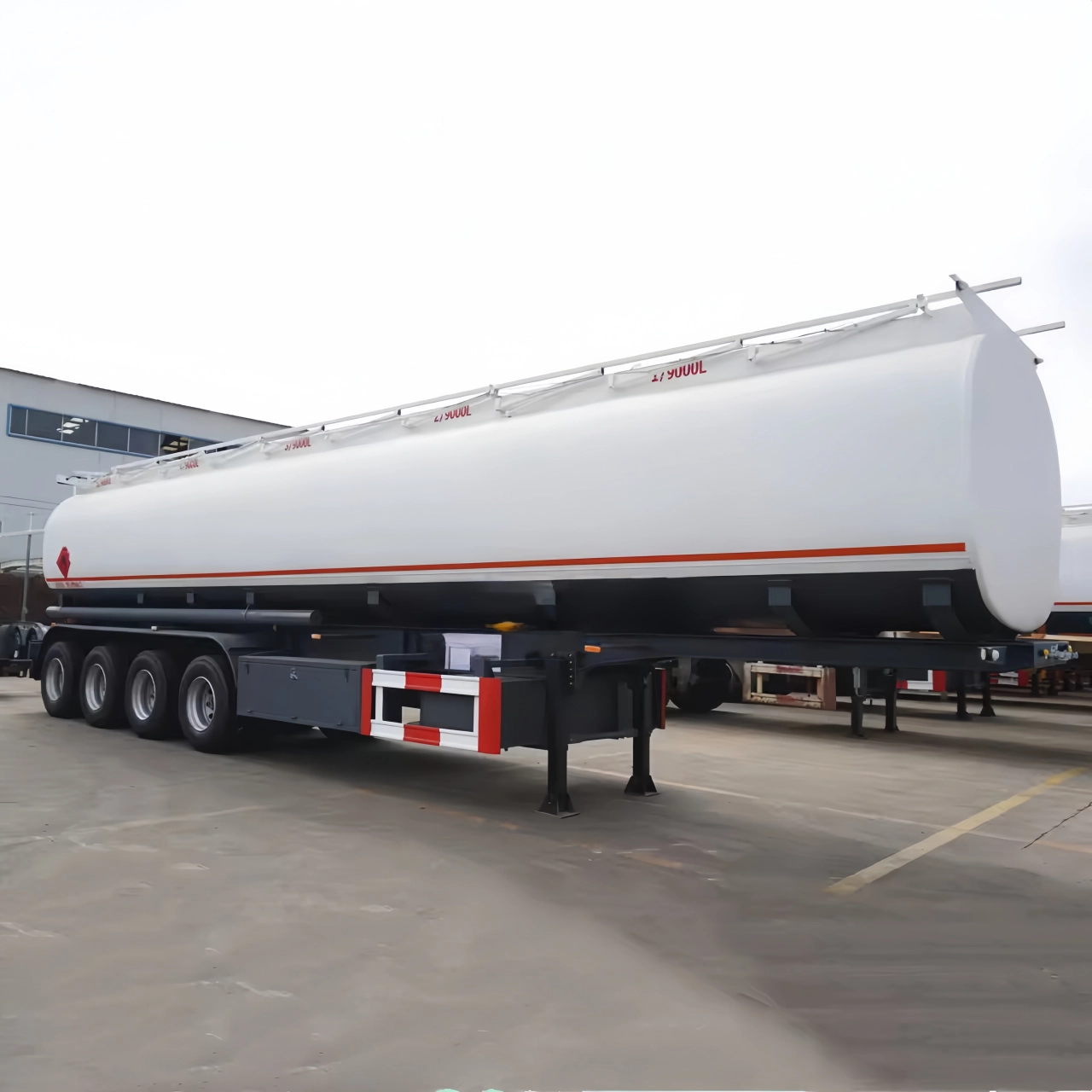

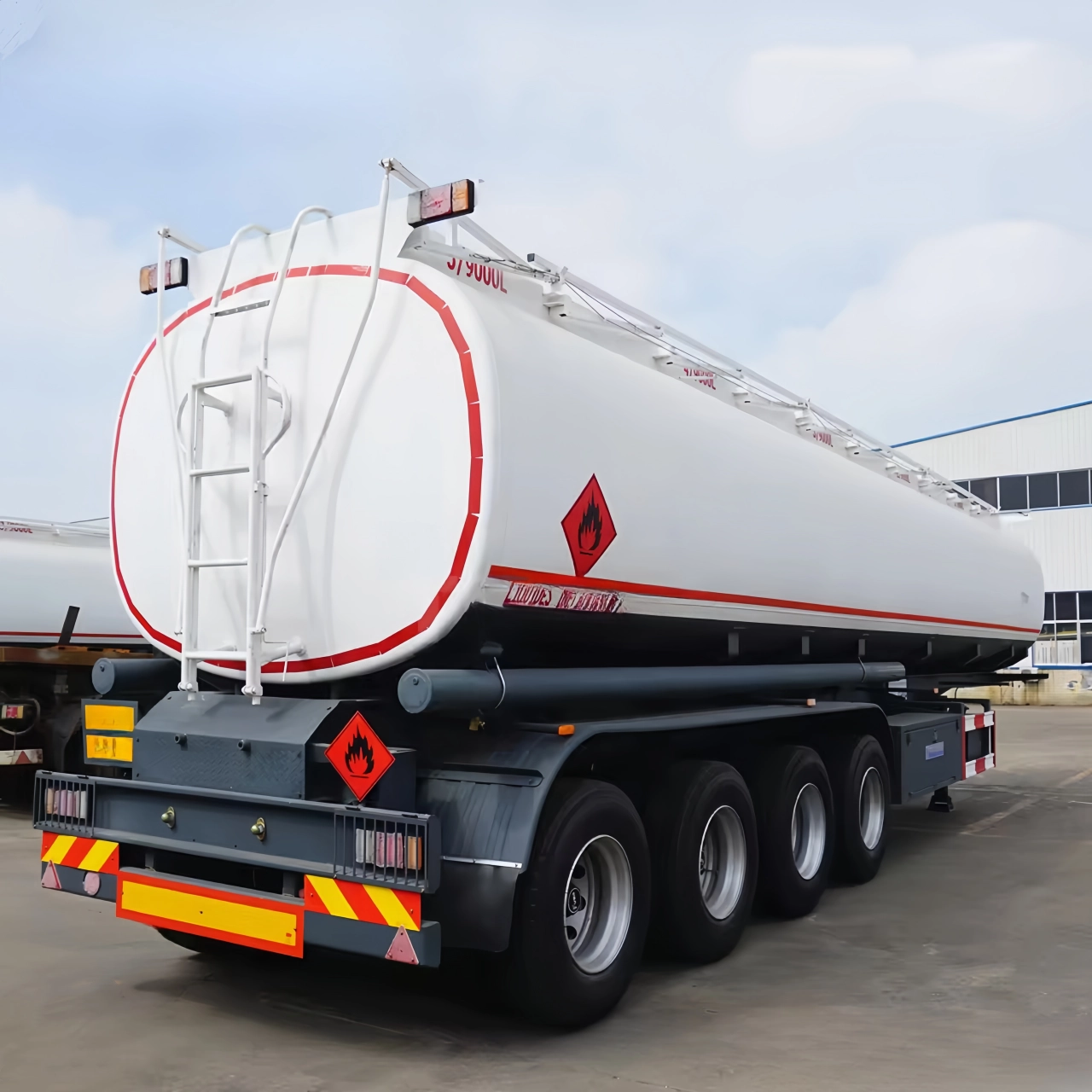

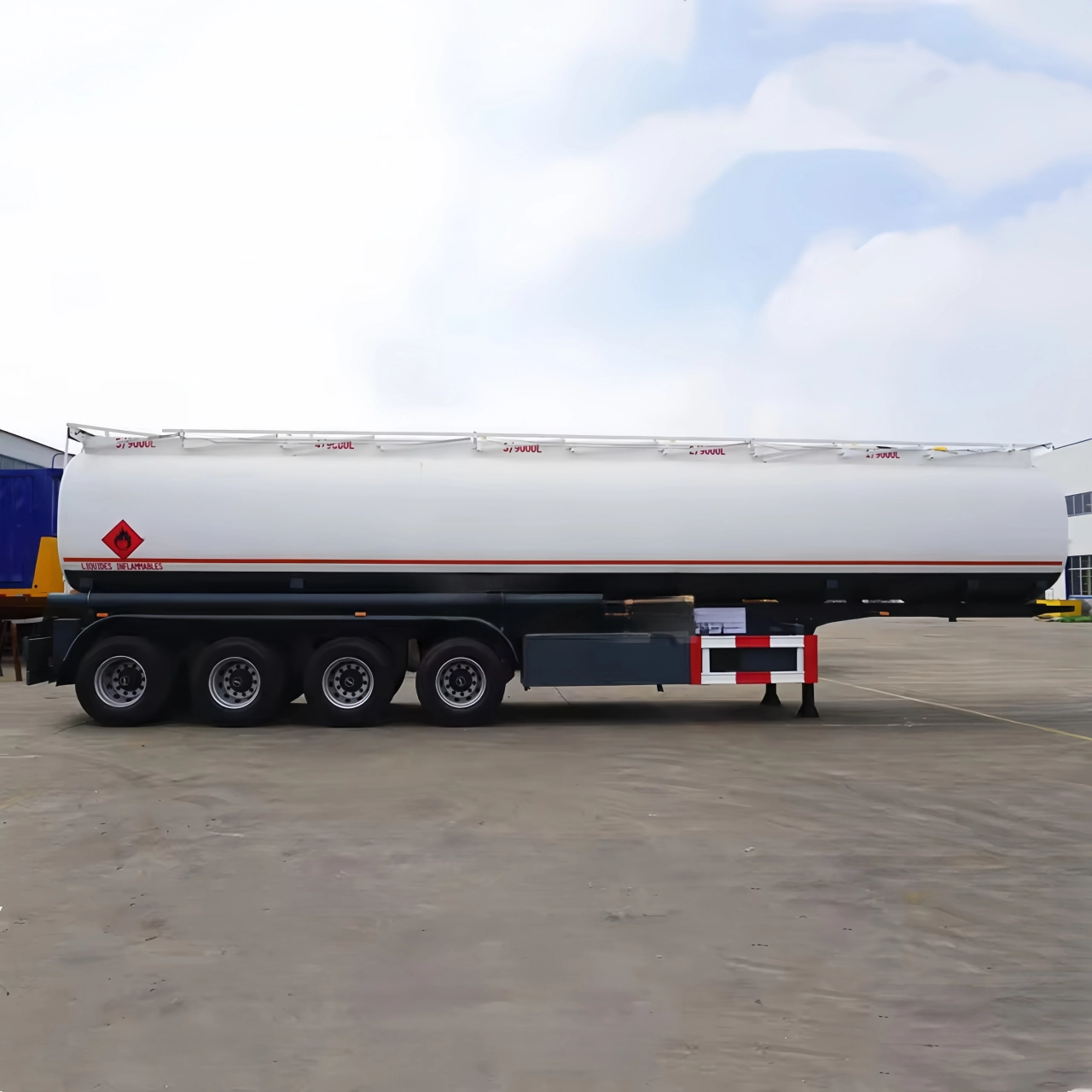

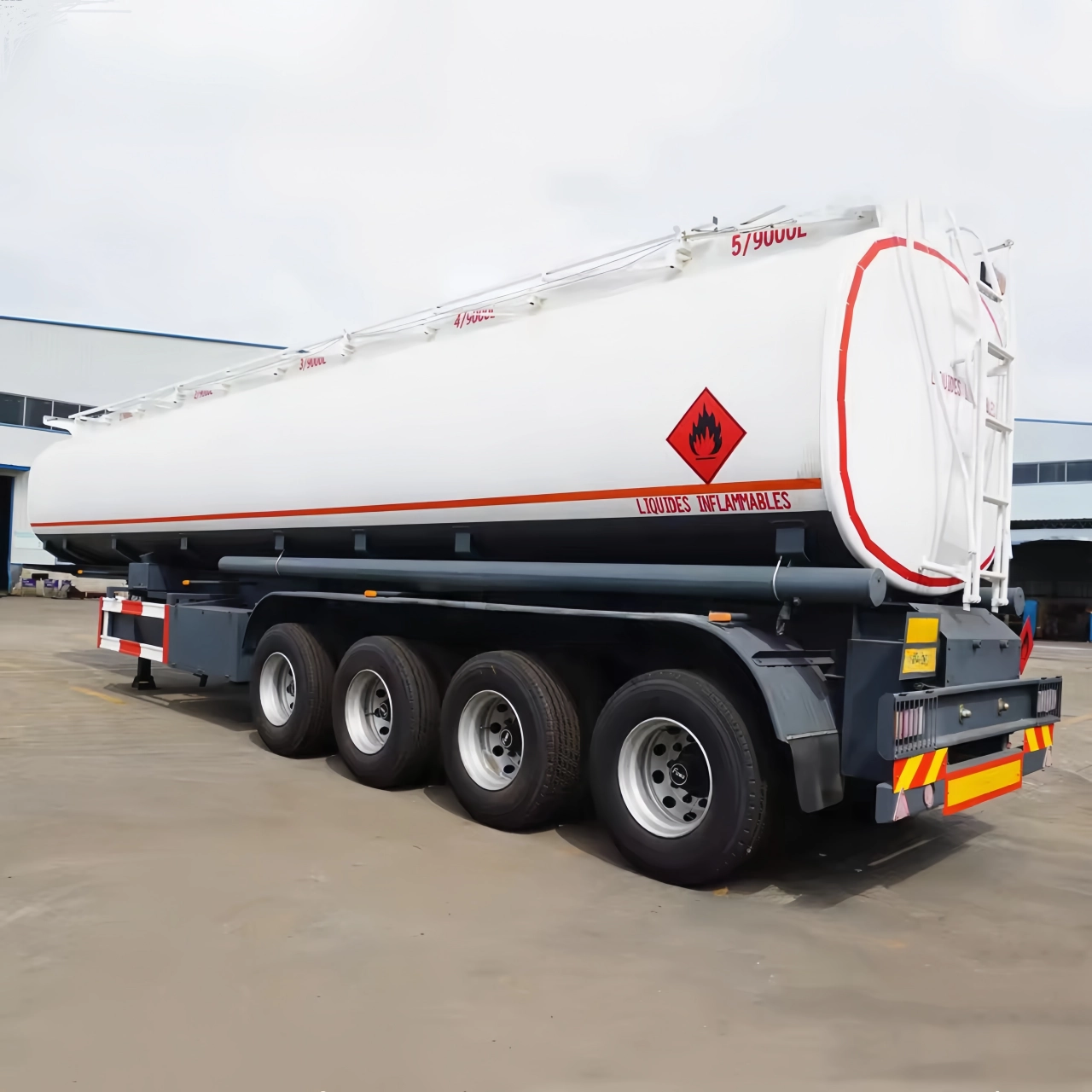

The CSCTRUCK 45,000-liter fuel tanker semi-trailer is a high-capacity fuel transportation solution designed for efficient and safe fuel distribution. Manufactured by CSCTRUCK China Tank Truck, it has a 45,000-liter fuel tank capacity and features 5 compartments, transporting multiple fuel types or grades within a single journey.
The tanker body is constructed from 6mm aluminum alloy 5038, providing durability while maintaining a lightweight structure to optimize payload capacity. The tank is equipped with 3 API aluminum manhole covers and 3 sets of API pneumatic bottom valves, ensuring secure loading and unloading operations. Additionally, it has three 100mm discharging valves, facilitating efficient fuel discharge.
For stability and load distribution, the fuel tanker semi-trailer is supported by four FUWA brand axles and can be configured with either mechanical suspension or air suspension, depending on operational needs. A standard 28-ton landing leg provides stability when stationary, while the trailer connects to the truck via a 2-inch (50mm) or 3.5-inch (90mm) JOST kingpin.
The electrical system complies with European standards, featuring a 24V, 7-core socket, and lighting system for enhanced safety during transport. The fuel tanker semi-trailer is designed to meet industry standards, ensuring reliable and secure fuel transportation across various terrains and conditions.
FEATURES
- High-Capacity Fuel Tank
- 45,000 liters fuel tank with 5 compartments for efficient and flexible fuel transportation.
- Durable Aluminum Alloy Tank Body
- Constructed with 6mm aluminum alloy 5038, ensuring lightweight, corrosion resistance, and enhanced durability.
- Advanced Safety Features
- Equipped with 3 API aluminum manhole covers and 3 API pneumatic bottom valves for secure loading and unloading.
- Heavy-Duty Axles & Suspension
- Features 4 axles (FUWA brand) with options for mechanical or air suspension to support heavy loads and smooth transport.
- European Standard Electrical System
- Includes a 24V, 7-core socket, compliant lighting system, and standard 28-ton landing legs for operational safety and stability.
SPECIFICATION
|
45,000 Liters Fuel Tanker Semi Trailer |
||||
| Dimension(Optional) |
Axle No. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
By Customer Needs |
2 |
40,000 |
8 |
825R20 10.00R20 11.00R20 12.00R20 12R22.5 (Other Size Tire Contact Us) |
| 3 | 60,000 | 12 | ||
| 4 | 80,000 | 16 | ||
|
other |
other | other | ||
|
Tank Body |
Tanker Body Material |
6mm aluminum alloy 5038 |
||
|
End plate Material |
6mm aluminum alloy 5038 | |||
| Baffles Material | Aluminum alloy | |||
| Manhole of Baffles | 500mm | |||
|
Manhole cover |
3 nos. API aluminum manhole covers ∮ 500mm 3 sets with 3 breather valves, fitted with high flow vapor vent and sensing probe, 3 oil gauges. |
|||
| Axle | 13/16/18 ton Multiple brands available | |||
| Wheel Rim | 11.75-22.5 aluminum wheel rim, 7 pieces including one spare | |||
| Bottom Valve |
3 sets of API Pneumatic Bottom Valve, Pneumatic control |
|||
| Suspension | Mechanical suspension or air suspension | |||
|
Landing Leg |
Standard 28Ton |
|||
|
King Pin |
2″(50mm) or 3.5″(90mm) JOST |
|||
| Brake System |
Double-line brake system |
|||
| Walkway | Aluminum Non-slip walkways | |||
| Discharge Valve |
3 set ∮100mm discharging valves |
|||
| Vapor Return System |
The aluminum line through the barrel with section outboard of the shell with vapor adapt-or and dust cover to be provided |
|||
|
Electrical System |
24V, 7core socket, lights according to European standards | |||
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||
| Accessories |
1 box of standard tools, 2 sets of spare tire carrier |
|||
| Painting | Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint | |||
| Color |
Customers Optional. |
|||
| Tank Mounted on Chassis Brand |
|---|
