| Model No.: | CSCWTST042 |
| Tank Capacity: | 42,000L |
| Overall Dimensions(LxWxH): | 12,000×2,500×3,700mm |
| Axle: | FUWA brand, 13T, disk brake, 3 sets |
| Suspension: | Air suspension |
| Kingpin: | 2″(50mm)or3.5″(90mm) JOST |
| Landing gear: | JOST A400 linkage lifting legs |
| Compartment: | Single |
| Tank body: | Aluminum alloy 5.5mm/5454 H32 |
| Tare weight: | 6,800kg ± 3% |
| Payload: | 33,100kg |
Description
BRIEF

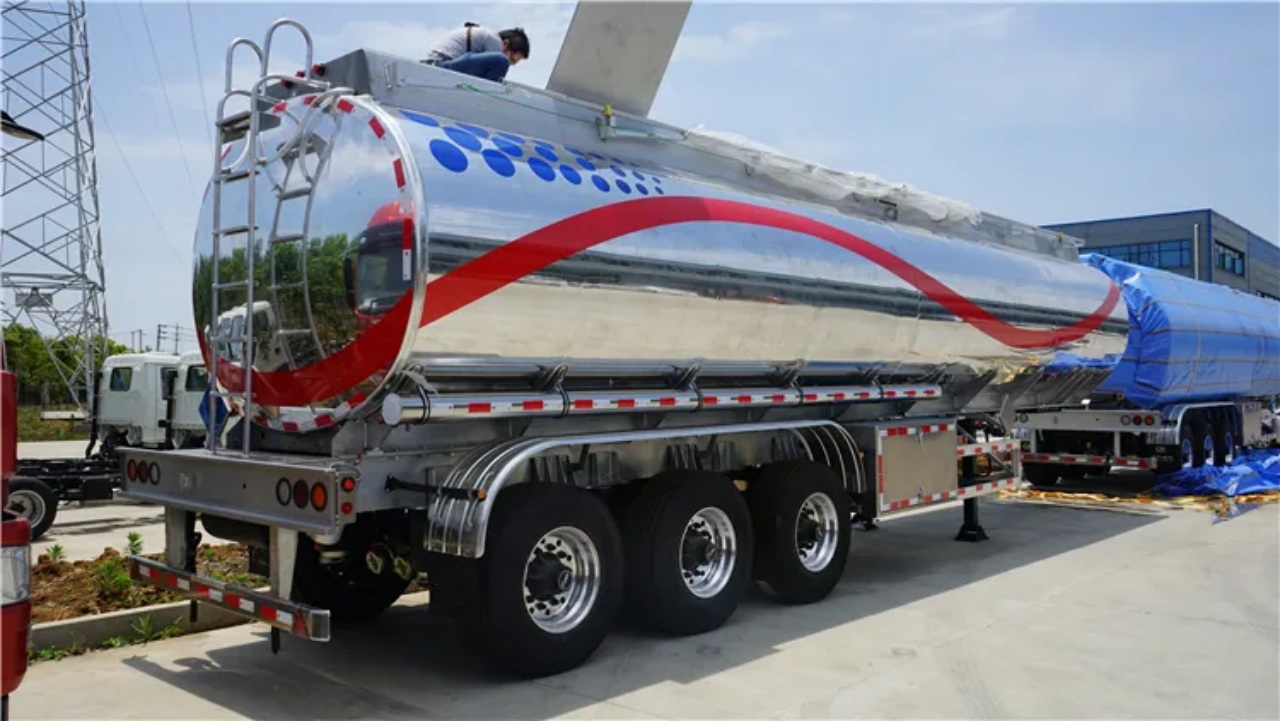

The 42,000-Liter water tanker semi-trailer is a high-capacity, heavy-duty transport solution designed for efficient water transportation. Manufactured by CSCTRUCK China Tank Truck, this semi-trailer features a 42,000-liter water tank volume, making it suitable for large-scale industrial, agricultural, and municipal applications.
Technical Specifications:
- Tank Construction: The tanker is built with 5.5mm thick aluminum alloy (5454 H32), ensuring lightweight durability, corrosion resistance, and longevity in various environmental conditions.
- Axles & Suspension: Equipped with 3 FUWA brand 13T axles, the semi-trailer ensures robust load-bearing capacity. The air suspension system provides enhanced ride stability, reducing vibrations and improving overall safety during transport.
- Braking System: The disk brake system enhances stopping performance, offering superior control, especially under heavy loads.
- Coupling & Landing Gear: The trailer comes with a JOST A400 linkage lifting legs landing gear for stability during loading and unloading. It is compatible with both 2″ (50mm) and 3.5″ (90mm) JOST kingpins, allowing flexibility in tractor-trailer coupling.
- Payload Capacity: With a maximum payload of 33,100 kg, this tanker is optimized for efficient bulk water transportation.
- Compartment Design: The tanker has a single-compartment configuration, ensuring uniform weight distribution and easy maintenance.
This 42,000L water tanker semi-trailer is an ideal choice for industries requiring large-volume water transport, offering high durability, excellent maneuverability, and reliable performance under demanding conditions.
FEATURES
- Large Water Capacity – The tanker has a 42,000-liter single-compartment aluminum alloy tank, ideal for bulk water transport.
- High-Strength Tank Body – Constructed with 5.5mm thick aluminum alloy (5454 H32), ensuring durability, corrosion resistance, and a lightweight structure.
- Robust Axles & Braking System – Equipped with three FUWA 13T axles, disk brakes, and an air suspension system for enhanced stability and smooth operation.
- Reliable Coupling & Landing Gear – Features JOST kingpin (2″ or 3.5″) and JOST A400 linkage lifting legs landing gear for secure trailer attachment and easy parking.
- Heavy Payload Capacity – Designed to carry up to 33,100 kg, making it suitable for large-scale water transport applications.
SPECIFICATION
| Overall parameters | Mode | CSCWTST042 |
| Overall dimensions(LxWxH) | 12,000×2,500×3,700mm | |
| Tare weight | 6,800kg ± 3% | |
| Payload | 33,100kg | |
| Tank body | Tank material | Elliptical shape, constant section |
| Capacity and compartments | 42,000L+5%, 1 compartment | |
| Tank material | Aluminum alloy 5.5mm/5454 H32 | |
| Bulkhead | Null | |
| End | Aluminum alloy 6mm/5454″O”, dished type | |
| Baffle plate | Aluminum alloy 5.5mm/5454″O”, dished type ( 7 plates) | |
| Chassis | Frame | Aluminum alloy |
| King pin | 2″(50mm) or 3.5″(90mm) JOST | |
| Landing leg | JOST A400 linkage lifting legs | |
| Suspension | Air suspension | |
| Tires | 385/65 R22.5, 6+1 pieces | |
| Rims | Aluminum rim, 22.5×11.75, 6+1 pieces | |
| Axles | FUWA brand, 13T, disk brake, 3 sets | |

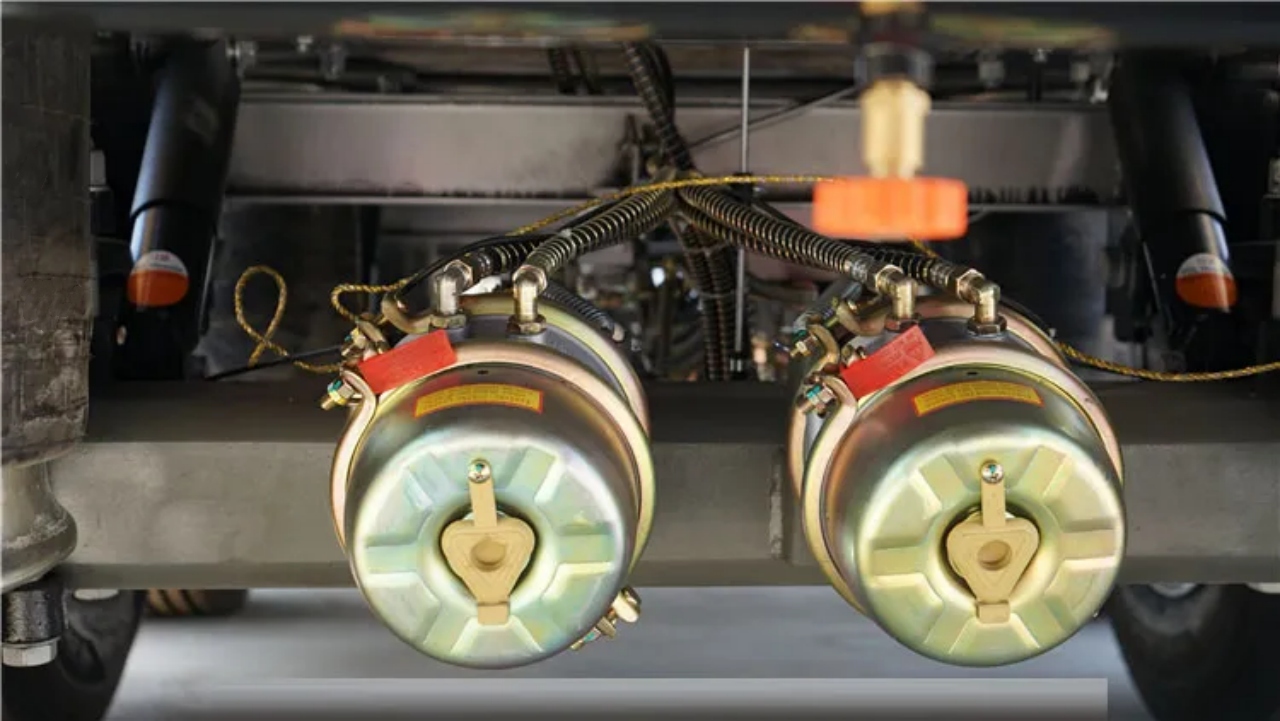

| Braking system | WABCO ABS, whole brake chamber, with parking braking valve and imported emergency relay valve, 1 set | |
| Surface treatment and painting | Tank internal surface | Clean up |
| Tank external surface | Mirror | |
| Frame Outer surface | Mill(original color) | |
| Surface sign | As per customer’s requirements. |
Additional information
| Tank Mounted on Chassis Brand |
|---|
