| Model No.: | CSCSART004 |
| Fuel Tank Volume: | 4,000 Liters |
| Overall Dimensions(LxWxH): | 5,940×2,000×2,700mm |
| Chassis Brand: | Dongfeng |
| Drive Type: | 4X2 |
| Wheelbase: | 3,360mm |
| Engine Model: | YC4FA120-33 |
| Engine Power: | 120HP |
| Emission Standard: | Euro III |
| Fuel Tank Material: | Aluminum alloy |
| Refueling pump: | Aluminum alloy oil pump |
| Refuel flow: | 100L-150L/min |
| Pipeline pumping flow: | 700L/min |
| Work pressure: | 0.25Mpa |
BRIEF

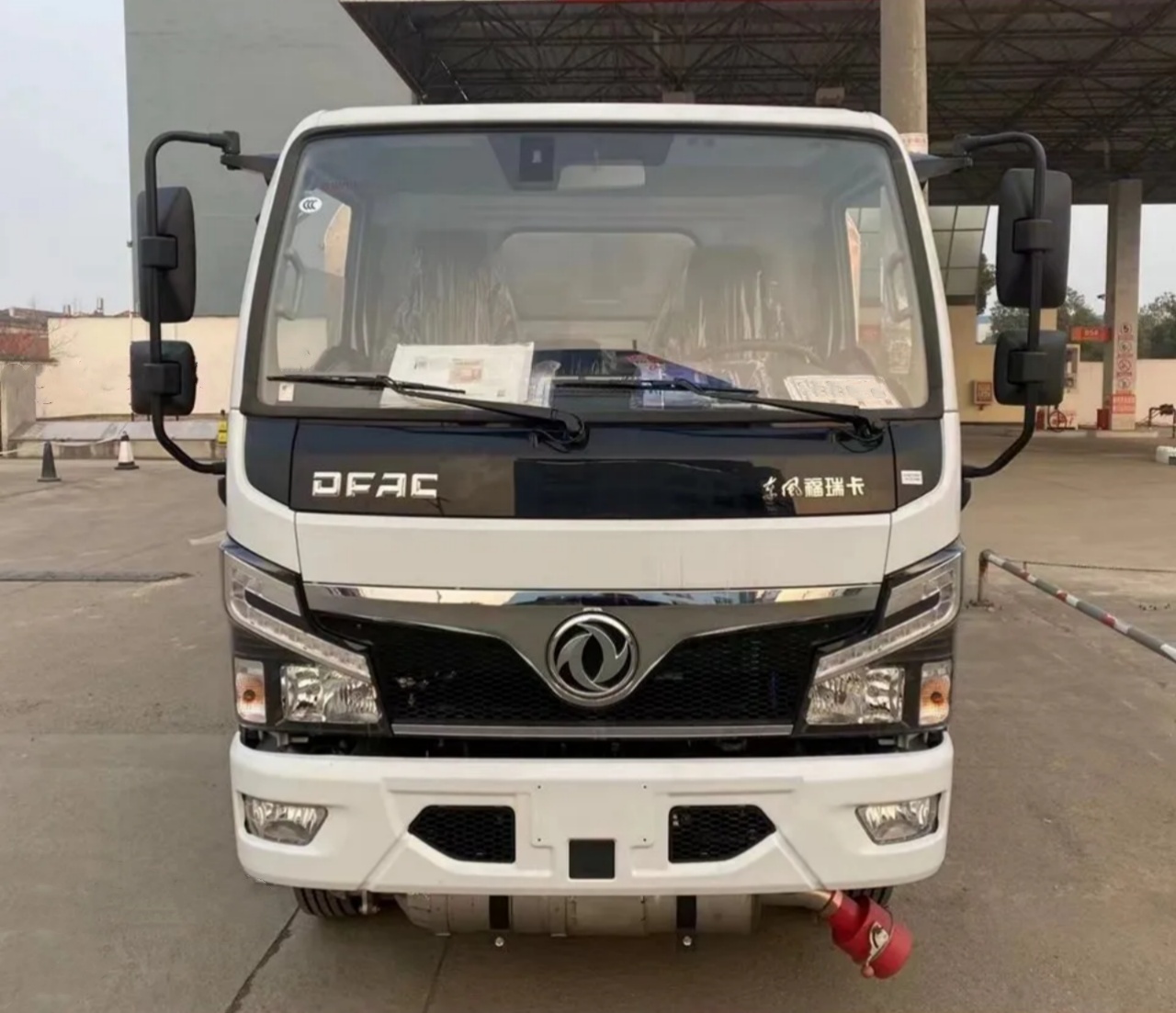

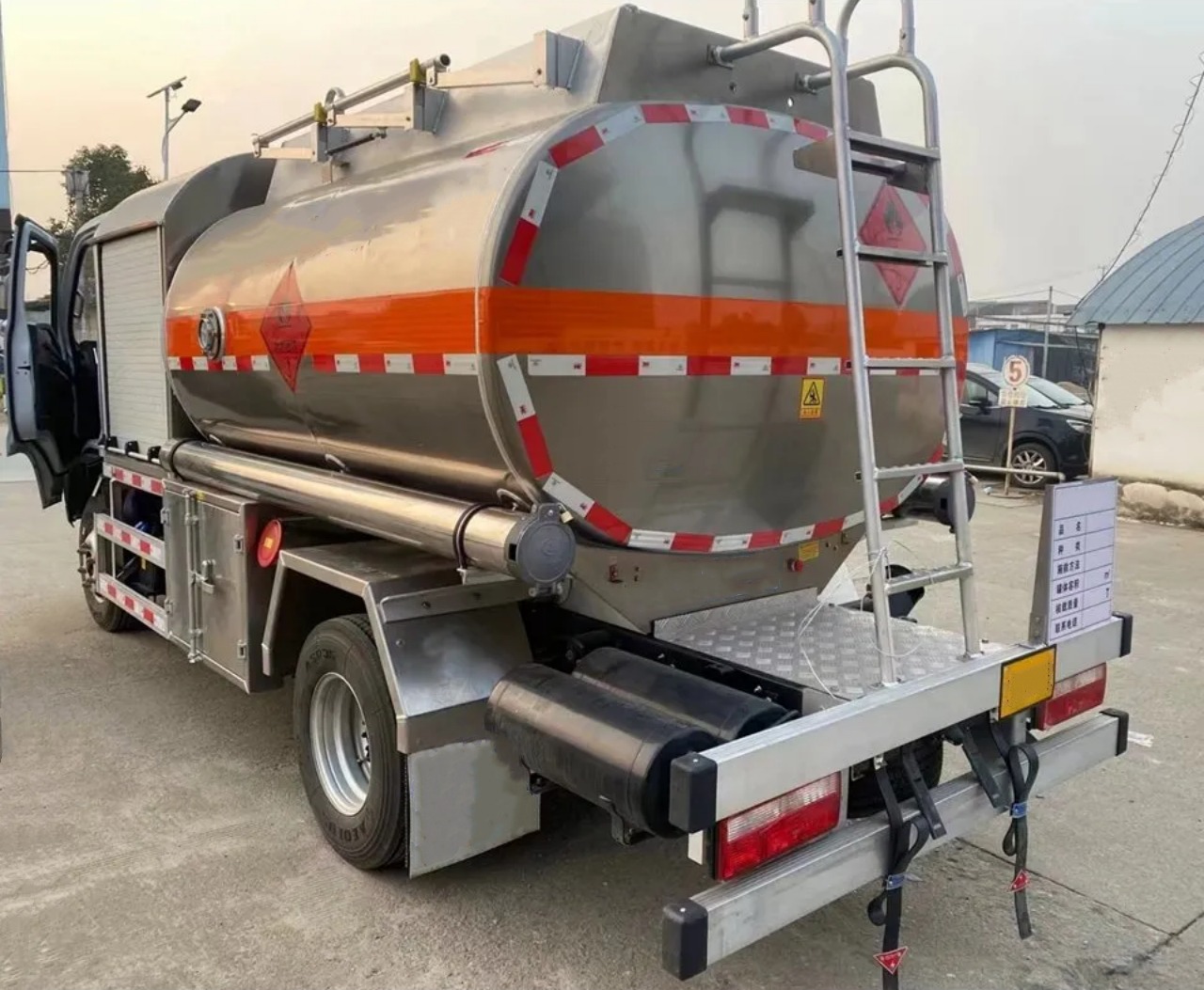

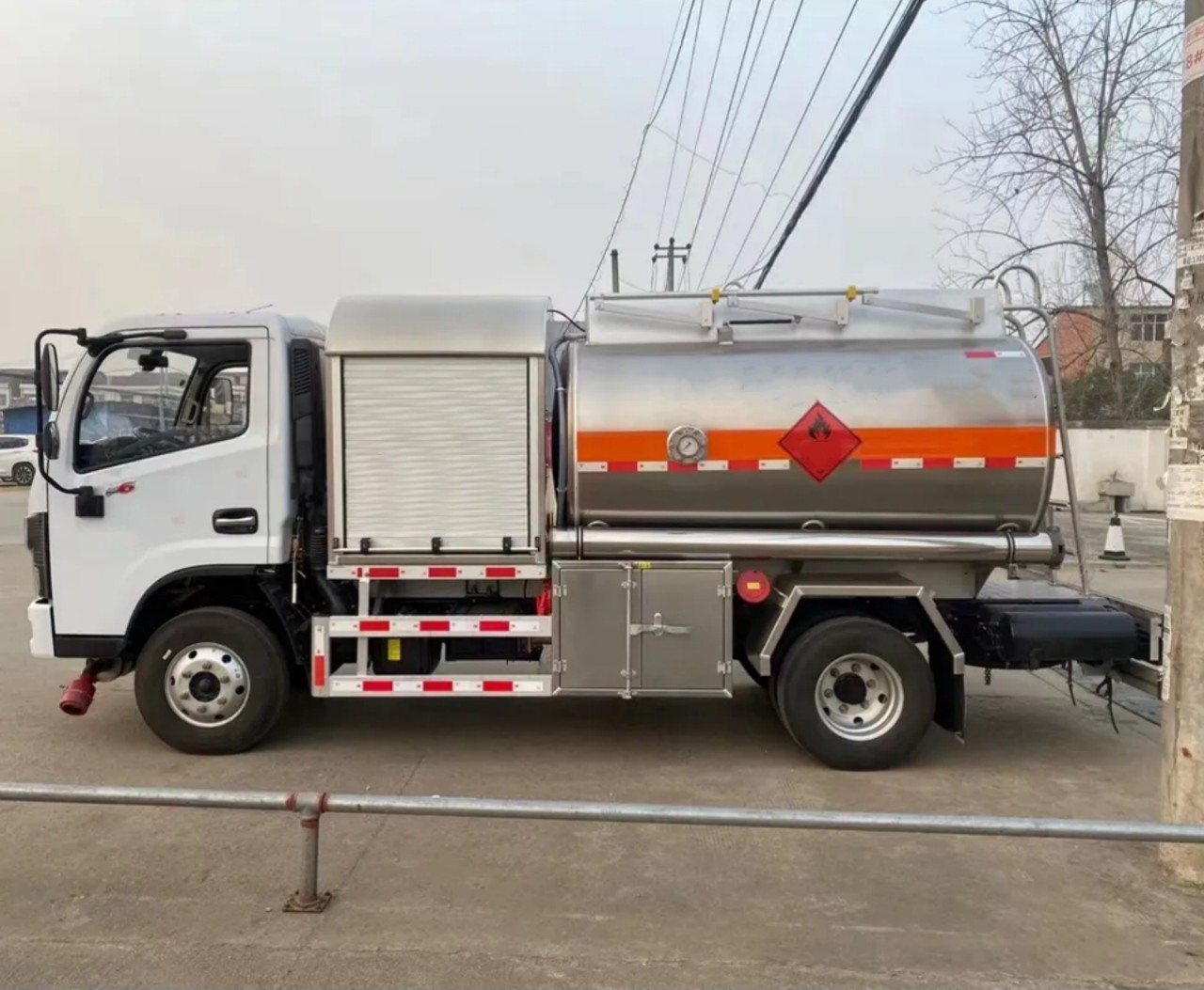

The 4000-liter small aircraft refueling truck produced by CSCTRUCK China Tank Truck, a leading manufacturer in China, is designed to meet the fuel supply needs of small to medium-sized airports and aviation facilities. This specialized fuel truck has a 4,000-liter capacity, making it suitable for refueling various types of aircraft, ensuring safe and efficient fuel transfer.
Built on a Dongfeng chassis with a 4×2 drive type, this refueling truck provides reliable and stable performance. The YC4FA120-33 engine model delivers 120 horsepower, offering ample power for both operational efficiency and fuel transport. The engine complies with the Euro III emission standard, ensuring reduced environmental impact while maintaining performance.
One of the standout features of the truck is its use of high-quality aluminum alloy for both the fuel tank and oil pump, contributing to reduced weight, corrosion resistance, and increased durability. The truck’s fuel tank is designed to safely store and transport aviation fuel, while the oil pump is capable of delivering fuel at a refuel flow rate of 100L-150L per minute, depending on the requirements of the aircraft being serviced.
For pipeline pumping, the truck is equipped with a robust system that can achieve a flow rate of 700L per minute, with a working pressure of 0.25Mpa. These capabilities make it efficient in delivering fuel quickly and consistently, minimizing downtime for aircraft operations.
In addition to its technical specifications, this truck’s compact design makes it highly maneuverable, ideal for tight spaces at airports or airstrips where larger refueling trucks may struggle. Overall, the 4000L aircraft refueling truck offers an optimal balance of power, efficiency, and reliability for aviation fueling needs.
FEATURES
- Fuel Capacity and Refuel Flow: With a 4,000-liter fuel tank, this truck offers a high-capacity refueling solution. It features a refuel flow rate of 100L-150L/min and a pipeline pumping flow of 700L/min, enabling efficient and rapid refueling operations for aircraft.
- Engine and Performance: Powered by the YC4FA120-33 engine, which delivers 120HP of engine power, the truck provides reliable performance and can operate smoothly across various fueling conditions.
- Chassis and Drive Type: Built on a Dongfeng chassis with a 4×2 drive configuration, this truck offers strong stability and maneuverability. It is ideal for use at airports or airfields where space and access can be limited.
- Emission Standards: The truck complies with the Euro III emission standard, ensuring that it meets environmental requirements and operates with lower emissions compared to older models.
- Durable Construction: The truck is equipped with an aluminum alloy fuel tank and oil pump, offering a lightweight yet strong and corrosion-resistant solution for storing and pumping fuel. The use of aluminum alloys also contributes to the truck’s overall fuel efficiency and durability.
SPECIFICATION
|
Item name
|
4000 Liters Small Aircraft Refueling Truck | |||
|
Dimensions(LxWxH)
|
5,940×2,000×2,700mm
|
|||
|
Total weight
|
7,360 kg
|
|||
|
Curb weight
|
3,580 kg
|
|||
|
Loading Weight
|
3,650 kg
|
|||
|
Wheelbase
|
3,360 mm
|
|||
|
Chassis brand
|
Dongfeng
|
|||
|
Tire specification
|
7.00R16
|
|||
|
Number of tires
|
6
|
|||
|
Fuel type
|
Diesel
|
|||
|
Engine model
|
YC4FA120-33
|
|||
|
Engine displacement
|
2,982 cc
|
|||
|
Engine power
|
88 kW/120 hp
|
|||
|
Engine rate speed
|
3,200 rpm
|
|||
|
Engine max torque/speed
|
345 N·m at 1,400-1,800 rpm
|
|||
|
Oil tank volume
|
4,000 liters
|
|||
|

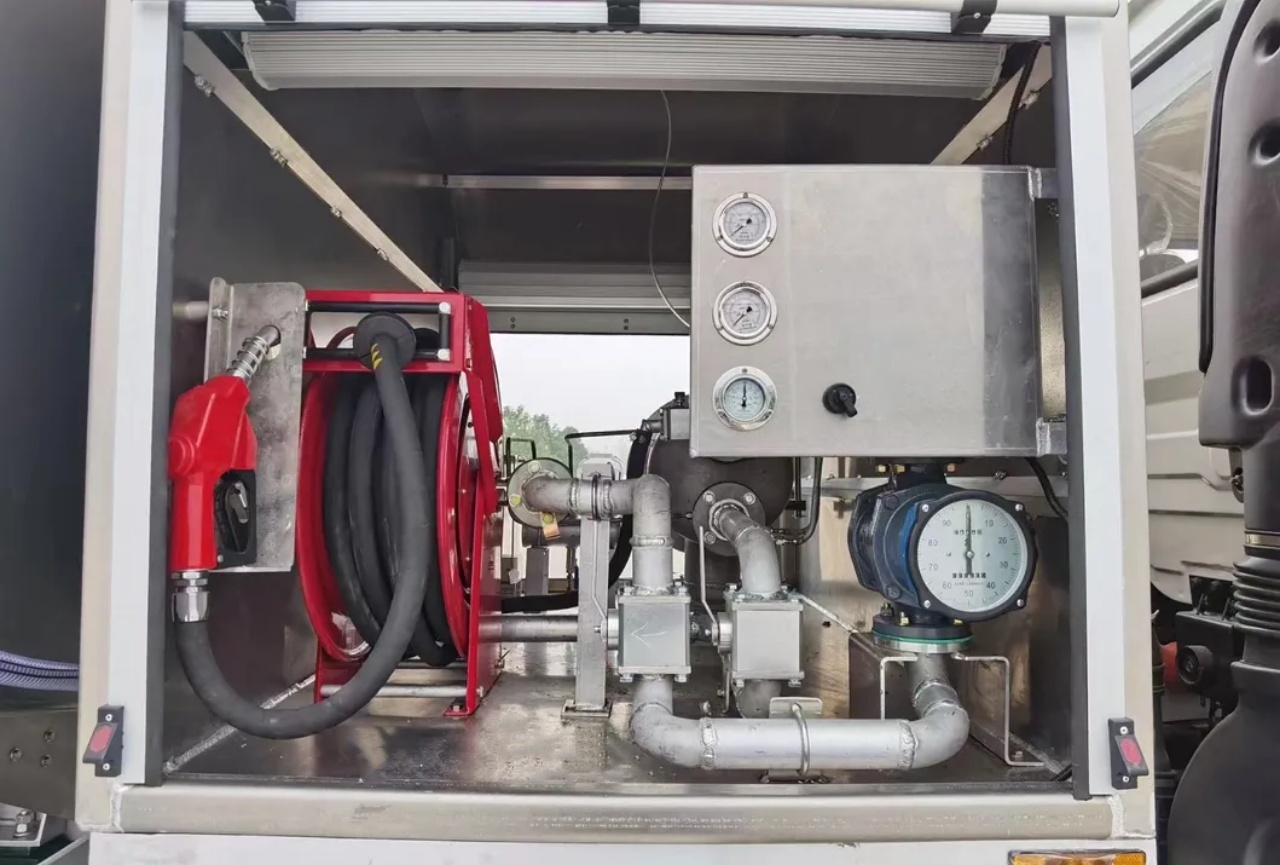

Refueling pump
|
Aluminum alloy oil pump
|
|||
|
Refuel flow
|
100L-150L/min
|
|||
|
Pipeline pumping flow
|
700L/min
|
|||
|
Work pressure
|
0.25 Mpa
|
|||
|

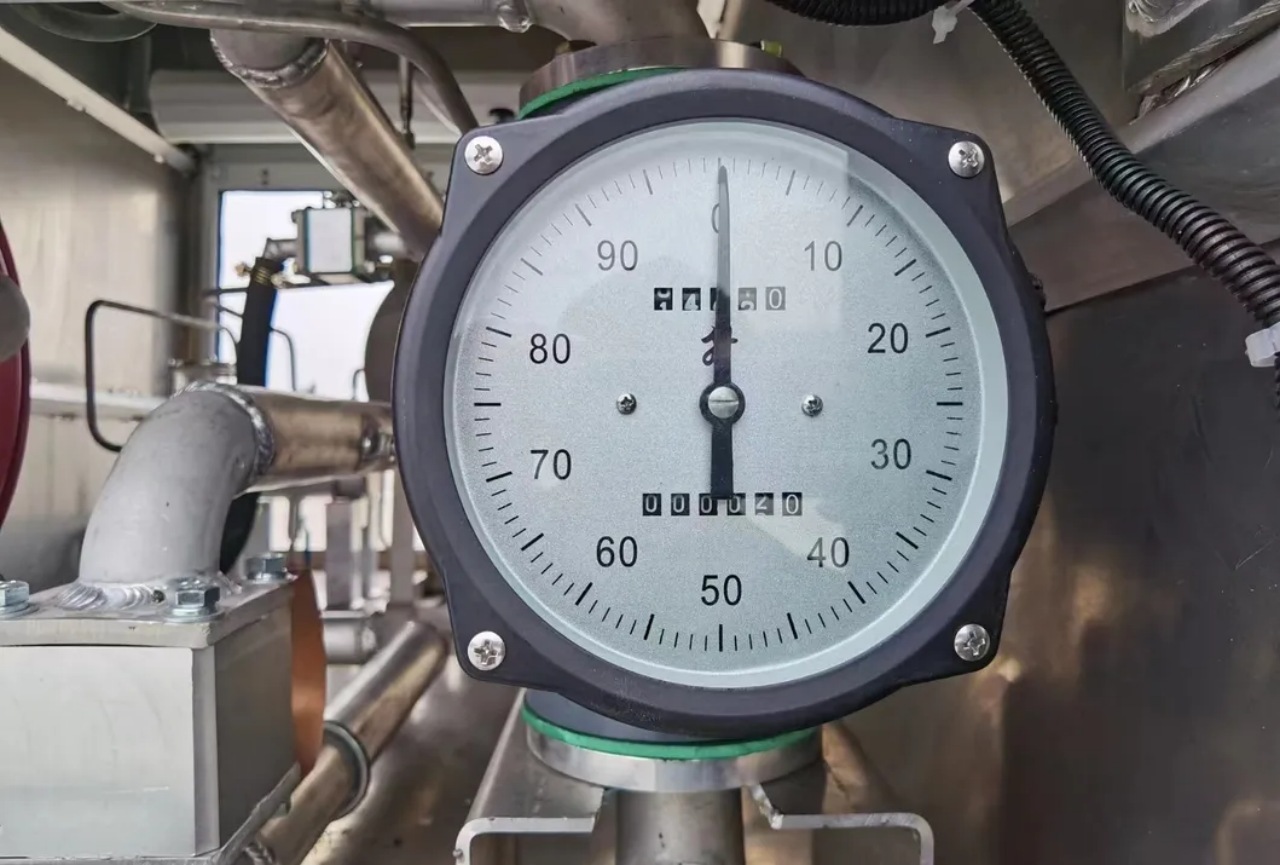

Flow meter
|
Class 0.2 accuracy, diameter 50 waist wheel flow meter.
|
|||
|
Filter separator
|
400 L/min
|
|||
|
Filter separator pressure
|
1.0 Mpa
|
|||
|
Maximum allowable pressure difference
|
0.15 Mpa
|
|||
|
Gravity refueling reel
|
Automatic reset reel, the diameter of the refueling hose is 25mm, and the length is 15m.
|
|||
|
Liquid level gauge
|
A stainless steel floating ball in the tank and a 10-inch aluminum alloy dial on the left side of the tank can observe the current volume of liquid in the tank.
|
|||
| Tank Mounted on Chassis Brand |
|---|
