| 1 x 40ft container |
| 1 x 2 Nozzle fuel dispenser RT-HY222 |
| 1 x electric transfer pump 2 inch for discharging |
| 1 x explosion-proof control box |
| 2 x fire extinguisher |
| 2 x explosion-proof lights |
| Some ball valves, filters, Flame retardant valves, pipelines, and other components. |
Description
BRIEF
The 38,000-liter mobile fuel station by CSCTRUCK China Tank Truck is a versatile solution for diesel, gasoline, and petrol transport and dispensing. Designed and manufactured by CSCTRUCK China Tank Truck, a leading Chinese company in tank truck production, this mobile fuel station features robust construction and advanced functionality, making it ideal for various fuel distribution needs.
The tank is crafted from Q235b carbon steel with a thickness of 5mm, ensuring durability and resistance to wear and corrosion. This material choice provides a reliable structure capable of withstanding the rigors of fuel transport. The tank body comes in both square and round configurations, catering to different preferences and logistical requirements.
With a substantial capacity of 38,000 liters, this mobile fuel station can handle large volumes of fuel, making it suitable for extensive operations in remote locations, construction sites, or agricultural settings. The fuel dispenser operates on a 220V power supply, providing efficient and reliable fuel delivery. The integrated pump and dispenser system ensures precise control over fuel flow, enhancing operational efficiency and safety.
This mobile fuel station is engineered for ease of use and mobility. Its design facilitates quick setup and deployment, allowing for flexible positioning wherever fuel is needed. The combination of a high-capacity tank and an efficient dispensing system makes it an invaluable asset for businesses requiring on-site fuel management.
In summary, the 38,000-liter mobile fuel station from CSCTRUCK China Tank Truck is a robust, high-capacity solution for fuel transportation and dispensing, featuring durable construction, versatile tank design, and efficient fuel delivery, tailored to meet diverse operational needs.
FEATURES
Option:
– Generator for power supply
– Solar panel for power supply
– Gasoline recovery system
– Office with integrated amenities (AC, table, etc.)
– Metering system for measuring load quantity
– Self-service using an IC card, bank card, or RFID card
– Advertising logo lightbox
Characteristics:
– The excellent step-less adjustment mechanism enables precise micro adjustments on the meter.
– Offers high accuracy and repeatability across the widest range of flow, with superior precision at constant flow rates.
– Requires low maintenance due to the absence of metal-to-metal contact in the measuring chamber, ensuring long-lasting service.
– Minimal pressure loss, functioning effectively as a true gravity flow meter.
– Maintains accuracy despite pressure fluctuations, temperature variations, and changes in viscosity.
SPECIFICATION
Standards:Â Â |
||||
|
Size(LxWxH):
|
12,192×2,438×2,259mm
|
|||
|
Transport medium:
|
Diesel/gasoline/petrol
|
|||

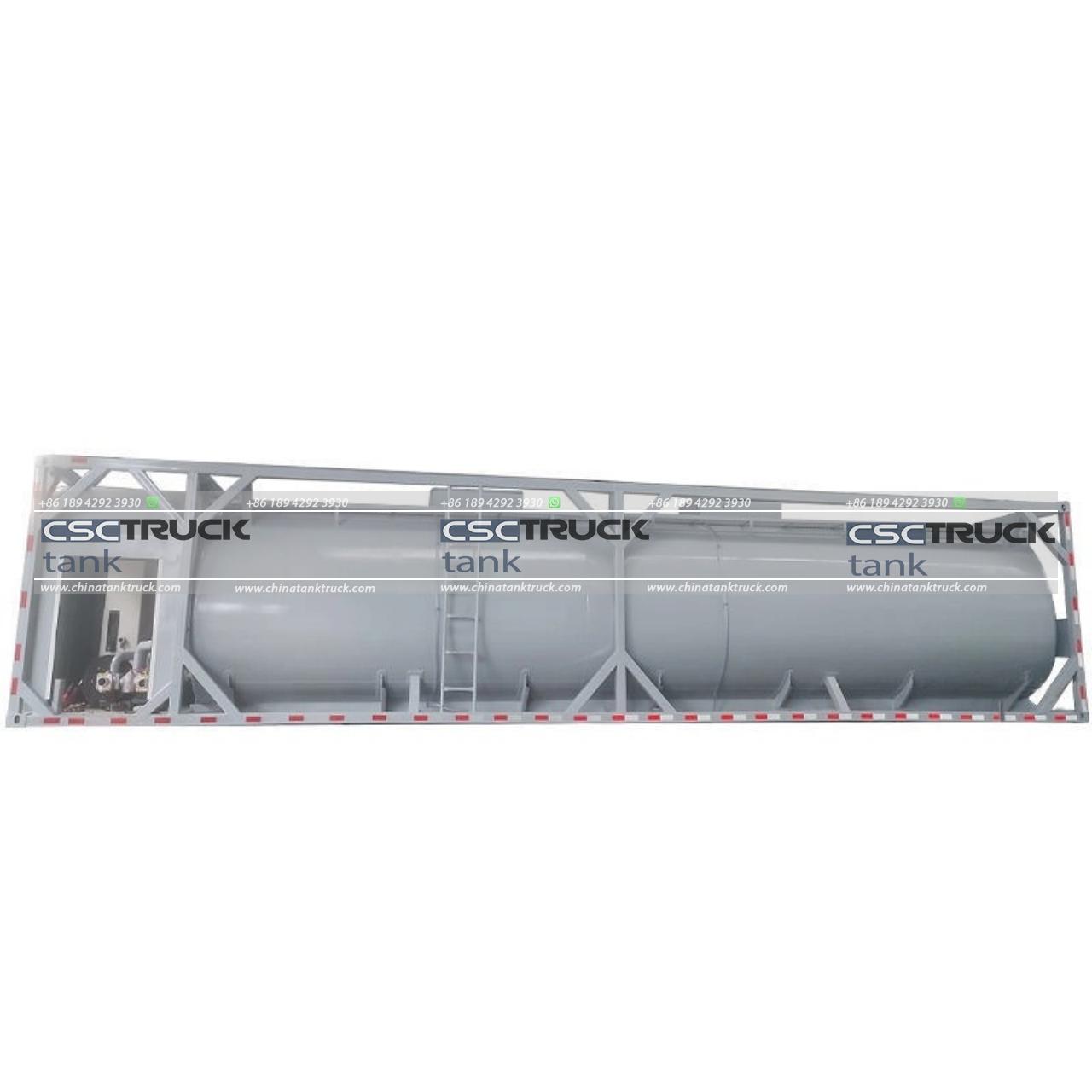

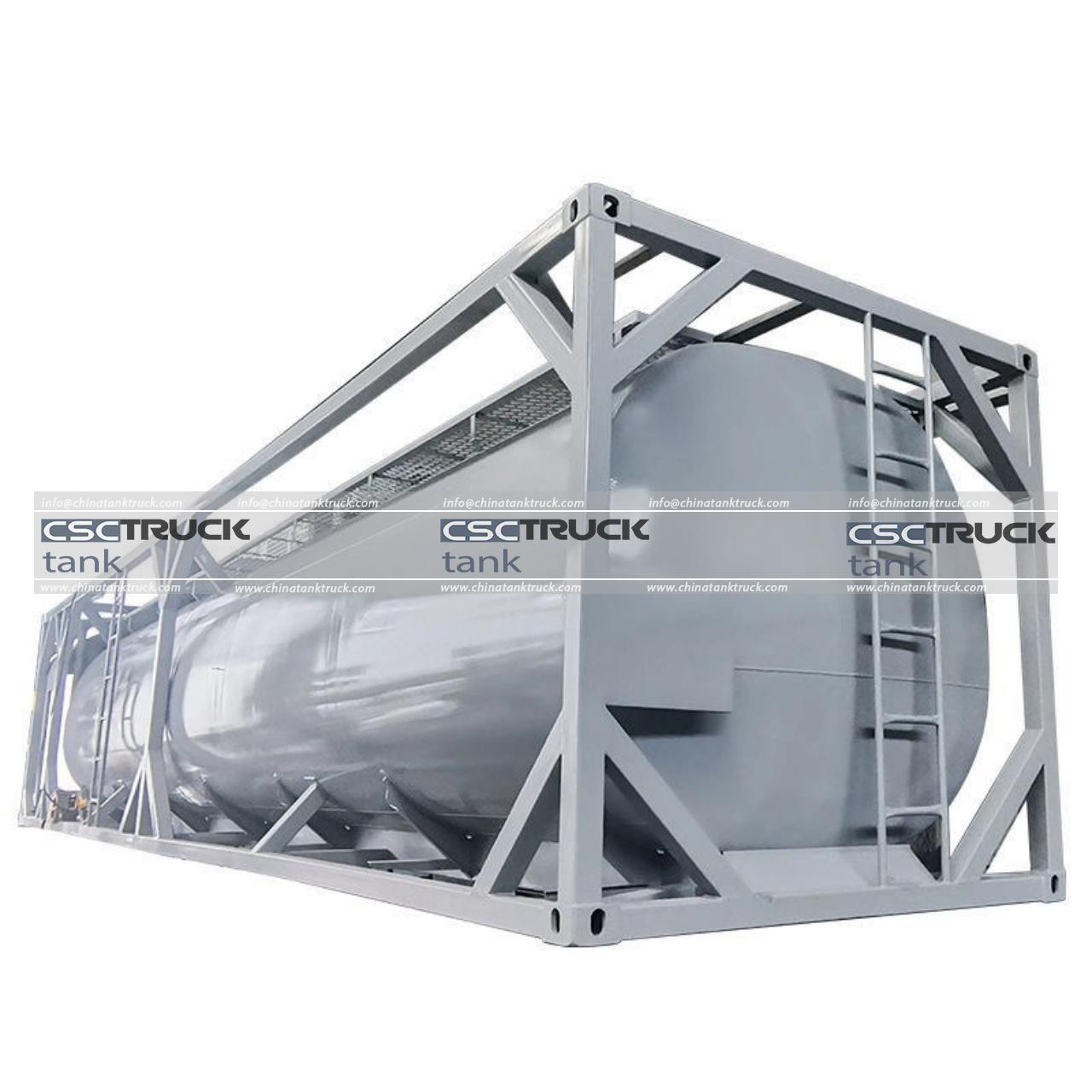

A The tank:Â Â |
||||
|
Tank material
|
Q235b 5mm.
|
|||
|
Tank shape
|
Square and round
|
|||
|
Capacity and sub-warehouse
|
The capacity is 38,000L, and the warehouse is open.
|
|||
|
Head
|
Q235b 5mm
|
|||
|
Wave breaker
|
Q235 b 5mm (4 lanes)
|
|||
B Main accessories of pipeline  |
||||
|

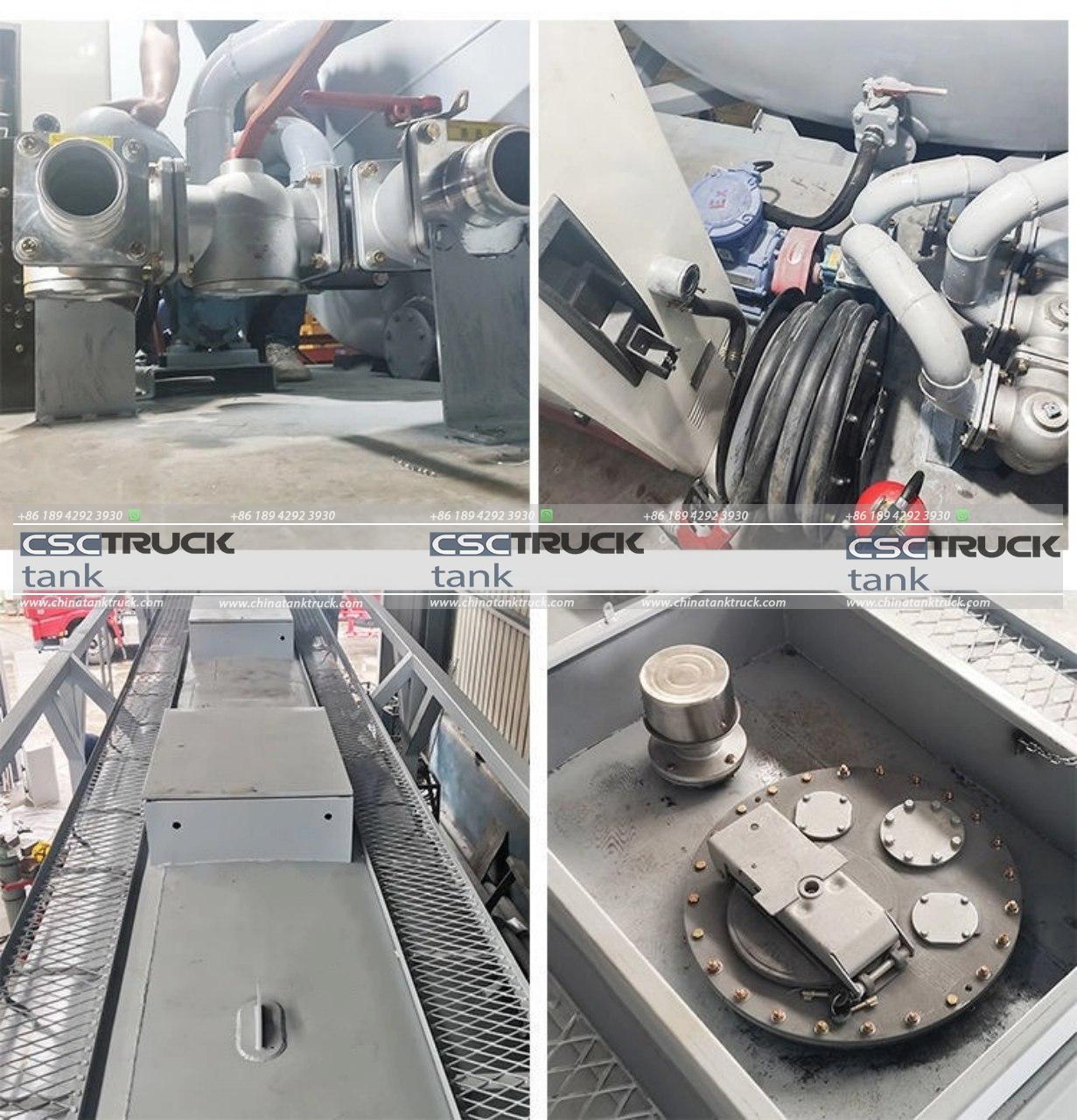

Manhole cover
|
Install 2 sets of diameter 580 aluminum alloy European standard manhole cover.
|
|||
|
Discharge valve
|
Two 3-inch aluminum alloy square ball valves are installed at the front end of the tank.
|
|||
|
Fire-stop
|
All-weather breathing valve.
|
|||
|
Oil hose
|
3″×6m long transparent PVC oil hose 2. (Quick connector and plug)
|
|||
C Front warehouse accessories  |
||||
|

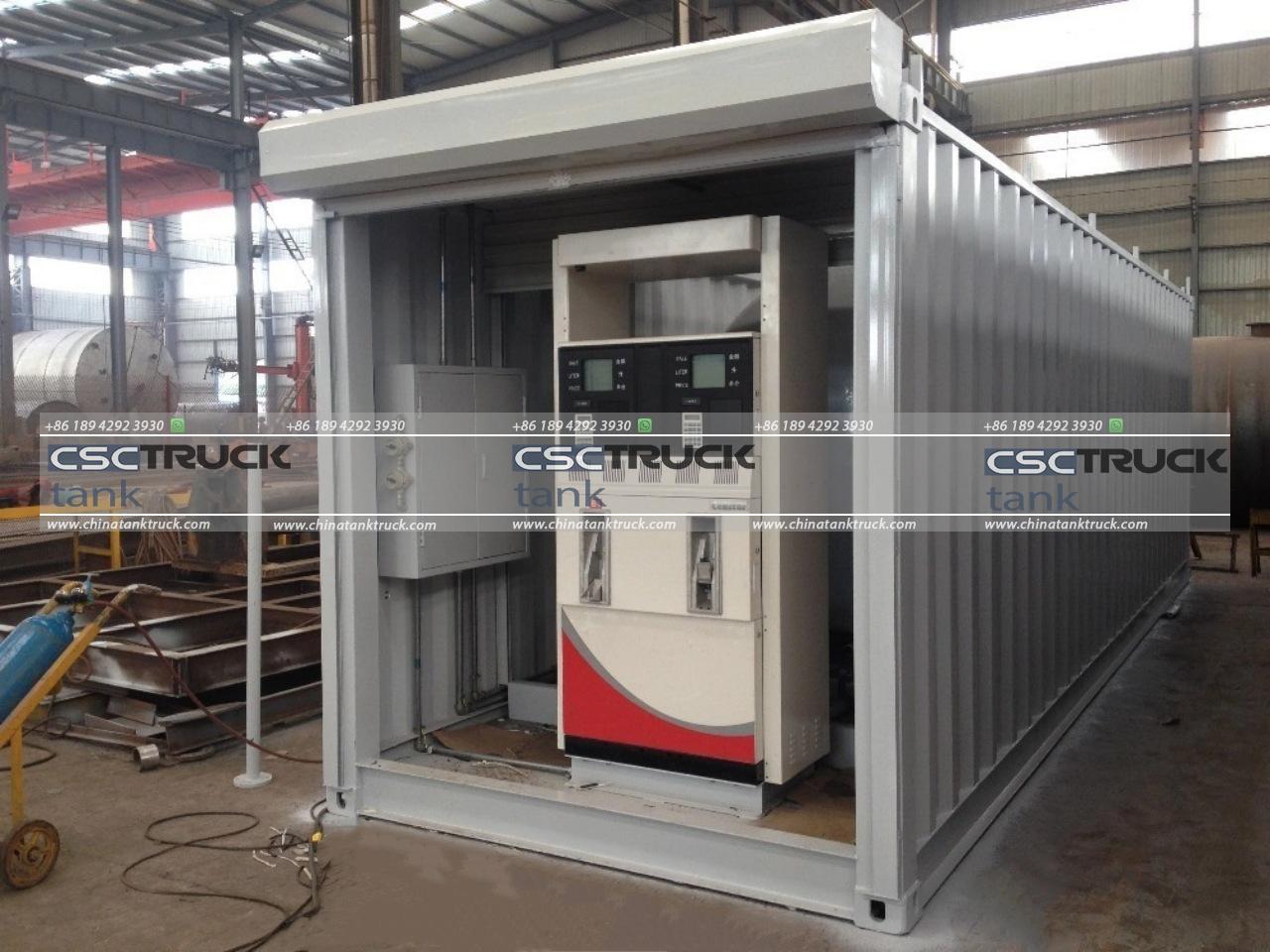

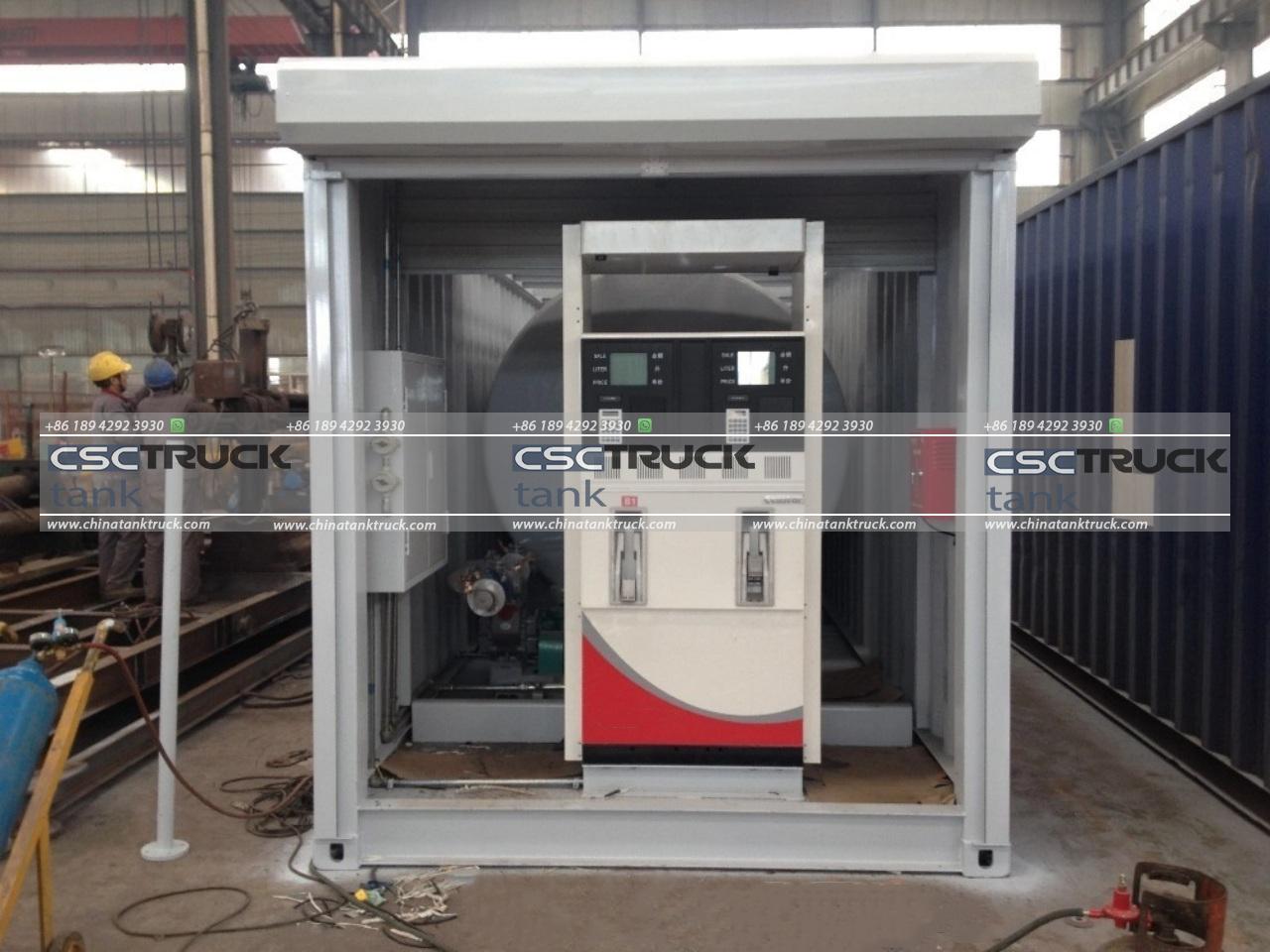

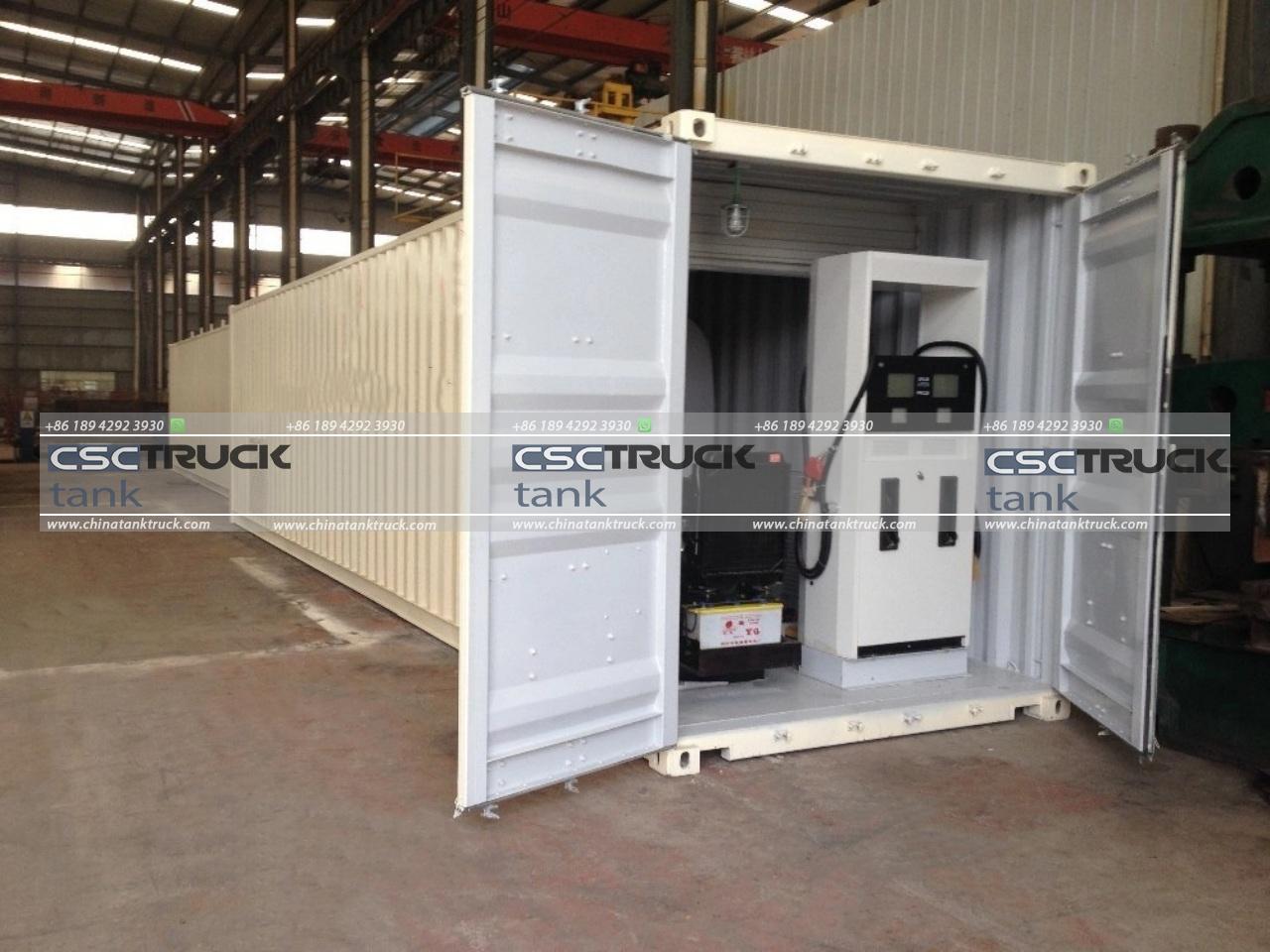

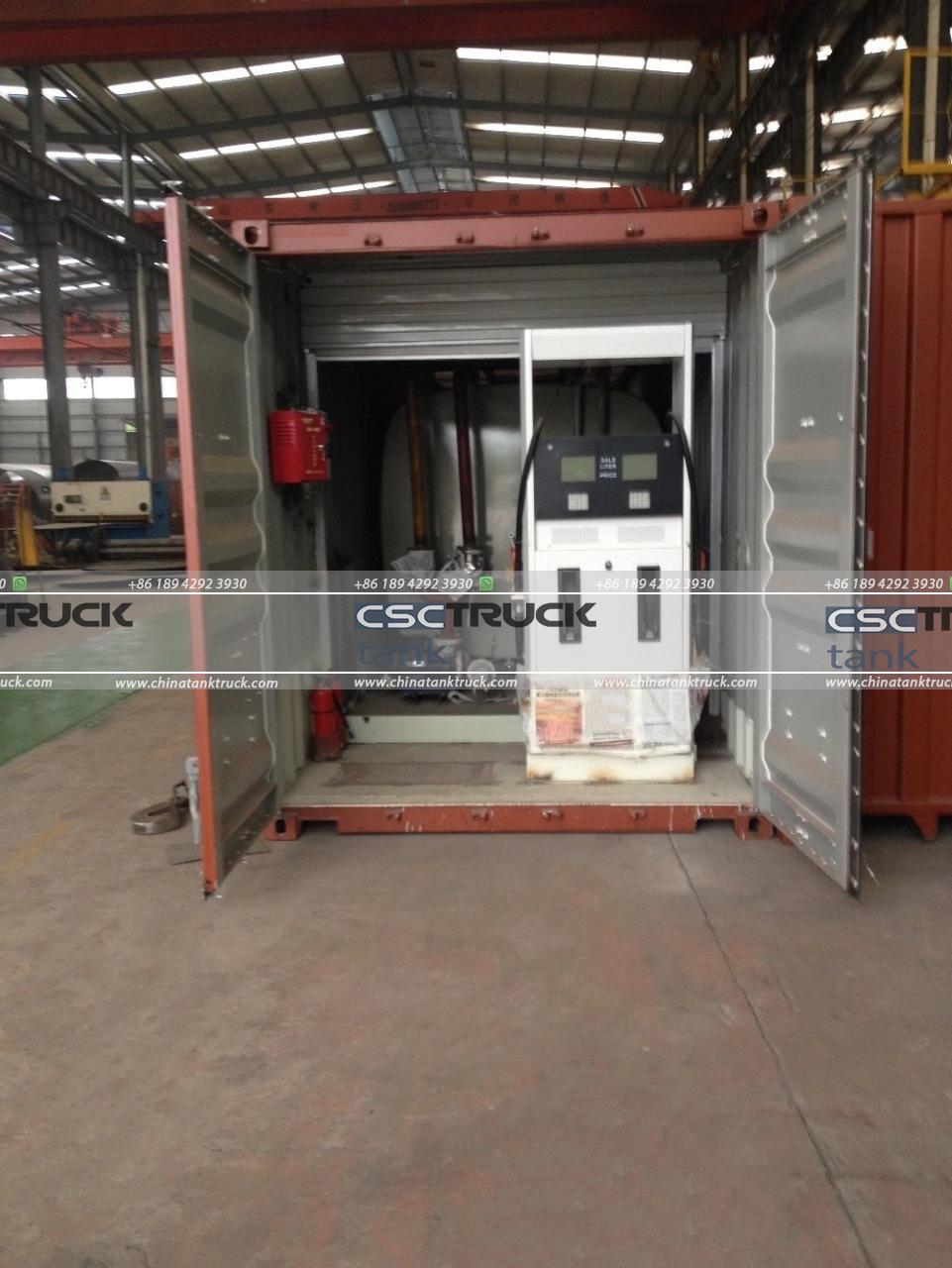

Fuel dispenser
|
220V fuel dispenser
|
|||
|
Hose reel
|
1 inch 15m automatic recovery reel
|
|||
|

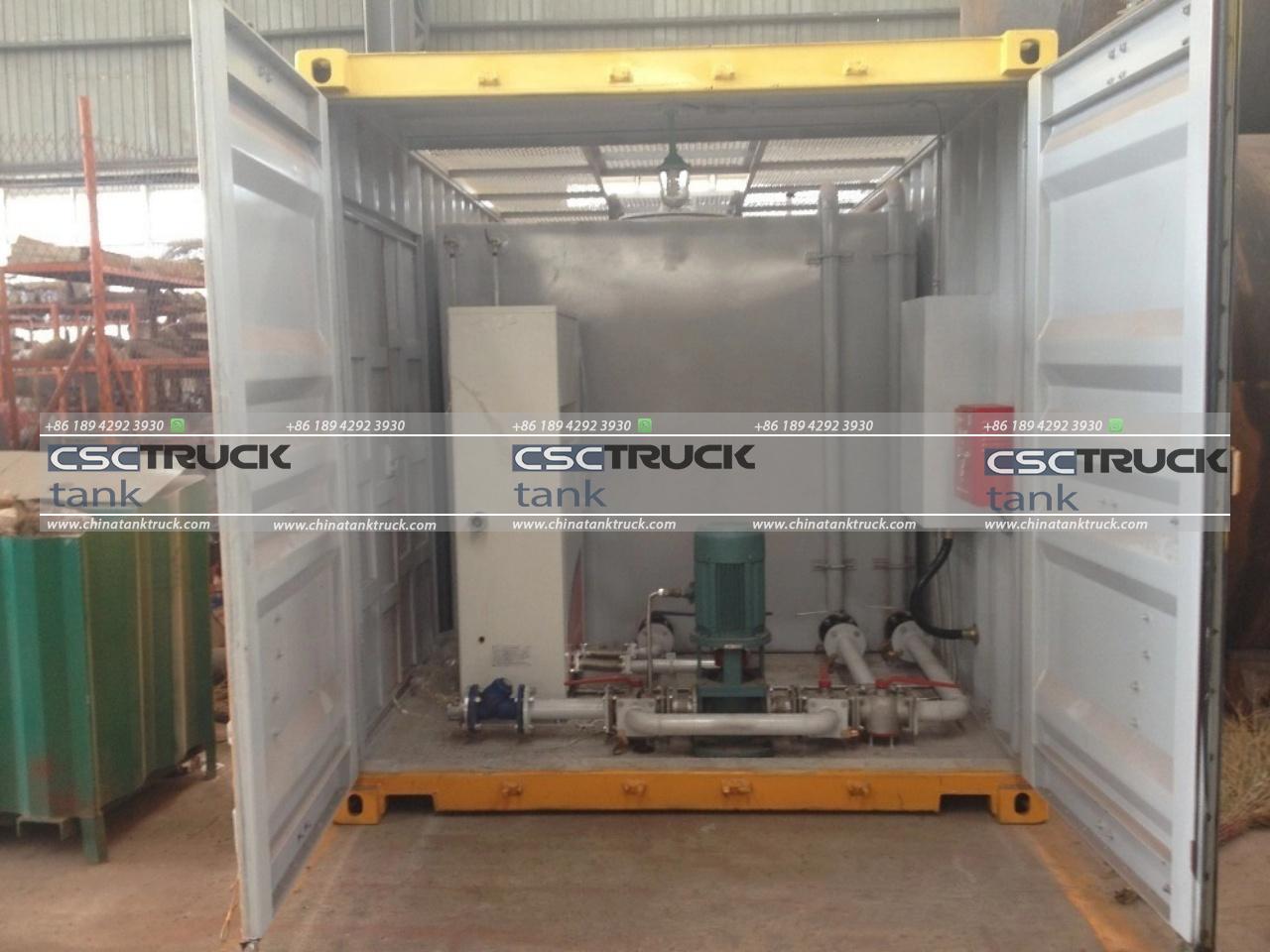

Pump
|
1 carbon steel gear oil pump model/76-45, motor: 220v explosion-proof motor (
|
|||
|

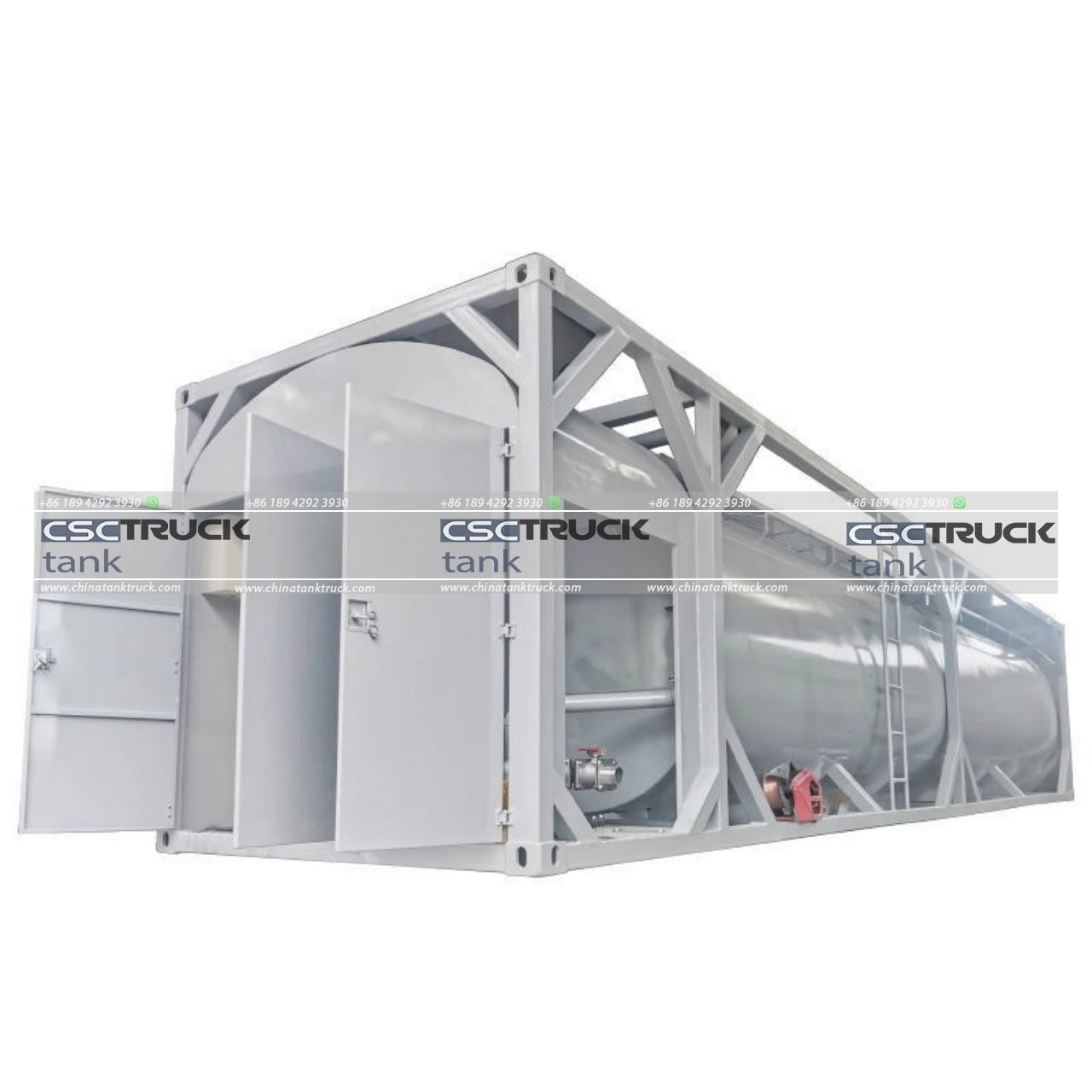

Front compartment device
|
3 doors, with lock, side with rolling shutter.
|
|||
|
Barrel
|
Barrel Steel barrel with lock
|
|||
|
Fire Extinguisher
|
2 4 kg dry powder fire extinguishers.
|
|||
|
Ladder
|
with a ladder on the right and rear
|
|||
|
Paint
|
Tank Color: GB Gray
|
|||
