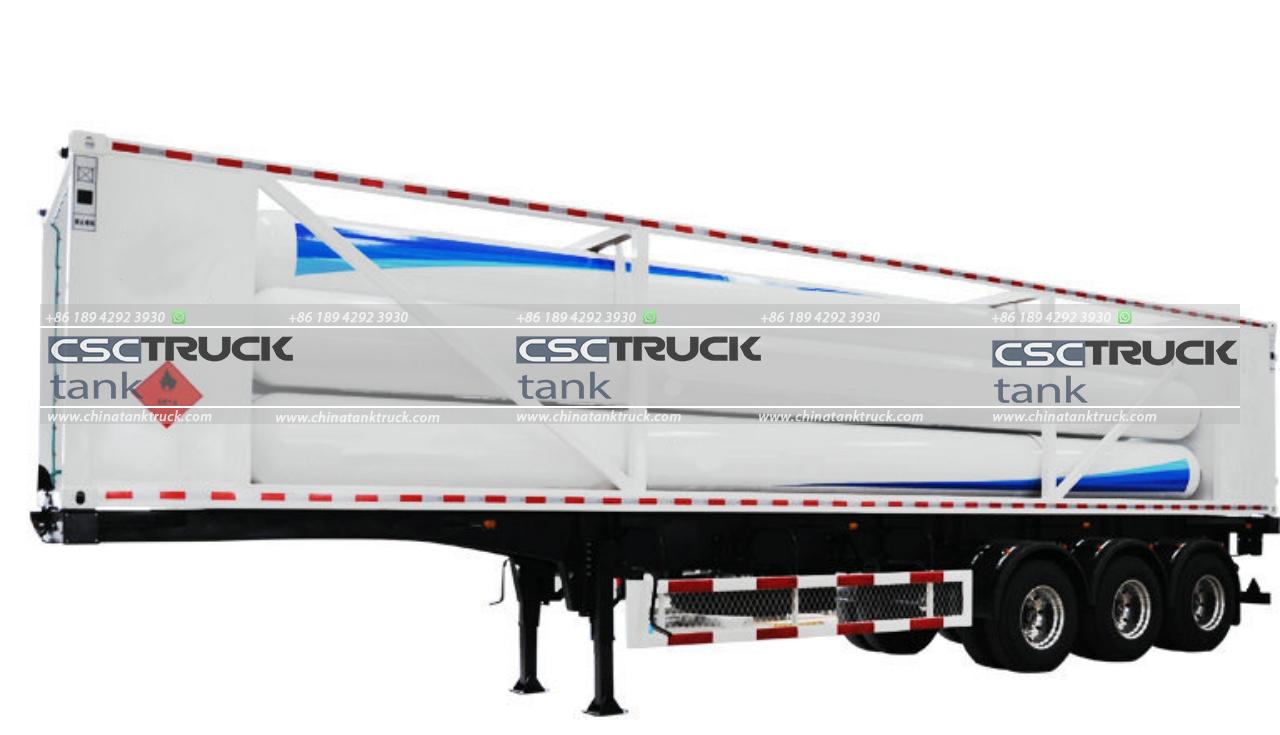

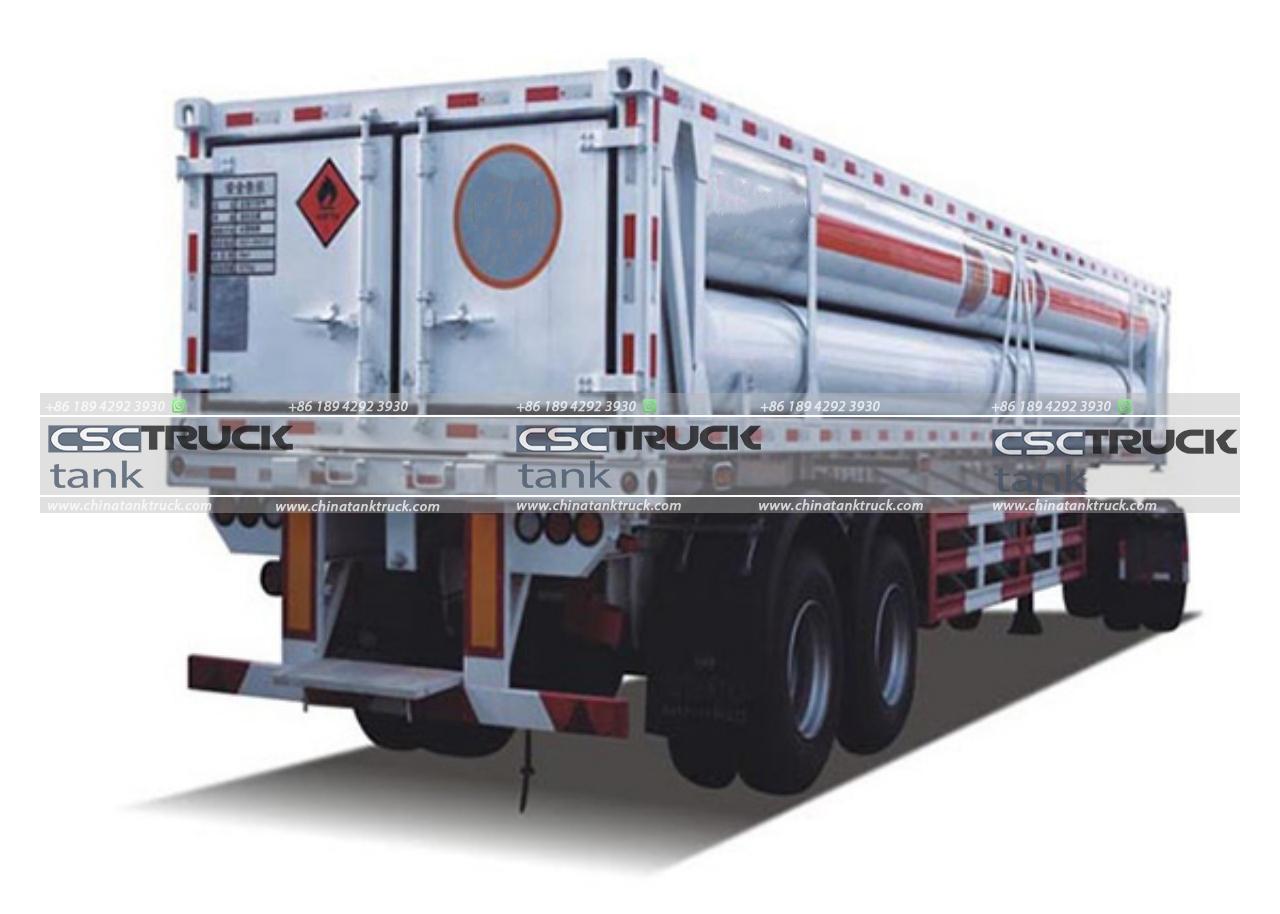

The 26 CBM CNG tube trailer truck, manufactured by CSCTRUCK China Tank Truck, is designed to transport compressed natural gas (CNG) efficiently and safely. This trailer features a stainless steel tube tank, providing durability and resistance to harsh conditions. With a total capacity of 26 cubic meters, the tank is ideal for transporting significant volumes of CNG.

The truck has a rated loading capacity of 4,340 kilograms, while the overall weight of the trailer reaches up to 40,000 kilograms. It is engineered to withstand rigorous demands, as evidenced by its robust 25 MPa leakage test pressure and 25 MPa working pressure. These specifications ensure the safe handling of CNG under high-pressure conditions.

The 26 CBM CNG tube trailer truck operates effectively within a wide temperature range of -50 to 65°C, making it suitable for diverse environments and weather conditions. It is equipped with 6 cylinders, each designed to handle the substantial pressures required for CNG storage and transportation.

Overall, the 26 CBM CNG tube trailer truck combines advanced engineering and high-quality materials to offer a reliable solution for CNG transport. Its stainless steel construction and impressive pressure and temperature tolerances underscore its capability to deliver safe and efficient performance in the natural gas industry.

1. High Capacity and Robust Build: The trailer is equipped with a 26 CBM CNG tube tank capacity, designed to store a significant volume of compressed natural gas efficiently. The tanks are made from durable stainless steel, ensuring long-term reliability and resistance to corrosion.

2. Impressive Weight Specifications: With a rated loading capacity of 4,340 kg and a total weight of 40,000 kg, this trailer is built to handle substantial amounts of CNG, making it suitable for heavy-duty applications.

3. Advanced Pressure Tolerance: The tube tanks are designed to withstand a leakage test pressure of 25MPa and a working pressure of 25MPa, ensuring safe and reliable operation under high-pressure conditions.

4. Wide Operating Temperature Range: The trailer is engineered to function effectively in a wide temperature range of -50°C to 65°C, making it versatile for use in various environmental conditions.

5. Efficient Gas Storage: The trailer features 6 cylinders for CNG storage, optimizing the distribution of gas and ensuring efficient and balanced transportation.

Name			26 CBM CNG Tube Trailer Truck
Brand			CSCTRUCK China Tank Truck
Announcement			267 Batch
Volume			25.02m³
Dimensions(LxWxH)			13,000mm*2,480mm*3,140mm
Rated Load			4,340kg
Tare Weight			35,660kg
Total Weight			40,000kg
Vehicle Identification Number			LA99FRG3×××SKW×××
Usage			The cargo’s carrying part is 6 6-tube tank-style design, which is suitable for the transportation of compressed natural gas.
Remarks			Total volume of tank: 25.02m³, Transport medium: CNG, Medium density: 170kg/m³, Tank is composed of 6 tubes.

UPPER CONSTRUCTION
Standard: ISO11120-19999 Q/1500ZTL 002-2012

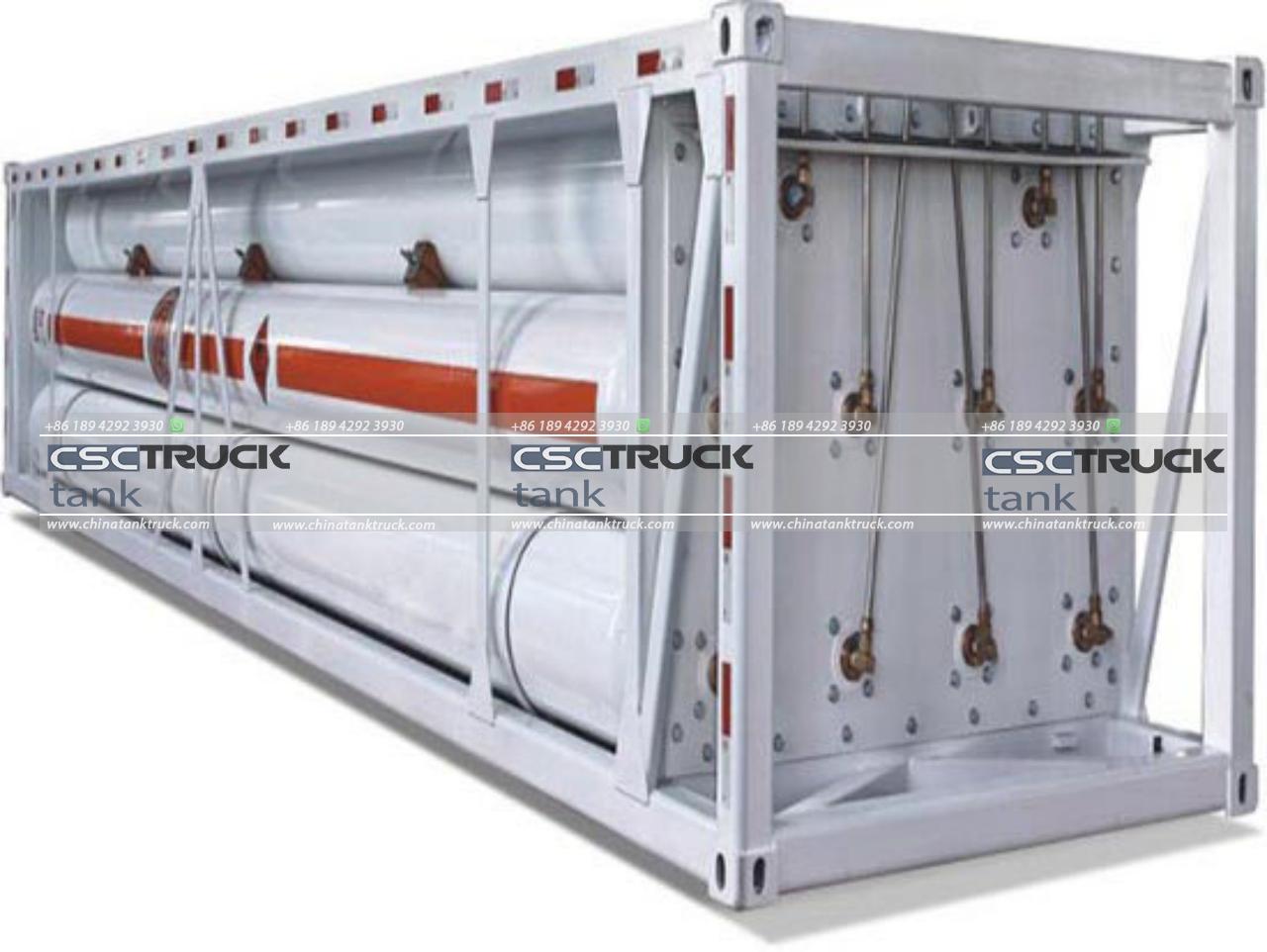

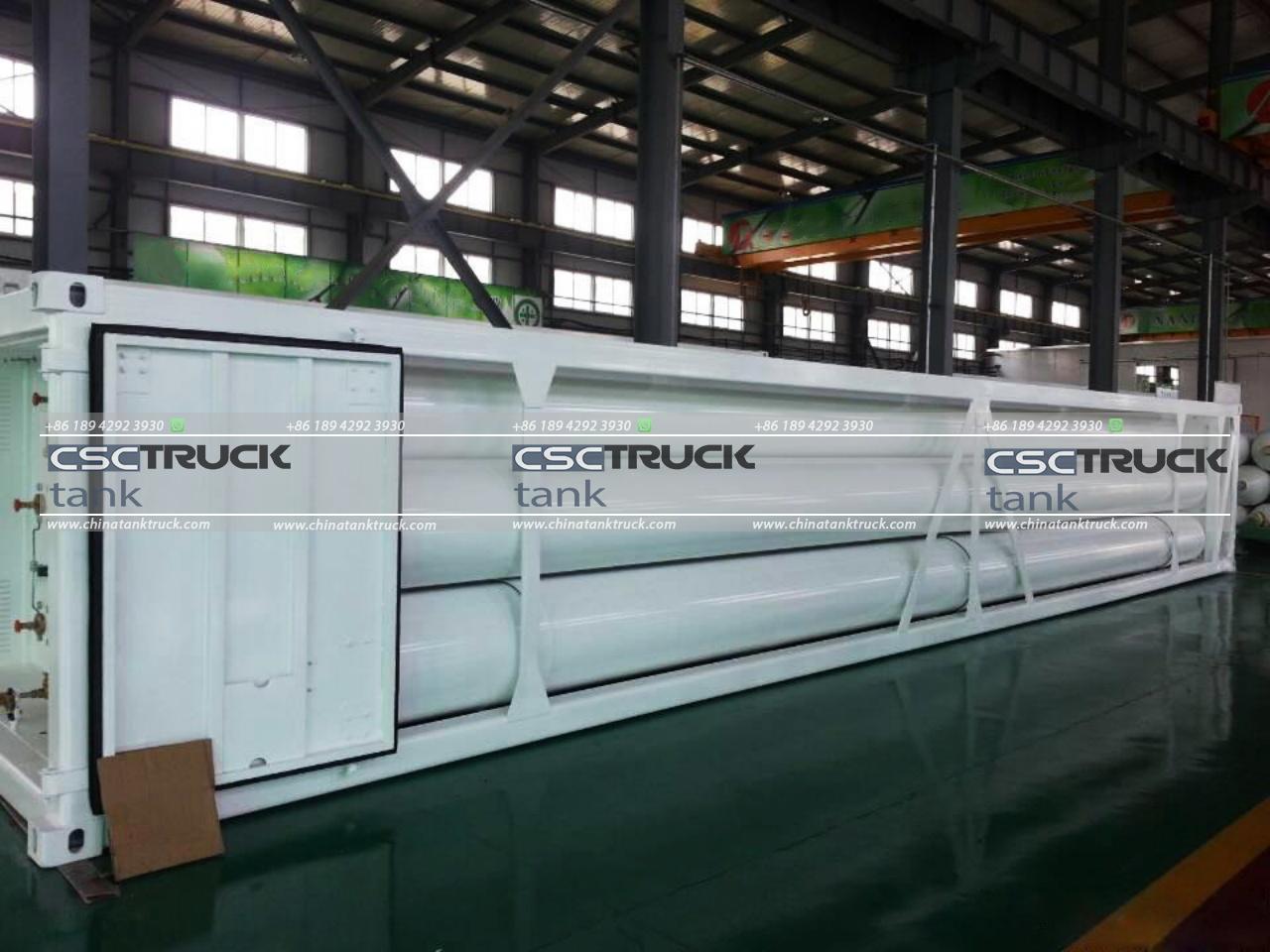

Tube Skid Container	Items	Parameter		Cylinder	Items	Parameter
	Type	GSJ08-2210-CNG-25			Working Pressure	25MPa
	Net Weight(without Chassis)	26,762Kg
	CNG Loading Weight	4,010Kg			Working Temperature	-50~65°C
	Rated Weight	30,772Kg			Main material	4130X
	Risk Class	2.1			Cylinder Quantity	6
	A code	1049
	Loading Medium	CNG			Total Cylinder Volume	25.02m3
	Leakage test pressure	25MPa			Hydrostatic test pressure	37.5MPa
	Inflating Volume	6,300N·m3(20ºC)			dimension(Diameter x Thickness x Length)	Φ711×17.4×12190
	Heat Treatment	Quenching+Tempering			Design Temperature	65ºC
	Outside dimensions(LxWxH)	12,192×2,438×1,400(mm)			Working Temperature	-40~60°C
					Leakage test pressure	25MPa
					Medium Property	Explosive
Bursting Disc	Bursting Pressure	37.5MPa			material	4130X
	Bursting Disc Device Discharging Diameter	≥ φ20			material	4130X
