BRIEF

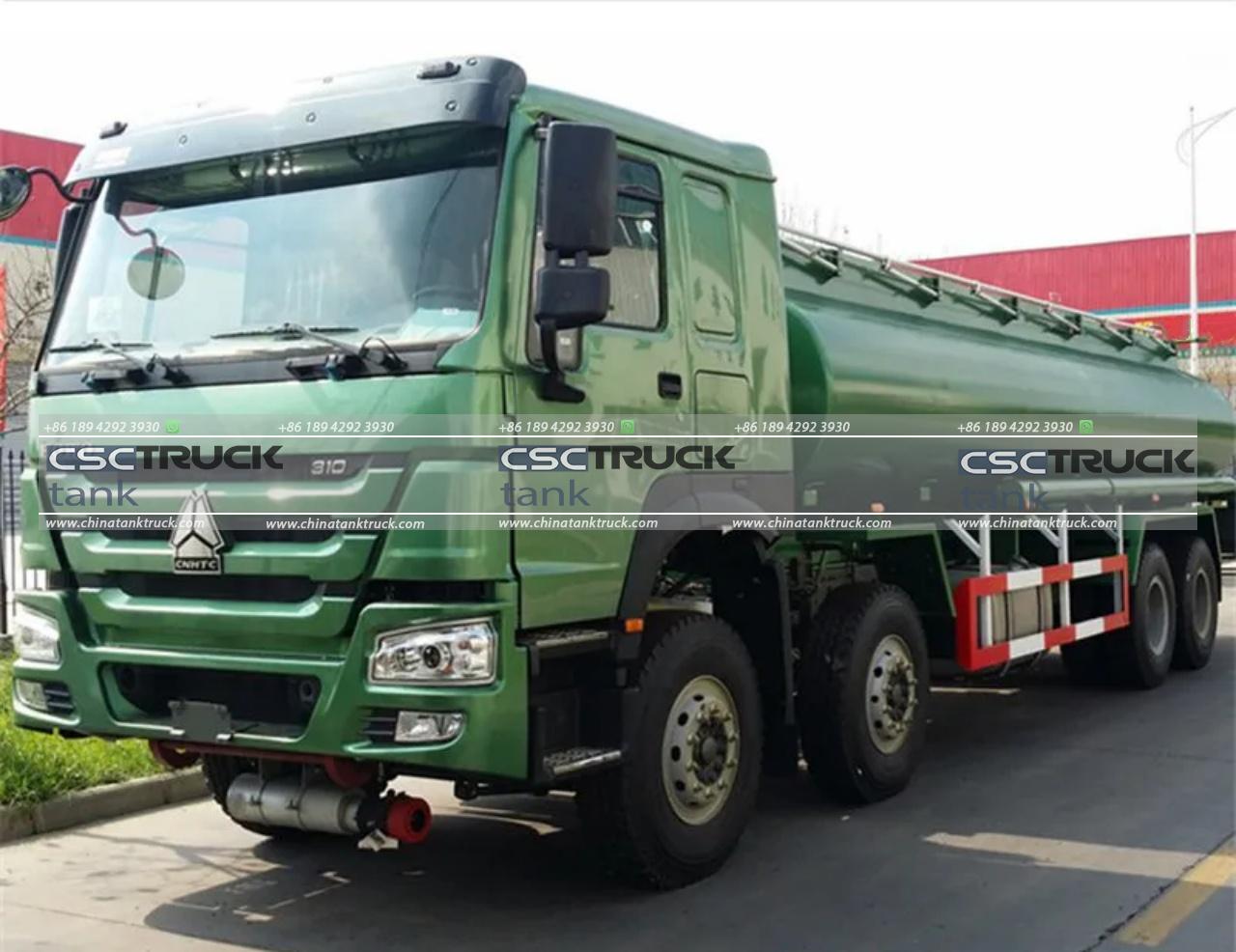

The 24 CBM mobile fuel tank truck produced by CSCTRUCK China Tank Truck is a versatile and robust solution designed for fuel transportation. Built on a HOWO chassis, this 8×4 drive vehicle offers exceptional reliability and durability, tailored to meet the needs of commercial and industrial applications.
At the heart of the truck is the D10.31-40 engine, a powerful 310HP unit compliant with Euro IV emission standards. This ensures not only efficiency but also adherence to environmental regulations. With a maximum driving speed of 75km/h, the truck is optimized for both highway and urban operations, balancing speed with safety.
The primary feature of the tank truck is its 24 CBM fuel tank, constructed from high-strength carbon steel. This material choice enhances durability and ensures safe transportation of fuel over long distances. The tank’s substantial capacity makes it ideal for large-scale fuel delivery operations, catering to industries such as logistics, construction, and energy.
The truck boasts an impressive loading capacity of 35,500 kilograms, underscoring its suitability for heavy-duty tasks. The 8×4 drive configuration further enhances its load-bearing capability and stability, even on challenging terrains.
Additional features include advanced safety and control systems, ensuring secure fuel handling and efficient operation. The mobile fuel tank truck’s design reflects a focus on practicality and performance, making it a reliable choice for businesses requiring high-capacity fuel transport.
Manufactured by CSCTRUCK China Tank Truck, a leading Chinese supplier of specialty vehicles, this model represents a blend of advanced engineering and affordability. It is an excellent option for businesses seeking a durable and efficient fuel transport solution that meets modern standards.
FEATURES
- Large Fuel Tank Capacity: The truck is equipped with a 24 CBM carbon steel fuel tank, ideal for transporting large volumes of fuel.
- Powerful Engine: Features the D10.31-40 engine model, delivering 310HP and meeting Euro IV emission standards for efficient and environmentally friendly performance.
- Robust Chassis: Built on a HOWO chassis with an 8×4 drive type, ensuring durability and stability for heavy-duty operations.
- High Loading Capacity: Designed to handle a maximum loading capacity of 35,500 kg, suitable for industrial and commercial fuel transport.
- Adequate Speed: Offers a maximum driving speed of 75 km/h, balancing safe operation with timely fuel delivery.
SPECIFICATION
| Model No. | CSCMFTT024 | |
| Cabin | HW76 Long Cabin, with 2 seats and 2 beds, with an Air Conditioner and an electric window. | |
| Engine | Model | D10.31-40 |
| Horse Power(hp/rpm) | 310/1,900, Euro IV Emission Standard | |
| Max.Torque(N·m/rpm) | 1,390/1,200-1,500 | |
| Displacement | 9.726L | |
| Type | 6-cylinder in-line with water cooling, turbocharger, and intercooler, 4-stroke common rail diesel engine. | |
| Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Loading Capacity: 2×9,000kgs | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. Ratio: 4.8. Option: 4.42. | |
| Suspension | Front suspension: Hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: Leaf semi-elliptic springs, bogie springs, and stabilizer. | |
| Steering System | ZF8118, Hydraulic steering with power assistance. | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake(emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake. | |
| Tire | 12.00R20 | |
| Fuel Tank Capacity (L) | 400L Diesel Tank | |
| Kurb Weight (kg) | 14,500 | |
| Loading Capacity (kg) | 35,500 | |
| Gross Vehicle Weight (kg) | 50,000 | |
| Overall Dimension(L*W*H)(mm) | 11,984×2,500×3,280 | |
| Tank Capacity(m3) | 24 | |
| Tank Material | Carbon Steel | |
| Nos of Compartment | Customized design from 1 to 5 | |
| Wheelbase(mm) | 1,800+4,600+1,350 | |
| Max. Speed (km/h) | 75 | |
