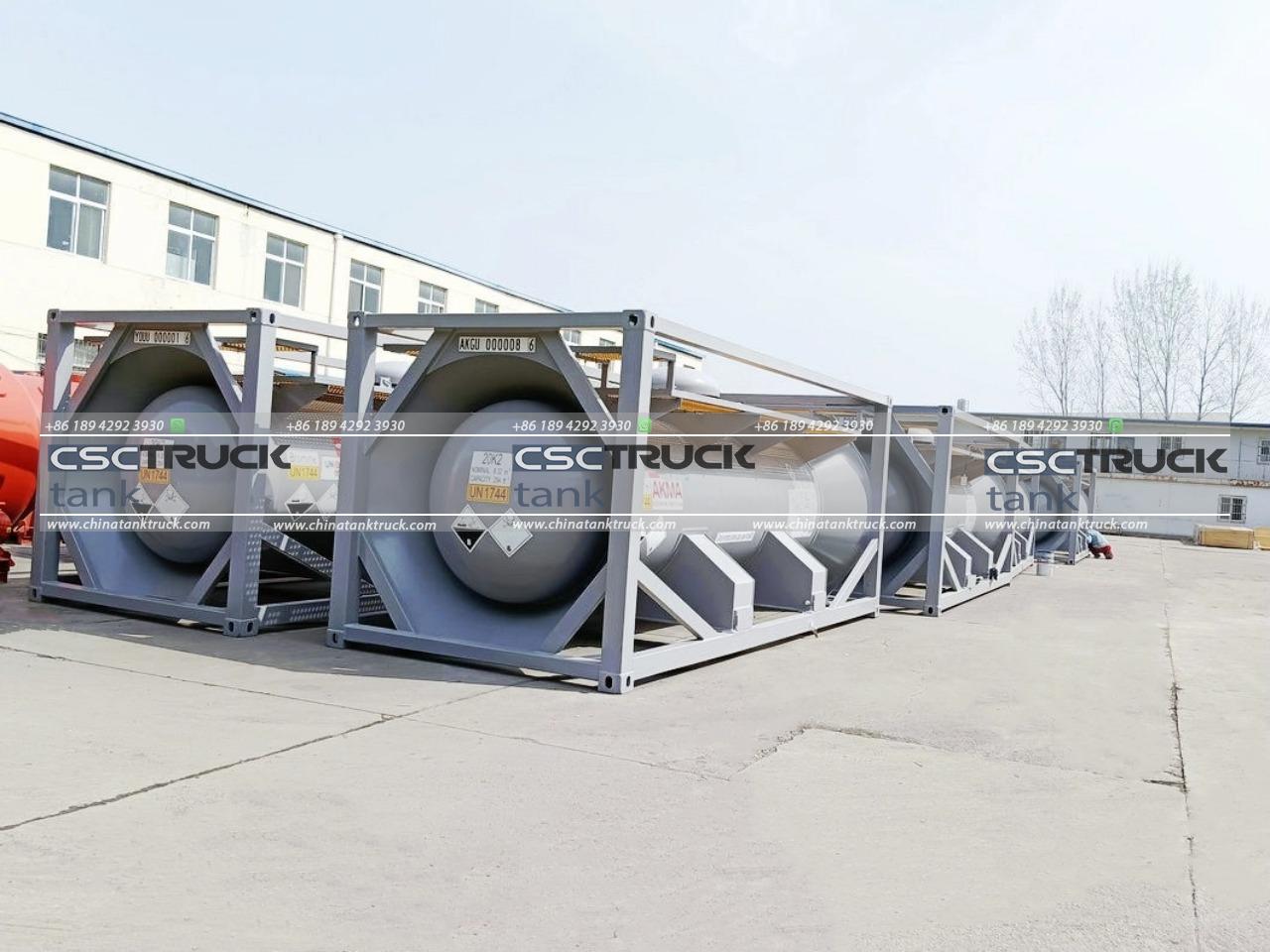

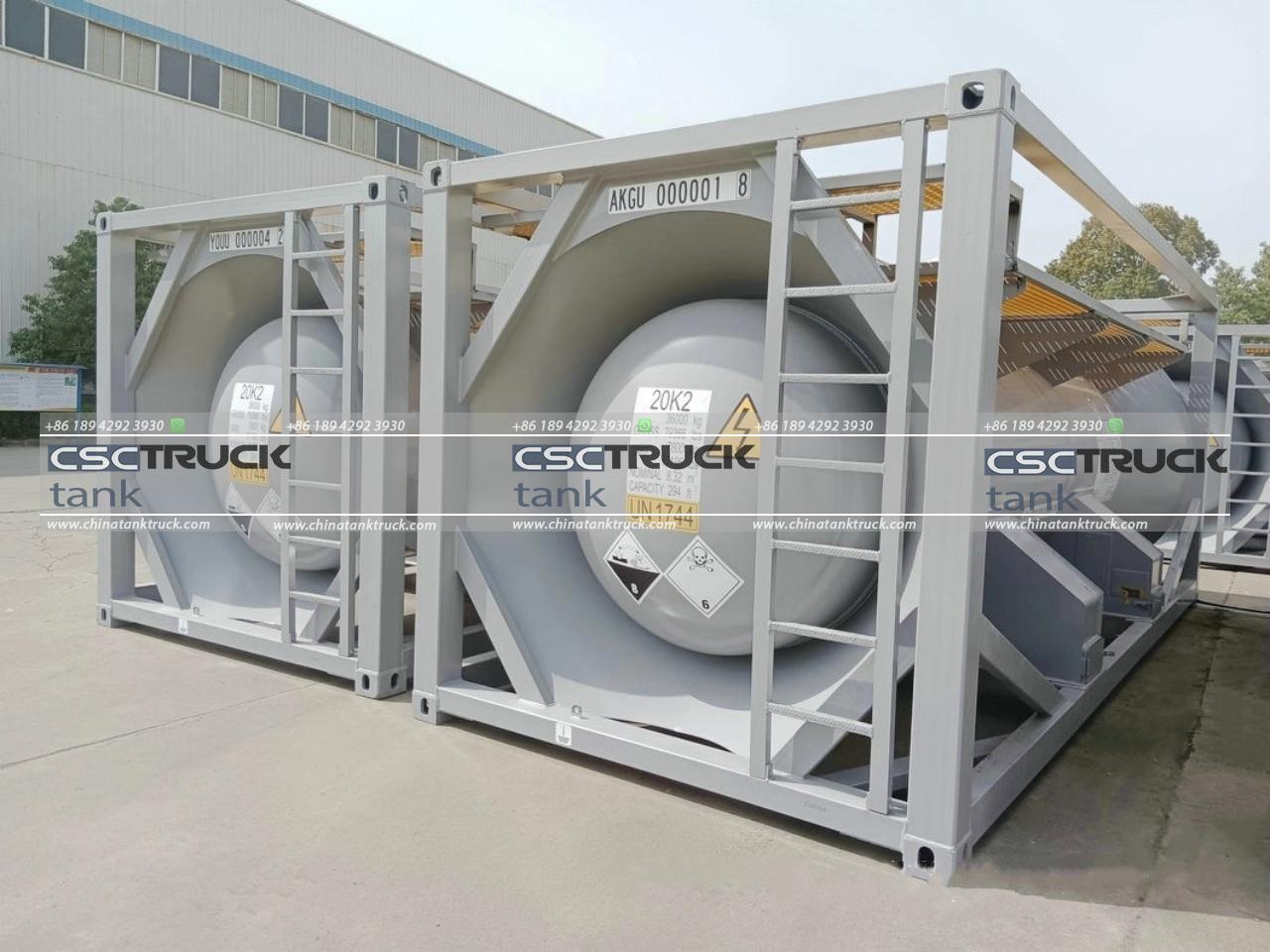

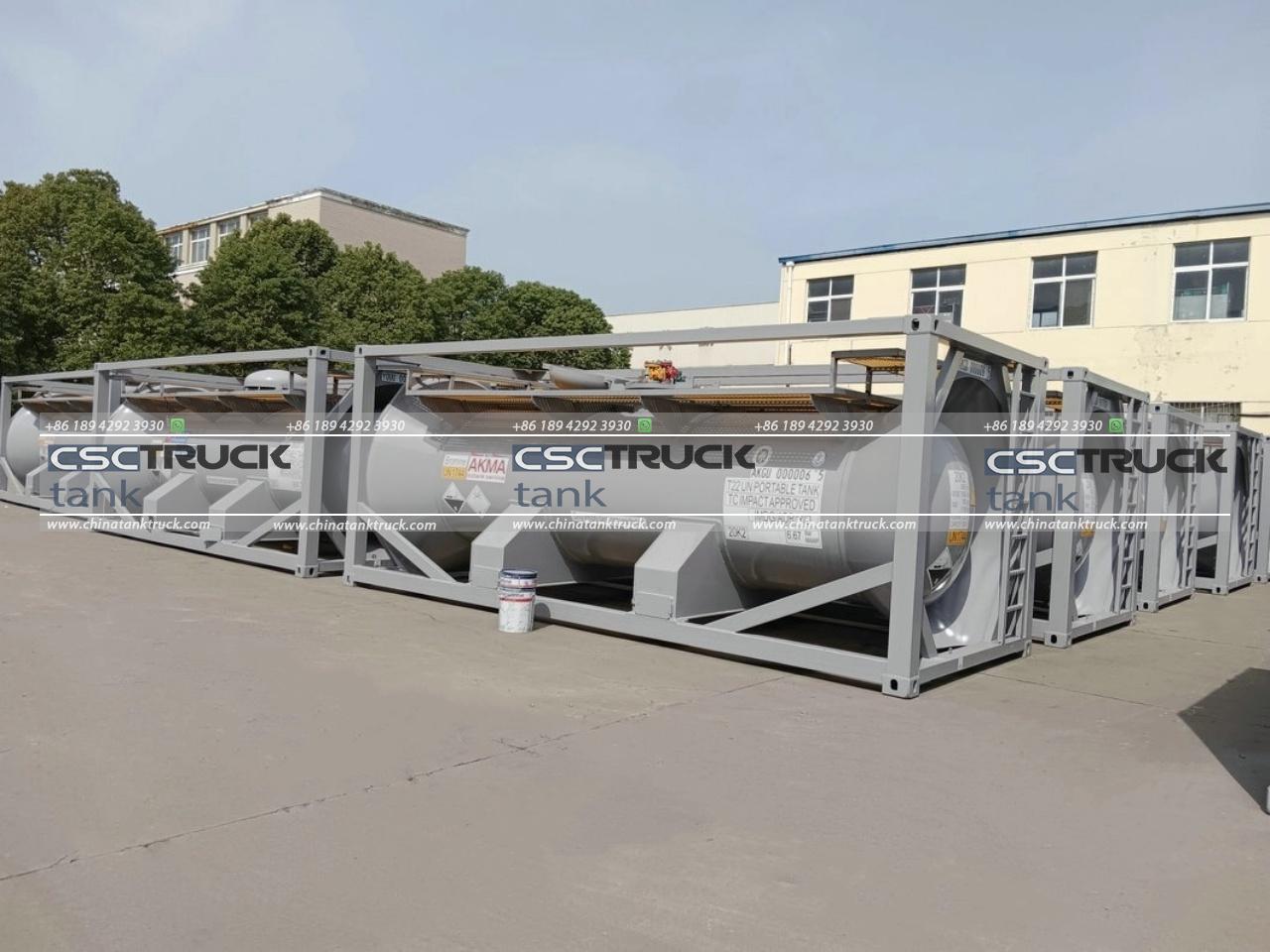

The 20FT T22 UN1744 ISO tank container produced by CSCTRUCK China Tank Truck is a specialized container designed for transporting bromine (UN1744). This model, T22, has a tank volume of 8,320 liters, suitable for handling hazardous materials. The container is built to withstand high pressures, with a design pressure of 6.67 bar and a test pressure of 10 bar, ensuring safety during transit. Its temperature range is from -40ºC to 65ºC, making it ideal for varying environmental conditions.

The tank is constructed from high-strength SA516M Gr485 steel, known for its durability and resistance to extreme temperatures and corrosion. The tank’s shell has a nominal thickness of 10 mm, while the head is 12 mm thick, providing robust protection for the cargo.

This tank container is engineered with a maximum operating capacity of 36,000 kg, ensuring it can handle heavy loads without compromising safety. Its design adheres to international safety standards for the transportation of hazardous materials, particularly bromine, a corrosive and volatile substance.

With its ISO-compliant dimensions and specifications, this CSCTRUCK China Tank Truck tank container offers reliability and efficiency for industries requiring the secure movement of dangerous goods like bromine.

1. Medium and Compatibility: Designed to transport Bromine (UN1744), ensuring compatibility with this specific hazardous material.

2. Tank Capacity and Pressure: The tank has a volume of 8,320 liters with a design pressure of 6.67 bar and a test pressure of 10 bar, making it suitable for high-pressure applications.

3. Temperature Range: Engineered to operate in extreme conditions, with a design temperature range of -40ºC to 65ºC, ensuring reliability in diverse environments.

4. Material and Thickness: Constructed with SA516M Gr485 steel, providing strength and durability. The shell has a nominal thickness of 10 mm, and the head has a nominal thickness of 12 mm.

5. Maximum Operating Weight: The tank has a maximum operating quality of 36,000 kg, ensuring a high payload capacity suitable for heavy-duty operations.
