BRIEF

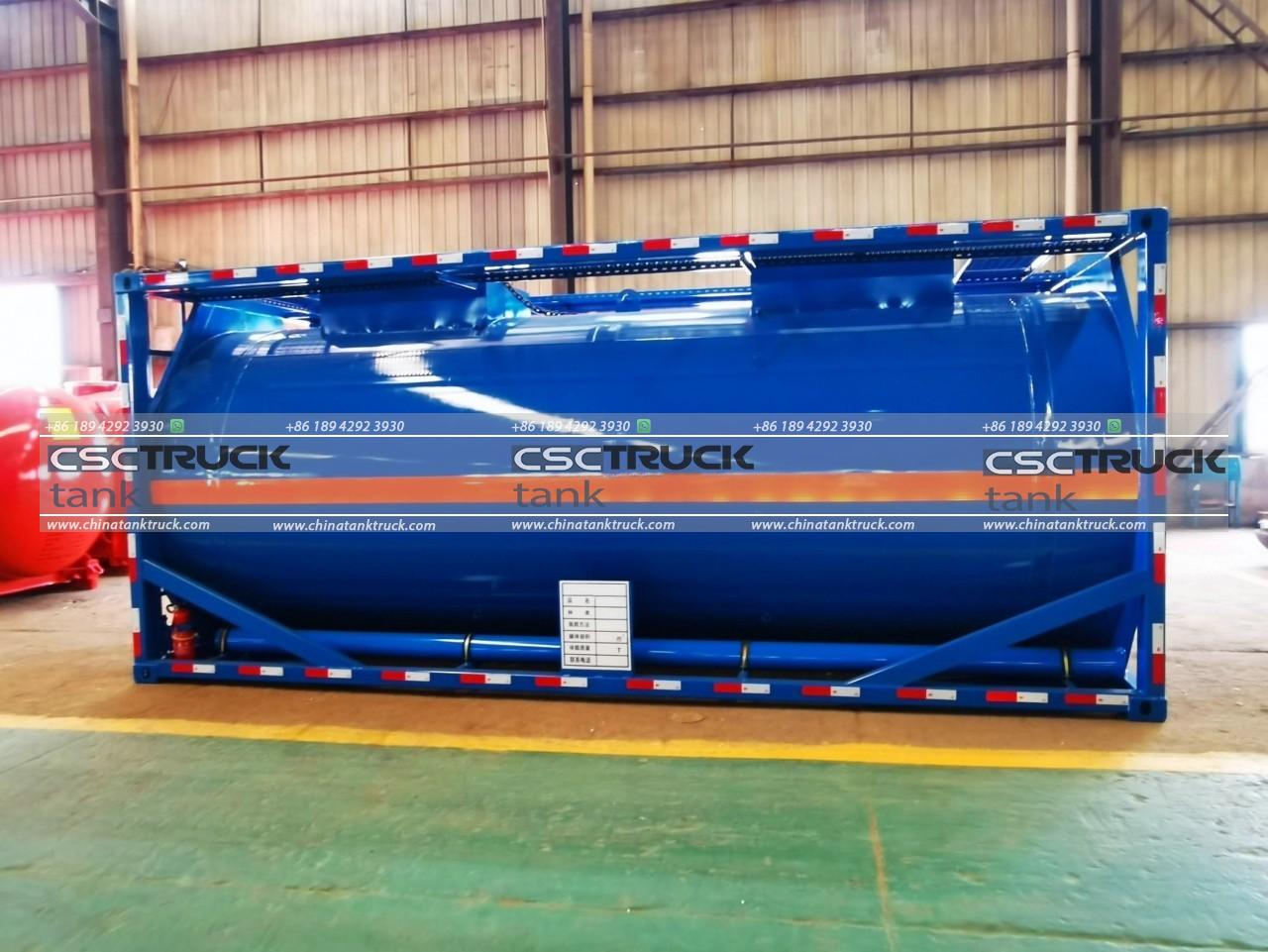

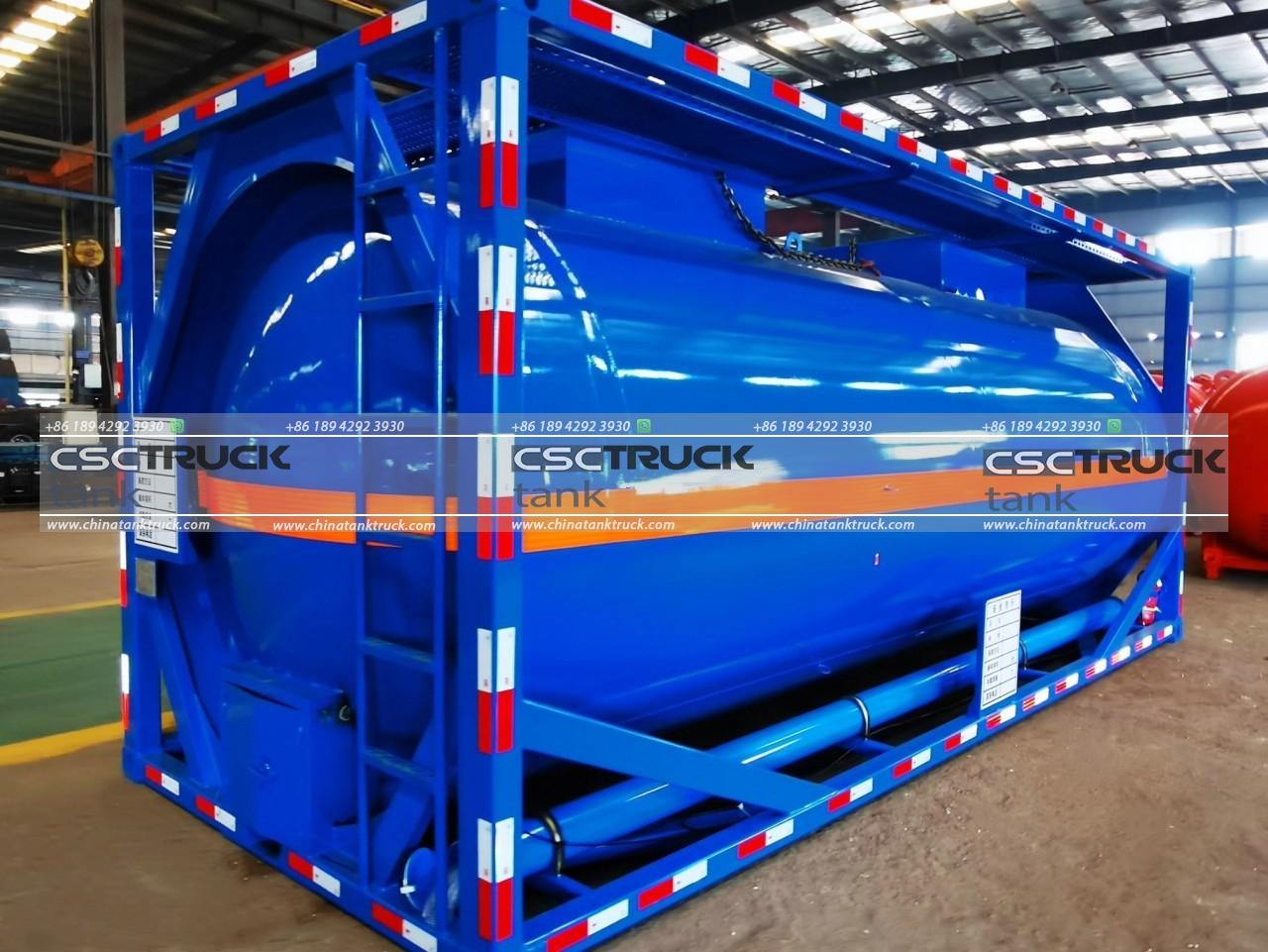

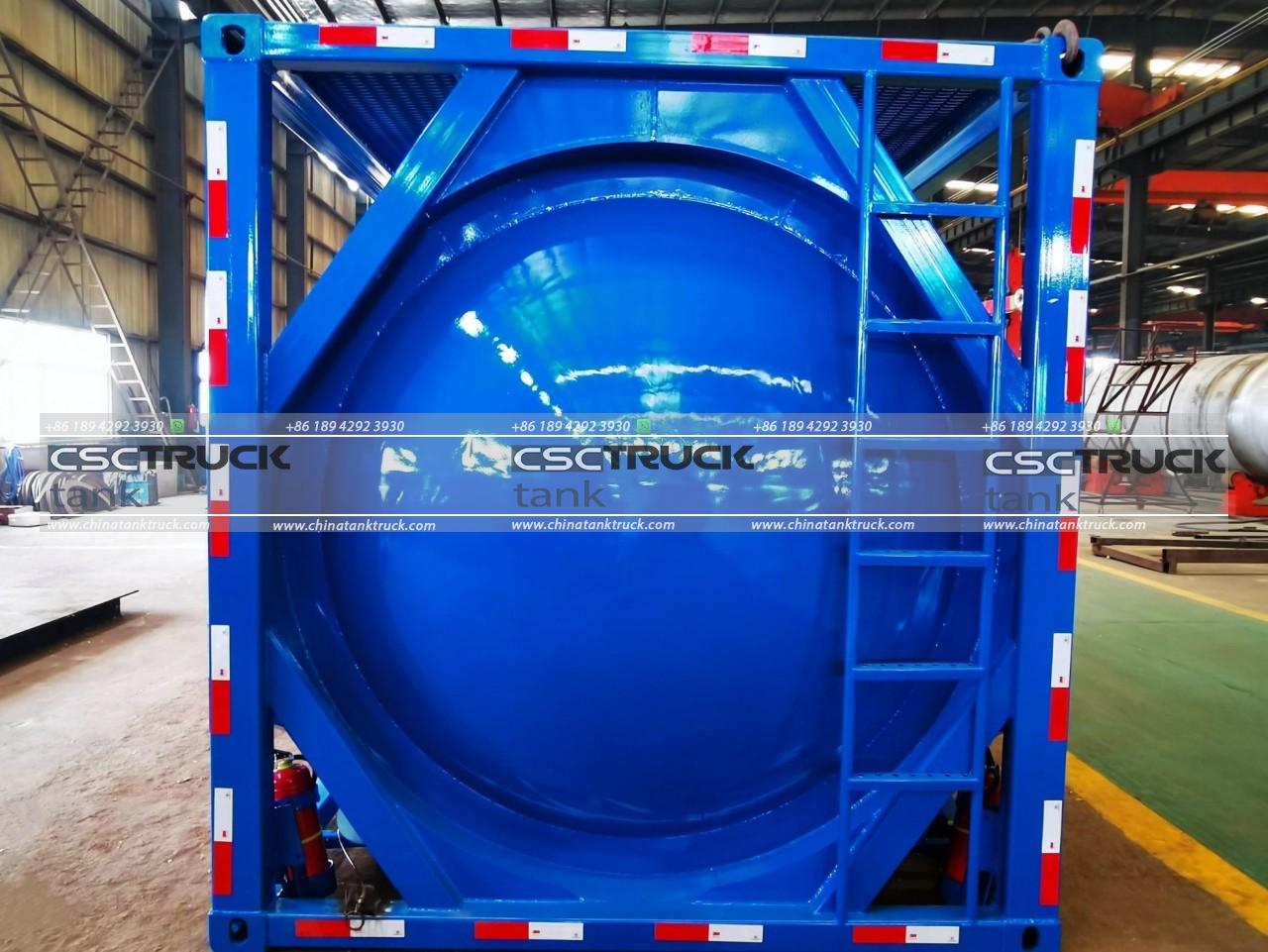

The 19 CBM 20FT ISO tank container produced by CSCTRUCK China Tank Truck is a specialized container designed for the safe and efficient transportation of hazardous liquids, specifically sulfuric acid with a concentration of 92-94% (UN1830). With a volume of 19 cubic meters, this ISO tank can handle a maximum loading capacity of 36,000 kilograms, making it suitable for bulk transport needs.

Key specifications of this tank container include a design pressure of 0.4 MPa, ensuring it can withstand the internal pressures generated by the contained liquid. The tank is designed to operate in a wide temperature range, from -40°C to +50°C, which provides flexibility for use in various climatic conditions.

The tank material is carbon steel SA-516M, known for its durability and resistance to the corrosive nature of sulfuric acid. The frame of the container is constructed from Q345D steel, a high-strength material that enhances the structural integrity and safety of the container during transit and handling.

The 20FT ISO tank container adheres to international standards, ensuring it can be used globally in intermodal transportation. Its robust construction and compliance with safety regulations make it an ideal choice for chemical and industrial companies that require reliable and safe transport of sulfuric acid.

Overall, the 19 CBM 20FT ISO tank container by CSCTRUCK China Tank Truck represents a well-engineered solution for the chemical transport industry, combining capacity, durability, and safety in one versatile package.

FEATURES

1. Tank Volume:

– The ISO tank has a capacity of 19 cubic meters (CBM).

2. Dimensions:

– The tank is designed to fit within a 20-foot ISO container frame.

3. Maximum Loading Capacity:

– The tank can handle a maximum load of 36,000 kilograms (kg).

4. Design Pressure:

– The tank is designed to withstand a pressure of 0.4 megapascals (MPa).

5. Design Temperature:

– The tank is constructed to operate within a temperature range of -40 to +50 degrees Celsius.

6. Material:

– Tank Material: The ISO tank is made from carbon steel SA-516M, which is known for its high strength and good weldability.

– Frame Material: The frame of the tank is constructed from Q345D, a high-strength structural steel known for its toughness and good welding properties.

7. Intended Cargo:

– The tank is specifically designed for transporting sulfuric acid with a concentration of 92 to 94%, classified under the UN number 1830.

SPECIFICATION

Characteristics:	Specification
Model:	19 CBM 20FT ISO Tank Container
Medium:	UN1830 Sulfuric acid with 92~94% acid
Volume:	17.5/18.5
External dimensions(LxWxH):	6,058×2,438×2,438mm
Maximum loading capacity:	36,000kg
Operating pressure:	Normal
Design pressure:	0.4Mpa
Pressure at test:	0.6Mpa
Design temperature:	-40~ +50 ºC
Tank material:	Carbon steel SA-516M
Shell material thickness:	6mm
Head material thickness:	8mm
Internal protective insert:	LLDPE7042 16mm
Frame material:	Q345D
Baffle:	None
Heat-insulating material:	50mm thick mineral wool-covered 1.0 carbon steel plate cladding.
Heating:	None
Walkway:	One
Loading type:	Top outlet and top loading
Fittings:	1 * DN500 lined with PE bolted manhole,1* relief valve with adaptor and bursting disc ,1* DN25 PTFE lined ball valve for air inlet ,1DN50 PTFE lined ball valve for liquid discharge, 1DN50 spare provision with blind flange.
Others:
Painting：	Acrylic acid and alkali resistant paint, total paint color 120um, color can be specified.
Design code：	ASME VIII Div.1 where applicable and IMDG UN T8 CSC ISO RID/ADR TIR /Customs UIC.
Classification Society：	BV
