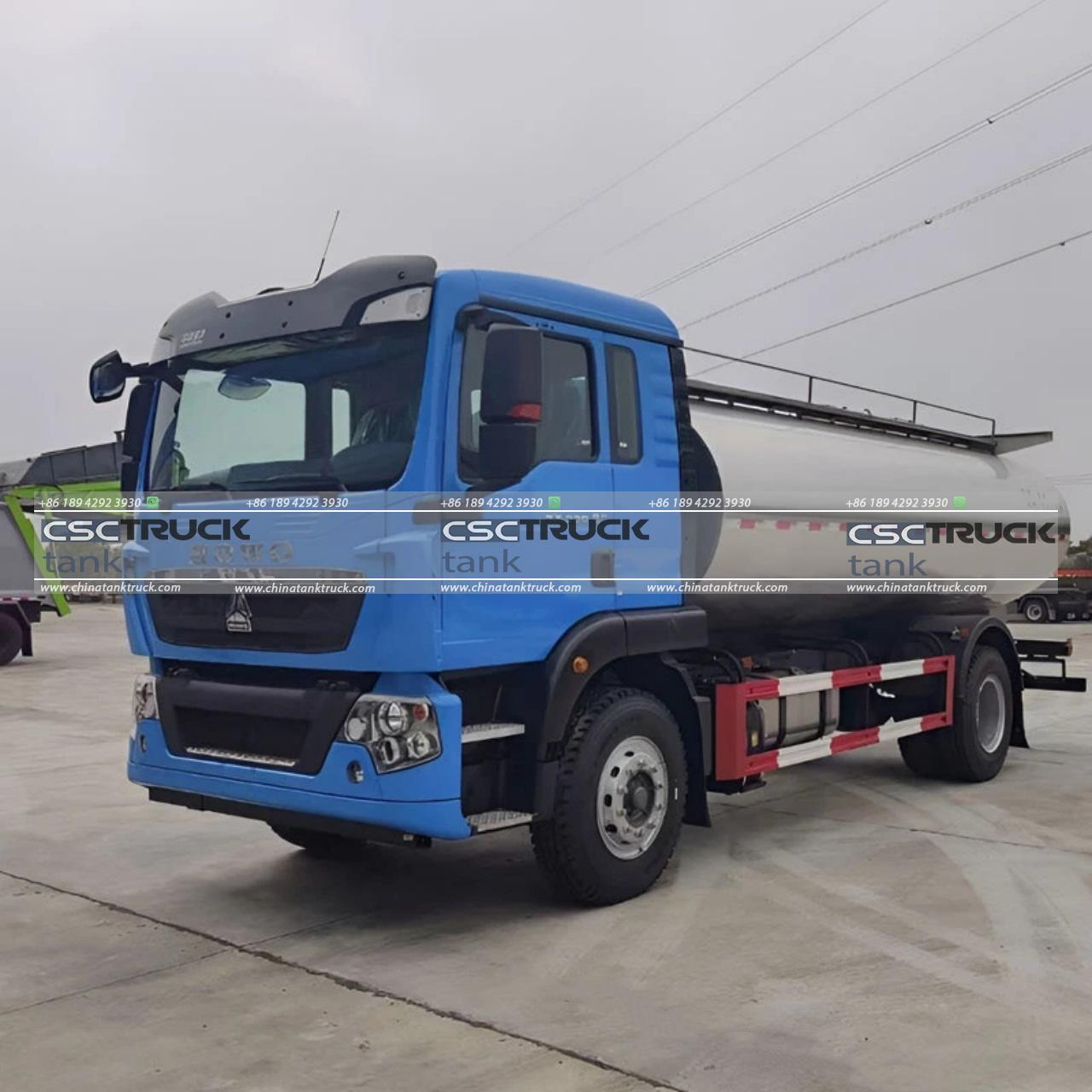

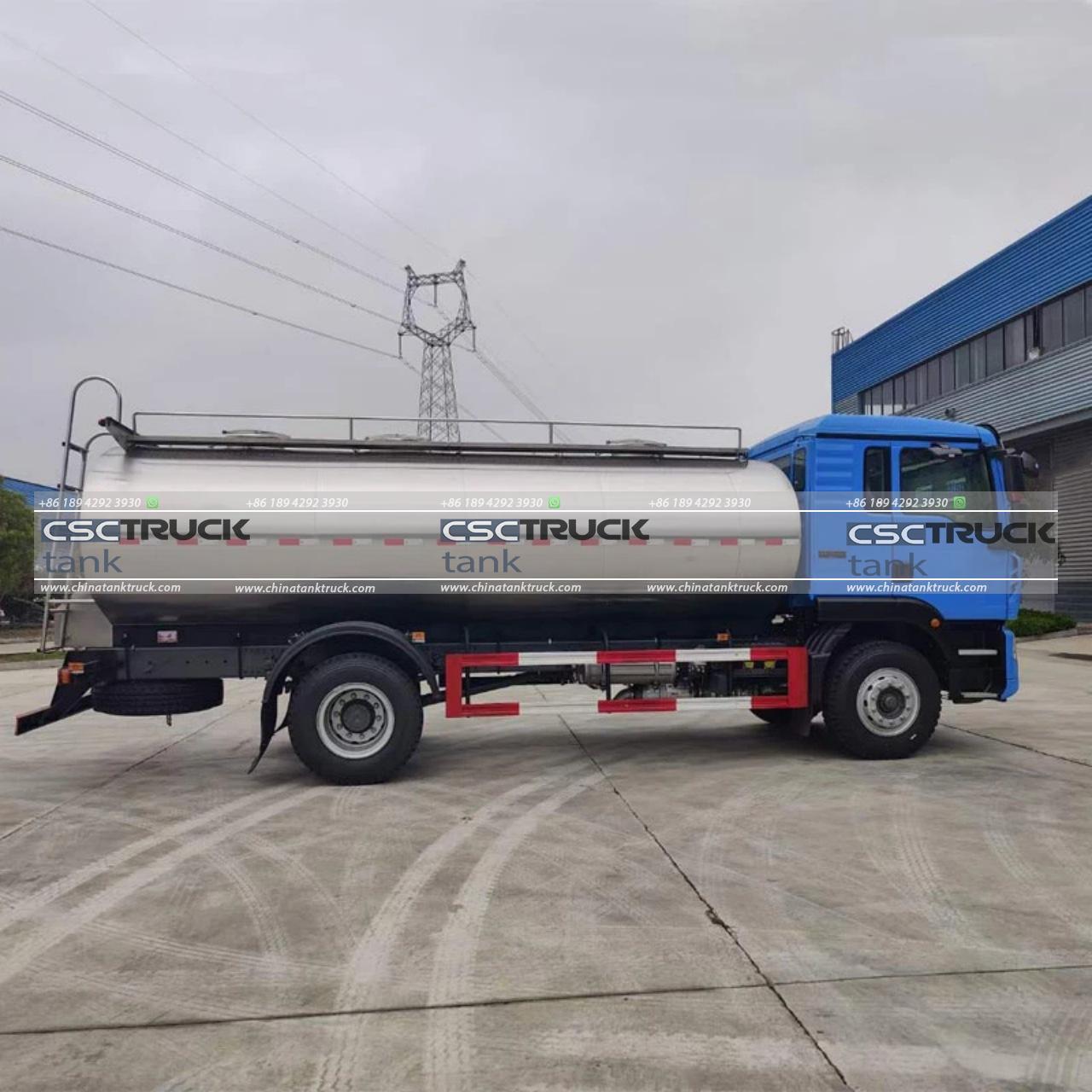

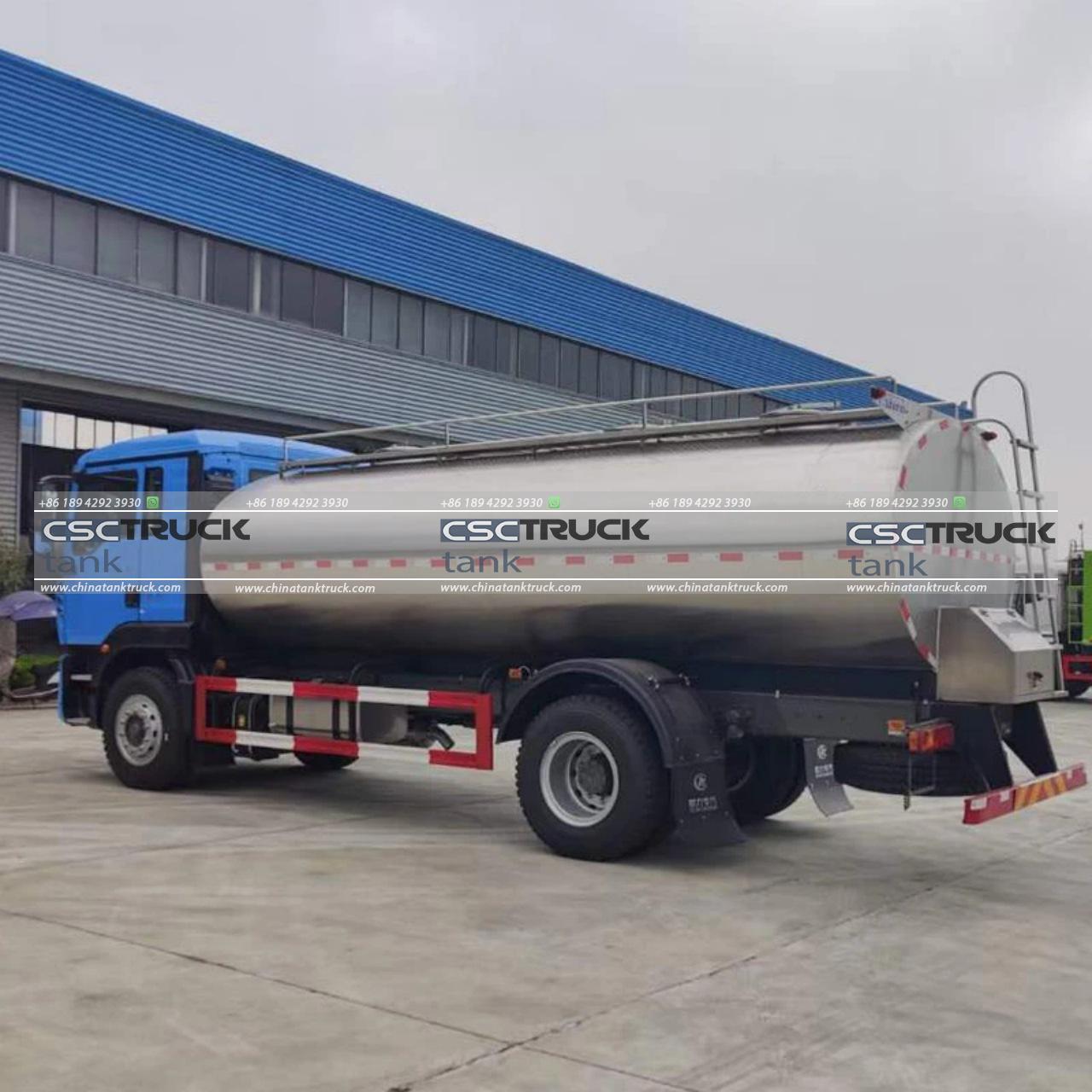

10 CBM 10 Ton Payload Milk Tank Truck (2)

10 CBM 10 Ton Payload Milk Tank Truck (3)

10 CBM 10 Ton Payload Milk Tank Truck (4)

10 CBM 10 Ton Payload Milk Tank Truck (5)

10 CBM 10 Ton Payload Milk Tank Truck (6)

Model No.:	10 CBM 10 Ton Payload Milk Tank Truck
Milk Tank Volume:	10 CBM
Overall Dimensions(LxWxH):	8,700×2,500×3,100mm
Drive Type:	4×2
Chassis Brand:	HOWO
Payload:	10,300kg
Engine Model:	Optional
Wheelbase:	4,500mm
Engine Power:	290HP
Emission Standard:	EURO 5
Milk Tank Material:	304/2B food grade stainless steel with 4mm thickness

Truck Enquiry

Categories: Milk Tank Truck, Stainless Steel Tank Truck

Description

BRIEF

The 10 CBM 10-ton payload milk tank truck produced by CSCTRUCK China Tank Truck, a prominent Chinese manufacturer, is a specialized vehicle designed for the efficient and safe transportation of milk. Built on the robust HOWO chassis, this truck boasts a 4×2 drive configuration, ensuring reliable performance across various road conditions.

One of the standout features of this milk tank truck is its substantial payload capacity of 10,300 kilograms, making it an ideal choice for large-scale dairy operations. The truck is equipped with a powerful engine, with an optional choice that delivers 290 horsepower, ensuring smooth and efficient transport even under full load conditions. This engine complies with the EURO 5 emission standards, reflecting a commitment to environmentally friendly operation and reduced carbon footprint.

The milk tanker itself is constructed from 304/2B food-grade stainless steel, ensuring the highest standards of hygiene and safety for milk transportation. This material is renowned for its durability and resistance to corrosion, which is crucial for maintaining the quality and purity of the milk during transit.

Overall, the 10 CBM 10-ton payload milk tank truck from CSCTRUCK China Tank Truck is a high-performance, reliable solution for the dairy industry, combining strong engineering with a focus on environmental standards and food safety. Whether for local deliveries or longer hauls, this truck is designed to meet the rigorous demands of milk transportation, ensuring that dairy products reach their destination in optimal condition.

FEATURES

1. High Payload Capacity:

– The truck boasts a payload capacity of 10 tons (10,300 kg), making it suitable for transporting large quantities of milk efficiently.

2. Durable and Safe Milk Tanker:

– It features a 10 cubic meter (CBM) milk tanker made from 304/2B food-grade stainless steel, ensuring the safe and hygienic transportation of milk.

3. Robust Chassis:

– Built on a HOWO chassis, which is known for its reliability and durability, enhancing the overall performance and lifespan of the truck.

4. Powerful Engine:

– The truck is equipped with a 290HP engine, with an optional engine configuration available, providing robust power and performance for various driving conditions.

5. Environmental Compliance:

– It meets the EURO 5 emission standard, reflecting its compliance with stringent environmental regulations and ensuring reduced emissions and a smaller environmental footprint.

SPECIFICATION

Product Name	10 CBM 10 Ton Payload Milk Tank Truck
Tank volume	10 CBM
Overall dimension(LxWxH)(mm)	8,700×2,500×3,100
Gross weight(Kg)	11,995
Payload(Kg)	10,300
Curb weight(Kg)	7,505
Axle No.	2
Cab seats(person)	2,3
Approach/departure angle(°)	19/15
Front/Rear track(mm)	2,022/1,830
Engine Parameters
Chassis Description	1. Howo 4×2 chassis, single row and A/C, left/right hand drive optional
	2. 4,500mm wheelbase, 290HP engine, 10-speed gearbox
	3. Air brake
Standard Equipment	1. Tank volume: 10CBM. Tank material has 3 layers. The inner tank is made of 304/2B food grade stainless steel with 4mm thickness, the outer layer is 2mm stainless steel skin, and the middle layer is 8cm foaming thermal insulating material.
	2. Equipped with a tank, self-motion cleaning system(such as cleaning pole, cleaning pipe, and Rotary cleaning nozzle) in every warehouse, manhole, breather valve, pipeline, switch points storehouse, pipe joint, self-flowing valve, water box, operation control system, etc.
	3. The heat preservation effect can keep <1 ºC in 24 hours.
	4. The interior of the milk tank is very smooth and highly polished, so it does have not any sharp angles.
Optional Equipment	We can make the milk tank truck according to the customer’s requests with the optional equipment below:
	1. Pump in and pump out
	2. Tank can be independent or separate for many mediums at the same time
	3. Flow meter
	4. Liquid level meter
	5. Safety lock device
	6. Spill prevention device
	Please advise us in advance if you have any special requests for the milk tank truck, we can equip various kinds of optional equipment for you.
Purposes	A milk tank truck is also called a milk transport truck, milk transport trailer, milk tanker trailer, milk tanker, milk truck tank, liquid food truck, selling food truck, etc. It is mainly used for loading and transporting liquid food, milk, water, etc.
Product Advantage	1. Safe and economical, there are a variety of configurations and choices to meet market demands.
	2. Best Quality at a competitive price.
